Effect of heating rate during annealing on microstructure and texture evolution of AA8021 aluminum foil

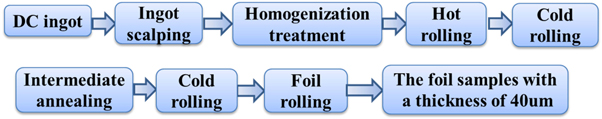

The material studied is the cold rolled AA8021 aluminum foil with a thickness of 40 μm. Aluminum foil was produced under industrial conditions with chemical composition listed in table 1 and the manufacturing process is shown in figure 2. The total cold rolling reduction rate is about 92% from the intermediate annealing thickness to the final aluminum foil thickness.

Zoom In Zoom Out Reset image size

In batch annealing furnace, two different heating rate of 10 °C h⁻¹ and 40 °C h⁻¹ were adopted to simulate the annealing process of aluminum foil under industrial conditions. As shown in figure 3, the samples were heated up to 270 °C and then held for 16 h.

Zoom In Zoom Out Reset image size

Microhardness of aluminum foil sample was measured on its surface by a 402 MVD Vickers equipment with a load of 10 g and a dwell time of 10 s. Each of the reported microhardness value was the average of 6 individual measurements.

Metallographic samples of the aluminum foil were prepared by anode coating, and their grain structure were observed by optical microscope (OM) of Zeiss Axio Imager with the polarized light mode.

Sample preparation for EBSD scanning was dealt with mechanical polishing and electrochemical polishing using a 10% perchloric acid ethanol solution. The grain orientation and quantitation grain microstructure evolution of aluminum foil during annealing were characterized by electron backscatter diffraction (EBSD) in a Thermo Fisher (FEI) Apreo C SEM with EDAX TSL OIM Analysis software. The samples for EBSD were metallographically prepared and electrochemically polished using a 10% perchloric acid ethanol solution. The Empyrean x-ray Diffractometer was used to examine the macro texture evolution during annealing. Orientation distribution functions (ODFs) were calculated by using Empyrean equipped software.

The microstructure of the original aluminum foil is shown in figure 4. It could be observed in figure 4(a) that the grain structure of the aluminum foil before annealing is strip-shaped along the rolling direction. Its color difference reflects the distinctive grain structure orientation. Figure 4(b) shows the distribution of the intermetallic compounds in the aluminum matrix. These second phase particles can be divided into two categories. One is the large-sized bulk primary metastable Al₆Fe phase with a size of about 2–4 μm; the other one is a small-sized needle-like or dot-like dispersed Al₃Fe equilibrium phase with a size smaller than 1 μm.

Zoom In Zoom Out Reset image size

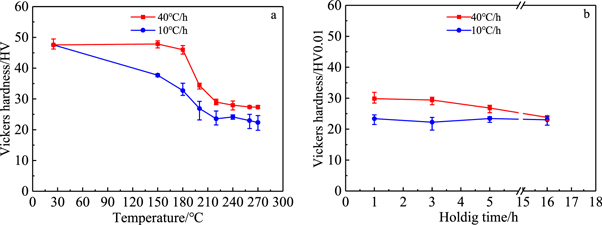

The microhardness evolution of AA8021 foil during the heating and holding process is shown in figure 5. The heating rate has a significant effect on the softening behavior of aluminum foil during annealing. When the heating rate is 10 °C h⁻¹, the microhardness of the aluminum foil gradually declines from 47.6 HV to 23.6 HV with increasing temperature and becomes relatively stable after 220 °C. However, when the heating rate is 40 °C h⁻¹, the initial microhardness of aluminum foil is stable at 47 HV, and starts to decrease significantly after 180 °C. Similarly, the microhardness tends to be stabilized at around 29 HV after 220 °C. Obviously, 220 °C is a turning point in the microhardness change of aluminum foil under two conditions.

Zoom In Zoom Out Reset image size

As shown in figure 5(b), it can be observed that when the heating rate is 10 °C h⁻¹, the microhardness of aluminum foil hardly changes during the holding period, and its microhardness is 23 HV. When the heating rate is 40 °C h⁻¹, the microhardness of the aluminum foil slightly decreases as a function of holding time and becomes consistent with the sample subjected to a heating rate of 10 °C h⁻¹. The variation of microhardness during annealing usually reflects the softening behavior and recrystallization behavior of material [17, 18].

According to [19, 20], during the aluminum foil rolling process, the proportion of high-angle grain boundaries increases rapidly with total cold rolling reduction rate increasing, and the micro-substructures are dominated by high-angle grain boundaries. When the cold rolling rate reaches more than 88%, the morphology of the micro-substructure is fine and equiaxed. The AA8021 aluminum foil samples studied in this experiment had experienced severe plastic deformation with a cold rolling reduction rate of 92%. In order to describe the characteristics of the micro-substructure during the annealing process of this aluminum foil, all of them are regarded as grains with high-angle boundaries.

The orientation image maps of the AA8021 aluminum foil sample during the annealing process were presented in figure 6. Under the condition of slow heating at 10 °C h⁻¹, the evolution of the grain structure was a gradual process. A few recrystallized grains were present in the matrix at 150 °C, as pointed out by the arrows in figure 6(a). As temperature rises up to 180 °C, more recrystallized grains appears in the matrix (figure 6(c)). When the annealing temperature reaches to 220 °C, the grain size grows up significantly, and the orientation aggregation characteristics of the grains are almost fully disappeared.

Zoom In Zoom Out Reset image size

When the annealing temperature reaches 150 °C with rapid heating rate of 40 °C h⁻¹, the grain distribution has obvious orientation aggregation characteristics, and almost no recrystallized grains are observed in the matrix (figure 6(b)). As the annealing temperature increases to 180 °C, the recrystallized grain structure began to appear in the matrix (pointed out by arrows in figure 6(d)). As the annealing temperature rises up to 220 °C, the grain size grows up significantly, and the orientation aggregation characteristics of the grains are almost fully disappeared.

Regardless of the slow-heating or fast-heating, there is no obvious grain microstructure change during the holding stage at 270 °C. It can be seen from figures 6(g)–(i) that the change of grain morphology is not significant with the holding time from 1 h to 16 h.

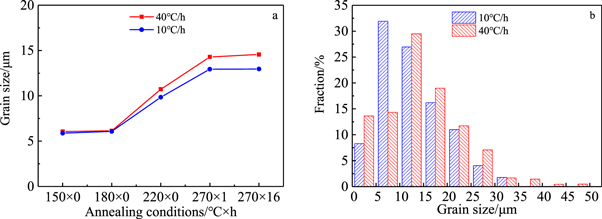

The evolution of the average grain size during the annealing process and the size distribution are presented in figure 7. It can be seen from figure 7(a) that when the temperature is lower than 180°C, the average grain size changes little. When the temperature is higher than 180 °C, the average grain size is almost kept increasing linearly with the temperature. Compared with the grains of the sample heated at 10 °C h⁻¹, the ones heated at 40 °C h⁻¹ grow relatively faster. The growth trend of the average grain size of samples with two heating rates declines with the extension of holding time. The average grain size of the slowly-heated sample (10 °C h⁻¹) is about 13.0 μm after holding for 16 h, which is smaller than that of the rapidly-heated sample (40 °C h⁻¹) with an average grain size of about 14.6 μm.

Zoom In Zoom Out Reset image size

Figure 7(b) illustrates the final grain size distribution at two heating rates. Under the slow heating condition, the fraction of small-sized grains below 10 μm is significantly higher than that of rapidly-heated aluminum foil samples after annealing. The fraction of large-sized grains over 20 μm is 16.8% for the slowly-heated sample, which is lower than 22.9% for the rapidly-heated sample. It is worth noting that the grains larger than 40 μm are found in the rapidly-heated sample with a ratio of about 2.4%, while the maximum grain size does not exceed 35 μm for the slowly-heated sample.

XRD was utilized to analyze the macro texture evolution of aluminum foil during the annealing process. Figure 8 shows the ODF graphs of two samples with different heating rates before, during and after annealing. The rolling texture of the aluminum foil before annealing is mainly made up of Cu texture, S texture, and Brass texture (Bs for short), which are common rolling texture types in cold-rolled aluminum alloys. The maximum texture intensity of aluminum foil was 17.7 before annealing. During heating and holding stages, the maximum texture intensity gradually increases, especially the intensity of cube texture increases significantly. After annealing, the texture intensity with two heating rate samples are 21.3 and 19.3, respectively. During the whole annealing, the heating rate has little effect on texture evolution.

Zoom In Zoom Out Reset image size

The quantitative analysis of the macro texture in AA8021 foil under two heating rates during the annealing process is plotted in figure 9. The evolution of texture components at two heating rates is very similar. The volume fraction of the S texture changes little in the heating stage, and slightly increases in the holding stage. The volume fraction of the Cu texture decreases slightly after heating to 180 °C, then it remains almost unchanged. The volume fraction of the Brass texture slowly decreases during the heating process.

Zoom In Zoom Out Reset image size

Cube and R textures are the two main recrystallization textures in the recrystallization annealing process for aluminum alloys. In the initial stage of annealing, the volume fraction of Cube texture increased significantly with increasing temperature until it reaches 220 °C. While over 220 °C, the growth rate of volume fraction of Cube texture slows down and the volume fraction of R texture increases slightly.

The recrystallization mechanism of aluminum alloy includes discontinuous recrystallization and continuous recrystallization. The discontinuous recrystallization contains two processes: nucleation and growth. According to the discontinuous recrystallization mechanism, the nucleation rate of recrystallization would increase with the increase of heating rate, which furtherly leads to finer grain structure after recrystallization [14–16, 21]. However, in this study, a finer grain structure is obtained after recrystallization with a slower heating rate. It has been reported that continuous recrystallization is found to be promoted by small initial grain size, large second-phase particles and large strains [22]. As shown in figure 6(a), the grain size of AA8021 aluminum foil grows up to ∼6 μm when the heating temperature reaches 150 °C, which means there is a smaller size grain in the H18 aluminum foil. Meanwhile, there are large numbers of coarse Fe-containing second phases present in the matrix, as shown in figure 3. Besides, the total cold rolling reduction rate from intermediate annealing thickness to aluminum foil thickness is 92%. Hence, it can be inferred that continuous recrystallization may occur during the annealing process. Similar phenomena have also been found in some other 8xxx aluminum alloys [23, 24].

For the continuous recrystallization, the crystal nuclei grow up without nucleation process during heating, and the growth rate is dependent on the following formula [25]:

$$\begin{eqnarray}&&{\rm{G}}=\displaystyle \frac{{D}_{B}}{{\rm{KT}}}\cdot \displaystyle \frac{{E}_{s}}{\lambda }.\end{eqnarray} \tag{ 1 }$$

Where G is the growth rate of the crystal nuclei, D_B is the self-diffusion coefficient at the grain boundary, λ is the boundary width, K is the Boltzmann constant, and E_S is the deformation storage energy per molar.

Based on the formula (1), the growth rate of crystal nucleus increases with deformation energy storage E_S , leading to finer grain size after recrystallization. It can be seen from figure 5(a), as the temperature increases from 180 °C to 220 °C with the heating rate of 10 °C h⁻¹, the microhardness decreases by 14.1 HV, while that is 17.0 HV for heating rate of 40 °C h⁻¹. This presents that under the condition of rapid heating, more deformation energy is released in the high temperature stage (180 °C–220 °C), which is conducive to the fast growth of crystal nuclei according to formula (1). Therefore, the grain size of the sample with rapid heating is slightly larger than that with slow heating after recrystallization completed at 220 °C.

The growth rate of grains after recrystallization depends on the velocity of grain boundary migration, as shown in the following formula [26]:

$$\begin{eqnarray}&&{\rm{V}}={\rm{MP}}{\rm{.}}\end{eqnarray} \tag{ 2 }$$

Where V is the grain boundary migration velocity, M is the grain boundary mobility, and P is the driving force on grain boundaries. The mobility of grain boundaries is temperature dependent and follows an Arrhenius-type relationship as

$$\begin{eqnarray}&&{\rm{M}}={M}_{0}\exp \left(-\displaystyle \frac{Q}{{\rm{RT}}}\right).\end{eqnarray} \tag{ 3 }$$

In this case, M₀ is pre-exponential factor, Q is activation energy, R is molar gas constant, and T is temperature.

According to the formula (3), the mobility of grain boundaries increases with temperature increasing, hence, the grain size would continue to grow as the heating temperature further rises.

Therefore, after the recrystallization is completed at 220 °C, the gain size of samples with two different heating rates continue to grow on the basis of the recrystallized grain, as shown in figure 7(a). In the holding stage, that is, after the temperature reaches 270 °C, the grain size changes little with the holding time.

It can be seen from figure 6 that when the annealing temperature reaches 180 °C, the recrystallized grain structure appears in the aluminum foil samples for both heating rates. In order to analyze the recrystallization mechanism during the annealing of aluminum foil, the EBSD technique was used to analyze the grain orientation of the aluminum foil sample at 180 °C during the heating process (figure 10). The figure shows grains of three rolling orientations (S, Cu and Bs), and grains of two recrystallization orientations (Cube and R). It can be observed from the figures that at the initial stage of recrystallization, the above mentioned oriented grains all grow up.

Zoom In Zoom Out Reset image size

In rolled aluminum alloys, mainly four different nucleation sites are important, namely cube bands, grain boundaries, shear bands and the deformation zones around large particles [23, 27]. After annealing, different types of recrystallization textures are formed on account of nucleation sites above. In addition, the changes of texture during annealing are found to be different during discontinuous and continuous recrystallization. The rolling textures are replaced by annealing textures in which the cube texture component is dominant during discontinuous recrystallization. Therefore, the emergence of a strong cube texture is the typical feature of discontinuous recrystallization of aluminum alloy [22, 28]. It could be observed from figures 8 and 9 that a few cube-oriented crystal nuclei already existed in the cold-rolled matrix. During heating the cubic-oriented crystal nuclei grew faster than other oriented crystal nuclei, which implied discontinuous recrystallization occur in the matrix.

S texture and Cu texture change little throughout the annealing process (figures 8 and 9), and rolling orientation grains such as Cu-oriented grains and S-oriented grains grow simultaneously with Cube-oriented recrystallized grains during the annealing, as shown in figure 10. It is different from the process in which the rolling orientation grains are gradually merged by the recrystallized grains during the discontinuous recrystallization process.

The cold rolling reduction rate of the aluminum foil sample studied in this paper was 92%, which is close to the critical reduction ratio of 95% reported in the literature [22] for the transition from the discontinuous recrystallization to continuous recrystallization. So it could be inferred that discontinuous recrystallization and continuous recrystallization may occur simultaneously during the annealing process of AA8021 alloy aluminum foil according to experimental results and the literatures reported.
