Probing of electronic structures of La@C₈₂ superatoms upon clustering realized using glycine nanocavities

Owing to the electron transfer from the endohedral metal to the fullerene cage to form an atomic structure, endohedral metallofullerenes are called superatoms and have been attracting considerable attention.^1–3) In contrast to the σ and π orbitals of fullerenes, which are highly degenerate and tightly bound to individual C atoms, superatom molecular orbitals (SAMOs) are rather loosely bound to the screening potential of the hollow molecular cage, producing nearly free electron-like characteristics.^1–4) Furthermore, endohedral metallofullerenes are promising candidates for nanotechnological applications because of their electronic and magnetic flexibilities.^1,5–9) However, the formation of isolated structures of endohedral metallofullerenes has been difficult owing to their high reactivity, reducing the high potential for some functions such as catalysis. In addition, despite the importance of understanding the electronic structures of individual endohedral metallofullerenes, studies have generally been carried out on films, for example, those formed on Si surfaces or adsorbed at the steps of metal surfaces.^7,10–13) On the other hand, glycine is known to form an array of nanocavities of ∼1.3 nm diameter on a Cu(111) surface by self-assembly, as shown in Fig. 1.¹⁴⁾ Since the diameter of a fullerene is ∼1 nm, the array of nanocavities is expected to be a desirable template for studying the electronic structures of individual endohedral metallofullerenes from the fundamental and practical viewpoints.

Zoom In Zoom Out Reset image size

Here, we demonstrate the first direct probe of the change in the electronic structures of La@C₈₂ superatoms upon clustering by scanning tunneling microscopy/spectroscopy (STM/STS) using glycine nanocavities self-assembled on a Cu(111) surface.

La@C₈₂ metallofullerenes were prepared by the DC arc discharge method.^1,7) The produced soot was extracted by ultrasonication with carbon disulfide for 2 h, and the residue of the extraction was further refluxed with pyridine for 3 h. The La@C₈₂ metallofullerenes were separated and isolated by two-stage high-performance liquid chromatography (HPLC) using a Buckyprep (ϕ20 × 250 mm²; Nacalai Tesque) and a Buckyclutcher (ϕ21 × 500 mm²; Regis Chemical). The purity of the La@C₈₂ sample was higher than 99.9%.^1,15)

After glycine molecular deposition on a clean Cu(111) surface, the obtained surface was annealed at 350 K for 1 h to form an array of glycine nanocavities,¹⁴⁾ and then La@C₈₂ molecules were evaporated from a crucible heated at 700 K for 5 s to the Cu surface with the array of glycine nanocavities, which was kept at room temperature (RT). All STM/STS measurements were carried out at ∼5 K.

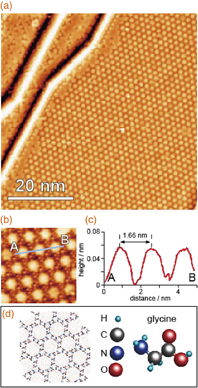

Figure 2(a) shows a wide-scan STM image of the La@C₈₂/glycine nanocavities/Cu(111) surface. With the glycine nanocavity template, as expected, La@C₈₂ superatoms were stably observed on terraces without diffusion to the step edges, even though the evaporation of La@C₈₂ was carried out at RT without cooling. Figure 2(b) shows a magnified image of the area indicated by the square in Fig. 2(a), where the Cu surface in each nanocavity was imaged and formed an array of circles, similar to the image shown in Fig. 1(a). The bare Cu surface is imaged bright because the tunneling current from the area is higher than that above the glycine molecules for this bias voltage,¹⁴⁾ and the nanocavity has a structure shown in Fig. 1(d). The circle Cu area is surrounded by six glycine trimers. Since the diameter of each nanocavity is ∼1.3 nm (estimated from the circle image in the cavity), La@C₈₂ with a diameter of ∼1 nm^1,16) ($\lesssim 1.3$ nm) can be located in the nanocavities. Figures 2(c)–2(e) show the cross sections along the lines (c), (d), (e)-1, and (e)-2 in Fig. 2(b), i.e., a glycine nanocavity, two isolated La@C₈₂ superatoms located in neighboring nanocavities, and two La@C₈₂ superatoms located close to each other. The distance of 1.59 nm between the two La@C₈₂ superatoms shown in Fig. 2(d) is close to the periodicity of 1.68 nm for the nanocavities shown in Fig. 2(c). In contrast, the distance of 0.91 nm between the two La@C₈₂ superatoms shown in Fig. 2(e) is close to the diameter of C₈₂ (∼1 nm), indicating that the structure is a dimer.

Zoom In Zoom Out Reset image size

Although the heights of the two La@C₈₂ superatoms in a dimer are almost the same, the STM images of the two dimers (e)-1 and (e)-2 show a slightly asymmetric shape, depending on the bias voltage, which is more clearly shown for (e)-1 in Fig. 3(a) in the next section. This asymmetry was generally observed in this experiment independent of the ordering of the glycine molecules around La@C₈₂. The effect of the Cu substrate is negligible in the case of La@C₈₂ because the additional charge transfer is small.^7,11,17) La@C₈₂ has two isomers with different cage structures;¹⁾ however, since the sample was purified by two-stage HPLC in this case, this asymmetry is not due to the mixture of the two isomers. Taking into account the cross sections shown in Figs. 2(c) and 2(e), two bottoms of a dimer may be barely located on a Cu surface in a nanocavity or one of them may be placed above glycine molecules forming corrals. Although the charge transfer is not large, its effect may appear. Another possible mechanism for this is the relative rotation of the two La@C₈₂ superatoms in a dimer, as was observed in the case of Ce@C₈₂; that is, Ce@C₈₂ with a different adsorption geometry in a film formed on a Cu(111) surface showed different characteristics, especially in terms of the relative intensity in their spectra.¹⁸⁾ For further understanding of this issue, theoretical analysis including the glycine template is necessary.

Zoom In Zoom Out Reset image size

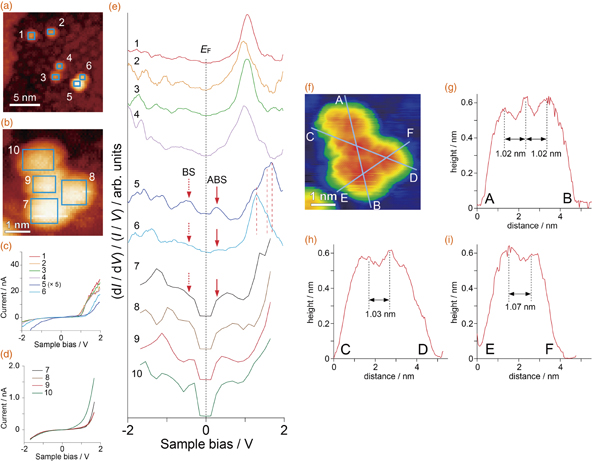

To observe the electronic structures of the La@C₈₂ superatoms, we carried out STS. Figure 3(a) shows a magnification of the area indicated by the white square in Fig. 2(b). The current–voltage (I–V) curves acquired and averaged over the squares on La@C₈₂ labeled 1 to 6 are shown in Fig. 3(c). The spectra obtained from the I–V curves in Fig. 3(c) are shown in Fig. 3(e). The four spectra 1 to 4 are similar to each other, showing that the La@C₈₂ superatoms with the cross section shown in Fig. 2(d) are isolated and that the interaction between them is small even at a distance of ∼0.6 nm (1.59–1 nm). The singly occupied molecular orbital (SOMO) of the La@C₈₂ superatom, which is formed by the charge transfer of one electron from La to the lowest unoccupied molecular orbital (LUMO) of fullerene,¹⁾ is not clear, probably owing to the density of states of the Cu surface near the Fermi level. The signals around 1 V are considered to indicate the density of states related to the hybrid orbitals of unoccupied states of the La@C₈₂ superatom, as previously reported.^{1,10,15,17,18)} The electronic structures of endohedral metallofullerenes are very complicated. For example, as shown in Fig. 2 in Ref. 11, Fig. 5(b) in Ref. 15, and Fig. 3 in Ref. 18, one STS peak is considered to include some degenerate and quasi-degenerate orbitals that have spatial distributions. Therefore, it is difficult to assign the STS peaks at higher energy regions here.

In contrast, spectra 5 and 6, measured and averaged over the two squares on the dimer labeled 5 and 6, are different from those obtained for the isolated La@C₈₂ superatoms. The hybrid orbitals observed at ∼1 eV in spectra 1 to 4 clearly shifted toward a higher energy in spectra 5 and 6. The difference in the hybrid orbitals between spectra 5 and 6 is not caused by the shift but by the changes in the intensities of the three peaks indicated by the three red dashed lines. Since hybrid orbitals are complex, the origin of these peaks is not clearly determined at present. The two peaks appeared as indicated by BS and ABS in Fig. 3(e). Taking into account the characteristic of the electronic structures of the superatoms, i.e., the existence of SOMOs, the two peaks BS and ABS are considered to be assigned to the bonding and antibonding states, respectively, which were produced by the bonding of the SOMOs. The SOMO is not degenerated and its position is similar to those observed in previous works.^1,10,15,17) The difference in intensity between the peaks BS and ABS and that in the hybrid orbitals between spectra 5 and 6 are considered to be caused by the asymmetry of the two La@C₈₂ superatoms in a dimer, which was discussed above. To understand the spectra in more detail, theoretical calculations are necessary. However, since La@C₈₂ has a SOMO, theoretical analysis with the optimization of the La state is rather difficult at present, which is left for future work.

To examine the observed difference in electronic structure between an isolated La@C₈₂ superatom and a dimer structure, we carried out STS measurement on the cluster shown in Fig. 3(f), in which four La@C₈₂ superatoms are connected to each other. As shown in Figs. 3(g)–3(i), the distance between the two La@C₈₂ superatoms in the cluster was ∼1 nm, which is close to that in the dimer shown in Fig. 2(e), indicating that the superatoms are bound to each other. The I–V curves and the spectra obtained over the blue squares in Fig. 3(b) are shown in Figs. 3(c) and 3(e), respectively. The characteristic structures of the spectra coincide with that previously obtained for a La@C₈₂ film formed on a hydrogen-terminated Si(001) surface,¹⁵⁾ as the peaks of BS and ABS were broadened with the formation of the cluster of four La@C₈₂ superatoms, suggesting that the electronic structure becomes bulk-like in a cluster of this size.

To understand the observed characteristics in more detail, it will be interesting to analyze the electronic structures of trimers consisting of an odd number of La@C₈₂ superatoms in which a single spin remains. Unfortunately, all the trimer-like structures observed in this experiment had a structure in which three La@C₈₂ superatoms were located in three neighboring nanocavities. This experiment is under consideration using STM with the equipment for applying a magnetic field to characterize the spin effects. In any case, these experiments can be realized using a glycine nanocavity template. As shown in previous works,^{11–13,15,18)} the electronic structures of M@C₈₂ (M: lanthanoid) have spatial distributions. Here, spatially averaged spectra were considered in the present work because we were interested in the change in nonlocalized SOMO upon clustering. Taking into account the rotation of molecules under STS measurement, a lower set-point current condition used in Ref. 12 should be adopted for the discussions including local electronic structures. A more detailed study with theoretical analysis is expected to open new insights into the physics of superatoms.

In conclusion, we have succeeded in the first direct probe of the electronic structures of La@C₈₂ superatoms upon clustering using an array of glycine nanocavities self-assembled on a Cu(111) surface as a template. Isolated La@C₈₂ superatoms were stably observed on terraces without diffusion to step edges. In addition to the change in hybrid orbitals of around 1 V, two peaks appeared near the Fermi level after the formation of a dimer structure; such peaks are attributed to the bonding and antibonding states of the SOMO of La@C₈₂ superatoms. A cluster with four La@C₈₂ superatoms showed electronic structures similar to those obtained for thin films in previous works. Further experiments with theoretical analysis on these results are expected to open new insights into the physics of superatoms.
