Compositional Constraints for Lucy Mission Trojan Asteroids via Near-infrared Spectroscopy

Surface composition is a direct method for characterizing asteroid groups and link their present state to their origins. As the largest asteroid population co-orbital with a planet, Jovian Trojans represent a major test of solar system dynamical evolution (Emery et al. 2015). From the perspective of the Nice model (Gomes et al. 2005; Morbidelli et al. 2005; Tsiganis et al. 2005), Jovian Trojans are deposited into their current stable orbital arrangement from reservoirs in the outer solar system (Morbidelli et al. 2007; Levison et al. 2011). This can be modeled through dynamical simulations that recreate the orbits of Jovian Trojans as captured from disk populations extending to ∼30 au (Nesvorný et al. 2013).

The bulk density of the binary system (617) Patroclus (1.08 ± 0.33 g cm⁻³; Marchis et al. 2006) suggests a significant fraction of ice in its interior (Emery et al. 2015), supporting an origin in the outer solar system. Later density measurements of the Trojan (624) Hektor initially found a similar value of 1.0 ± 0.3 g cm⁻³ (Marchis et al. 2014), however, Hektor's density measurements are sensitive to shape-modeling assumptions. A much higher density of 2.43 ± 0.35 g cm⁻³ was found through reanalysis that assumed a dumbbell-like contact binary shape instead of Roche ellipsoids (Descamps 2015). The presence of two Trojan systems with significantly different internal structures would complicate hypotheses of a single evolutionary pathway. Furthermore, current surface measurements speak to an absence of volatile and organic compounds, despite their anticipated occurrence in the volatile-rich outer solar system. To understand this discrepancy, near-infrared spectroscopy (NIR, 0.7–2.5 μm) has been used to characterize the population properties of Trojan surfaces. Two distinct spectral groups (consistent across both L4 and L5 clouds) align with D- and P-type asteroid taxonomies (Emery et al. 2011), which is also observed in optical colors (Szabó et al. 2007; Roig et al. 2008), and infrared albedo (Grav et al. 2012). Notably, Patroclus is a member of the "less-red" group, while Hektor is a member of the "red" group. The question of whether the spectral groups represent differing formation histories remains unresolved.

Detection of diagnostic spectral absorption features in these groups of Trojans would allow for a detailed mineralogical characterization of their surfaces. The absence of observed features in the 3 μm region by Emery & Brown (2004) implies upper limits for complex organic compounds modeled as laboratory tholins. No spectral absorption bands have been characterized in the range 0.2–4.0 μm (Dotto et al. 2006; De Luise et al. 2010; Emery et al. 2011; Marsset et al. 2014; Wong et al. 2019). Brown (2016) detected spectral curvature between 3.0 and 3.5 μm in several large less-red Trojans (including Patroclus), which may indicate the presence of ices or organic species and would strengthen the connection between Trojans and a volatile-rich origin. Atmospheric extinction in this wavelength region can limit the definition of the spectral continuum, which is necessary to tie these features with low signal-to-noise ratio (S/N) to a specific hypothesis. Without any compositionally diagnostic features in Trojan spectra, the inverse problem of determining surface compositions from NIR spectra (0.7–2.5 μm) is inherently degenerate and model dependent.

Emery et al. (2006) observed a spectral emissivity feature in Trojans near 10 μm that most closely matched spectra of fine-grained silicates. Detailed fitting of a model to this feature requires complex scattering scenarios involving opaque grains embedded within a transparent matrix (Emery et al. 2006; Yang et al. 2013), or a fluffy fairy-castle texture (e.g., Vernazza et al. 2012). While the strength of this feature can vary substantially, its shape and position appear similar across the limited sample of four asteroids (Mueller et al. 2010). Regardless of the scattering scenario, anhydrous silicates mixed with elemental carbon have been shown to agree with observations across several wavelength regimes, although no current models claim to be uniquely satisfactory.

NASA's Discovery-class mission Lucy (Levison & Lucy Science Team 2016) will conduct flybys of five Trojans and one main-belt asteroid ((52246) Donaldjohanson) that span an order of magnitude in both size (diameter) and rotation period. The physical properties of the targets, including visual albedos, are summarized in Table 1. Four of the targets are Trojans in the leading L4 Lagrangrian cloud ((3548) Eurybates, (21900) Orus, (11351) Leucus, and (15094) Polymele) and one is in the trailing L5 cloud ((617) Patroclus). Patroclus is a known binary system (Merline et al. 2002), while Leucus is a candidate binary system based on light-curve measurements (Buie et al. 2018). With constraints already in place on binarity, size, rotation state, and albedo, we present spectroscopic observations of all six target asteroids.

Our focus is to understand how spectral variations among this group can lay the groundwork for quantitative, testable predictions of Trojan surfaces. In this work, we provide spectral slopes and characterize the curvature in the reflectance spectra of the observed spacecraft targets. We model the reflectance spectra to explore the various compositions proposed for Trojan surfaces. Finally, to relate spacecraft and ground-based observations, we formulate hypotheses on the range of surface compositions and textures (grain size) for the Lucy targets.

Spectral observations were performed using the SpeX instrument (0.7–2.5 μm; Rayner et al. 2003) on the NASA Infrared Telescope Facility (IRTF) in low-resolution prism mode (R ∼ 100). Target trace extraction and wavelength calibrations were performed using the Spextool reduction pipeline (Cushing et al. 2004). Further details of our reduction methodology are given in Sanchez et al. (2013) and Sanchez et al. (2015). The six targets were observed from 2018 May through 2019 June. Measurements of Eurybates and Leucus were attempted in 2017 July, but were unsuccessful. A 3σ clip relative to the spectral continuum was performed excluding outliers in the telluric water bands and as detector efficiency drops toward 2.5 μm.

The observational circumstances are given in Table 2. All asteroid spectra were acquired with airmass lower than 2.0. Telluric corrections were performed during every hour of the observations, using a nearby solar-type standard star. One stable solar analog star, either SAO 93936 or SAO 120107, was observed each night to correct for any non-solar deviations of the standard star. We examined all data collected for each object for internal consistency. Guiding errors, especially on faint targets, can produce discordant spectra, which we excluded from our final summed spectra. Additionally, atmospheric diffraction can cause wavelength-dependent slit losses at the blue end of our spectra if the slit angle is far from the parallactic angle. If slit re-alignments are not conducted at regular intervals, this would manifest as a systematic error in measuring the spectral slope from ∼0.7 to 1.0 microns. No such variation was seen (within uncertainties) in our data.

Table 2.  Summary of Our Observations of All Lucy Targets, Including Stars Used in Correcting Raw Flux into Relative Reflectance

Target	Patroclus/ Menoetius	Eurybates	Orus	Leucus	Polymele	Donaldjohanson
Dates (UTC)	2019 Jun 18	2018 Jul 19	2018 Jun 17	2018 Jul 19	2018 Jul 19	2018 May 21
		2018 Aug 21		2018 Jul 20	2018 Sep 2
				2018 Aug 19
				2018 Aug 21
V Mag	16.3	16.9	17.0	17.9	18.7	19.0
		17.0		17.9	18.9
				17.9
				17.9
Phase Angle	98	35	51	42	39	151
		40		41	68
				36
				39
Standard Star(s)	SAO119505	SAO 190082	HD 184892	SAO 145075	SAO 212692	SAO 157807
		SAO 189900		SAO 145075	SAO 212286
				SAO 144725
				SAO 144725
# Spectra	26/28	14/14	49/60	6/8	8/8	16/16
		26/26		16/16	12/12
				26/26
Used/Collected				12/12
Mean S/N	∼170	∼41	∼62	∼25	∼12	∼8

Note. All targets were observed at low phase angles (Sun-Target-Observer), with the highest phase observation (Donaldjohanson) at 151. A stable solar-analog star (SAO 93936 or SAO 120107) was observed on each night to ensure that calibration from flux to reflectance values are independent of night-to-night variations in instrumental response.

Download table as:  ASCIITypeset image

The slit spectra were collected in relative units because light throughput through the slit mask is not quantified. Instead, we scale our spectra by extending our measured slope at 0.7–1.3 μm to previously published visual albedos from NEOWISE (Masiero et al. 2011; Grav et al. 2012). This choice in scaling is justified by the previously observed linearity of Trojan spectra in this wavelength region and the lack of any absorption features (Fornasier et al. 2004). Reflectance values, scaled to geometric albedo as described above, are given in Figure 1. Gray regions in the spectral plots indicate areas of telluric absorption bands that were excluded from slope or mixing model fits but indicate the quality of sky background subtraction.

Zoom In Zoom Out Reset image size

2.1. Results: Spectral Slope

Comparison among measured spectral slopes is more easily visualized in relative reflectance (where spectra are measured relative to the flux recorded at a specified wavelength). The fits to our spectra, with reflectance normalized to unity at 1.635 μm, is given in Figure 2. Spectra were divided into three wavelength regimes (0.70–1.32 μm, 1.50–1.77 μm, and 2.10–2.35 μm) to measure the spectral slope. If two or more wavelength regimes returned mutually consistent slope values (within 1σ uncertainties), the regimes were combined to give higher precision. The fit uncertainty depends on the accuracy of using piecewise-linear fits to describe the measured spectra (e.g., the slope of Donaldjohanson is formally blue, but depends entirely on the slight downturn from 0.7 to 1.0 μm). A summary of the measured slopes is given in Table 3.

Zoom In Zoom Out Reset image size

Table 3.  Derived Spectral Slopes from 0.7 to 2.5 μm (Normalized to Unity at 1.635 μm), Given by NIR Observational Bands in the Cases with Observed Slope Breaks

Target	Spectral Slope(s) (%/μm)
Patroclus/Menoetius	19.7 ± 0.1
Eurybates	17.7 ± 0.4 (JH)
	37.5 ± 6.3 (K)
Orus	50.9 ± 0.3 (J)
	26.8 ± 0.6 (HK)
Leucus	49.7 ± 0.9 (J)
	33.9 ± 1.6 (HK)
Polymele	28.7 ± 0.8
Donaldjohanson	−2.4 ± 1.6

Note. While Patroclus/Menoetius and Polymele both have linear NIR spectra, they differ substantially in both spectral slope and visual albedo. Orus and Leucus have similar slopes at J band (1.2 μm), with Orus breaking toward a flatter slope than Leucus at wavelengths greater than 1.5 μm (H and K bands). For Eurybates, we find a ∼3σ slope break at 2.2 μm.

Download table as:  ASCIITypeset image

Previously, Emery et al. (2011) found that Trojans display a spectral color dichotomy, whose 0.85–2.2 μm colors are plotted with 1σ uncertainties in Figure 2 for ease of reference. We find that the spectral slopes of the five Trojans span the entire range of this red/less-red dichotomy, with the slope of Polymele plotting as intermediate between the two groups.

Clear curvature (a change in spectral slope) is seen in the spectra of Orus and Leucus between 1.3 and 1.5 μm, while slight curvature was observed in Eurybates near 2.2 μm. Orus and Leucus display similar slopes from 0.7 to 1.3 μm, but have differing slopes beyond 1.5 μm. Leucus displaying a steeper slope in Figure 3 gives the relative reflectance spectrum of Eurybates (normalized at 1.635 μm) compared with atmospheric transmission data available from the Gemini Observatory (Lord 1992). Our slope for Eurybates of 17.7 ± 0.4%/μm appears initially inconsistent with results reported by Yang & Jewitt (2011), who measured the slope to be 21 ± 2%/μm. However, the 2σ discrepancy is the result of the curvature measured in our spectrum. Plotting a straight-line fit with the steeper slope (blue line, Figure 3) shows an excellent agreement.

Zoom In Zoom Out Reset image size

Figure 4 displays our observed spectrum of Patroclus/Menoetius compared with the color indices reported by Emery et al. (2011) from observations taken in 2000. We find good agreement with their reported NIR spectral slope, but find that the spectrum lacks any slope break. Unlike Emery & Brown (2003), we do not detect any features near 2.3 μm, which could have provided a positive identification of hydrated silicates.

Zoom In Zoom Out Reset image size

The spectrum of Polymele has an intermediate slope that is linear to within our uncertainties. The presence of an Orus-like slope break, however, would remain hidden within these data. Future observations to better constrain the presence of a slope break near 1.3 μm would be beneficial in establishing its NIR reflectance as either more Orus-like (in the case of spectral curvature) or Patroclus-like (in the case of no spectral curvature).

While these targets do not constitute a statistically representative sample of Trojans, it is noteworthy that the smallest (Polymele) and largest (Patroclus/Menoetius) targets have similarly linear spectra with mildly red slopes. If Lucy is able to determine the collisional histories of these bodies, it would provide a strong test of whether there is an orderly relationship between size and reflectance properties, such as those measured in optical colors by Wong & Brown (2015). We discuss the implications provided by this unique spectrum for Polymele's mineralogy (in tandem with its albedo) in our compositional modeling results (Section 4).

While our spectrum of Donaldjohanson formally allows for a precise measurement of its NIR slope (given in Table 3), we note that such a slope is only valid under the assumption that its reflectance spectrum is entirely linear within this region. Without a sufficiently high S/N to search for absorption bands or slope changes at wavelengths longer than 1.3 μm, we conclude only that this main-belt asteroid has a neutral NIR slope. Follow-up spectral observations of this target are critical for forming more robust hypotheses about its origins within the main belt, including its relationship with the Erigone family (Zappalà et al. 1995). Mineralogical characterization of Donaldjohanson will require additional observations to constrain because its mean S/N is low (∼8).

Ultimately, the presence of two very red Trojans (Orus, Leucus), two less-red (Patroclus/Menoetius, Eurybates), and one that falls in between (Polymele) suggests measurable diversity among these spacecraft targets. Understanding if the variation in NIR reflectance is suggestive of subtle differences in surface composition or grain size (or both) provides the basis for predictive hypotheses that can be tested by Lucy. The investigation of surface scattering models consistent with our observations provides the foundation for our remaining interpretations.

3.1. Methodology

Our observations distinguish spectral variations among the six Lucy mission targets. It is of interest to explore how these variations in reflectance properties correspond to variations in surface composition or grain size. Particularly, we aim to address whether the difference between the reddest objects (Orus and Leucus) and the least red objects (Patroclus, Eurybates) can be explained by changes in composition, grain size, or both. With Polymele, we have an opportunity to explore whether it is similar to Patroclus (with which it shares a similar slope in relative reflectance) or with Orus and Leucus (whose albedos are within 0.01 of the albedo of Polymele).

The absence of any spectral features leaves open any mineralogical model that can account for a surface that matches both low albedos and red slopes. Therefore, we do not favor any specific compositional models and do not seek to distinguish between them. Owing to the wide separation of observed spectral slopes, small changes (<10%) in slope, which may depend on calibration method, are not resolved within modeling uncertainties via this method for these objects.

To compute the geometric albedos of our targets, we use a radiative transfer model following the Hapke formalism (Hapke 2012) and the methodology of Emery & Brown (2004). The methodology is summarized below. The single-scattering albedo for a grain of a single composition, w, is given as

$$\begin{eqnarray*}&&w={S}_{e}\ +\ (1-{S}_{e})\displaystyle \frac{(1-{S}_{i})\theta }{1-{S}_{i}\theta }.\end{eqnarray*}$$

Here S_e and S_i are the Fresnel reflection coefficients for external and internal scattering, respectively, and θ is the internal transmission factor. The coefficients S_e and S_i relate directly to the material indices of refraction n and k, and are approximated as (Warell & Davidsson 2010)

$$\begin{eqnarray*}\begin{array}{rcl}{S}_{e} & = & 0.05\ +\displaystyle \frac{{\left(n-1\right)}^{2}\ +\ {k}^{2}}{{\left(n+1\right)}^{2}\ +\ {k}^{2}};\\ {S}_{i} & = & 1.014-\displaystyle \frac{4}{n{\left(n+1\right)}^{2}}\end{array}\end{eqnarray*}$$

while θ includes the grain size dependence. For the assumption of spherical grains, θ takes the form

$$\begin{eqnarray*}&&\theta =\displaystyle \frac{{r}_{i}\ +\ \exp \left[-\sqrt{\alpha \left(\alpha +s\right)\times 0.9{D}_{\mathrm{eff}}}\right]}{1\ +\ {r}_{i}\,\ast \,\exp \left[-\sqrt{\alpha \left(\alpha +s\right)\times 0.9{D}_{\mathrm{eff}}}\right]}\end{eqnarray*}$$

$$\begin{eqnarray*}&&{r}_{i}=\displaystyle \frac{1-\sqrt{\left(\tfrac{\alpha }{\alpha \ +\ s}\right)}}{1\ +\ \sqrt{\left(\tfrac{\alpha }{\alpha \ +\ s}\right)}};\alpha =\displaystyle \frac{4\pi k}{\lambda };s=\displaystyle \frac{1}{{D}_{\mathrm{eff}}},\end{eqnarray*}$$

where the quantity sD_eff defines the number of scattering events within a single grain and is set to unity. The variability for this quantity is not addressed in our models but would be necessary to quantify the exact relationship between D_eff and the physical size of the regolith.

We adopt a three-component mixing model and assume "salt-and-pepper" mixing (i.e., individual particles of a single species). This defines the single-scattering albedo, w_mix, of the mixture to be

$$\begin{eqnarray*}&&{w}_{\mathrm{mix}}=\displaystyle \frac{{\displaystyle \sum }_{i}\tfrac{{\nu }_{i}{w}_{i}}{{\rho }_{i}{D}_{\mathrm{eff}}}}{{\displaystyle \sum }_{i}\tfrac{{\nu }_{i}}{{\rho }_{i}{D}_{\mathrm{eff}}}},\end{eqnarray*}$$

where ρ_i is the material density and ν_i is the mixing ratio in wt.% of species i. To convert the single-scattering albedo into the geometric albedo of the mixture, we assume isotropic scattering and neglect the effects of the opposition surge as in Emery & Brown (2004). This sets the phase function at zero degrees, $P\left(0\right)$, to unity and the opposition surge amplitude, B₀, to zero. The geometric albedo is given as

$$\begin{eqnarray*}&&{A}_{{\rm{p}}}={r}_{0}\left(0.5\ +\displaystyle \frac{{r}_{0}}{6}\right)\ +\ \displaystyle \frac{{w}_{\mathrm{mix}}}{8}\left(\left(1+{B}_{0}\right)\,\ast \,P\left(0\right)\ -\ 1\right)\end{eqnarray*}$$

$$\begin{eqnarray*}&&{r}_{0}=\displaystyle \frac{1-\sqrt{\left(1-{w}_{\mathrm{mix}}\right)}}{1+\sqrt{\left(1-{w}_{\mathrm{mix}}\right)}}.\end{eqnarray*}$$

To characterize our models, we employ the emcee Markov chain Monte Carlo (MCMC) package (Foreman-Mackey et al. 2013). This fitting procedure is well suited to characterizing the distributions of Hapke model parameters (mixing ratios and grain size) because MCMC methods accommodate models with highly correlated nonlinear parameters without assuming a shape for parameter distributions. The MCMC provides a flexible framework for determining fit convergence for a variable number of fit parameters. We found that including models with more than three free mixing components decreased the ability of our fits to converge (requiring longer computation times) without increasing fit quality. We interpret this as the limit to the number of components that can be distinguished by our data. While each component of a given mixing model may have its own grain size (or distribution of grain sizes), we assume that a single effective grain diameter, D_eff, characterizes the surface as seen by our disk-integrated spectra. This provides a benefit in allowing three-dimensional fits that display quantitative trends between component mixing ratios and D_eff. Allowing two or more grain sizes produced fits of similar quality but did not converge for tested runtimes. All models in this work were performed with 20 walker threads for 15,000 iterations. We discard the first 2000 steps because these initial steps are influenced by arbitrarily assumed initial model conditions. Convergence of all 20 threads into the same best-fit region was observed to be fewer than or equal to ∼1000 iterations for all models of all target asteroids. Overall fit convergence was determined by running models until they returned smooth single-peaked posterior parameter distributions. This was typically achieved after 7000–8000 steps.

For a surface with a distribution of grains of different sizes, the parameter D_eff typically characterizes the smallest grains because they tend to dominate scattering (Hapke 2012). However, the relationship between D_eff and grain size on a real surface depends on how their shapes deviate from the spherical assumption that is used to derive the equations as previously given, as well as on the number of scattering events within a grain (as previously noted).

We restricted grain sizes to a range of 0.5–1000 μm. These wide limits were chosen to be as unrestrictive as possible in order to explore both upper and lower limits of D_eff. While the Hapke formalism assumes particle sizes larger than the wavelength of reflected light, none of our best-fit models includes grain sizes smaller than 10 μm, which is well above the valid range. By performing an exhaustive investigation of the model parameter space, we are able to directly derive uncertainty ranges (percentiles of likelihood) within our models.

Generally, our modeling was insensitive to variations in visual albedo of ∼0.01–0.02. Variations of this scale were accommodated by making small adjustments to grain size or composition (adjustments smaller than the range of derived uncertainties). By allowing the grain size to vary over a wide range, we avoid cases where models are affected by user-imposed limits. For example, we find that artificially increasing the albedo of Eurybates by a factor of 2 does not change the mineral mixing ratios, instead shifting the range of valid grain sizes by a factor of ∼3 (with a brighter albedo requiring the presence of smaller grains). This shift represents the difference between the darker objects (Patroclus and Eurybates) and the brighter objects (Orus, Leucus, and Polymele).

3.2. End-member Selection

We begin by investigating object-by-object comparisons for each model. Figure 5 provides an overview of model results for all five Trojan targets, sorted by decreasing values of NIR spectral slope. Table 4 provides NIR upper limits (median plus 1σ) of water ice and organic content in tabular form. One-sigma uncertainties for fit parameters are calculated as the range between the 16th and 84th percentiles in model posterior distributions. The pyroxene-rich model shown in Figure 5(A) displays a compositional distinction between the high-albedo objects (Orus, Leucus, Polymele) and low-albedo objects (Patroclus, Eurybates). The largest difference can be seen by the ∼60 wt.% difference in amorphous carbon content between these two groups. We find that confidence intervals on grain sizes largely overlap, but smaller grain sizes are preferred for objects as their spectral slope increases. We note that upper limits to grain sizes above 800 μm are unconstrained because they are close to our cutoff grain size of 1000 μm.

Zoom In Zoom Out Reset image size

In the pyroxene-tholin model, we find similar trends as in the pyroxene-rich model. Here, the split in amorphous carbon content between high- and low-albedo groups falls to ∼40 wt.%. Grain sizes are more loosely constrained and almost entirely overlap across all five objects. The hydrated-silicates model finds less discrete compositional differences between high- and low-albedo groups. Across our sample, hydrated silicate (Tagish Lake) content and amorphous carbon content overlaps between high- and low-albedo objects. Compositional differences between objects are primarily found in the content of Triton tholins because they control the spectral slope. Allowable grain sizes are smaller and more restricted in all objects.

In the hydrated-silicates model, Polymele lies compositionally intermediate between Orus/Leucus and Patroclus/Eurybates. In the pyroxene-rich and pyroxene-tholins model, however, Polymele's bulk composition groups much more closely with Orus/Leucus than with Patroclus/Eurybates. In all three models, Orus and Leucus return models consistent with each other despite measurable distinctions in their spectral slope. Patroclus and Eurybates are similarly clustered. Therefore, while featureless NIR spectra do not prove that a given two objects have the same composition, we can place constraints on how dissimilar they are.

A full model-error analysis with correctly scaled goodness-of-fit measures would require additional modeling to investigate the nonlinear effects of the uncertainty in visual albedo. Critically, such an analysis would also implicitly assume that our choice of end-members the optimal case for a given compositional class. Because we do not exhaust all possible mineral combinations, we provide reduced χ² values that are normalized to unity for the pyroxene-rich model. These values are given in Table 5 and provide context for the relative performance of each model given our assumptions.

The comparisons above ignore correlations between model parameters. Figures 6–10 report the results of selected MCMC fits for each Trojan target. Figures 6–8 report two models each for Patroclus, Eurybates, and Orus, respectively, which span the full range of fit quality in our sample. Included in each figure is the measured spectrum (plotted in black in the top panel), with the best-fit model given as a red line. Magenta shading indicates the albedo uncertainties reported from NEOWISE. Gray regions in the top panel indicate areas of telluric absorption bands that were excluded from mixing model fits. Residuals of this model (scaled to uncertainties in the relative reflectance spectrum, not including albedo uncertainty) are given in the central panel. The blue shading in the central panel represents the ±1σ range. The distributions of allowable mixing ratios and grain sizes (which are the basis of posterior model uncertainties) found via MCMC are given in the bottom panel as two-dimensional histograms of grain size versus component mixing ratio. The shading of the two-dimensional distributions corresponds to the number of iterations the MCMC algorithm spent within a single bin because darker regions correspond to "preferred" regions. Contours in the two-dimensional histograms indicate the one- and two-sigma uncertainty ranges. The distribution of allowable grain sizes is also presented as a one-dimensional histogram.

The two anhydrous mixing models for Patroclus are given in Figures 6(A)–(B). Both find only loose restrictions on grain size, with the pyroxene-rich modeling favoring grain sizes larger than 500 μm, and the pyroxene-tholin model does not find any constraints. Figure 6(B) shows that the inclusion of Triton tholins halves the silicate content of best-fit models and raises their carbon content. However, incorporating tholins, even at the ∼5 wt.% level, adds measurable curvature to model spectra, which decreases the fit quality from 0.7 to 1.3 μm. Overall, Figures 6(A)–(B) shows that anhydrous fits for Patroclus requires both large grain sizes and high amounts of darkening agent—adjusting only one factor is not enough to fit both its relative reflectance spectrum and dark visual albedo. Fit residuals are minimized by the pyroxene-rich model, with residuals of the other models performing worse by a factor of 2.3 (see Table 5).

Zoom In Zoom Out Reset image size

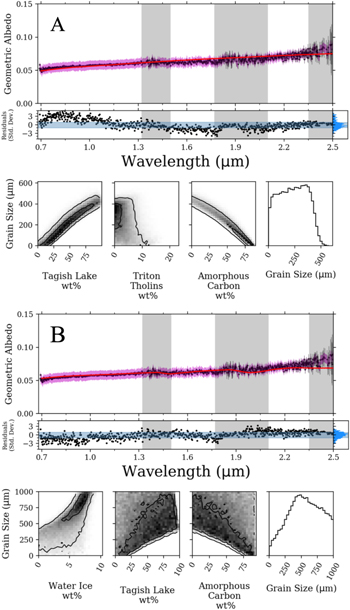

Fits of the pyroxene-rich and pyroxene-tholin models to Eurybates produces similar-quality fits as those to Patroclus. As shown in Figures 7(A)–(B), Eurybates also provides a good match to the hydrous mineralogy of Tagish Lake. Using the hydrated-silicates model for Eurybates, Figure 7(A) shows that grain sizes are restricted to ranges smaller than 500 μm and that the inclusion of Triton tholins is not necessary to reproduce the spectral slope of Eurybates. Replacing Triton tholins with water ice, shown in Figure 7(B), improves the fit quality (producing fits as good as the pyroxene-rich model) by better matching the spectral curvature we detect near 2.2 μm. For Eurybates, only the hydrated-silicates model produces substantially worse fit residuals than the pyroxene-rich model. Figure 7(B) shows a preference for grain sizes near 500 μm and finds that the tradeoff between amorphous carbon and Tagish Lake is correlated with grain size (values higher than 500 μm favor Tagish Lake content, while lower values favor carbon). As much as 7 wt.% water ice can be accommodated for very large grains, with 5 wt.% ice allowed at grain sizes near 500 μm. For Patroclus, the model that includes water ice returns the same grain size preferences with a lower median value of 2 wt.% water ice with an upper limit of 4 wt.%.

Zoom In Zoom Out Reset image size

Our modeling also finds this conclusion for mixing ratios to be robust with respect to albedo variations. The range of allowed grain sizes, not composition, depends largely upon albedo. Artificially adjusting the albedo of Eurybates and running the same fitting procedure does not affect the allowed mixing ratios but does return different grain sizes (while mainting the shape of the grain size distribution). Thus, we interpret the compositional mixes we recover for Eurybates to be mainly sensitive to our measured spectral slope.

Orus and Leucus show a strong grain-size dependence on mixing model composition. The best-fit pyroxene-rich model for Orus is shown in Figure 8(A). While an overall match to both the albedo and NIR spectral slope is observed, noticeable structure is present in the fit residuals, leading to a lower fit quality. As seen in Table 5, for Orus and Leucus the hydrated silicate and pyroxene-tholin models both produce better fit residuals than those returned by the silicate-rich model. While the tholin content in Figures 8(A)–(B) and 9 is constant with respect to grain size (because it is the chief reddening agent in these scenarios), there is a strict trade-off between amorphous carbon and bulk Tagish content dependent on grain size. Unlike anhydrous mineralogies, which return lower limits for grain sizes, the hydrated-silicates model returns upper limits for grain size. In the case that there is a non-silicate reddening agent present on Trojan surfaces, this suggests that a study of plausible darkening agents may provide a means to distinguish the compositions of Orus and Leucus based chiefly on spacecraft measurements of visual albedo and grain size.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

A characteristic good fit for Polymele is given in Figure 10. Polymele provides a unique spectrum that can be viewed as intermediate between that of Orus/Leucus and Patroclus or Eurybates. While its spectrum is linear, similar to Patroclus, its higher albedo is similar to Orus and Leucus. As seen in Figure 5, the pyroxene-rich and pyroxene-tholin models group Polymele more closely with Orus and Leucus in terms of composition, but match Patroclus and Eurybates in terms of grain size. For hydrous silicate models, Polymele groups closer in terms of grain size to Orus and Leucus and sits intermediate between the red and less-red objects in terms of composition. This suggests that despite Polymele's linear spectral slope (as does Patroclus), compositionally it is more likely to lie closer to the redder Orus/Leucus than to Patroclus. A slope break at 1.5 μm similar to Orus/Leucus is not detectable because the S/N achieved for Polymele is lower. The presence of any slope break would constrain this comparison considerably. Table 5 shows little difference between the model quality for Polymele because its spectral S/N is lower.

Zoom In Zoom Out Reset image size

In the Trojans without a slope break near 1.5 μm (Polymele, Patroclus, and Eurybates), pyroxene-rich and pyroxene-tholin models do not constrain grain size estimates beyond lower limits of ∼80–200 μm (depending on the inclusion or exclusion of tholins as a discrete reddening agent). However, these models find the differences in our collected spectra to trace with differences in the relative abundance of reddening and darkening agents. Orus and Leucus require increased content of a reddening agent, independent of grain size. Models including the Tagish Lake meteorite instead find the spectral variation to trace more closely with the abundance of reddening agent and regolith grain size. In either case, the darker surfaces of Patroclus and Eurybates require measurably different scattering models than Orus and Leucus.

The compositions of Jupiter Trojans preclude simple explanation from telescopic observations alone. Surface devolatilization similar to the observed activity among Centaurs (e.g., Jewitt 2009) presents one mechanism for reconciling the Trojans' expected derivation from a volatile-rich parent population with the observed lack of ices or hydrated materials (e.g., irradiation weathering as in Wong & Brown (2016), or impact-related erosion as in Yang et al. 2013). Low-level outgassing at some point in the history of the Trojans may explain the non-Maxwellian (i.e., non-collisionally relaxed) distribution of their spin rates (Ryan et al. 2017). Water ice on the surface of any Trojans would not be stable down to meter-scale depths over the lifetime of the solar system (Guilbert-Lepoutre 2014) and would require a replenishment process to exist at present. Therefore, detecting trace water ice on Trojan surfaces would imply either that their surfaces are younger or that Trojans have not always existed in their current orbital configuration. Recent impacts could also excavate volatile-rich material at localized regions of these objects.

Determining whether Trojans contain minerals that form in the presence of water ice or other volatile materials provides another key pathway to explore Trojan formation. Hydrated silicates and organics modeled as pure laboratory samples (which display sharp absorption features in the NIR) have not been detected on Jovian Trojans. However, meteoritic samples, such as Tagish Lake, display assemblages of many hydrated silicates and organic materials without displaying NIR absorptions when measured as a bulk sample (dipping less than 0.01 in absolute reflectance near 3 μm; Izawa et al. 2010). Therefore, the use of Tagish lake as a proxy for the non-volatile surface materials allows for spectral modeling that acknowledges the likely mineralogical diversity on asteroid surfaces, including the possibility of partial masking of absorption features. While spatially unresolved spectra are unable to distinguish between models, our derived distributions for two groups of end-members can provide upper limits for volatile ices and organic compounds. The absolute measurement of these materials stands as a key science objective toward understanding the history of Jovian Trojans (Levison & Lucy Science Team 2016). Lucy will provide a detailed picture of the surfaces of these enigmatic bodies for the first time. With ground truth for these bodies on the horizon, there is at present an opportunity to test the predictive capability of telescopic data.

In the models we investigated in this work, the dark albedos of Patroclus and Eurybates combined with their less-red spectral slopes produce compositional models thatok are consistently unique when compared with the reddest objects (Orus and Leucus) and the intermediate spectrum of Polymele. While increasing grain size is one way to produce a lower albedo for a given composition, our three-component models show that fits for Patroclus require both larger grain sizes and an increasing amount of darkening material. This suggests that while grouping objects according to spectral slope is useful from a taxonomic sense, albedo is a necessary constraint as well.

We find that models of Eurybates are similar to Patroclus, consistent with upper limits ∼7 wt.% water ice on its surface at larger (>500 μm) grain sizes and decreasing ice abundance allowed with decreasing grain size. On Patroclus, this upper limit is ∼4 wt.% for water ice, with the same grain size trends. The spectrum of Eurybates is well described with models including >90 wt.% unweathered Tagish Lake or amorphous carbon. These findings are consistent with those of Emery & Brown (2003), who found that trace water ice is allowed by the 2.0–3.5 μm spectra of some Trojans.

Although Patroclus returns similar model parameters as Eurybates, models that include Triton tholins or Tagish Lake all produce fit residuals that are worse than the pyroxene-rich model (as seen in Table 5). Because the primary difference between our spectra of Patroclus and Eurybates is the presence of spectral curvature for Eurybates, we conclude that characterization of nonlinearities in Trojan spectra are vital for distinguishing the surfaces of these low-albedo objects. Eurybates is classified as a C-type in the Tholen taxonomy but is the primary body of a collisional family that contains both P- and C-type Trojans (Fornasier et al. 2007, see particularly their Table 5). Investigating the compositional connections between Eurybates and the P-type Patroclus would provide critical context as to how these taxonomic groups relate to each other. For example, P-type Eurybates family members may simply be unrelated asteroids occupying similar orbital locations, or they may indicate that spectrally heterogeneous asteroids can form from the same original parent body.

Orus and Leucus, while measured to have different spectral slopes from 1.5 to 2.4 μm, produce models that are statistically indistinguishable. Three-component Hapke models do not appear sensitive to their difference in slope. Three-component fits including water ice fail to match either spectrum, implying that upper limits are significantly lower than what can merely be hidden in the noise of our observations (water ice must be a fourth component and is not required to explain any observed features). For the hydrated-silicates case (where the reddening and darkening agent are distinct from the silicate component), their albedo produces tight grain size constraints of 50–100 μm.

Polymele presents an intriguing intermediate spectrum that defies clear grouping with the other objects. While it has a similar spectral slope to that of Patroclus, it has the brightest visual albedo at 9%. With the caveat that a slope break similar to Orus and Leucus would not be measurable in our data, Polymele's spectrum is consistent with reddening from C chondrite-like materials alone (with the presence of an additional reddening agent allowed but not required).

We find that the spectral diversity of the Lucy targets maps to measurable differences in physical composition across three distinct end-member hypotheses. Orus and Leucus are indistinguishable in our models, as are Patroclus and Eurybates. Depending on the end-members assumed, Polymele either clusters between Orus/Leucus and Patroclus/Eurybates, or it clusters more strongly with Orus/Leucus. We demonstrate that radiative transfer models of Trojan reflectances over 0.7–2.5 μm can be applied with well-defined uncertainties, providing a method for producing quantitative hypotheses for the compositional variety that Lucy will see.

We measured a continuum of spectral slopes including "red" (Orus, Leucus), "less red" (Eurybates, Patroclus-Menoetius) and intermediate (Polymele) for the Lucy mission Trojan asteroids we observed. This could indicate a range of compositional end-members or geological histories. Mineralogical models of Polymele typically overlap with the red objects, with which it shares a similar visual albedo. This suggests that while grouping objects according to spectral slope is useful from a taxonomic sense, albedo is an equally necessary and important constraint as well.

• 1.
  Solar system formation and evolution models generally predict that the Jovian Trojans accreted in the outer solar system and were subsequently captured at the time when Jupiter and Saturn passed through a 2:1 mean motion resonance (e.g., Morbidelli et al. 2005). The observations and Hapke model results in the present study are generally supportive of this model (although not uniquely so), with surface compositions consistent of low-temperature aqueous alteration mineral assemblages, carbonaceous matter, and ice providing reasonable fits to the spectral data. Such assemblages are expected to form readily in the ice-rich outer solar system.
• 2.
  No extraterrestrial materials in our collections are currently known to have originated from the Jupiter Trojan asteroids. However, a few carbonaceous chondrite meteorites including Tagish Lake, Wisconsin Range (WIS) 91600, and Meteorite Hills (MET) 00432, have been suggested to originate from D-type asteroids (e.g., Hiroi & Hasegawa 2003; Izawa et al. 2015). The Hapke model results including the Tagish Lake meteorite suggest that materials similar to the "Tagish Lake-like grouplet" meteorites are analogous to at least some of the Jovian Trojans because they provide a good match in spectral slope to Eurybates and Patroclus without the inclusion of additional coloring agents. This highlights the value of using meteorites consisting of many phases as a single component in Hapke modeling (e.g., Roush 2003), with Tagish Lake providing a material analog to the assumed non-ice, silicate-dominant, organic-bearing component of the Jovian Trojan surfaces. A recently reported "comet-like" clast in the CR2 chondrite LaPaz Icefield (LAP) 02342 (Nittler et al. 2019) containing high abundances of organic carbon and sodium may also be a material analog for some Jovian Trojan surface materials, but no spectral data are currently available for this material with which this potential link might be further evaluated.
• 3.
  The results of this study present several hypotheses that can be tested by the Lucy mission. The spectrally red surfaces of Orus and Leucus are expected to contain less near-surface hydrated material than the less-red surfaces of Eurybates and Patroclus, with Polymele being intermediate. The variation in spectral slope (and possibly corresponding hydration) could also relate to the apparent surface exposure age. If aqueous alteration products such as saponite, serpentine, magnetite, or carbonates are present on the surfaces of the Jovian Trojans, it would imply that heat source(s) were available to drive aqueous alteration, which would be a key constraint on both the distribution of short-lived heat producing radionuclides in the outer solar system and on the collisional/impact heating of icy bodies.
• 4.
  Regardless of end-member assumptions, we find that the spectral diversity of the Lucy targets maps to measurable differences in surface composition. The dark and neutral objects, Patroclus and Eurybates, require compositional differences from the remaining objects to explain their spectral slopes. Simply adjusting a grain size parameter does not provide sufficient variation to match any mineralogical model to all five Trojans. This conclusion holds true for hydrated or anhydrous materials and for variations of ∼0.02 in albedo. This point is agnostic to hypotheses of the origins of Trojans and can be seen as a direct prediction of our data set alone. This framework can be used to constrain surface mineralogy from telescopic data even when diagnostic compositional information is unavailable.
