Experimental investigation on mechanical behavior of as cast Zn-Al-Cu/SiC/TiB₂ hybrid metal matrix composite by ultrasonic assisted stir casting technique

As cast Zn-Al-Cu alloy has been considered as base alloy material for this research. The as cast Zn-Al-Cu alloy ingots of rectangular in shape with dimensions 150 × 150 × 25 mm were prepared through liquid metallurgy route as per ASTM B669-82 standard and the chemical composition of this alloy is given in table 1 [17]. The purity of zinc as 99.90%, aluminum as 99.98% and copper as 99.00%. aluminum and copper were taken into crucible and heated upto 650 °C and then zinc was added. The stirring process was taken place for a period of 5 min and also added the degassing agent C₂Cl₆ [18]. No grain refinement treatment was performed during this process.

Commercially available ceramic particles i.e., Silicon Carbide and Titanium Diboride of average particle sizes 20 microns and 30 microns with 99.00% purity were procured from the Nano shell, India. The details of ceramic particles presented in table 2.

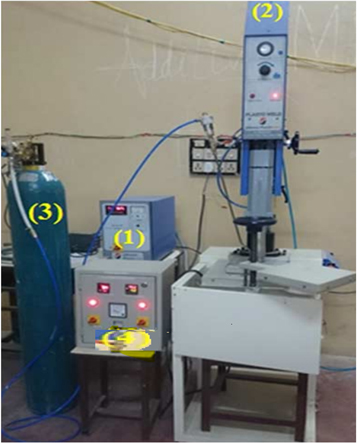

As shown in figure 1, the ultrasonic assisted stir casting was used to produce the composites. As cast Zn-Al-Cu alloy has been taken into the graphite crucible and heated upto 680 °C with a period 15 min. To improve the wettability 2.7 wt.% of Hexafluoro titanate salt (K₂TiF₆) was added into the molten alloy [19]. The 5 wt.% of SiC and X wt.% TiB₂ (X = 0, 5, 10) particles were added into the molten alloy. Before adding these ceramic particles to the molten alloy was preheated to 800 °C and maintained for a period of one hour. The molten alloy was then conventionally mixed with the mechanical stirrer at 85 rpm and also rotating speed was maintained constant for 15 min to ensure appropriate composite. The ultrasonic probe, manufactured of titanium alloy, was then submerged 3/4 th of height of the molten slurry in the crucible.

A 20 kHz ultrasonic processing frequency was employed for sonication. To disintegrate the clustered reinforcing particles, the molten alloy along with reinforcements was next destroyed with an ultrasonic energy pulse for 22 min [20]. After the sonication process, the graphite crucible taken out from furnace and hybrid metal matrix composite in molten form has been poured into mould of mild steel material.

The casting mould has been preheated to 560 °C and then filled with molten zinc-aluminium- copper alloy. The Wire cut Electric Discharge Machining (WEDM) machine has been used to produce composite samples for testing in accordance with ASTM standards. Table 3 shows the materials composition of the as casted samples and its designation used further in this paper.

For the metallurgical studies the microstructures of the hybrid composite have been examined with the help of an optical microscope. The mounted composite specimens were well-polished with a disc polishing machine with different grit sizes of papers for the metallographic analysis, and etching was done on the specimen's surfaces using kellers solvent according to ASTM E3-11 standard [21].

Zoom In Zoom Out Reset image size

Optical micrographs of metallographically polished as cast Zn-Al-Cu alloy and its composite samples were taken with the microscope and also captured by image capturing device affixed to that. The interconnected computer was used for further evaluation.

The theoretical density of as cast Zn-Al-Cu alloy-based hybrid metal matrix composites was estimated using the rule of mixture, and the experimental density value was calculated using the displacement technique i.e. Archimedes principle for different reinforcement weight percentages. In the water displacement technique, specimens with diameters of 8 mm and heights of 20 mm were preheated in a furnace for 1 h at 120 °C [22]. The weights of the composites were then determined. The sample surfaces are then coated with a polymeric gel to seal any surface porosities. Specimens were suspended in double-distilled water at 25 °C, and their weight was calculated using a four-digit balance. This weight was considered as the specimen's volume. The density was determined using the formula shown below.

$$\begin{eqnarray}&&\rho =\frac{{w}_{{air}}}{{w}_{{air}}-{w}_{{water}}}\end{eqnarray} \tag{ 1 }$$

where $\rho$ is the composite specimen density. W_air, W_water are composite specimen weight in air and water respectively. The loss of weight in water column is W_air-W_water.

From the obtained theoretical density and experimental density values of composites with different wt.% of reinforcement gives the percentage of porosity by using the given equation (2).

$$\begin{eqnarray}&&porosity\, \% =\displaystyle \frac{{\rho }_{th}-{\rho }_{ex}}{{\rho }_{th}}\times 100\end{eqnarray} \tag{ 2 }$$

where ${\rho }_{{th}},$ ${\rho }_{{ex}}$ are the theoretical density and experimental density of composites specimen respectively.

Hardness is the measure of material's resistance to indentation, scratching, and cutting. The as casted Zn Alloy and its composite specimen's hardness was determined by the Vickers hardness testing machine, as per the ASTM E-384-04a standard, a load of 0.50 kgf was applied with a dwell time 15 s [23]. The diamond indenter was for the indentation on each sample to get the reading. Each sample was indented three times in various locations, with the average of the three values, the hardness results reported.

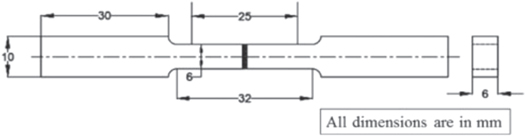

The tensile strength was obtained by conducting tensile tests on composite samples in accordance with ASTM requirements using a universal testing machine (Model: PC2000). Test samples were cut from a flat-casted plate by using wire cut EDM according to the ASTM E8. The test was conducted with a constant speed 0.29 mm min⁻¹ of crosshead [24]. The dimensions of the testing samples are given in figure 2 in accordance with the standards.

Zoom In Zoom Out Reset image size

The three-point bend test has been conducted on the universal testing machine to get the flexural strength. The flexural test specimen samples were prepared from as cast zinc-based alloy and its composites with the dimensions of 125 × 12.7 × 3.2 mm, as per ASTM D790 Standard [25].

The impact strength was tested using Charpy impact testing equipment. The impact test was performed at room temperature with the pendulum blowing, and testing specimens were manufactured with Wire EDM from cast samples and prepared according to ASTM E23 specifications with a square cross sectional specimen dimensions of 55 mm × 10 mm × 10 mm and 45° V-notch cutting at the specimen's mid span. A single hammer blow was executed at the specimen's midpoint. A single blow is all it takes to bend the composite specimen in the middle. The impact energy has been measured and reported in joules.

Figure 3 revealed the micrograph of the as cast Zn-Al-Cu alloy and its composites. In interdendrtic regions, the as cast alloy possesses a dendritic structure with dendrites surrounded by α+η eutectoid, residual phase, and metastable η phase. While the white portions are rich in Zinc (α phase), the black parts are rich in aluminium η phase).

Zoom In Zoom Out Reset image size

The grey colour represents a phase combination. The micrographs in figure 3 clearly illustrate the homogeneous distribution of the 5 wt.% SiC + X wt.% TiB₂ in the Zn-Al-Cu matrix alloy. In the case of 5% and 10% TiB₂, a uniform distribution was also obtained. Bonding between the interphase of alloy and reinforcements are TiB2 grey in colour and SiC as dark black can be seen in figures 3(c) and (d) with fine cored dendrites of Aluminium rich (η) solution and zinc rich (α) phase.

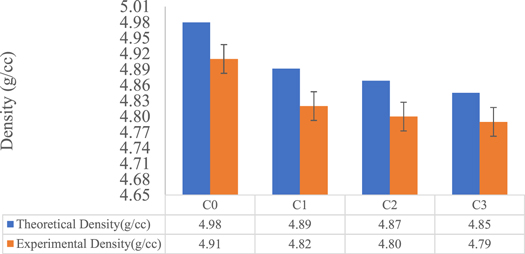

Figure 4 illustrates the comparison in theoretical and measured densities of as casted Zn-Al-Cu/SiC/TiB2 hybrid composites with varying the weight percentages of the hybrid reinforced ceramic particles. The densities of hybrid composites follow a similar pattern and are almost identical. The decrease in density values indicates that particle breaking may not have a significant influence on the produced composites. This can also be attributed to enhanced matrix reinforcement bonding and uniform dispersion of TiB₂ particles. The ultra-sonic assisted stir casting process, it may be observed, is perfect for the efficient production of composites. However, the density of the as casted Zn-Al-Cu + 5% SiC + 10% TiB₂ composite deviates greatly from the predicted density, which might be due to TiB₂ particle clustering or porosity growth.

Zoom In Zoom Out Reset image size

Figure 5 shows that the porosity values of the produced composites are higher than those of the matrix alloy. This increase in porosity of SiC composites containing as casted Zn-Al-Cu + 5 wt.% of the SiC, the increase in contact surface area owing to the introduction of reinforcement into molten Zn-Al-Cu alloy can be attributed to this. Increases in reinforcing content may cause particle agglomeration, resulting in greater porosity. Porosity is also increased when the reinforcing particulate weight percent is reduced. Porosity is also affected by the casting method used for hybrid metal matrix composites manufacture. During the stirring phase of stir casting, a volume of gases may become trapped in the molten composite, resulting in an increase in porosity content.

Zoom In Zoom Out Reset image size

The hardness of the specimens containing varied quantities of TiB₂ is shown in figure 5. Hardness refers to a material's resistance to indentation under conventional testing conditions. It can be shown that as the TiB₂ component of the composite material grows, so does its hardness. When the TiB₂ concentration is raised from 0% to 15%, the specimen's hardness improves by just 5%. This restricted rise in hardness is owing to the fact that SiCp is a tougher dispersoids than TiB2, which may have slowed the hardness enhancement.

The stress versus strain curves obtained from the tensile test and figure 6 shows the tensile strength and elongation percent of an Aa cast Zn-al-Cu alloy/SiC reinforced with varying wt.% of the TiB₂ particles. The tensile strength of the composite sample increased as the percentage of reinforcement in the sample increased. Earlier studies had similar findings, which proved to validate the current findings [26, 27].

Zoom In Zoom Out Reset image size

Figure 6 illustrates that whenever the wt.% of the reinforcement in the sample increased, the percent of elongation of the composite sample decreased. The presence of TiB₂ particles in the composite caused the composite should become brittle. Other researchers who accompanied the findings of the current study [27] had similar experiences. The addition of hard reinforcing particles (SiC and TiB₂) to the matrix strengthened the composite by improving the bonding within the matrix and reinforcement, as seen in figure 6. The addition of TiB₂ particles to the composite made it brittle, as the percent of elongation reduced and the tensile strength increased. Which can be seen in the graph, the load sharing capability of both matrix and reinforcement for a 10 wt% TiB₂ reinforced composite is somewhat considerable.

Figure 7 demonstrates how the volume percent of varied particle reinforcement affects the flexural strength of Zn-Al-Cu–5% SiC–TiB₂ composites determined with the three point bending attachment on UTM equipment. The test has been carried out for various composite compositions by testing four samples for each composite composition, and average of the results were shown in a bar chart, as shown in figure 7. The flexural strength shows that, a noticeable decrease with increasing the reinforcing weight fraction in the composites, which gives a maximum value for the as cast Zn-Al-Cu + 5 wt% SiC + 10 wt% TiB₂ composite is 374 MPa.

Zoom In Zoom Out Reset image size

The impact test was carried out for various weight percent of reinforced composites by taking four samples for each composite composition, and the average values were shown in a bar chart as shown in figure 8. It is clear that increasing the reinforcing weight fraction enhances the impact strength of the composites, which gives the maximum value as 63 J for the as cast Zn-Al-Cu + 5 wt% SiC + 10 wt% TiB₂.

Zoom In Zoom Out Reset image size
