Multifunctional polyimides containing triarylamine for electrochromic flexible device, photodetector and resistance memory device

N-isopropyl-N-phenyl-1, 4-phenylenediamine (99%), bis-(3-phthalyl anhydride) ether (99%), 4,4'-(hexafluoroisopropylidene) diphthalic anhydride (99%), 5-(1,3-dioxo-2-benzofuran-5-carbonyl)-2-benzofuran-1,3-dione (99%), 3,3',4,4'-biphenyltetracarboxylic dianhydride (99%), 1,2,4,5-benzenetetracarboxylic anhydride (99%) were bought from Tokyo Chemical Industry Co., Ltd. (Shanghai) (TCI) and used as received. 4-fluoronitrobenzene (99%), palladium on charcoal (10%), hydrazine hydrate (80%), and triphenyl phosphite (99%) were bought from Aladdin. N, N-dimethylacetamide (DMAc), dimethyl sulfoxide (DMSO), pyridine and N-methyl-2-pyrrolidone (NMP), tetrahydrofuran (THF), ethanol, methanol and N, N-dimethylformamide (DMF) were bought from Fuyu Fine Chemical Co., Ltdj. Sodium chloride (NaCl), calcium hydridesodium (CaH₂), hydride (NaH), calcium chloride (CaCl₂) were bought from Tianjin Guangfu Technology Development Co. Ltd And DMAc, DMF, and NMP were dried with CaH₂ and were distilled under reduced pressure before use.

The structures of PIs were characterized by the PerkinElmer Spectrum 100 Model FT-IR spectrometer. The Bruker AC-400 MHz and AC-100 MHz spectroscopies were used to obtain the NMR spectra of M1, M2, and PIs. Mass spectrometer (MS) spectrum was performed on a Finnigan LC-MS/MS system (Thermo Electron, San Jose, CA, USA). Matrix assisted laser desorption ionization-time of flight (MALDI-TOF) spectrum of monomer was obtained on the AXIMA Performance (Shimadzu, Japan) spectroscopy. Gel permeation chromatography (GPC) analysis was carried out on a Malvern instrument connected with the refractive index detector to measure the M_n and M_w using DMF as the elution solvent with the flow rate of 0.8 ml min⁻¹, at the constant temperature of 55 °C. Ten milligram powder solid was used to obtain thermogravimetric analysis (TGA) curve by a PerkinElmer Pyris 6 TGA at a heating rate of 10 °C min⁻¹ and a flowing nitrogen rate of 20 cm³ min⁻¹. Scanning electron microscopy (SEM, Zeiss, Gemini SEM 300, Germany) was applied to observe the surface morphology of films. The thickness of PIs films is determined by 6JA interference microscope (Shanghai Guangxue Co.). Ultraviolet–visible spectroscopy (UV–Vis) absorption spectra were measured by the Shimadzu UV-3600 spectrophotometer (Kyoto, Japan) in solution of 10⁻⁵ mol l⁻¹. The cyclic voltammetry (CV) curves were measured by the CH Instruments (660E electrochemical workstation) with the three-electrode electrochemical cell at a scan rate of 50 mV s⁻¹ in 0.2 M lithium perchlorate LiClO₄/CH₃CN solution at room temperature. The three-electrode electrochemical cell consists of the ITO coated with polymers as the working electrode, a Pt wire as the counter electrode, and an Ag/AgCl electrode as the reference electrode, respectively. The photoelectric response of PIs films was measured using the same structure of ECD in the LiClO₄/CH₃CN under a 500 W Xe arc lamp (Changtuo Co. light changes every 20 s). Density functional theory (DFT) were calculated by using the Gaussian program based on B3LYP/6-311 G (d, p) basis [50]. Keithley 2636B system sourcemeter was used to test the memory performance of sandwich memory device with Al and ITO/glass as top and bottom electrodes, respectively.

Synthesis of N-isopropyl-N, N'-bis(4-nitrophenyl) -N'-phenylbenzene- 1,4-diamine (M1), N, N'-bis(4-aminophenyl) -N-isopropyl- N'-phenylbenzene- 1,4-diamine (M2) was carried out according to the previous work and described in ESI [51, 52]. The schematic of synthesis process is shown in scheme S1 (available online at stacks.iop.org/MFM/4/034002/mmedia).

2.2.1. Synthesis of PIs

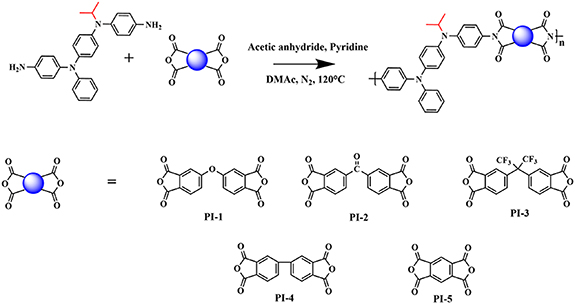

The synthesis of TAA-containing PIs is described in scheme 1 as following. Taking PI-3 as an example, the whole process was carried out under nitrogen atmosphere. In the 50 ml three-neck round-bottom flask which equipped with a magnetic rotor, M2 (0.204 g, 0.5 mmol) and 4,4'-(hexafluoroisopropylidene) diphthalic anhydride (0.222 g, 0.5 mmol) were dissolved in 4 ml of dried DMAc. The reactor was stirred at room temperature for 12 h to give poly (amic acid) solution. Then, 1.0 ml of pyridine and 2.0 ml of acetic anhydride were added to the three-neck round-bottom flask, and the mixture was heated at 120 °C for 5 h. After the reaction was finished, the mixture solution was poured slowly into 300 ml methanol to give a fiber-like precipitate, then it was collected by reduced pressure filtration. After the product was dried under vacuum at 60 °C for 48 h, the collection was purified by Soxhlet extractor with methanol for 72 h. PI-2, PI-3, PI-4 and PI-5 were synthesized in the similar way.

Zoom In Zoom Out Reset image size

PI-1: Light yellow powder solid. FTIR (KBr, cm⁻¹): 1780 and 1726 (imide ring C=O stretch); 1379 (C–N); 744 (imide ring deformation). ¹H NMR (400 MHz, DMSO-d₆, δ, ppm): 0.94–0.96 (−CH₃), 7.03–7.96 (aromatic ring of benzene). Yield: 88%.

PI-2: Red-brown powder solid. FTIR (KBr, cm⁻¹): 1780 and 1724 (imide ring C=O stretch); 1380 (C-N); 721 (imide ring deformation). ¹H NMR (400 MHz, DMSO-d₆, δ, ppm): 0.95–0.97 (−CH₃), 7.04–8.16 (aromatic ring of benzene). Yield: 86%.

PI-3: Light red-brown solid. FTIR (KBr, cm⁻¹): 1786 and 1725 (imide ring C=O stretch); 1376 (C–N); 723 (imide ring deformation). ¹H NMR (400 MHz, DMSO-d₆, δ, ppm): 0.97–0.98 (−CH₃), 7.06–7.63 (aromatic ring of benzene). Yield: 81%.

PI-4: Orange-red powder solid. FTIR (KBr, cm⁻¹): 1774 and 1723 (imide ring C=O stretch); 1375 (C−N); 739 (imide ring deformation). ¹H NMR (400 MHz, DMSO-d₆, δ, ppm): 0.97–0.98 (−CH₃), 7.07–8.37 (aromatic ring of benzene). Yield: 83%.

PI-5: Light brown powder solid. FTIR (KBr, cm⁻¹): 1778 and 1728 (imide ring C=O stretch); 1377 (C–N); 727 (imide ring deformation). ¹H NMR (400 MHz, DMSO-d₆, δ, ppm): 0.96–0.98 (–CH₃), 7.05–8.24 (aromatic ring of benzene). Yield: 79%.

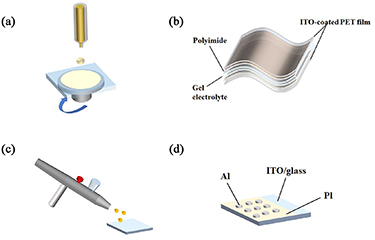

The PIs films were coated on ITO/glass by spin coating (figure 1(a)). The concentration of the solution sample was 10 mg ml⁻¹. The films were taken shape on the spin coater, at a spinning rate of 500 r min⁻¹, then dried at 60 °C under vacuum for 12 h.

Zoom In Zoom Out Reset image size

Flexible ECD was assembled step-by-step (figure 1(b)). The PIs films were prepared on ITO/PET by spray process (figure 1(c)). The concentration of the solution sample was about 20 mg ml⁻¹. A gel electrolyte based on polymethyl methacrylate (PMMA) (1.25 g) and LiClO₄ (0.15 g) were mixed with propylene carbonate (2.75 g) to form a highly transparent and conductive gel. The device was sealed by hot melt adhesive finally.

Sandwich memory devices were assembled with the PI as an interlayer, Al electrode as the top electrode, and ITO/glass as the bottom electrode (figure 1(d)), respectively. Al electrode was deposited by vacuum evaporation (1250 °C; 1 × 10⁻⁴ Pa).

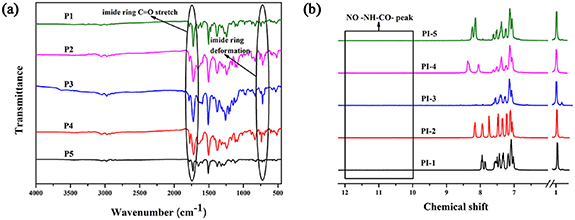

In this article, five new TAA-based PIs (Scheme 1) were designed and prepared. The ¹H NMR spectrum and the FTIR spectrum of M1 are collected in figures S1(a) and (b). The absorption peaks at 1296, 1582 cm⁻¹ are attributed to the −NO₂ of M1, which indicate the M1 has been synthesized successfully. The C–H HSQC spectrum and HBMC spectrum of M2 in CDCl₃ are collected in figures S3(a) and (b) and all peaks have been assigned and the structure of that is also fully confirmed. NMR spectra combined with FTIR spectra (figure S4) indicate that M2 was successfully synthesized, namely, –NH₂ absorption peak is shown in the ¹H NMR spectrum at 3.58 (s, 4H, –NH₂) and the FTIR spectrum at 3330, 3024 cm⁻¹. The structures of these PIs were characterized by FTIR (figure 2(a)) and characteristic bands of PIs have been marked, such as imide ring C=O stretch and imide ring deformation. The ¹H NMR spectra of PIs are shown in figures 2(b)–(f). There are no –NH–CO– peaks at 10–12 in ¹H NMR spectra which proves the poly(amic acid)s have reacted completely to form PIs [53].

Zoom In Zoom Out Reset image size

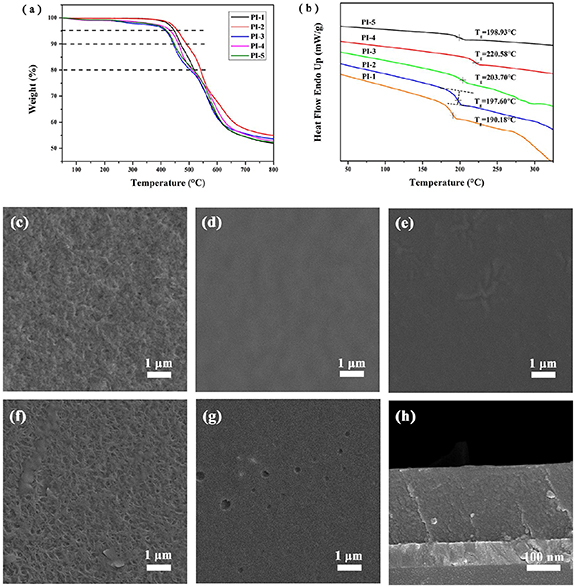

TGA curves show that PIs start losing weight when the temperature reaches about 400 °C under the nitrogen atmosphere (figure 3(a)). Besides, in table 1, the decomposition temperatures (T_d) at 5%, 10%, 20% weight loss are 416 °C–460 °C, 441 °C–489 °C, and 502 °C–540 °C, respectively. When PIs were heated to 800 °C, the char yields of PIs were 52%–55%. In summary, PIs have excellent thermal stability according to TGA analysis, due to the aromatic rings and imide linkage. Compared with those of the other four PIs, the thermal stability of PI-3 is the best, which is attributed to trifluoromethyl in the structure. The glass transition temperature (T_g) curves of PIs (figure 3(b)) and T_gs (table 1) reveal that T_gs of PI-1, PI-2, PI-3, PI-4, and PI-5 are 190, 198, 204, 221, and 199 °C, respectively. The H bonds and benzene ring aggregation contribute high T_g together. M_n, M_w, and polydispersity index (PDI) of PIs are shown in table 2. Average degrees of polymerization of PIs are calculated from M_n, to be 33, 28, 29, 26, and 32, respectively. Besides, the PDIs of PIs are 1.5–1.8, which means the ratio of the two monomers to react is close to 1:1 and the PIs have narrow molecular weight distribution.

Zoom In Zoom Out Reset image size

The solubility of PIs is shown in table 2, with a 10 mg sample in 1 ml of seven kinds of solvents. PIs can be completely dissolved in DMSO, DMAc, DMF, NMP, and CH₂Cl₂ at room temperature, which is resulted from the isopropyl group on diamine monomer. Good solubility is a crucial performance for obtaining flat surface film by simple, cheap techniques, such as roll to roll, spray, or printing.

In figures 3(c)–(g), the top-view SEM images of PIs, the surfaces of PIs films are without broken or insoluble particles which show the excellent film-forming ability of PIs. However, the surface of PI-1 and PI-4 films is fibrous, which is different from the flat surface of PI-2, PI-3 and PI-5 films. It indicates that there will be some ordered molecular assembly, which will make ions intercalation and deintercalation easier, and increase the conductivity of films. Meanwhile, the contact area between the film and ions in the solution will increase, which is conducive to charge transport. Although the charge transfer efficiencies of PI-1 and PI-4 films surpass the other three, they are not to the extent of excellent, which may be caused by poor ion transmission. The thickness of PIs films is in the range of 212–233 nm (determined by 6JA interference microscope). The lateral-view SEM image of PI-3 film (show in figure 3(h)) indicates the film thickness is 227 nm which is the same as the result tested by 6JA interference microscope, and the inside of the PI film is integrated and dense without voids.

The optical properties of PIs were studied by the UV-visible absorption in CH₂Cl₂ (concentration: 1 × 10⁻⁵ M) (figure 4(a)). All PIs have an intense absorption peak at 305–312 nm (table 3 and figure S5). The strong absorption peaks locate at UV region due to π–π* transition of the C=C bond of benzene ring in TAA of PIs [25]. The absorption spectra of the PIs films are red-shifted compared to that in the CH₂Cl₂ solution. This may be caused by J (head to tail) type π–π stacking of aromatic rings, when the PIs were coated on the ITO/glass [54].

Zoom In Zoom Out Reset image size

The electrochemical properties of PIs were investigated by CV curves during the scan between 0.0 V and 1.6 V in figure 4(b), and the oxidation potentials are summarized in table 4. All the CV curves of PIs have two reversible redox peaks which are attributed to two N atoms of TAA. Taking the PI-3 as an example, the first oxidation peak and the second oxidation peak are at 1.11 V and 1.54 V, respectively. We can observe the color of PI-3 film on ITO/glass changes from transparent to light orange, then to blue. In table 4, the E_1/2 of PIs are similar, the reason for which the TAA unit plays a leading role in the redox process of positive potential. When negative voltage was applied on the PI-3 film between 0.0 V and −1.6 V, there is a pair of redox peaks in CV curves, which is one-electron reduction induced by the aromatic-carbonyl π-system of the imide functional group could be observed from the imide ring of PIs [55]. The isopropyl group adjusts the E_1/2s of the PIs. Figure 4 shows that the E_1/2s of PIs at negative voltage are −1.21 V, −1.35 V, −1.29 V, −1.13 V and −1.15 V, respectively. In addition, the E_1/2s of PI-4 and PI-5 are obviously lower than the other three dues to that the diimides structures of PI-4 and PI-5 have the stronger electron withdrawing character compared to that of PI-1, PI-2 and PI-3 [56].

Table 4. Electrochemical properties of the PIs.

Polymer code	$E_{{\text{onset}}}^{\,{\text{oxidation}}}$ a	$E_{1/2}^{01}$ a	$E_{1/2}^{02}$ a	$E_{{\text{HOMO}}}^{\,{\text{electro}}}$ b	$E_{{\text{LUMO}}}^{\,{\text{electro}}}$ c	$E_{\text{g}}^{\,{\text{electro}}}$ c	$E_{{\text{HOMO}}}^{\text{q}}$ d	$E_{{\text{LUMO}}}^{\text{q}}$ d	$E_{\text{g}}^{\text{q}}$ d
PI-1	0.84	1.01	1.48	−5.19	−1.56	3.08	−4.52	−2.86	2.02
PI-2	0.75	0.96	1.44	−5.10	−1.35	2.97	−4.93	−3.13	1.70
PI-3	0.79	1.00	1.50	−5.14	−1.46	3.07	−5.10	−3.14	1.96
PI-4	0.80	0.99	1.45	−5.15	−1.44	3.05	−5.07	−3.23	1.84
PI-5	0.77	0.93	1.45	−5.12	−1.33	2.95	−5.01	−3.33	1.68

^a $E_{{\text{onset}}}^{\,{\text{oxidation}}}$: onset potential of PIs. ${E_{1/2}}$: average potential of redox couple peaks. ^b $E_{{\text{HOMO}}}^{\,{\text{electro}}}$ = −($E_{{\text{onset}}}^{\,{\text{oxidation}}}$ vs. Ag/AgCl + 4.80 − E_{1/2, ferrocene}) eV. Ferrocene is used as an external reference for calibration (E_{1/2, ferrocene} = +0.45 V vs. Ag/AgCl) in LiClO₄/CH₃CN. ^c $E_{{\text{LUMO}}}^{\,{\text{electro}}}$ = −($E_{{\text{onset}}}^{\,{\text{reduciton}}}$ vs. Ag/AgCl + 4.80 − E_{1/2, ferrocene}). ^d $E_{\text{g}}^{\,{\text{electron}}}$ = 1240/λ_cutoff.

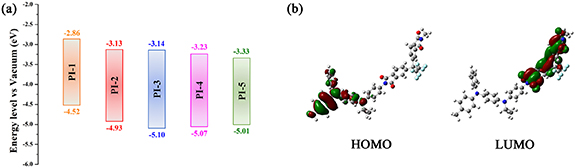

The electronic properties of structure for PIs were investigated with DFT. The highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of PIs are shown in figure 5(a). Taking PI-3 as an example, the electron density of the dimers is shown in figure 5(b). The HOMO locates at the central nitrogen atom which links three phenyl groups on the TAA part, and the LUMO level locates at the (difluorophenylmethyl) benzene ring. It indicates electrons can transfer from TAA moiety to benzene part of polymer. Theoretical data of $E_{{\text{HOMO}}}^{\text{q}}$s, $E_{{\text{LUMO}}}^{\text{q}}$s and $E_{\text{g}}^{\text{q}}$s and experimental data of $E_{\text{g}}^{\,{\text{electro}}}$ are summarized in table 4. The order of PIs ${\text{E}}_{\text{g}}^{\text{q}}$s is PI-5 < PI-2 < PI-4 < PI-3 < PI-1, which is the same as that of $E_{\text{g}}^{\,{\text{electro}}}$. However, the experimental data is smaller than the theoretical data due to some reasons, such as the polarity of the solvent, the temperature, the kind of electrolyte, and collisions between polymer and solvent molecules [57].

Zoom In Zoom Out Reset image size

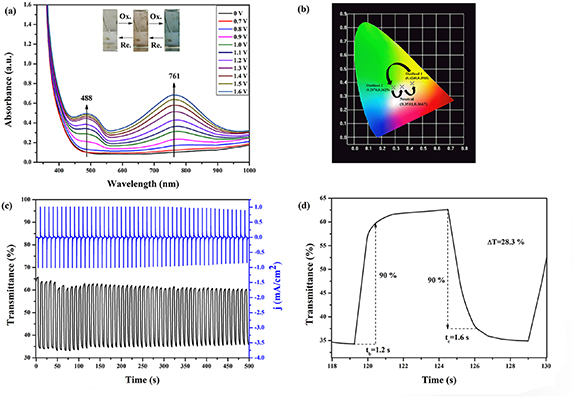

The UV–vis absorption spectra combined with CV techniques are used to study EC characteristics of the PIs. The applied potential is increased linearly from 0.0 V to 1.6 V. During the process of applying potential, the new absorption peaks of PIs at 484–491 nm to 752–778 nm (figures S6–S9) become intense.When the operating potential reaches 1.6 V, the color of film changes to blue completely. The color coordinates corresponding to the coloration phenomenon of PI-4 are demonstrated in figure 6(b). This can be attributed to the formed bistriphenylamine cation during oxidation [58].

Zoom In Zoom Out Reset image size

Dynamic changes of the transmittance combined current (figure 6(c)) are used to study the EC reversibility of PI-4. Multi-step cycle transmittance of PI-4 keeps stable reversible changes in 500 s with a cycle time of 10 s, and the optical contrast (ΔT) of PI-4 is 28.3%. Besides, the response time of PI-4 film is 1.6 s (colored time (t_c)) and 1.2 s (bleached time (t_b)), respectively. The fast response time is an advantage of ECDs. As for the other four PIs, the ΔTs of PIs are 23.1%, 8.5%, 29.0%, and 12.6%, respectively (figures S10–S13). The EC coloration efficiencies (CEs) of PIs are summarized in table 5, and CEs of PIs are 159 cm² C⁻¹, 110 cm² C⁻¹, 205 cm² C⁻¹, 186 cm² C⁻¹, and 98 cm² C⁻¹, respectively. The CE of PI-3 is bigger than that of others which indicates the higher optical modulation companies with smaller intercalation charge density. These data indicate that the new type of PIs have great application potential in EC materials.

Owing to the excellent film-forming and mechanical properties of PIs, the PIs films can form a free-standing film. The PI-3 film has the best flexible behavior in the five PIs, which can be bent at a certain degree without brittle fracture (figure 7(a)). Besides, PI-3 can adhere on the ITO/PET tightly (figure 7(b)). Whether PI-3 is in an independent free-standing film state or in a film state coated on ITO/PET, it maintains good integrity during the bending process without little damage which is attributed to the trifluoromethyl group. Therefore, we prepared flexible ECDs based on PI-3. Figures 7(c) and (d) show the flexible ECD in the normal state. When the applied potential is increased linearly from 0.0 V to 3.0 V, the color of ECD can be switched from faint yellow at 0.0 V to blue upon 3.0 V. The flexible ECD can be bent by 20° and keep the color state (shown in figures 7(e) and (f)).

Zoom In Zoom Out Reset image size

Dynamic changes of the transmittance for flexible ECD prove that the flexible ECD has excellent EC cycle stability (figure S14). Multi-step cycle transmittance of flexible ECD was measured in 20 000 s with a cycle time of 10 s (2000 cycles). When the flexible ECD works after 1000 s, the optical contrast keeps stable and does not decrease even after 20 000 s. In summary, this flexible kind of ECD shows excellent EC performance in bending state.

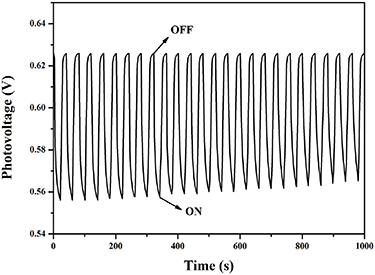

The photoelectric response of the PIs films for photodetector or photovoltage cell is studied. Take PI-3 film as an example (figure 8). A reversible photovoltage is observed when the light switches many times. The photovoltage quickly increases as soon as the PI-3 film is irradiated with the light ('on' state). On the contrary, when the light is turned off ('off' state), photovoltage drops dramatically to the primary value. The photovoltage under light illumination is 0.07 V higher than that in dark, revealing charge separation and electron transfer between the electrolyte and the PIs film when PI-3 film is illuminated [46]. The excited photovoltage of PI-3 film decreases little after many on/off cycles, which indicates that PI-3 has a stable response to light. After the PIs absorb light energy, the photo-generated electrons transfer from the LUMO to the conduction band of the ITO surface, and then move to the external circuit. The open-circuit photovoltage is engendered by the hopping of electrons. Compared with PI-3, the other four PIs show similar behavior (shown in figures S15–S18). The limit photovoltage of photodetectors based on PI-1, PI-2, PI-4 and PI-5 are 0.07 V, 0.08 V, 0.06 V and 0.05 V. It indicates their photoelectric response sensitivity are similar, but comparing their cyclic stability, it was found that PI-3 and PI-5 have more stable cyclic reversibility, which is attributed to the excellent film-forming ability of PI-3 and PI-5. Accordingly, these PIs can be utilized as photoelectric conversion materials or in photodetectors.

Zoom In Zoom Out Reset image size

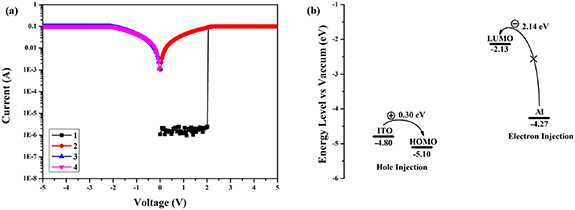

CV characteristics were investigated by ITO/PIs/Al sandwich memory device. Taking the ITO/PI-2/Al as an example (figure 9), the device displays typical electrical switching and non-volatile write-once read-many-times (WORM) storage characteristics. The other four PIs have similar storage characteristics (figures S19–S22). In '1' scan, the applied voltage (V_a) of memory device is increased progressively from 0.0 V to 2.0 V (figure 9(a)), the current keeps about 2.4 × 10⁻⁶ A. When V_a is raised after 2.0 V, the current suddenly increases to 9 × 10⁻² A, which indicating the resistance is decreased by about 10⁵ times. After that, the V_a of WORM memory device switches from the 'off' state to the 'on' state, and it represents the conversion of the 'write' process in the digital storage device. In particular, the current switching ratio of the memory device is 3.7 × 10⁴, which is sufficient to allow the memory device to have excellent data storage performance without misreading. In the subsequent multiple scans (2, 3, 4), even if a negative voltage is applied to the device, the device still remains in the 'on' state and keeps WORM memory characteristic.

Zoom In Zoom Out Reset image size

The energy levels of WORM memory devices of PI-2 are displayed in figure 9(b). As for PI-2 film working as the active layer, the hole injection energy barrier (0.30 eV) is calculated by work functions of ITO (−4.80 eV) and HOMO energy level (−5.10 eV). Meanwhile, the electron injection energy barrier (2.14 eV) is calculated by work functions of Al (−4.27 eV) and LUMO energy level (−2.13 eV). By comparing the electron injecting energy barrier with the hole injection barrier, it indicates that the conduction process of WORM memory device mainly depends on hole transport, due to hole is more easier to transfer. The memory devices based on PIs have the excellent threshold voltage (V_threshold) and WORM characteristic, which are attributed to the TAA group containing the isopropyl group. However, the switching V_threshold of WORM memory devices based on PIs are 3.6 V, 2.0 V, 2.8 V, 3.8 V and 2.1 V, respectively. V_threshold of PI-2, PI-3 and PI-5 are lower than the other two, which is attributed to the low HOMOs of them make hole to transfer easier. In summary, it indicates that these kind of PIs are excellent multifunctional materials which can be applied to polymer memory devices.
