Probing surface charge densities on optical fibers with a trapped ion

We use a single ion confined in a linear Paul trap to probe the surface charge densities on optical fibers located nearby in vacuum. Surface charges distort the trapping potential, and when the fibers are displaced, the ion's equilibrium position and secular motional frequencies are altered. We measure the latter quantities for different positions of the fibers and compare these measurements to simulations in which unknown charge densities on the fibers are adjustable parameters. Using a model based on two homogeneous surface charge areas per fiber, values ranging from $-10$ to $+50$ e/$\mu$m$^2$ were determined. Here, we present an analysis of these surface charge densities for two fibers. The method is particularly interesting for miniaturized experimental systems - for example, for quantum computation, communication, and metrology - in which ions are trapped in the vicinity of dielectric materials.


Introduction
Trapped-ion platforms have been used to demonstrate small prototypes for quantum computation [1,2], quantum simulation [3] and quantum communication [4]. Microfabricated traps offer a promising route to scale up these prototypes into quantum devices capable of addressing classically intractable problems [5,6]. However, along with the benefits of miniaturization come the challenges of preserving the ion from perturbations from nearby surfaces, as the ion acts as a sensitive probe of electric fields [7,8,9]. While stray DC-electric fields displace the ion and cause micromotion [10], the ion's motional coherence is easily disturbed by AC-electric field noise from trap surfaces [11,12,13], as quantified through heating rate measurements [11]. For metal surfaces, these properties have been studied extensively [14,15], and methods have been developed to minimize disturbances [16,17].
In contrast, only a few studies have been undertaken on dielectrics close to trapped ions [18]. However, the question of dielectric surface interactions with ions is highly relevant, as the integration of optics into microtraps is expected to enable the scalable and efficient initialization, manipulation, and measurement of ion-based quantum bits [19], as demonstrated in recent proof-of-principle experiments, e.g., with Fresnel lenses, waveguides, and high-finesse optical cavities [20,21,22]. Materials like indium tin oxide (ITO) open up the possibility to produce transparent electrodes [23], but they also introduce optical losses precluding their use in high-finesse cavities. Micro-fabricated cavities are especially interesting, as these may be used both for classical optics applications and for cavity quantum electrodynamics (cavity QED) experiments, which enable quantum interfaces between photons and ions [24,25,26,27,28]. Research into surface charges on dielectrics dates back many decades [29] and has been both extensive and diverse [30,31]. Unfortunately, standard methods from this field are not applicable to ion traps, where in-situ measurements under ultra-high vacuum are required in order to probe the conditions experienced by trapped ions.
Here, we present a method to estimate the surface charge densities on exposed dielectric surfaces close to a trapped ion. Our approach is similar to that used for electric field measurements of metallic surfaces [9] but allows us to determine not only the corresponding electric fields but also the surface charge densities. This method provides us with insights into our experimental system and has implications for the development and simulation of ion traps with integrated optics. Our system is a fiberbased cavity-QED setup, and we determine the surface charge densities on the facets and on the sides of the two optical fibers forming the cavity. The principle of the presented method is the following: A charged object, here a fiber, is displaced in the vicinity of a trapped ion. The potential experienced by the ion is altered by the corresponding change of the static electric field. We first measure both the ion's position and its secular frequency for different configurations of the charged optical fibers. Then we simulate these quantities using the unknown surface charge densities as adjustable parameters in the simulations until an agreement with the data is found. For our trap, we need to include an additional so-called patch potential in the simulations which takes into account fixed stray charges on metallic trap surfaces [11,9].
In section 2, we introduce our experimental setup. Section 3 explains how the position and secular frequencies of a trapped ion are measured. The simulation of these quantities is then described in section 4. In section 5, we discuss how to measure patch potentials and how to account for their effects in simulations. Our main results, on characterizing a dielectric fiber near an ion, are presented in section 6. Here, we investigate two cases: a positively charged fiber and an almost neutral fiber. Finally, in section 7 we discuss the limits of our method and consider how it could be applied to other trapped-ion experiments.

Experimental apparatus
Our setup consists of a linear Paul trap [32,1] combined with a fiber-based Fabry-Pérot cavity [33]; an earlier version of the setup was described in [25]. The trap design, shown in figure 1, is similar to the one reported in [34] but with an ion-to-electrode distance of 270 µm and a separation of 5.1 mm between the endcap electrodes. Compensation electrodes for minimizing ion micromotion are grounded for all measurements presented here. The trap electrodes are made of gold-plated titanium and are mounted on a sapphire holder. We apply a 30 MHz radio frequency (rf) signal on two opposing radial electrodes while grounding the remaining two radial electrodes. Single 40 Ca + ions are trapped at radial and axial secular frequencies of 1.6 MHz and 200 kHz, respectively. Two optical fibers integrated with the ion trap can be independently translated relative to the ion-trap center along three axes using in-vacuum nanopositioners ‡. Figure 1(a) shows a cutaway diagram of the ion trap in which most of the sapphire holder, one endcap, and one fiber have been removed.
We define the origin of the coordinate system to lie at the trap center. The trap axis is along the x-axis, and lies in the horizontal plane. The fibers are mounted vertically, along the y-axis. Although the fibers can be moved over a few mm along the x-and z-axes, in the following measurements they are kept at fixed positions close to the origin with x, z ∈ [−10, 10] µm. We use two different types of fibers: fiber M is a multimode fiber § with a cladding diameter of 220 µm, and fiber P is a photonic crystal fiber with a cladding diameter of 230 µm. Both fibers' facets were machined into concave profiles with a CO 2 laser and were subsequently coated with a dielectric mirror stack of Ta 2 O 5 /SiO 2 bilayers, with the outermost layer being SiO 2 [35]. The photonic crystal fiber provides efficient incoupling to TEM 00 cavity modes, whereas the multimode fiber is used for efficient outcoupling of light from the cavity [33,35]. The protective copper and polyimide layers of fibers M and P, respectively, were removed over more than 10 mm behind the tips, so that the side surfaces in the vicinity of the ion trap consist of the dielectric cladding. The facets and the sides of the fibers thus constitute dielectric surfaces prone to trapping charges, which may be positive or negative. In this work, we will assume that these trapped charges can be described by homogeneous surface charge densities, called σ M,f , σ M,s , σ P,f and σ P,s . The labels M and P identify the fiber, and f and s stand for "facet" and "side". Figure 1(b) presents a sketch (not to scale) of a view along the trap axis depicting the fibers' positions relative to the ion trap. The facets of fibers M and P are held at distances d M and d P , respectively, from the trap center. In the absence of the fibers, the ion is trapped at the trap center. A charged fiber produces a static electric field that, when the fiber is brought near the ion, attracts or repels the ion. Using a CCD camera, we measure the corresponding horizontal shift x ion and vertical shift y ion of the ion in the xy plane; see figure 1(c). The static electric field produced by a charged fiber also modifies the secular frequencies of the ion's motion in the trap, which we also measure, as we now describe.  [1]. Both fluorescence from the ion and scattered light from the trap electrodes and inserted fibers pass through an objective and band-pass interferometric filters, after which they are detected by the camera.

Measurement of ion position and secular frequency

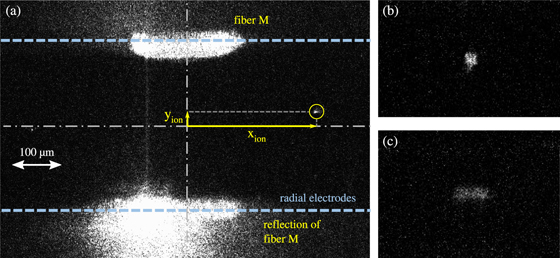

To infer the ion position x ion along the trap axis, we determine the center of the ion image from the CCD camera with a precision of ±1 pixel. The pixel to metricdistance conversion is calibrated using two independently known quantities, the fibers' diameters and the separation of the radial electrodes, yielding a conversion factor of 0.83(4) µm/px. The distances d M and d P between the fiber facets and the trap center are not directly measurable in our experiments. Indeed, for d M , d P > 180 µm, which is the case for all data presented in section 6, the fibers are shielded by the radial § IVG Fiber Cu200/220 NKT Photonics LMA-20 electrodes and thus not visible to the CCD camera. In our setup, the nanopositioners do not have closed-loop feedback capabilities, and thus we do not have absolute position information about the fibers. Instead, we rely on the reproducibility of the step-by-step nanopositioner displacements, which we calibrate by displacing the fibers in the field of view of the CCD camera. Single steps increasing or decreasing d M correspond to displacements of 1.7(1) µm and 2.2(1) µm, respectively, while single steps increasing or decreasing d P correspond to respective displacements of 2.0(1) µm and 1.8(1) µm due to different loads of the nanopositioners. We then assume that the distance travelled per step remains constant when the fibers are retracted out of the field of view. To test this assumption, we start with a fiber at a reference position within the field of view. We retract it by a given number of steps, then reverse the direction by the number of steps that according to our calibration should cover the equivalent distance. For fiber M, we recover the reference position within ±25 µm for any displacement up to 2.0 mm; we thus estimate 25 µm to correspond to a 2σ deviation and use a value of 13 µm for the uncertainty in d M . Fiber P has a reproducible behavior with the same uncertainty up to a retraction of 0.75 mm from the trap center. For larger displacements of fiber P up to 1.6 mm, the load on the piezo nanopositioner is modified, most likely due to contact between the fiber and the vacuum chamber, resulting in a less reliable calibration. In this regime, we estimate the 2σ deviation of d P to be 60 µm and the uncertainty to be 30 µm.
We furthermore measure the axial secular trap frequency ω ax . We excite the axial mode of the ion's motion by applying a voltage of variable frequency ω exc to one of the endcap electrodes [36]. Scanning ω exc , we are able to distinguish between an unperturbed ion, as in figure 2(b), and an excited ion, as in figure 2(c), and to determine ω ax /2π within ±2 kHz.
We note that the same techniques could be applied to measure the ion position along the y-axis and the secular frequencies along both radial axes. However, we do not present such measurements because we are not able to compare them with their simulated counterparts, as will be explained in section 5.

Simulations of ion position and secular frequencies
Simulations of the total potential energy landscape are performed to estimate the ion's equilibrium position and secular frequencies for arbitrary trap biasing voltages and for any charge state of the fibers according to the homogeneous surface-charge model described in section 2. The total potential is the sum of the rf pseudopotential [32] and the static potentials generated by the endcap electrodes and by the charge densities on the fibers' surfaces. We use finite element analysis software ¶ to simulate the relevant electrostatic potentials. The fibers are treated as dielectrics with a dielectic coefficient at rf corresponding to that of silica, and with a length of 6 mm. The compensation electrodes are grounded in all cases.
We first simulate the static electric potential U rf ( r) generated by the voltage V 0 = 1 V applied to the rf pair of radial electrodes while all other electrodes are grounded and all surface charge densities on the fibers are set to zero. The rf pseudopotential is then given by where M is the mass of a 40 Ca + ion, Q is the elementary charge e, and Ω and V rf are the angular frequency and amplitude of the voltage applied to the rf electrodes. The potential energy due to the right or left endcap electrode i ∈ {R, L}, when biased by a DC voltage V ec,i , is given by where U ec,i ( r) is the simulated electric potential generated when the voltage V 0 = 1 V is applied to the endcap i, all other electrodes are grounded, and all surface charge densities are set to zero. Next, we calculate the potential energy Φ σ j,k due to a single fiber region with a surface charge density σ j,k , j ∈ {M, P}, k ∈ {f, s}. This potential energy is given by Comparison of simulated potential maps in the xy plane for different surface charges on fiber M while fiber P is held neutral.
Line cuts are taken through the potential maps along dashed lines which intersect the potential minima and are plotted in the right column. Fiber M is located above the upper edge of these maps at a distance of d M = 0.5 mm from the trap center, while fiber P is d P = 1.6 mm below the trap center depicted as a white cross.
where U σ j,k ( r) is the static electric potential simulated for σ j,k = σ 0 = 1 e/µm 2 , while all electrodes are grounded and all other surface charges densities are set to zero. Finally, the total potential energy Φ sim ( r) is given by For each experimental configuration of the fiber distances d M and d P from the trap center, we successively simulate U rf ( r), U ec,i ( r), and U σ j,k ( r), and we export a twodimensional map of the corresponding electrical potentials in the xy plane at z = 0. In separate post-processing software, we build the total potential Φ sim (x, y) by summing the different contributions scaled by the voltages applied to the trap and for a given set of surface charge densities.

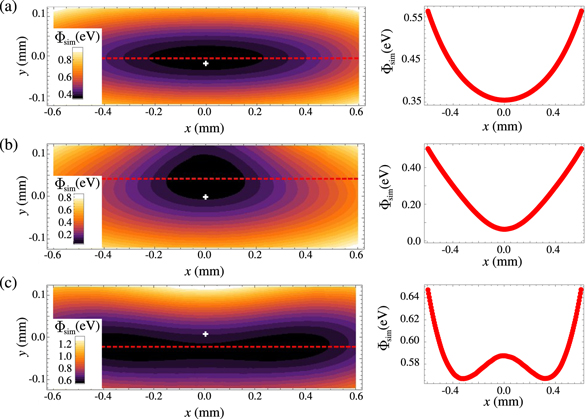

In figure 3, taking our setup (cf. section 2) as a concrete example, we show simulated total potentials for neutral, negative, and positive charge states of fiber M, where d M = 0.5 mm and fiber P is held neutral. When fiber M is negative, the ion is attracted by the fiber (figure 3(b)), and its axial potential is stiffened, that is, the curvature is steeper at the potential minimum. On the other hand, when fiber M is positive, the ion is repelled. In the example of figure 3(c), the repulsive force is so large that it splits the axial potential generated by the endcaps into a double-well, as also observed in [28].
For comparison with measured quantities, we determine the axial equilibrium position and the axial secular frequency of the ion for each simulation. As a starting point, we take the mean position of all points for which the potential lies in the (lowest) first percentile. For a circular area with a radius of 50 µm around this minimum, the potential is fitted with a two-dimensional parabolic curve so that the simulated potential around the ion's position can be approximated with a harmonic potential. Translations along x and y, curvatures of the two semi-axes, and a rotation of these semi-axes are used as free parameters for this two-dimensional fit. The ion position is given by the value for the translation along x, and its axial secular frequency is extracted from the fitted curvature along the minor semi-axis.

Trap imperfections and patch potential
By simulating each experimental fiber configuration using the methods of section 4, one should be able to find a set of surface charge densities {σ P,f , σ P,s , σ M,f , σ M,s } that reproduces the results of the measurements discussed in section 3.
First, however, the simulations should be validated independently of the fibers' influence. To this end, the fibers were maximally retracted to minimize their influence on the ion. With the left and right endcap voltages set to be equal, V ec,L = V ec,R , the mean voltage V ec,M = (V ec,L + V ec,R )/2 of the endcaps was tuned to compare measurements of the axial secular trap frequency ω ax with the simulations. The measured and the simulated data were fitted to the formula ω ax = αV ec,M + ω 2 0 . From this fit, we determined the factor α, which accounts for the geometry of the trap. However, the factor determined from measurements, α exp = 2.3(1) kHz 2 /mV, differed significantly from the factor determined from the simulation, α sim = 1.6(1) kHz 2 /mV. This discrepancy can be explained by the margins of error in the trap fabrication. In particular, the geometric factor α is sensitive to the radial positions of the blades. Adjusting the simulations so that the distances between the blades are larger by only about 7% reproduces measured data. As we cannot determine the radial positions of the blades with uncertainties less than 20 µm, we compensate for this discrepancy by scaling the voltages applied to the endcaps in our simulation correspondingly to achieve the measured secular trap frequencies.
Furthermore, the theory of our linear trap design does not include an additional confinement ω 0 in the expression above for ω ax [37]. However, for agreement with our measurements, it was necessary to include a positive confinement. This confinement was found to be independent of the applied rf voltage in our experiment. Such a residual static potential is common in ion traps [11]; in our case, it is likely due to deposits of atomic calcium that have built up on radial electrodes after repeated loading of ions [9]. These patches deform the trapping potential and may additionally oxidize and subsequently trap charges, thus contributing to the total electric potential. In our case, the precise origins, locations, and shapes of these patches are unknown. We heated the trap radial electrodes locally with strong laser light [38] with powers up to 15 W. After this treatment, we observed a different confinement ω 0 . We infer that we are able to manipulate these patches, but this method does not allow us to control the patches precisely or to eliminate them.
These patches significantly affect the equilibrium position of the ion and its secular frequency. Since we aim to determine the charges on the fibers by precise measurement of these values, we need to understand quantitatively the role of this so-called patch potential. As the ion is displaced along the trap axis during our measurements, we need to consider the perturbation along the trap axis by estimating the patch potential U patch (x). We then add this estimation to the simulated potential, such that the total potential including the patch effect along x is given by Φ(x, y) = Φ sim (x, y) + U patch (x).
To reconstruct U patch (x), we measure the ion position x exp (V ec,D ) as a function of the endcap voltage difference V ec,D = V ec,L − V ec,R . Here, we maintain a constant mean endcap voltage V ec,M = 1 kV. The voltage difference V ec,D is scanned such that the ion moves over the full width of the CCD field of view (0.8 mm). We then simulate the ion position x sim in the absence of any patch potential. For each voltage configuration V ec,D , we assume that the measured total potential along the x-axis, Φ(x), composed of the simulated potential Φ sim (x) and the patch potential, can be approximated close to the ion by a harmonic potential: with the simulated harmonic potential around x sim At the measured equilibrium position x exp , the derivative of the total potential, Φ (x exp ), vanishes: The position discrepancies between experiment and simulation for each measured voltage configuration V ec,D , ∆x(V ec,D ) = x exp (V ec,D ) − x sim (V ec,D ), are then used to recover U patch (x) modulo a constant by numerically integrating over the measured position x exp (V ec,D ): Alternatively, after differentiating equation (2) twice,

M ω
we can use the discrepancy between the squared secular trap frequencies to determine the curvature of the patch potential U patch at x exp (V ec,D ). After one integration over the position, the integration constant is chosen such that the simulated equilibrium position without any endcap voltages (V ec,M = 0) matches the one observed experimentally. Following a second integration, we again end up with the reconstructed patch potential. The two reconstruction methods produce patch potentials with nearly identical structure, as shown in figure 4. For both methods, the starting point for integration is the point at which the simulated and measured ion positions are equal, at x = 30 µm.
Integration then proceeds outwards stepwise, such that any errors will accumulate, as can be seen in figure 4(c), where the discrepancy between the two reconstruction methods is greatest at x = ±400 µm. To understand whether these deviations are significant, we extracted the axial positions and secular trap frequencies from the total simulated potentials Φ(x, y) = Φ sim (x, y) + U patch (x) for both reconstructions. For the reconstruction based on the secular trap frequency, the corresponding axial position is plotted together with the measured and simulated ion position values in figure 4(a). For the reconstruction based on ion position, the corresponding secular trap frequency is plotted together with the measured and simulated values in figure 4(b). Mean discrepancies of both positions and frequencies and of both reconstruction methods are on the order of measurement errors (0.8 µm and 2 kHz) and simulation errors (0.5 µm and 2 kHz), indicating that variations in the reconstructed patch potentials seen in figure 4(c) are not significant. In the following, reconstructions are based on the mean of the two reconstructed patch potentials, with which we observe a mean discrepancy of 4.8 kHz compared to the measured secular trap frequencies with uncertainties of 2 kHz. For the reconstructed ion position, the error depends strongly on the actual position. In the center the deviations are only about 1 µm. But for displacements larger than 300 µm from the trap center, the discrepancies between reconstruction and measurement are up to 15 µm due to errors accumulated by the integration for the reconstruction. This characteristic is taken into account in further reconstructions by a position-dependent error.
We note that the reconstruction method described above depends on tuning the endcap voltages and is thus only valid along the trap axis. We are unable to use the same approach to evaluate data on ion position and secular frequency measured along the radial axis y. It is in principle possible to extend the reconstruction method to the radial direction, since we can displace the ion along the y-axis using another set of static electrodes. However, a systematic mapping of U patch (x, y) in the xy plane is challenging because when the ion is displaced from the trap axis, it is affected by micromotion and often fails to remain stable or trapped. Therefore, we limit ourselves to a onedimensional reconstruction of the patch potential along the trap axis. Moreover, for our trap geometry, the axial secular frequency is the lowest and thus the most sensitive to the fiber position, independent of the sign of the fibers' surface charges. As a result, information in the radial direction is not essential for estimating the charge state of the fibers, although knowledge about U patch (x, y) in two dimensions would help to refine this estimation.

Determining the charge surface densities on the fibers
Finally, we turn to the determination of surface charge densities on the fibers. We will present two cases, both from our experimental setup, that are particularly relevant for cavity-QED experiments in which an ion is trapped inside a fiber-based cavity. First, we examine the situation of a fiber that was found to be positively charged after the (a) Ion position x ion and (b) axial frequency ω ax as a function of d P , the position of fiber P, both measured (blue points) and simulated for σ P,f = σ P,s = +7.2 e/µm 2 (red crosses) and for {σ P,f , σ P,f } = {+4.0, +8.5} e/µm 2 (green stars). The orange shaded area indicates the transition between a single-well and a double-well axial potential. The simulations were omitted in this region due to the anharmonic potential (see main text). Measurement error bars represent one standard deviation. Simulation error bars represent the uncertainties of the fit to the reconstructed potential and the errors found for the reconstruction in section 5. system was first assembled, evacuated, and used to trap ions. Second, we discuss the case of an almost neutral fiber, which offers favorable conditions for building short fiber cavities that result in minimal disturbance of the ion's position. Figure 5 shows the measured axial position and secular frequencies of the ion as a function of fiber P's position. Here, fiber M remains retracted at d M ≈ 2.0 mm and has no influence on the ion. We verify this claim by translating fiber M to d M ≈ 1.6 mm, which yields no measurable shifts in either the ion position or its axial frequency. We conclude that fiber M's charges do not affect this measurement and set σ M,f and σ M,s to zero in the simulations.

Positively charged fiber
As fiber P is brought towards the ion from a fully retracted position (d P ≈ 1.6 mm), the axial frequency is first observed to decrease, while the ion remains close to the trap center but is slightly shifted away from the fiber. At d P ≈ 0.55 mm, the axial frequency reaches a minimum, and as the fiber is moved closer to the trap center, the axial frequency increases, while the ion is now significantly displaced from the trap center. This scenario corresponds to a positively charged fiber. The static potential of the approaching positive fiber first relaxes the axial potential that is provided by the endcaps, and as the fiber is not exactly centered with respect to the ion, the fiber displaces the ion along the x-axis. As the positively charged fiber is brought even closer to the trap center, the repulsive force splits the axial potential into a double-well potential, as illustrated in figure 3(c). The transition between the single-and doublewell cases happens at d P ≈ 0.55 mm. For the double-well case, either local minimum can be stably occupied in experiments. In practice, the ion was reliably found on the side with x < 0.
To determine the charge state {σ P,f , σ P,s } of fiber P, the ion's positions and axial frequencies are simulated for the measured fiber's positions and compared to the measurements. By adjusting the charge distribution of the fiber used in the simulations, the agreement between simulated and measured values can be optimized, that is, the discrepancies between simulation and measurement for ion position and axial frequency can be minimized. For the purpose of this optimization, the position and frequency discrepancies are normalized so that a single value can be derived, which is then minimized, as we now describe.
We simulate the total potential Φ(x, y) = Φ sim (x, y) + U patch (x) + Φ σ P,s (x, y) + Φ σ P,f (x, y) for all measured positions of fiber P, using the trapping voltages of the experiment. In contrast to the applied voltages described in section 5, here we raised the axial confinement by applying a mean endcap voltage of V ec,M = 1.5 kV. For the following simulations, fiber P is positioned at x = 10 µm, which is within the uncertainty with which we can position the fiber at the origin in our experimental setup (cf. section 2). Simulations were carried out for fiber positions at x = {0, 5, 10, 15} µm and the best agreement between measurements and simulations was chosen. From these reconstructed total potentials, we extract the simulated positions and axial frequencies.
We omit a reconstruction around the transition region from a single to a double well because a harmonic description is not valid in this regime; see the orange shaded area in figure 5. For the double well, we then selected the minimum in which the ion was observed. For each simulated position and axial frequency, we calculated the discrepancy to the measured value. Each discrepancy was weighted by the sum of the corresponding measurement, simulation, and reconstruction errors, where all errors represent one standard deviation, and where the error of the reconstructed position was considered to be position-dependent, as described in section 5. This weighting serves to normalize the discrepancy, so that a value of one means that the simulation deviates by one standard deviation from the measurement. With this normalization, the squares of positions and axial frequencies at each fiber position can be summed up to a single residual, which is used to find the charge densities {σ P,f , σ P,s } via a least-squares optimization code.
As the least-squares optimization code often converged to local minima due to the noisy reconstruction, residuals were calculated over a two-dimensional array of surface charge densities {σ P,f , σ P,s }. Here, a correlation between the surface charge densities σ P,f and σ P,s was observed, indicating that removing charges on the fiber facet could be compensated for by adding charges to the side, or vice versa. Nevertheless, the global minimum was found over the 2D charge-density array. Using charge densities close to this global minimum as initial parameters, the least-squares optimization code converged reproducibly to σ P,f = +4.0 e/µm 2 and σ P,s = +8.5 e/µm 2 . At this minimum, a mean residual of 3.0 for each measured point was calculated, meaning that the discrepancies between reconstruction and measurement were three times larger than the errors expected from the measurement, simulation and reconstruction. Positions and frequencies corresponding to these optimized surface-charge values are plotted in figure 5. This analysis was also carried out for a single charge density on the fiber's surface, that is, for the constraint σ f = σ s . A value of σ f = σ s = 7.2 e/µm 2 was found with a mean residual of 3.1 standard deviations. This result underscores the range of possible surface charge densities which are able to reproduce the measured data with similar agreement.

Almost neutral fiber
In coupling a trapped ion to an optical cavity, one has to take into account the electric field generated by any surface charges on the cavity mirrors, and it is generally desirable to minimize the effect of this field on the trapping potential. In this regard, fiber-based Fabry-Pérot cavities present a particular challenge due to the small distances (typically a few hundred microns) between ion and dielectric mirror surfaces. In the linear ion trap used here, trapped ions were highly sensitive to charges on the fibers due to the low frequency of axial confinement (see section 2). Ideally, one would like to work without charges on the fibers, but in practice this is challenging. A viable alternative consists of obtaining distributions of positive and negative charges that almost cancel each other's effects at the location of the ion.

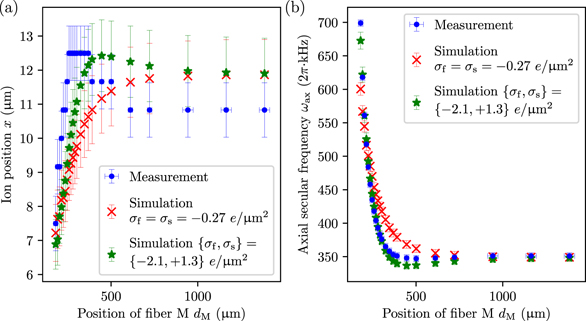

We were able to modify the charge distribution of fiber M to achieve such a cancellation; the method will be discussed briefly in section 7. In figure 6, the blue points show the measured axial positions and axial frequencies of the ion as a function of d M while fiber P is kept retracted at d P ≈ 1.6 mm. When fiber M is brought towards the trap center, the ion remains close to the trap center but is first shifted slightly away from the fiber, then slightly towards it. Its axial frequency increases, indicating that the ion sees a negative charge distribution overall. Moreover, in contrast to the situation described in section 6.1, fiber M can be brought within 200 µm of the ion while the ion remains within 4 µm of the trap center.
Following the approach described for the positively charged fiber, we optimize the parameters {σ M,f , σ M,s } to obtain the best agreement between simulations and data. Here, fiber M's position was set to x = 5 µm following simulations over a range of positions within the experimental positioning uncertainty, as explained in section 6.1. In the simulations, for the retracted fiber P, we set {σ P,f , σ P,s } = {+4.0, +8.5} e/µm 2 , as determined previously. The least-squares optimization code converges to surface charge densities of {σ M,f , σ M,s } = {−2.1, +1.3} e/µm 2 for fiber M with a residual mean discrepancy of 1.5. Again, the reconstruction was also optimized for a single surface charge density. Here, a minimum mean residual of 4.9 standard deviations was found for σ f = σ s = −0.27 e/µm 2 . The significantly higher discrepancy between simulation and experiment in this case indicates the need for different surface charge densities on the fiber's facet and side to account for the measured data properly.
When fiber M is close to the trap center, the ion is mostly influenced by the negative charges on the fiber facet and reacts accordingly. But when fiber M is far away, the positive and negative charges roughly compensate for one another, perturbing the ion minimally: Only when d M is less than 0.5 mm does the ion start to respond via its position and axial frequency to a displacement of the fiber. In contrast, small displacements of fiber P can be detected via shifts of the ion's axial frequency even when the fiber is fully retracted (d P ≈ 1.6 mm).

Discussion
We have described a method to model the surface charge densities on optical fibers next to a trapped ion in a way that reproduces experimental results. In this work, we have shown a detailed analysis for one patch potential configuration in section 5 and for two surface charge distributions of fibers in section 6. Furthermore, following these methods, for several additional charge states of the fibers and patch potentials on the radial electrodes, we were able to estimate a set of charge densities ranging from −10 to +50 e/µm 2 .
Comparing measurements of the ion's position and its axial secular frequency, charge densities were determined via least-squares optimization, but the reconstructions for the two fibers had final mean discrepancies of 1.5 and three standard deviations with respect to the measurements. Two main limitations, described below, prevent us from determining the charge densities with better agreement between reconstruction and measurement.

Limits of the method
First, the model we use to describe how the charges are distributed over the fibers does not account for complex structures: We assume that there is a homogeneous distribution of charges across the fiber facet and a second homogeneous distribution along the fiber side. This choice is dictated by simplicity and symmetry in the absence of better knowledge of the actual charge distribution. An even simpler choice would have been a single homogeneous distribution over the complete fiber surface. This would have worked reasonably well for the positive fiber P, as seen in figure 5, but for fiber M, our two-parameter approach was essential to account for the data, as seen in figure 6. One could think of refining the model by dividing the exposed area into additional zones, each carrying a different homogeneous density, or by parametrizing non-homogeneous distributions. But without physical justification to guide these choices, one would end up with a wide parameter space to optimize, which would be time-and resource-consuming.
Second, we suffer from imperfect knowledge of the patches described in section 5. Although we were able to gain information that allowed us to account for the effect of the patch along the x-axis, this reconstruction is limited, particularly because we were not able to characterize the patch potential along the radial axis y. Not only could we have used measurements of the same quantities in the radial direction for a reconstruction, but also we could have combined the analyses of measurements and simulations along the two axes to gain more precision of the determined surface charge densities.

Temporal stability of charges
The charge distributions in our setup shift over time, affecting the timescales over which measurements are reproducible. Here, we discuss those timescales and how they are accounted for in our measurements.
Recall that in section 6.2, the charge distribution of fiber M had been modified to achieve a near-neutral state. This modification was the result of a laser-based procedure that we have recently developed and investigated in which photoelectrons are created by the illumination of trap electrodes with around 30 mW of 393 nm laser light [39]. During this illumination, these electrons can be influenced by applied voltages on particular electrodes, after which the charge states on both the fibers and patches are observed to shift. The patch potentials on the electrodes are found to evolve on a time scale of a few minutes, stabilizing after about one hour, presumably due to charge rearrangement. The charge state of the fibers initially stabilizes within a few hours, but continues to drift on another, much slower time scale.
This procedure provides us with the flexibility to tune the charge state of the fibers to be either more negative or more positive. However, one shortcoming is that the charges on the fibers continue to drift. Fiber P reaches its final charge state within about one week, whereas fiber M needs about one day. These different time scales may be due to the coatings of the fibers, which are more than 10 mm behind the fiber facet (section 2): Fiber P has an insulating coating, whereas fiber M has a metallic coating, which could shorten the time scale of charge rearrangement. Moreover, if the fibers are translated via their nanopositioning stages before the final charge state has been reached, the charge on the fibers shifts. Experimentally, we address this by waiting for the charge state of both fibers to stabilize before carrying out measurements such as those presented in figure 5 and figure 6. We have verified that after a sufficient waiting time, translation of the fibers does not affect the measurement results within error bars.

Possible applications
In spite of these limitations, our method provides a reconstruction of the patch potential along the ion-trap axis and an estimation of the surface charge density of dielectrics. Whereas patch potentials and electric fields can be determined by only measuring the ion, the estimation of an in-vacuum element's charge densities relies here on the ability to displace that element relative to the ion. This ability ensures that changes of the ion's potential are attributed only to displacements of the charge densities on the in-vacuum element.
In cavity QED setups involving trapped ions and optical cavities based on dielectrics, building short cavities to maximize the ion-cavity coupling rate is challenging because the mirrors tend to carry charges. The ability to assess the charge densities on the fibers and their evolution will aid in the development of procedures to discharge the fibers. Furthermore, knowledge of the typical charge densities that can be expected under a given set of conditions will enable targeted approaches to improve experimental setups, such as by incorporating elements to reduce the adverse effects of charges on trapped ions. These considerations also apply to cavity QED setups using Rydberg atoms due to their large sensitivity to electric fields [40,41].
Our method is relevant for the field of trapped ions in general, where systems designed for scalable quantum computing or quantum simulation can benefit from component miniaturization. In a microfabricated trap, ions can be stored a few tens of micrometers away from the trap surfaces, which may generate spurious electric fields [6,4]. Such fields have been found to be correlated to ion heating [15]. Efforts are also underway to integrate optical elements required to address ions with laser beams [21], to collect ions' fluorescence [20,23,27], or to build fiber-based cavities [25,42]. While these elements are fixed with respect to the ion trap, more complex future tasks, such as selective addressing or imaging, may benefit from movable mirrors, lenses, fibers, or waveguides placed close to ions. Understanding the charge state of these elements is desirable in order to minimize detrimental effects of the corresponding parasitic fields, such as trapping instability, excess micromotion or anomalous heating, in view of optimizing the quantum operations for which a given device was designed. More broadly, our method can be valuable for any experiment where charging effects or local electric fields on surfaces need to be understood or mitigated.

Conclusion
We have presented a method to determine the surface charge density on optical fibers placed in the vicinity of a trapped ion, assuming a simplified model of two homogeneous surface charge areas per fiber. This method relies on measuring the ion's position and its secular frequency for different positions of the fibers, and on comparing these measurements to simulations with the unknown charges densities as adjustable parameters. In our experimental setup, the situation is complicated by the presence of additional confinement likely due to calcium depositions on the trap radial electrodes. Following reconstruction of the corresponding patch potentials, simulations were found to be in agreement with measurements, allowing us to determine fiber surface-charge densities.
We expect our approach to allow for better characterization of dielectric surfaces close to trapped ions. Scalable quantum-computing devices making use of microfabricated traps and integrated optics may benefit from the capability to assess the charge state of dielectric components placed in the vicinity of ions. In particular, cavity-QED setups using fiber-based cavities could be improved with the knowledge about the surface charge densities. With the presented laser-based procedure and the method to determine the surface charge densities, we were able to reduce the charges on our fibers so that we could trap an ion inside the fibers aligned for cavity-QED experiments.
