Soft-magnetic coatings as possible sensors for magnetic imaging of superconductors

Magnetic imaging of superconductors typically requires a soft-magnetic material placed on top of the superconductor to probe local magnetic fields. For reasonable results the influence of the magnet onto the superconductor has to be small. Thin YBCO films with soft-magnetic coatings are investigated using SQUID magnetometry. Detailed measurements of the magnetic moment as a function of temperature, magnetic field and time have been performed for different heterostructures. It is found that the modification of the superconducting transport in these heterostructures strongly depends on the magnetic and structural properties of the soft-magnetic material. This effect is especially pronounced for an inhomogeneous coating consisting of ferromagnetic nanoparticles.


Introduction
Owing to its unique properties YBa 2 Cu 3 O 7−x (YBCO) is one of the most promising superconductors for large-scale applications such as superconducting power cables, motors, magnetic energy-storage devices, fault current limiters and transformers [1,2]. The development of superconducting applications is closely related to a successful characterization of the electric transport in the material. A promising characterization method is the spatially resolved analysis by magnetic imaging such as magneto-optical imaging [3][4][5][6] or x-ray microscopy [7,8]. Magnetic scanning transmission x-ray microscopy utilizes dichroic absorption and thus, unlike other methods, does not have to distinguish between either resolution, small magnetic fields, surface roughness, polarity sensitivity or tip coercivity. An important point here is that magnetic field distributions can be visualized with high spatial resolution at low temperatures [8]. For this purpose a ferromagnetic material has to be brought in close contact with the superconductor. This typically leads to a variety of coupling phenomena such as proximity [9][10][11][12] and inverse proximity effects [13,14], spin-orbit coupling [15,16] or dipolar coupling [17,18].
For a feasible sensor layer one of the most important requirements is that it has to probe local magnetic fields of the superconductor without changing its properties. Thus, to avoid proximity effects [19] a thin insulating layer is introduced at the SC/FM interface [20], whereby the SC/FM interaction is governed by dipolar coupling [17,18]. As of today, numerous ferromagnetic materials have been used as sensor layers for magnetic imaging, such as thin films of amorphous Co 40 Fe 40 B 20 [21][22][23] Fe 20 Ni 80 (permalloy, Py) [8,17] or epitaxial La 2/3 Ca 1/3 MnO 3 (LCMO) [24]. Original content from this work may be used under the terms of the Creative Commons Attribution 3.0 licence. Any further distribution of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI.
In a typical imaging experiment the superconducting material is cooled in the absence of a magnetic field. Afterwards an external magnetic field is applied that leads to the penetration of magnetic flux into the superconductor. The penetration is governed by pinning of magnetic vortices. The efficiency of pinning is proportional to the magnitude of the critical current density. Since the London penetration depth λ in YBCO is much larger than the coherence length ξ, vortex core pinning is usually the dominant mechanism at low temperatures [25]. Several methods to create natural and artificial pinning centers have been developed such as the creation of oxygen vacancies [26], microstructural variations [27,28] or the addition of secondary phases [29,30]. A main prerequisite of a sensor layer is that it does not provide additional pinning caused by its magnetic structure.
In this work, we investigate bilayers consisting of a YBCO thin film and a (soft-) ferromagnetic layer. We explore how the interaction between the superconductor and the ferromagnet leads to a change in superconducting transport. Only if these changes are reasonably small is the material an efficient sensor layer. Further insight is gained from the temperature dependence of the critical current density and relaxation measurements.

Sample preparation
We used pulsed-laser deposition to epitaxially grow 200 nm thick films of optimally doped YBCO on single-crystalline SrTiO 3 (001) substrates with a lateral size of 5×5 mm 2 .
On three identical YBCO films, ferromagnetic layers were deposited: 50 nm of Permalloy (Py) with magnetic in-plane anisotropy, 35 nm of Fe/Gd multilayers consisting of 25 layers of each Fe and Gd with individual thicknesses of 0.7 nm having out-of-plane anisotropy and randomly ordered Ni nanoparticles with diameters of 10-20 nm. The ferromagnetic materials have been chosen to study the influence of different magnetic and morphological properties of the sensor layers on the transport in the superconductor.
Py and Gd/Fe layers were deposited using ion beam sputtering in UHV atmosphere at room temperature. A 5 nm STO buffer layer was introduced at the SC/FM interface for all bilayers. Physical vapor deposition with glancing angle deposition (GLAD) was used to coat the superconductor surface with Ni nanoparticles. A glancing angle of 83°and fast rotation of the substrate around its azimuthal axis were applied during the Ni deposition to obtain the magnetic nanoparticles shown in the SEM image in figure 1(d). Details of the GLAD set up can be found in [31].

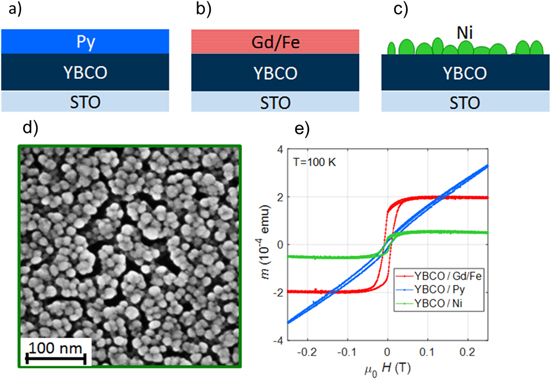

A sketch of the samples is depicted in figures 1(a)-(c). The SEM image in figure 1(d) shows the surface of the Ni nanoparticle distribution on top of the YBCO surface. Herein, individual Ni particles with typical diameters of 10-20 nm form larger agglomerates.
All samples were characterized by SQUID magnetometry using a Quantum Design MPMS3. The external magnetic field μ 0 H was applied perpendicular to the plane of the sample. The critical temperature T c was measured in an applied field of 1 mT, after the samples were cooled in zero field. The T c for the reference sample is 88 K, in case of Py and GdFe we find T c =88.4 K and in case of Ni T c =92 K. The slight variations of T c do not affect the conclusions of this work. Figure 1(e) shows the hysteresis curves measured with a sweeping rate of 5 Oe s −1 at 100 K above the superconducting transition. The Py (blue) and the Gd/Fe (red) sample show the expected behavior of a thin film with in-plane and out-ofplane anisotropy, respectively. Ni nanoparticles (green) behave like an isotropic magnet due to the approximately round shape of the individual particles. All ferromagnetic layers exhibit a similar coercive field of μ 0 H c ∼10 mT, but different magnetic moments at saturation: 8.5 × 10 −4 emu for Py; 2 × 10 −4 emu for Gd/Fe and 0.5 × 10 −4 emu for the layer with Ni nanoparticles.
The magnetic moment m is measured below T c to reveal the influence of the different magnetic layers on the transport in the superconductor. Figure 2 depicts the temperature-dependent magnetic moment of the single YBCO layer (reference sample) and the YBCO/FM bilayers. The magnetic moment has been measured in the remanent state after cooling the sample through its superconducting transition in zero field to a temperature T=5 K and applying out-of-plane an external magnetic field μ 0 H ex =0.3 T for several seconds. Subsequently, the external field is reduced to zero and the magnetic moment is measured while continuously heating the sample to 100 K.
It can be seen that all samples behave in a similar way: a large magnetic moment at low temperatures monotonically decreases while heating up towards T c . The deposition of the ferromagnetic layers leads to a suppression of the magnetic moment. In case of Py (blue) this suppression is vanishingly small even though Py has the highest magnetic moment at saturation, it increases for Fe/Gd (red) (intermediate m at saturation) and is considerable increased for Ni nanoparticles (green). We find that neither the saturation magnetization nor the coercivity are important for the dipolar coupling to the superconductor. The morphology of the magnetic stray field changes significantly from the homogeneous Py layer via the Fe/Gd multilayer to the nanoparticle agglomerate. This seems to be important for the description of the influence of the ferromagnet to the superconductor.
In [21], the suppression of the magnetic moment is ascribed to mechanical damage during the deposition process. We assume that the interaction of the superconductor with the ferromagnet is limited to magnetic coupling through introduction of the 5 nm STO decoupling layer. In this case, only the stray field configuration can have impact on the transport in YBCO.

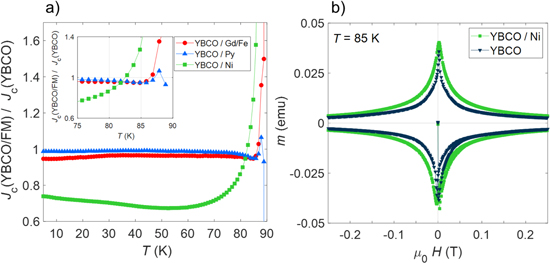

In figure 3(a) we plot the ratio r of the critical current density before and after the coating of identical YBCO films with different ferromagnetic layers. To extract the critical current density, J c , the Bean relation has been applied [32] modified for a plate-like geometry [33]: where, V the sample volume , and l the basal square side.
In the range of 5-80 K the ratio r is constant for the Py sample and close to unity (blue). The Gd/Fe sample shows slightly smaller values of r=0.95 (red). In case of Ni nanoparticles a severe suppression of about 25% is found (green). In this representation it is also seen that at temperatures close to T c (>80 K) an increase of J c is found compared to the reference sample. This increase is smallest in case of the Py film, intermediate for the Fe/Gd multilayer and largest for Ni nanoparticles.
The introduction of the decoupling layer weakens the influence of the ferromagnet on the superconducting state at the interface. The origin of the increase of J c at high temperatures is magnetic pinning of the superconducting vortices by the inhomogeneous magnetization of the ferromagnet [34,35]. Thus, the effect increases from Py via Fe/Gd to Ni nanoparticles.
The increase of m close to T c can nicely be seen when performing a m(H) measurement. The result for the Ni nanoparticle decoration is depicted in figure 3(b) where the hysteresis loops have been measured at T=85 K. Similar results have been found for CoFeB [20,21]. Pinning is affected much stronger in the presence of the inhomogeneous arrangement of Ni nanoparticles compared to the anisotropic but homogeneous Py and Fe/Gd films.
The temperature dependence of the critical current density can give detailed insight into the pinning mechanisms [27,28,36]. The critical current density J c can be described by a power law where the exponent s contains information about the pinning mechanism in the superconductor. This scaling behavior can be applied for pinning when there is no applied field and where collective processes can be neglected [37,38]. Note, that the 'zero field condition' can not be fully fulfilled in macroscopic films. The self-field of the supercurrents leads to vortex interactions and to a smearing out of the power-law behavior [38]. For many superconductors J c (T) can be fitted over the whole temperature range with a fixed exponent s=1.5 [39].
In case of YBCO thin films normally two separated temperature regimes with different exponents arise. At around T∼40 K a crossover of the exponent sis found, indicating a modification of the fundamental pinning mechanism [38]. Above 40 K, s is about unity, which can be explained by thermally activated depinning of flux lines. Below 40 K, the dominant mechanism is vortex core pinning, the corresponding exponent s is 1.5 [38]. For YBCO thin films with a grain boundary free current, the value 1.5 was found experimentally [40] and theoretically [37,38,40].

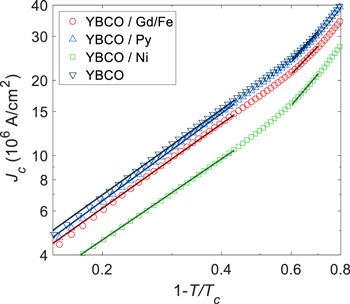

The change of s, which can be observed in figure 4 emphasizes the existence of two temperature regimes with different vortex-depinning mechanisms. The values of s are represented in table 1 and the errors are below 0.05. For temperatures above T=50 K where s∼1.1 for almost all samples, the continuous ferromagnetic layers produce no change in J c (T) and the thermally activated depinning is the dominant pinning mechanism. The isotropic properties of Ni nanoparticles have a significant impact on the pinning properties, as is indicated by a higher s. Below 35 K we identified exponents higher than s∼1.5 [40]. For the reference sample, we find s=1.68. This is a clear footprint for additional inhomogeneities which are known to increase s [38]. The exponents found for the Py and Gd/Fe samples are similar to the one for the reference sample, meaning that the influence of these ferromagnetic layers is not important on the J c . In contrast, the largest exponent s obtained for Ni indicates that the stronger decay of the currents with temperature is due to a magnetically induced inhomogeneity [41]. It is shown that the morphology of the ferromagnetic layers (homogeneous film for Py, multilayered structure for Gd/Fe and nanoparticles for Ni) and the orientation of the easy axis have an important contribution to the behavior of the superconductor.
Since thermally activated depinning plays an important role in vortex movement, we analyze the corresponding pinning energies by a relaxation experiment: the sample is zero field cooled to different temperatures, a magnetic field of 0.2 T is applied and the decay of the magnetic moment in time m(t) is recorded for a time window t w of 45 min. In the range where ln(|m|) versus ln(t) is linear, i.e. not too close to the irreversibility line and for a moderate relaxation time window t w, we can extract the normalized vortex-creep activation energy averaged over t w [42]. U * increases with temperature in the collective (elastic) vortex-creep regime (ordered vortex phase)    [43] and decreases for plastic (dislocation mediated) creep (disordered vortex phase) [44]. Figure 5(a) illustrates several magnetic relaxation curves (in a log-log plot) measured for the Ni decorated YBCO film at different temperatures. All resulting curves exhibit a typical linear behavior ( figure 5(a)), therefore U * can be extracted using equation (2) [34]. Compared to the reference sample, the Py and Gd/Fe samples behave nearly identical, as seen in figure 5(b). In contrast, the addition of Ni nanoparticles leads to a decrease of the maximum value of U * of about 25%, again showing that Ni has the largest influence on the superconducting transport properties. In case of Py and Fe/ Gd the influence on the magnetic relaxation is small. Py exhibits a slightly larger effect than Fe/Gd showing that relaxation experiments illuminate different properties of the superconducting transport.
For all samples U * increases with temperature in the interval 5-50 K indicating an ordered vortex phase, at higher temperatures U * decreases, due to plastic creep. At the crossover temperature, U * can be identified with the characteristic pinning energy U c . The U * (T) dependence has been intensively studied for YBCO films with different pinning centers [45]. It has been observed that the crossover collective creep-plastic creep always appears in DC magnetization relaxation measurements in samples with random pinning. The crossover can be understood in terms of an energy balance relation, where the thermal energy can be neglected for strongly pinned samples and T significantly below T c . At low T, the relaxation is smaller leading to a J closer to J c , the effective pinning is weak and the intervortex interactions play an important role, giving rise to collective pinning. At high T the energy balance changes, because J relaxes faster and U increases. In these conditions, in the vortex system appear dislocations due to vortex pinning and the creep becomes plastic. Roughly, this dynamic crossover appears when the effective depth of the pinning potential well equals the vortex deformation energy [25].
The SC/FM interaction was intensively studied as for example in [21] where a suppression of the magnetic moment was also observed. In that work, the main factor that lead to suppression was the deposition process, which affected the superconductor at the surface and many coupling phenomena were present. At high temperatures, magnetic pinning comes into play, and the J c is increased compared to the pristine YBCO film. For our study, the introduction of the STO decoupling restricts the SC/FM to magnetic coupling through the stray fields arising from the ferromagnet. The homogeneous in-plane easy axis film of Py provides almost no stray fields, except at the edges, the multilayered structure for Gd/Fe (out of plane easy axis) determines more intense stray fields and the Ni nanoparticles (isotropic) have the highest stray fields which penetrate into the superconductor. The magnitude of the stray field is proportional with the suppression of J c . Over 80 K magnetic pinning becomes efficient.

Conclusion
In summary, we investigated the influence of various (soft)ferromagnetic coatings on the current transport in high temperature superconducting YBCO thin films. Ferromagnets showing a negligible influence on the critical current density of the superconductor can be used as efficient sensor materials for magnetic imaging at low temperatures. We analyze heterostructures of YBCO thin films and ferromagnetic coatings of either Py layers, Gd/Fe multilayers or Ni nanoparticles. We find that the influence on the superconducting properties increases from in-plane to perpendicular easy axis of the ferromagnet. In addition, an inhomogeneous microstructure leads to the largest effects. This means that the homogeneity and anisotropy of the magnetic structure are decisive for the superconducting transport. Both the coercivity and the saturation magnetization of the ferromagnet do not play substantial roles. Finally, we have identified a thin Py layer as an ideal candidate for magnetic imaging in particular in the x-ray regime.
