Properties of piezoceramic materials in high electric field actuator applications

In this paper, we compare the performance of 8 PZT ceramics and one PMN-PT material for typical bending actuator applications. This includes the measurement of non-linear transverse charge coefficient at high electric field strength and related quantities such as the Young's modulus, relative permittivity, coercive field and their temperature dependencies, and the Curie temperature. Most materials show much higher strains than what is expected from the datasheet values. We further study the operating region for fields against the polarization direction in different operating cycles and demonstrate a long-term stable quick re-poling method which increases the operating range of negative-only cycles from 50% of Ec to 75% of the coercive field.


Introduction
Today, piezoceramic materials are used in a wide range of MEMS applications, for example in the field of microsensors [1,2], ultrasonic actuators [3], micropumps [4], adaptive lenses [5][6][7], tunable mirrors [8] and tunable optical gratings [9]. As the relevance of piezoceramics is increasing in the field of MEMS, new materials are also being developed according to the needs of the industry. The most recent class of PMN-PT materials, when synthesized in single crystalline form, shows remarkably large piezoelectric constants in comparison to the traditional PZT ceramics [10]. Even though there are MEMS methods for depositing piezo materials [11], discrete assembly of piezo sheets is still dominant.
We can obtain PZT ceramics from a variety of manufacturers with different material parameters and with a thickness ranging from 100 µm to few millimeters. By making piezoceramic sheets thinner than 200 µm, high electric fields can be achieved with relatively low voltages which makes them useful for an increasing number of actuator applications. However, due to the non-linearity of piezoceramics, their behavior at high electric fields may be different from the specifications in the material datasheets that are usually obtained at small fields and assume a linear behavior [12,13]. In this limit, the dielectric displacement D and strain S can be expressed in the strain-charge form as a function of the mechanical stress T and electric field E by the piezoelectric linear constituent equations The piezoelectric charge coefficient d and the permittivity at constant stress ε T describe the response of piezoceramics to the applied electric field. In this study, we investigate the full non-linear behavior of the essential material parameters at large field strengths and the maximum strain of different piezoelectric materials using a typical bending actuator configuration with 100 µm to 200 µm thick piezo films. The bulk materials were obtained from various manufacturers with different material compositions. We further studied the temperature dependence of the piezoelectric actuators and measured the maximum electric field that can be applied against the direction of polarization of the piezoceramics in different operating cycles and long-term actuations. Our measurement approach is not designed according to the DIN EN 50324 standard but instead considers the low frequency and high electric field conditions in which piezo actuators typically operate in MEMS applications.
The materials include PZT-5H and PZT-5A piezoceramics with varying range of coercive field, charge coefficients and Curie temperature. We also acquired samples of PMN-PT to compare its performance with PZT ceramics. Section 2 describes the materials used in the study, the fabrication of the bending actuator and the measurement of the transverse charge coefficient, relative permittivity and Young's modulus of the piezo-ceramics at high electric fields and high mechanical strains. In section 3, we measure the Curie temperature, the temperature dependence of the charge coefficient and Young's modulus and the long-term stability in different electric operating ranges. The results are discussed in section 4, where we compare various performance figures of different materials, followed by the conclusion of the study in section 5.

Piezoelectric charge coefficient
In the following section, we describe the piezoceramic materials that we use, the measurement method adopted to evaluate the charge coefficient and the measurement of the auxiliary quantities that we need for the evaluation of the charge coefficient.
When an electric field is applied across a piezoceramic in the direction of polarization (out-of-plane), a positive strain is generated in the same direction resulting in elongation in the polarization direction and contraction in the transverse direction (in-plane). Due to the low strains that are achieved, many MEMS applications use piezo actuators in bending configurations, where two active layers (bimorph) or an active and a passive layer (unimorph) are bonded together. Hence, to measure the electromechanical behavior, we fabricated bending beams from piezoceramic sheets and measured their bending profile at different quasi-static electric fields, using an optical profilometer. We compare the measured profile with that of a simulated beam having the same material properties, except for the charge coefficient which is kept at the standard value for a PZT-5H (-274 pm/V). The charge coefficient of the measured beam is then obtained by comparing the measured and simulated curvature coefficients. To achieve an accurate simulation, we have to evaluate all the material parameters affecting the simulation model. In the strain-charge form of piezo-electric simulation in COMSOL Multiphysics, we need the relative permittivity, density and Young's modulus of the material. We obtained the piezoceramic samples from five different manufacturers: American Piezo, Johnson Matthey, Ekulit GmbH, PI Ceramics and TRS Technologies. The materials are listed in table 1 along with the values of the material parameters from the datasheet. Ekulit-PZT and AP-PZT856 have no material datasheet available. The material name as given in table 1 will be used throughout this paper to denote the materials. The piezoceramic from Ekulit GmbH comes in the form of a piezo buzzer where we separated the piezo layer from its metal base by dissolving the glue in Dichloromethane. All other materials are supplied in monolayer sheets with electrode layers on both sides. We added a PMN-PT material from TRS Technologies to the study to compare its performance to PZT ceramics. According to the mechanical quality factor (Q m ) which we measured for the materials whose quality factor was not provided by the manufacturer, all materials except JM-M1334 were soft PZT materials since their quality factor was below 150 and JM-M1334 has a quality factor of 220. We chose a configuration with a unimorph beam that uses an active layer of piezoelectric material and 100 µm thick borosilicate glass (D263T-eco Thin Glass from Schott AG ) as a passive layer. We evaporated a thin metal layer of 10 nm chromium and 300 nm aluminum on to the glass layer to provide a high-quality optically reflective surface to reliably measure the surface with an optical profilometer ( fig. 1 (a)) as described in more detail in sections 2.3 and 2.4. The glass and PZT were structured by UV laser and glued using epoxy resin (HTG-240 from Resoltech ) . The resin was cured for 8 hours at 40 o C and then at 80 o C for 2 hours, which resulted in a glass transition temperature of the glue layer (T g ) of about 150 o C. Even though it is possible to achieve higher Tg by increasing the curing temperature of the glue, we chose a low curing temperature as the materials in this study have the Curie temperature in the range of 140 to 400 o C. We glued the finished unimorph beams to a silicon mount as shown in fig. 1 (b) using an alignment structure; both also structured using the UV laser. The beams had an effective length of 12-15 mm and width of 2-3 mm depending on the size of the sample available.

Relative permittivity
One of the main material parameter affecting our COMSOL simulation is the relative permittivity of the material, which we measured by structuring the piezoceramic samples to a defined electrode surface area using a UV laser and measuring the capacitance across the electrodes. This gives us the ε r at constant mechanical stress which is shown in table 2.

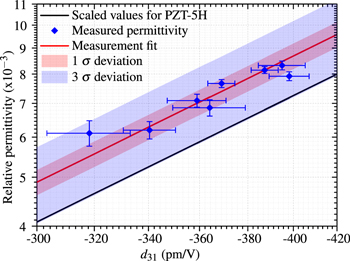

To evaluate the value for ε r at different electric fields, we applied a sinusoidal signal with different amplitudes in the direction of polarization to a sample single layer of the piezo material of JM-M1334 of known area. The frequency of the signal was kept at 100 mHz in order to measure the voltage and current in a well-defined static regime of the material. We then obtained the high-field relative permittivity at each voltage cycle from the integrated V-I relation. The results are discussed in section 2.4.

Young's modulus

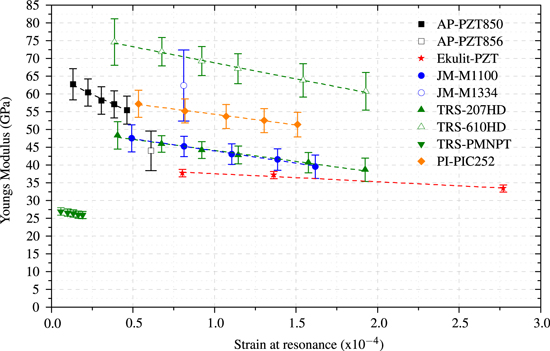

The Young's modulus of a material can be measured using static measurement techniques like tensile, bending or torsion tests, but also doing dynamic measurement methods by measuring the resonance frequency of the material. As the forces or strains in static tests may be non-trivial to measure, we adopted the latter by measuring the resonance frequency of the unimorph beams. We excited the beams with low electric fields of about 0.05 kV/mm over a frequency sweep and recorded the amplitude of the deflection using a high-speed triangulation sensor (Keyence LK-H022K ) to obtain the resonance frequency. To obtain the Young's modulus from the resonance frequency, we further needed the density of the material. Even though the datasheet of the materials provides us with a value for the density, we also measured it using the traditional water displacement method. We then modeled the unimorph beams in COMSOL and carried out an eigenfrequency simulation with a parameter sweep over the Young's modulus by scaling the compliance matrix of the material. By taking the inverse of the (1, 1) th value of the compliance matrix corresponding to the measured resonance frequency, we got the Young's modulus of the material, which is given in table 2. The uncertainty in the values of the Young's modulus originates from the variations in the fabrication process of the beams that affect the effective length of the beam, the width, and the thickness and also the uncertainty of the density value. Since PZT is a highly non-linear material, we furthermore measured the Young's modulus for different amplitudes of the displacement by increasing the electric field. To best quantify the result, we use the volume average strain of the PZT at the amplitude of the resonance in the simulations to represent the strain at which the Young's modulus was measured. In fig. 2 we see that the measured Young's modulus decreases with increasing strain.

Charge coefficient d 31
The piezoelectric charge coefficient or piezo modulus (d i j ) is defined as the ratio of the charge displacement in a certain direction (i) to an applied force (j), or the strain (j) to the applied electric field (i). The three independent charge coefficients, d 33 , d 31 , and d 15 then describe the longitudinal, transverse and shear deformation of polarized ceramics respectively. Most bending actuator applications utilize the transverse strain, i.e., the charge coefficient, d 31 .
To evaluate this charge coefficients at different electric fields, we excited the beams with a low-frequency sinusoidal signal of 1 Hz and different amplitudes in the direction of polarization. We then measured the bending profile of the beams dynamically using an optical profilometer equipped with a chromatic confocal distance sensor with a vertical and lateral resolution of 75 nm and 4 µm, respectively. We used a 100 µm raster and averaged the voltage-dependent displacement over five voltage cycles to minimize the error and extracted the bending profile at the maximum of the corresponding voltage cycle and fitted a secondorder polynomial function on segments of 2 mm along the length of the beam to obtain the local curvature coefficient.
To avoid edge effects, we did not consider the outer 200 µm of the beam.
To determine the charge coefficient, we modeled the beam in a COMSOL Multiphysics FEM simulation. As we could only measure one component of the compliance matrix and the permittivity matrix, we scaled the matrices of the built-in PZT-5H material with our measured values. The coupling matrix was kept at the default value with a charge coefficient of -274 pm/V (d sim 31 ). We simulated the bending profile ( fig. 1 (c) and (d) ) for electric fields as in the physical measurement and fitted the simulated curvature with a second-order polynomial function, extracting the simulated curvature coefficient (c sim ) in the same method as in the measurement. Since the ratio of measured curvature (c meas ) to the simulated curvature (c sim ) at similar electric field E, is equal to the ratio of charge coefficient d 31 to the charge coefficient used in the simulation (d sim 31 ), at the same field strength E, d 31 becomes: This relation holds up as the charge coefficient and the resulting curvature have a linear relationship. The obtained charge coefficient for different applied electric fields can be seen in fig. 3. The maximum deflection that we observed in the measurements is ∼ 400 µm for Ekulit PZT, which corresponds to the strain of 1.8x10 −4 . The corresponding variation in the Young's modulus is ∼ 2 GPa ( fig. 2) which causes a change in our measurement of the transverse charge coefficient of approximately 1 pm/V. Hence, we neglect this change in the measurements as this is smaller than the other error sources of that measurement. The piezo-material AP-PZT856 from American Piezo has a thickness of 300 µm, and we could reliably measure its deflection only at high electric fields. We limited the maximum electric field for each material to the point where an increase in field strength resulted in electrostatic breakdown of the beam or through the air at the side of the beam. Ekulit-PZT ceramics shows the highest d 31 of -487 pm/V when actuated with an electric field of 1 kV/mm followed by JM-M1334 and JM-M1100. We will discuss the performance more in detail in section 4, where we also take into account the coercive field strengths. To verify that this scaling also applies in nature, we show in fig. 4 the relative permittivity depending on the corresponding charge coefficient, in addition to the best square law fit, ε r = a d 2 31 and a quadratic scaling of the standard values in COMSOL. We see that the measured values are, within their uncertainties, in good agreement with a square law, and that this fit also agrees within 3 σ of the scaled built-in values, validating the approach to scale the permittivity quadratically when scaling the d 31 in a simulation.

Operation region
Below the Curie temperature, the temperature dependence of the strain and the coercive field strength is decisive for the piezoelectric behavior. In this section we measure these properties and in that context also other temperature dependencies. We also investigate the effects of negative operation cycles that approach-E c and their consequences in long-term operation.

Curie temperature
Above the Curie temperature, ferroelectric ceramics lose their spontaneous polarization. Near the Curie temperature, the dielectric constant ε r diverges, and at T T c , it is described by the Curie-Weiss law, in terms of the Curie constant K Curie , temperature T and Curie temperature T c : From an engineering point of view, however, it is more interesting to measure the Curie temperature when approached from below. So we again measured the capacitance across the electrodes of the piezoceramic while ramping the temperature to 300 o C. For continuity in the complex plane, we expect the divergence also to be of 1 st order when approached from below, so we fit a generic first order divergence as shown in fig. 5 (a). The fit was done over the region with large variation in capacitance. The choice of that region causes a deviation of 1.0 o C. We also fitted the usual Curie-Weiss law, at T > T c , for materials where we had sufficient data, and found good agreement between both methods with an average (RMS) deviation of just 8. When the temperature increases, the material becomes softer and at the same time, the Weiss domains may become more flexible, affecting also the charge coefficient d 31 . We evaluated this change in Young's modulus depending on the operating temperature by measuring the resonance frequency as mentioned in section 2.3 at different temperatures. As an example, we kept an Ekulit-PZT beam in a mount milled out of aluminum with an attached resistive heater. A temperature controller (UR484802 from Wachendorff ) was connected to the resistive heater. A temperature sensor (Pt100) was placed near the beam as the feedback to the controller and the mount was closed using a glass cover. The mount was designed to be filled with oil to achieve a uniform temperature, but this will affect the resonance frequency and also the measurement using the optical profilometer as the refractive index of the oil changes with temperature. Hence, even though the resistive heater was able to achieve up to 90 o C, the temperature values were stable only up to 60 o C. Similarly, we measured the deflection of the tip of the cantilever in the quasistatic limit at 1 Hz to measure the temperature scaling of the charge coefficient, taking into account the change in the Young's modulus. For both measurements, we assumed the Young's modulus of the glass to be approximately constant as the PZT is assumed to have stronger variations due to the proximity to the Curie temperature. In fig. 6 we see an almost linear dependence of the Young's modulus and the charge coefficient of the material on the temperature with coefficients α d 31 ∼ 0.002K −1 and α Y ∼ −0.0014K −1 .

Temperature-dependent coercive field strength
The electric current flowing through piezoelectric ceramics when applying an AC signal is a result of aligning Weiss domains inside the ceramic thereby polarizing the material in the direction of the applied electric field; the coercive field is the electric field required to bring the average polarization in the piezoceramic back to zero. To measure the coercive field, we applied a sinusoidal voltage signal with a frequency of 100 mHz and an amplitude that is high enough so that the domain switching can be reliably observed in both in-and-against the direction of original polarization. We kept the sample in the same mount described in section 3.2 this time filled with oil to reduce the risk of electrostatic breakdown due to high electric fields and to optimize the uniformity of the temperature that we varied in steps of 10 o C.

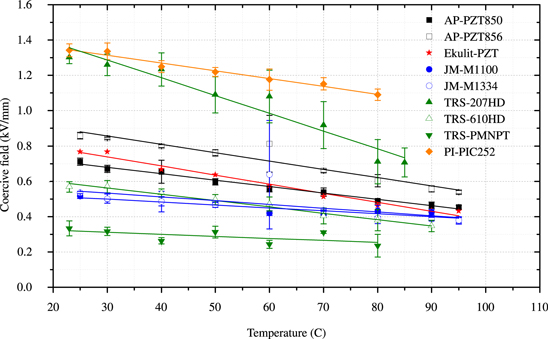

The coercive field is the null point on the polarization curve, which in turn is given by the integrated current. As the pre-polarized piezo films, however, have asymmetric polarization curves, we instead use the voltage at which the piezoceramic material draws the maximum current. Strictly speaking, this gives the field strength of the fastest re-poling but in practice, it will be very close to the coercive field strength. In fig. 7 we see that all materials show an approximately linear decrease in the coercive field against the direction of the pre-polarization with increasing temperature. The E c mentioned in the material datasheet is marked on the y-axis.

Electric operation region
The main limitation on the operation of piezoceramics resulting from the coercive field, is the maximum electric field that we can apply against the polarization direction of the piezo materials without risking depolarization. A common assumption has been that the maximum electric field against the direction of polarization should be kept smaller than 33% of the coercive field strength to prevent depolarization [14]. To investigate this limit further, we excited the beam with a 1 Hz signal of different amplitudes and measured the deflection averaged over 5 cycles in two configurations: negative cycles, where the applied electric field is against the direction of polarization and symmetric cycles, where the piezo beams were excited with a symmetric electric field in-and-against the direction of polarization. All the measurements were performed on piezoelectric beams fabricated using PIC252 from PI Ceramics. Figure 8 shows the mean strain in the piezo obtained from the displacement at the tip of the beam for different voltage cycles. For the negative cycles ( fig. 8(a)), we see that the piezo unimorph beams were able to operate down to 61% of the coercive field without any significant loss in polarization. When going above 61%, we observe a reduction in the slope of the hysteresis curve and finally the reversal of the polarization direction when the electric field increases above the coercive field. For the symmetric cycles in fig. 8 (b), we see that the operating region can be extended to approximately 95% of the coercive field against the direction of polarization. When applying field strengths above 95% against the direction of polarization, the material starts to show first depolarizing effects. Given this observation, we introduced a quick re-poling method to improve the working range against the polarization direction, where a voltage pulse is given in the direction of polarization at the end of a negative voltage cycle. The duration of the pulse was kept about 20 times the resonance frequency of the beam with an amplitude of 150% of the coercive field. Figure 9 (a) shows the quick re-poling cycle with the pulse at the end. The short duration of the pulse is critical in order to repolarize the domains without giving the material enough time to react mechanically to the pulse. In fig. 9 (b), we see that it was possible to increase the operating range against the direction of polarization to approximately 75% of the coercive field, above which the slope of the hysteresis curve decreases until the reversal of the polarization direction at 115% of the coercive field. A short resonance can still be observed as shown at one example in fig. 9 (c) due to the polarizing pulse, but we assume that this will be suppressed in a system with higher damping or by decreasing the pulse width, which was in our case limited by the function generator.  Figure 9: (a) Quick re-poling waveform, (b) Deflection measured at the tip of the piezoelectric beam made of (PI-PIC252 ) at different electric fields when operated in the quick re-poling mode and (c) Zoom-in on the overshoot due to the quick re-poling pulse.

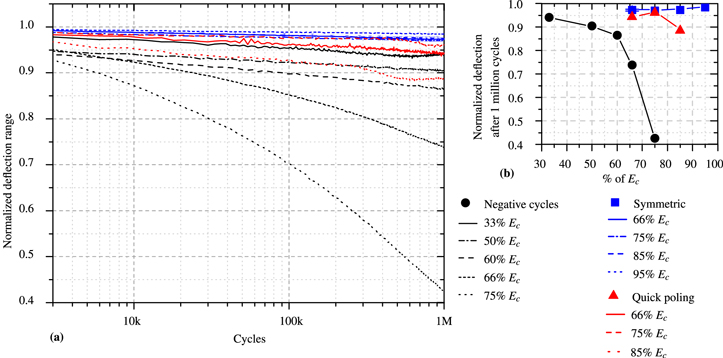

To evaluate the long-term effects of these operation cycles, we actuated the piezoelectric beam in different configurations for 1 million cycles. First, we polarized the piezo-beam by applying 150% of the coercive field (E c ) at 1 Hz in the direction of polarization for five minutes. Afterwards, we subjected the piezoelectric beams to negative cycles of amplitude 33% of E c at 10 Hz and measured the deflection at the tip of the beam every five minutes. After running 1 million cycles, we polarized the beam again by applying 150% of E c and repeated the process for 50% to 75% of E c in negative cycles, then for 66% to 95% of E c applied symmetrically in-and-against the direction of polarization, and finally, 66% to 85% of E c with the quick re-poling method. To evaluate the repeatability of the process, we subjected another beam made from the same material (PI-PIC252 ) to 66% of E c in symmetric cycles. Figure 10 (a) shows the amplitude of the deflection over the 1 million cycles observed every 3,000 cycles. We see that, if we apply a maximum of 33% of E c against the direction of polarization, as suggested by Ruschmeyer [14], the maximum deflection amplitude, and hence the charge coefficient, decreases by 6% after operating 1 million cycles. In comparison, if we apply 66% of E c in negative cycles, we observe a decrease in the deflection of 26% with no indication of saturation. Symmetric cycles measured up to 95% E c , however, show a decrease in the amplitude of less than 3%. Moreover, applying 95% of E c was more stable over time than driving with 85% of E c or less. With the quick re-poling pulse, the beams can be driven with 75% of E c with a decrease of the amplitude similar to the negative cycles of 33% E c .

Discussion
The material parameters measured during this study are summarized in tables 2 and 3 along with their datasheet values given in brackets. In section 2, we first presented the measurement of the density and the relative permittivity of the piezoceramics. Both parameters show minimal deviation from the values in the datasheet. The largest difference is seen in the coercive field strength, where, all datasheet values are higher than the measurement results and we observed that the coercive field decreases linearly with increasing temperature. In the measurement of the Young's modulus in section 2.3, we saw that at higher strains, the material becomes softer.

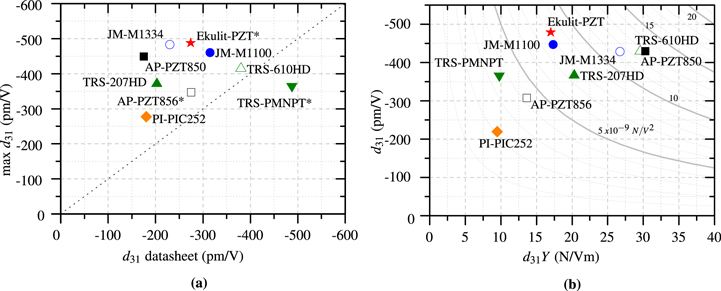

We measured the dependence of the charge coefficient on the applied electric field in section 2.4. All materials except TRS-610HD and PI-PIC252 started with higher d 31 values than those mentioned in their datasheets. As seen in fig. 3, the measured d 31 increased with increasing applied electric field and most of them saturated near E c and then decreased slowly at much higher fields. Table 3 shows the mechanical strain of the materials at different electric fields. The maximum d 31 measured for each material is compared to the d 31 value given in the datasheet in fig. 12 (a). We see that all materials achieve higher d 31 values than the  To create a benchmark figure, taking into account that one can adjust the applied field strengths to the material, we introduce normalized charge coefficient d 31 E c as a function of the electric field normalized to the coercive field (E c ) of each material as shown in fig. 11. The piezoceramic TRS-207HD has a high coercive field, so it was not possible to achieve 100% of its coercive field without destroying the beam. Extrapolating the data to E c , however, it suggests the highest achievable strain. In fig. 12 (b), we compare the force and the strain inside the material at an electric field of 0.75 kV/mm. We further indicate the product d 2 31 Y as a measure of the mechanical energy density. Since no d 31 data is available for PMN-PT at that electric field, the maximum d 31 measured was taken for comparison.

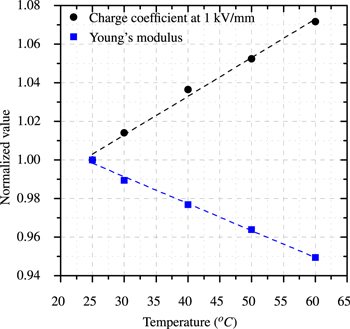

In section 3, we first measured the Curie temperature. We found that the materials TRS-207HD and PI-PIC252 have the highest Curie temperature and the highest coercive field strength. We also observed that there is an approximately linear decrease in the coercive field and the Young's modulus with increasing temperature. If we extrapolate the temperature dependence of E c (T ) to the temperature where E c vanishes, we find that values lies within 25% of T c for most of the materials except TRS-207HD and JM-M1100. We finally investigated the operating region in terms of the electric field applied. The aim was to find what happens to the material if the electric field against the direction of polarization increases beyond 33% of the coercive field; a limit found in the literature [14]. Figure 13 (b) compares the different operating modes at different driving voltages. When driving with negative only cycles, the displacement increases until 75% of E c and decreases afterward. However, this will result in the reduction in performance of the actuator by 58% over 1 million cycles as seen in fig. 10, making it suitable only for short-term operation. We found that operating up to 50% of E c is more stable for long-term actuation using negative cycles with a reduction by 15% after 1 million cycles. Using symmetric cycles, the maximum displacement increases until the voltage reaches 95% of E c against the polarization direction and deflection obtained at 95% of E c was more stable over time than driving with 85% of E c or less ( fig. 10). To combine this advantage with purely negative cycles, we introduced a quick re-poling method which increased the operating region against the polarization direction to 85% of E c as seen in fig. 9, by adding a very short positive re-poling pulse at the end of each cycle. In the long-term test of the quick re-poling cycles at an amplitude of 75% of E c , we observed only 6% reduction in performance of the actuator after driving the piezoelectric beam for 1 million cycles ( fig. 10).

Conclusions
We studied the non-linear charge coefficients of piezoceramic materials at high electric field strengths and found in all materials that the charge coefficient increases significantly with increasing fields by up to 109%, until it saturates near the coercive field strength and then slowly starts to drop.
Comparing the different materials, we found that the PMN-PT material, despite having a high d 33 datasheet value, does not show a higher transverse strain in our configuration than PZT materials and is furthermore limited by its low coercive field strength and low Curie temperature. JM-M1334, and TRS-610HD achieve a high charge coefficient between -400 and -500 pm/V -however at different fields. Below 0.75 kV/mm, JM-M1100 has the highest values and behaves by far most linearly. Above this value, JM-M1334 and Ekulit-PZT have the best performance, while AP-PZT850 is approximately linear above 0.4 kV/mm. We furthermore observed that the PZT ceramics can be operated up to 50% of E c against the direction of polarization and this limit can be extended upto 95% E c when actuating using symmetric cycles. Furthermore, by using a quick re-poling pulse we were able to expand the electric field limit of negative cyles to 75% E c . In these limits ( fig. 10) we found less than 10% reduction in performance after one million cycles of operation.
