In silico muscle volume conduction study validates in vivo measurement of tongue volume conduction properties using a user tongue array depressor

Oral muscles related to eating, swallowing and communicating are progressively affected in a host of neurological conditions. For example, approximately 25% of patients with amyotrophic lateral sclerosis (ALS) have speech and swallowing symptoms at the time of disease onset (Yunusova et al 2019). In addition, bulbar dysfunction is a common manifestation of many other neuromuscular disorders including myasthenia gravis and oculopharyngeal, facioscapulohumeral (Yamanaka et al 2001), and Duchenne muscular dystrophies affecting both children and adults.

Despite the importance of tongue function to overall quality of life and life expectancy, commonly employed tools for tongue assessment have limitations. The ALS functional rate scale-revised test includes only three out of 12 questions to rate the patient's level of bulbar impairment in performing speech, salivation, and swallowing tasks. While clinically valuable, the test is based on patient feedback with limited assessment of bulbar dysfunction, which may lead to delayed bulbar impairment assessment and underestimation of disease severity (Smith et al 2017). Other physiological monitoring tools of bulbar function include maximum tongue pressure testing via pressure transducing tongue depressors; however, values are dependent on the subject's motivation, number of trials, feedback, and tongue and jaw position (Solomon 2004, Hayashi et al 2002). Craniobulbar muscle health can be assessed using standard needle electromyography (EMG) but, as commonly practiced, data interpretation is subjective (Kendall and Werner 2006, Narayanaswami et al 2016). Furthermore, tongue EMG has limited sensitivity in the detection of pathology in ALS and associated discomfort does not allow EMG to follow disease progression and response to therapy (Gans and Kraft 1977, Jan et al 1999).

A video fluoroscopic swallowing exam visualizes in real time the patient's ability to swallow safely and effectively various types of barium-containing foods (Briani et al 1998, Wright and Jordan 1997). However, the test does not provide quantifiable metrics, it requires a specialized facility with expensive instrumentation and highly trained personnel, and there is an associated risk of radiation exposure. State-of-the-art voice smartphone apps can help detect slowness of the speech mechanism (Stegmann et al 2020); however, it is a non-tongue-specific functional outcome that can be associated to damage to the central or peripheral nervous system or both.

Here, we perform an in silico muscle volume conduction study of the human tongue to evaluate the ability of electrical volume conduction of the bulk of the tongue. The tongue volume conduction properties (VCPs) measured during a tongue volume conduction study are the conductivity, which quantifies the ease with which electric charge is transported through the bulk of the tongue muscle, and the relative permittivity, which quantifies the ability of tongue muscle to store and release electromagnetic energy (Sanchez et al 2021). These physical material properties are objective and quantitative on a standardized scale and they are determined by the ionic concentration and membrane integrity, both physiological features of muscle altered in a wide variety of neuromuscular disorders (Nagy et al 2019). For example, an increase of the ionic concentration of the extracellular medium would expect to increase the conductivity of the bulk of the muscle. The gold standard method for measuring muscle VCPs requires a biopsy procedure (Sanchez et al 2014); however, due to its invasiveness, the technique has limited clinical use. Another important limitation of biopsy is the inability to follow the natural progression of muscle VCPs with disease because of inherent sampling limitations.

We have created a novel non-invasive tongue depressor technology, called an user tongue array (UTA) depressor, that allowed us to measure for the first time in vivo tongue VCPs in healthy volunteers (Luo et al 2020). Despite our preliminary success in obtaining human data, a question that remains unanswered is whether in vivo data collected using our novel UTA depressor accurately reflect human VCPs due to unexpected experimental artifacts. Thus, here we performed an in silico study based on a human tongue finite element model (FEM) using our depressor to evaluate the accuracy of our reconstruction algorithm at calculating in vivo the conductivity and relative permittivity of the tongue. We then compared experimental and modeled tongue VCPs values to validate our new technology.

Tongue finite element model simulations

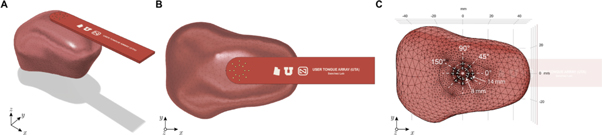

We simulated a healthy human tongue anatomical FEM based on the VIP-Duke v.3.0 model (DOI: 10.130 99/VIP11001-03-0) and spatial resolution of 0.5 × 0.5 × 0.5 mm³ with the depressor positioned on the top surface of the anterior tongue (see figure 1(A) and (B)). Meshing and electrostatic simulations under quasi-static approximation were performed in Comsol software using the AC/DC Module (Comsol Multiphysics, Burlington, MA) and conjugate gradient iterative solver. Adaptive meshing was used to discretize the tongue conductor volume into small regions or elements based on the electric potential gradient. The mesh included coarse tetrahedral in regions with no electric potential change, and fine triangular elements near the electrodes were used. In our simulations, we considered point-like electrodes and did not include electrode impedance contact artifacts since this experimental error source affecting all electrodes would not influence the simulation results (Schwan 1968). For each measuring direction in the depressor 0°, 45°, 90° and 150° (figure 1(C)), we simulated the tongue FEM model applying 100 μA_rms across the source and sink outer electrodes and then measured the resulting voltage using the second pair of inner sense electrodes. Current and voltage electrodes were arranged in concentric circles with radii of 4 and 7 mm, respectively. The current applied conforms to the current limits specified by the IEC-60601 standard for medical devices. This measurement procedure was then repeated in all four directions sequentially.

Zoom In Zoom Out Reset image size

Simulated tongue volume conduction properties

Impedance sensitivity analysis

Data analysis

FEM current density and electric potential distribution within the tongue

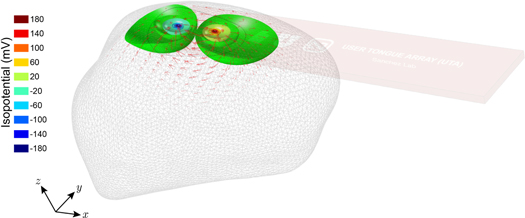

The adaptive mesh resulted into 464 269 model elements, which allowed us to have an accurate and realistic spatial current and electric potential distribution simulation while keeping the simulation time reasonably low (∼15 s using a 2.2 GHz 6-core i7-8750H processor and 24 GB of DDR4 RAM memory at 2666 MHz). Figure 2 shows a model simulation at 8 kHz with the current flowing from the source and sink electrodes located in the depressor at the 0° direction. Figure 2 provides a qualitative representation of the current flow through the tongue. As expected, the current generates greater isopotential surfaces underneath the electrodes and lesser at a greater depth where the current density is less. Note this qualitative current simulation does not allow determination of the measurement depth. For this, a quantitative study based on a sensitivity analysis is performed next.

Zoom In Zoom Out Reset image size

Tongue measurement depth

Figure 3(A) shows the tongue region measured with our depressor. This colored sensitivity region corresponds to an arbitrary defined 99.9% of the measured sensitivity contributing to the measured VCP data. In other words, the expected contribution of anatomical features including tissues and fluids outside this region is less than 0.1%. As illustrated in more detail in figure 3(B) and (C), the measurement region is underneath the depressor and the maximum depth is 13.3 mm.

Zoom In Zoom Out Reset image size

Experimental and simulated tongue volume conduction properties values

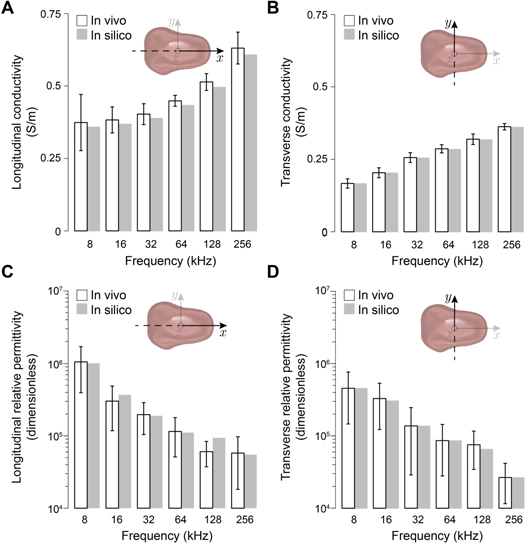

Figure 4 plots experimental versus simulated conductivity and relative permittivity tongue VCP values in longitudinal and transverse directions at all frequencies. Simulated tongue VCP values are within the variability of real human tongue VCPs' data. For example, experimental (mean ± standard error of the mean) longitudinal and transverse conductivity values at 8 kHz are 0.37 ± 0.1 (N = 4) and 0.17 ± 0.02 (N = 4) versus FEM simulated 0.34 and 0.17 S m⁻¹, respectively. Similarly, longitudinal and transverse relative permittivity values at 8 kHz are (10.5 ± 6.5) · 10⁵ (N = 6) and (4.6 ± 3.0) · 10⁵ (N = 6) versus FEM simulated 9.5 · 10⁵ and 4.6 · 10⁵, respectively.

Zoom In Zoom Out Reset image size

As part of our ongoing research, we have recently tested our UTA depressor and reported for the first time in vivo values measuring tongue VCPs including their directional dependence in a small group of healthy volunteers performing measurements on themselves (Luo et al 2020). These VCPs of the tongue provide quantitative, objective and standardized data reflecting anomalous electrical and physical behavior of molecules in diseased tongues (Duck 1990), for example due to replacement of healthy muscle tissue with connective and interstitial fat tissues. However, due to the novelty, we still did not know how feasible it was actually to measure accurately tongue VCP values in vivo using our UTA depressor. Thus, here we perform a formal verification based on a FEM simulation process. This well-controlled and accurate FEM simulation environment allowed us to discard technical errors that could have affected our experimental measurements.

These technical errors specifically include assumptions made in the reconstruction algorithm for calculating the conductivity and relative permittivity values from multi-directional apparent tongue impedance values. The reconstruction algorithm was developed on the strict assumption that the conductor volume is semi-infinite, in practice not influenced by the irregular finite shape of the human tongue. Here, we use FEM simulations to validate or discard this assumption. If the original and the reconstructed conductivity and relative permittivity values were not in good agreement when simulating an accurate and realistic human tongue FEM model, then our UTA technology most likely would not produce accurate in vivo conductivity and relative permittivity human tongue values. On the contrary, the original and reconstructed conductivity and relative permittivity values are in good agreement, which indicates our approach is minimally influenced by artifacts introduced by the finite shape of the tongue. Indeed, assuming a 99.9% volume contributing to the measured sensitivity, the expected tongue measurement depth is 13.3 mm, which confirms that the technique is robust to substantial tongue atrophy, for example occurring in patients with bulbar impairment in advanced stages of ALS or fascioscapulohumeral dystrophy (Yamanaka et al 2001). The overall agreement between experimental and simulated results at the frequencies measured corroborate the validity of our technology for in vivo measurement of human tongue VCPs.

Related to this work, previous studies used the technique of electrical impedance myography (EIM) to evaluate tongue health using a basic 4-electrode handmade popsicle (Sanchez and Rutkove 2017, Rutkove and Sanchez 2018). The authors detected significant differences in EIM phase and resistance values between healthy and ALS patients (Shellikeri et al 2015, Mcilduff et al 2017), with the advantage of phase over resistance values of not depending on the spacing between electrodes (Sanchez et al 2016). However, the underlying mechanism producing such observed EIM effects was not clear due to an overlap of physiological factors including merely simple tongue atrophy and changes in the underlying VCPs of the tongue. A subsequent FEM study attempted to disentangle these two but the interpretation made of the results is questionable due the lack of agreement between experimental and simulated EIM results, with differences of about 50% (Pacheck et al 2016). There are two plausible reasons for such discrepancy. First, the use of an overly simplistic FEM of the human tongue of which the measurement depth was not determined. Second, the use of tongue VCPs values from ex vivo gastrocnemius muscle in a murine model of ALS. A large body of work has shown tissues' VCPs change, among others, within animal species (Schwan and Kay 1956, Geddes and Baker 1967, Pethig 1987) and where measured ex vivo versus in vivo (Surowiec et al 1986, Schaefer et al 2002). More recently, researchers from the University of Sheffield have measured patients with ALS using a tweezer-like EIM tongue probe with four electrodes both at the upper and lower plates (Alix et al 2020). A recent FEM study from the same group aimed at evaluating the feasibility to detect lateral asymmetry in affecting the tip of the tongue in ALS (Schooling et al 2020). Unlike Pacheck et al (2016), the authors modeled human tongue impedance values in their simulations.

As reviewed in Sanchez et al (2021), the hypothesis supporting the application of EIM for neuromuscular evaluation is that alterations affecting the VCPs of diseased muscle can be interrogated indirectly by measuring muscle electrical impedance data (i.e. resistance and reactance). Unlike other probe designs, the UTA depressor and associated algorithm provides the underlying VCPs of the tongue, and these are true electrical properties that provide quantifiable, objective, standardized data on a universal scale and thus are not impacted by electrode distances.

Here, we performed a head-to-head comparison of in vivo experimental and FEM simulated healthy human tongue VCP values including their spatial variation. Despite the good agreement between results, which indicates no interference from the finite shape of the tongue, there are associated inherent limitations to our simulation study. First, the tongue model does not include other muscles beyond the genioglossus muscle or include sublingual arteries and veins. Our simulations indicate, however, that these structures are deeper than the depressor's measurement depth and thus their expected contribution is minimal. Second, we simplified the geometric dependency of the genioglossuss myofibers in our model longitudinally and transversely only, whereas the complete three-dimensional myoarchitecture of the human tongue also includes vertically aligned fibers (Gaige et al 2007). However, to the best of the authors' knowledge, we are not aware of these anisotropic data being available in the literature. Third, we intentionally omitted the simulation of diseased tongue conditions because currently there is no in vivo human tongue VCP data available, including their directional dependence that could be used to perform a realistic and accurate study.

In summary, this simulation study supports our novel non-invasive UTA depressor technology for measuring in vivo tongue VCPs. The results presented support further application of our technology to determine the performance as a diagnostic and longitudinal electrophysiological biomarker for evaluating neurological disorders affecting the tongue. We are currently using our depressor to broader the application to tongue assessment.
