Incorporating oxygenation levels in analytical DNA-damage models—quantifying the oxygen fixation mechanism

Stewart and colleagues model the oxygen fixation hypothesis by calculating the fraction of initial DNA radicals removed through a chemical repair process (for instance, repair by thiols), which is considered a competitive channel with respect to oxygen fixation (Stewart et al 2011, Grimes and Partridge 2015).

We paraphrase their train of thought below:

The fraction of chemically repaired DNA radicals ${p}_{R}(y,[{{\rm{O}}}_{2}])$ is estimated by:

$$\begin{eqnarray}&&{p}_{R}(y,[{{\rm{O}}}_{2}])=1-\displaystyle \frac{[{{\rm{O}}}_{2}]+K}{[{{\rm{O}}}_{2}]+M(y)K},\end{eqnarray} \tag{ 1 }$$

where $[{{\rm{O}}}_{2}]$ denotes the oxygen concentration (in percentage with 100% being pure oxygen). The parameter K is the oxygen concentration at which half of the maximum of possible repaired DNA radicals are removed, and M(y) is a function of $y\equiv {\left({z}_{\mathrm{eff}}/\beta \right)}^{2}$, the square of the ratio of effective charge of the particle to it's speed in units of the speed of light (c). The function M(y) is provided by an empirical function:

$$\begin{eqnarray}&&M(y)={M}_{0}-\displaystyle \frac{({M}_{0}-1)}{1+{\left(q/y\right)}^{r}},\end{eqnarray} \tag{ 2 }$$

where M₀, q, and r are adjustable parameters. More specifically, M₀ is the maximum fraction of DNA-radicals that can be removed through chemical repair. It is interesting to note that for very high energies the term (q/y)^r tends to a constant. This is because if $E\to \infty$ then $\beta \to 1$ and therefore:

$$\begin{eqnarray}&&{M}_{\infty }:= \mathop{\mathrm{lim}}\limits_{E\to \infty }M(y)=\displaystyle \frac{1+{M}_{0}{\left(\tfrac{q}{{z}_{\mathrm{eff}}^{2}}\right)}^{r}}{1+{\left(\tfrac{q}{{z}_{\mathrm{eff}}^{2}}\right)}^{r}}.\end{eqnarray} \tag{ 3 }$$

For very low energies, equation (2) reduces to unity (as ${\left(q/y\right)}^{r}$ will tend to zero). As a consequence, equation (1) reduces to zero. In summary:

$$\begin{eqnarray}&&\mathop{\mathrm{lim}}\limits_{\beta \to 0}{p}_{R}(y,[{{\rm{O}}}_{2}])=0\end{eqnarray} \tag{ 4 }$$

$$\begin{eqnarray}&&\mathop{\mathrm{lim}}\limits_{\beta \to 1}{p}_{R}(y,[{{\rm{O}}}_{2}])=1-\displaystyle \frac{[{{\rm{O}}}_{2}]+K}{[{{\rm{O}}}_{2}]+{M}_{\infty }K}.\end{eqnarray} \tag{ 5 }$$

This nicely reflects the current canonic interpretation where high LET irradiation (i.e. low energy charged particles) does not exhibit oxygen enhancement of damage, and a distinct relationship with oxygen concentration at higher energies (i.e. low LET).

Alternatively, we can use the expression developed by Grimes and Partridge (2015), which is more satisfying on a physical level as it uses a specific mechanism rather than an empirical model, but we will use the first approach for reasons which will become clear below.

In this work we will rely less on a preconceived mechanism, but rather on the simpler concept of repairable and unrepairable lesions and how oxygen can alter the ratio between them.

When irradiating cells with ionising radiation, DNA damage is generated through direct and indirect damage events. These damage lesions are then subjected to chemical repair in the first few milliseconds. In a longer time frame, these lesions are subjected to biological repair mechanisms.

In most models of cell death and apoptosis, a distinction is made between simple and complex damage.

• (i)
  Simple DNA-damage lesions include single strand breaks (SSB), single base damage, and dual SSB with a spatial distance larger than a single turn of the α-helix (2SSB), which is roughly 10 base-pairs.
• (ii)
  Complex damage is generally used in connection with double-strand breaks (DSB), which are split into simple DSB (just 2 strand breaks, on apposite strands) or complex DSB (simple DSB plus additional strand breaks or base damage within 10 bp). We denote this combination of damage as DSB_c.

It is widely assumed that the latter type of damage is closely related to cell death (Ward 1985, Caldecott 2008).

In this model, we revisit the notion of oxygen fixation competing with chemical repair. First consider a system in complete hypoxia, only subjected to chemical repair. Chemical repair not only reduces the number of damage clusters which can be classified as complex damage, but can also repair simple damage. Clusters exist that are not reduced as they are already too complex and chemical repair does not affect their status. In summary, the chemical repair mechanism can convert some complex damage to simple damage, make simple damage more simple, or even completely repair them, and finally, if the damage is too extensive, fail to alter the damage. It stands to reason to differentiate between both types of damage, both of which will still be subject to other forms of repair. More specifically, the group we call complex lesions is subject to the enzymatic repair mechanisms associated with DSBs.

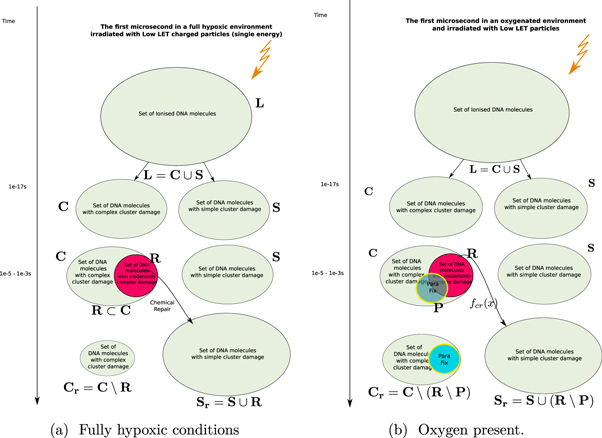

We formalise this train of thought in terms of naive set theory (that is, no sets are considered which have an infinite number of elements) which can be graphically represented as in figure 1.

Zoom In Zoom Out Reset image size

In this approach, we now define the following sets:

• 1.
  ${\bf{L}}$: The Set of all DNA-damage lesions in a cell due to a dose of 1 Gy in a cell over a length of 1 giga-base pair (Gbp).
• 2.
  ${\bf{C}}$: A subset of ${\bf{L}}$ consisting of lesions categorised as complex (including simple and complex DSB or in our notation DSB_c).
• 3.
  ${\bf{S}}$: A subset of ${\bf{L}}$ consisting of lesions categorised as simple.
• 4.
  f_cr : A function from ${\bf{C}}$ to ${\bf{S}}$ is used to model chemical repair. This function only works on lesions that can be repaired, in essence defining its own domain ${\bf{R}}$.
• 5.
  ${\bf{R}}$: A subset of ${\bf{C}}$ with lesions that are repairable using the chemical repair process.
• 6.
  ${{\bf{S}}}_{R}$: The Set of simple lesions after chemical repair.
• 7.
  ${{\bf{C}}}_{R}$: The Set of complex lesions after chemical repair.

Having defined the sets, we can now detail a number of relationships between the sets using the standard set theory symbolism: ∪ denoting the union of two sets, ∩ denoting the intersection, and \the subtraction of one set from another (i.e, it removes the common elements from the first set). Finally, we use the standard octothorpe # to denote the cardinal number of a set (i.e. the number of elements in the set).

Using these defined sets and the function, we can start quantifying the repair process.

• (i)
  The set of complex lesions is reduced by the chemical repair process. Indeed after applying our defined function we obtain: ${f}_{{cr}}({\bf{C}})={\bf{C}}\setminus {\bf{R}}$. $\#{{\bf{C}}}_{R}$ is the amount of complex lesions left for the biological process of DNA-damage to repair. This is : $\#{{\bf{C}}}_{R}\,=\,\#{\bf{C}}-\#{\bf{R}}$, which is equivalent to the term M₀ in the classical formalism.
• (ii)
  Likewise, the set of simple lesions increases as successful chemical repair of some lesions effectively changes the categorisation of some damages from complex to simple. Indeed, ${f}_{{cr}}({\bf{C}})={\bf{S}}\cup {\bf{R}}$. In other words the function f_cr applied to the domain ${\bf{R}}$ is an injection in ${{\bf{S}}}_{R}$. Where ${{\bf{S}}}_{R}={\bf{S}}\cup {\bf{R}}$ or ${\bf{R}}\mathop{\longrightarrow }\limits^{{f}_{{cr}}}{{\bf{S}}}_{R}$.
• (iii)
  By categorising the repair process as represented by the function f_cr as an injection over ${\bf{R}}$ we are making the assumption that all repairable lesions are indeed repaired, or that the compounds needed for the repair are not a scarce resource.

We introduce oxygen in the above model by using the oxygen fixation mechanism. This process makes the lesions permanent by binding the very reactive oxygen to damaged molecules (Stewart et al 2011). The graphical representation of this process is shown in figure 1(b). We do not distinguish which types of lesions are fixated, including lesions which are not subject to chemical repair. We keep all sets defined in the previous section and add a new one:

• 1.
  ${\bf{P}}$: A subset of ${\bf{C}}$ with lesions that have been fixated by the available oxygen.

Of interest to this model is the intersection: ${\bf{R}}\cap {\bf{P}}$, which is made up of repairable lesions that are fixated. This makes them not subject to the chemical repair process anymore. We formalise the process of chemical repair in the presence of oxygen as an injection (in mathematical terms) denoted f_cr (x) with $x\in {\bf{R}}\setminus ({\bf{R}}\cap {\bf{P}})$

$$\begin{eqnarray}&&{\bf{R}}\setminus ({\bf{R}}\cap {\bf{P}})\mathop{\longrightarrow }\limits^{{f}_{{cr}}}{{\bf{S}}}_{R}.\end{eqnarray} \tag{ 6 }$$

In other words, only elements of the set of repairable lesions that do not belong to the fixated lesions, are eligible for chemical repair. The resulting lesions are classified as belonging to the set of simple lesions, which is now denoted as ${{\bf{S}}}_{R}$. Conversely, ${{\bf{C}}}_{R}$ is the resulting set of complex lesions is changed accordingly as now not the total set ${\bf{R}}$ is subtracted but rather the set ${\bf{R}}\setminus {\bf{P}}$, presenting the biological repair process with $\#{{\bf{C}}}_{R}\,=\,\#{\bf{C}}-\#({\bf{R}}\setminus {\bf{P}})$ as the number of complex lesions in need of biological repair. Indeed, if there is no oxygen, then $\#{\bf{P}}=0$ and $\#{{\bf{C}}}_{R}$ is minimised. In the presence of oxygen, we assume that the original number of chemical repairable lesions does not change if we have the same modality (and energy). The only thing that changes is the number of fixated lesions which again is distributed throughout the lesions without specific preference (the set denoted as 'parafix') ⁵ , making the ratio constant for a given modality and energy. Therefore, the increase of available complex lesions in need of repair is proportional to $\#{\bf{P}}$. More formally, with a an arbitrary constant:

$$\begin{eqnarray}&&\#{{\bf{C}}}_{R}\,=\,\#({\bf{C}}\setminus {\bf{R}})+a.\#{\bf{P}}.\end{eqnarray} \tag{ 7 }$$

This implies that we need to estimate the relative number of chemically repairable lesions which are fixated. This is a ratio of the total number of fixated lesions which is given by $\#{\bf{P}}$.

In this model, we are agnostic to the specific mechanism apart from the fact that oxygen binding occurs and that oxygen is a scarce resource. This can be described mathematically by a typical pharmacological differential equation which has been generalised by Kepner as a saturation behaviour (Kepner 2010). The solution for such an equation is a two–parameter rational function of the form:

$$\begin{eqnarray}&&\#{\bf{P}}\,=\,\displaystyle \frac{x}{{q}_{1}x+{q}_{2}}.\end{eqnarray} \tag{ 8 }$$

With x being a universal variable representing the scarce resource; in this case a good candidate is the partial oxygen pressure [O₂] which predicts the amount of oxygen in mMOl. In expression (8), 1/q₁ denotes the saturation level and 1/q₂ the initial slope. The values of these parameters can then be found through the standard methodology of determining the number of oxygen molecules in a tissue related to the partial oxygen pressure.

Finally, changing our viewpoint to consider the anoxic case, the reference case, rather than the normoxic environment, the expression proposed by Stewart et al (equation (1)) simplifies and is equivalent to equation (8). The latter can be transformed linearly to reflect the amount of chemically repairable damage clusters. The expression in equation (7) is then re-written, using $a,b\in {\mathbb{R}}$, as:

$$\begin{eqnarray}&&a\displaystyle \frac{x}{{q}_{1}+{q}_{2}x}+b.\end{eqnarray} \tag{ 9 }$$

The parameter b is then a measure for the amount of residual damage clusters in fully hypoxic conditions which can be reduced to three parameters,

$$\begin{eqnarray}&&\displaystyle \frac{{{xC}}_{1}+{C}_{2}}{x+{C}_{3}}\mathrm{with}:\,{C}_{1}=\displaystyle \frac{a}{{q}_{2}}+b,\,{C}_{2}=b\displaystyle \frac{{q}_{1}}{{q}_{2}},\,{C}_{3}=\displaystyle \frac{{q}_{1}}{{q}_{2}}.\end{eqnarray} \tag{ 10 }$$

In earlier work, we have shown that we could describe the generation of complex damage as a function of kinetic energy of a charged particle (Van den Heuvel 2014). In this approach, we define complex damage as any damage at least as complex as a DSB. For convenience, we use the notation DSB_c to indicate this. In the work mentioned above, we showed that the amount of complex damage as a function of the kinetic energy E of a given charged particle modality can be described by an expression of the form.

$$\begin{eqnarray}&&{{\rm{DSB}}}_{c}\,=\,({{dsb}}_{0}-{{dsb}}_{\infty })\left[\displaystyle \frac{1}{\pi }\arctan \left(\displaystyle \frac{{E}_{0}-E}{{\rm{\Gamma }}}\right)+\displaystyle \frac{1}{2}\right]+{{dsb}}_{\infty }.\end{eqnarray} \tag{ 11 }$$

E₀ is the energy at which half of the particles interact in a high LET fashion (i.e. generating complex damage by the interaction of a single particle with a target). Γ is the width of the transition. The terms ${{dsb}}_{\infty }$ and dsb₀ do not necessarily have a physical meaning. They represent the value of the inverse tangent limits. However, both ${{dsb}}_{\infty }$ and dsb₀ are closely related to $\#{{\bf{C}}}_{R}$.

The expression in equation (10) is valid for all levels of available damage clusters. It needs to be adapted to the relative amount of damage for which these processes (i.e. chemical repair and oxygen fixation) can be applied. In other words, it is rescaled by $\#({\bf{R}}\setminus ({\bf{P}}\cap {\bf{R}}))$ relative to the total number of complex lesions (i.e. $\#{\bf{C}}$). In the case of high-LET charged particle interactions, we observe that $\#{\bf{C}}\gg \#({\bf{R}}\setminus ({\bf{P}}\cap {\bf{R}}))$, making any contribution of an oxygenation effect negligible. This is due to two mechanisms:

Firstly, the relative reduction of repairable lesions

$$\begin{eqnarray*}&&(\#{\bf{R}}/\#{\bf{C}})\downarrow .\end{eqnarray*}$$

Secondly, the relative decrease of available oxygen as it is used up by the increased number of already unrepairable lesions

$$\begin{eqnarray*}&&\displaystyle \frac{\#{\bf{P}}}{\#({\bf{C}}\setminus {\bf{R}})}\downarrow .\end{eqnarray*}$$

The expression in equation (11) can then be viewed as an estimate of the fraction of simpler damage (i.e. subject to chemical repair and oxygen fixation) and more complex damage.

Without loss of generality, we can assume that energy and pressure are in no way correlated. This implies that the dependence on oxygen pressure is only expressed in the parameters ${{dsb}}_{\infty }$, dsb₀, E₀, and Γ in equation (11). Finally, we propose that a function to describe complex damage as a function of both energy and pressure (Van den Heuvel et al 2013) can have the following form:

$$\begin{eqnarray}&&{F}_{d}(E,p)=\left|{g}_{4}(p)-{g}_{3}(p)\right|\left[\displaystyle \frac{1}{\pi }\arctan \left(\displaystyle \frac{{g}_{1}(p)-E}{{g}_{2}(p)}\right)+\displaystyle \frac{1}{2}\right]+{g}_{3}(p).\end{eqnarray} \tag{ 12 }$$

With,

$$\begin{eqnarray*}&&{g}_{i}(x)=\displaystyle \frac{x\,{{\bf{a}}}_{i}+{{\bf{b}}}_{i}}{x+{{\bf{c}}}_{i}}\,\mathrm{for}\,i\in \{1,2,3,4\}.\end{eqnarray*}$$

Note that this equation equation (12) does not reflect a mechanism, but is an analytical shorthand combining the properties of both oxygen dependence and energy dependence. This expression is not derived in a mathematical sense!

To determine the parameters we will use micro dosimetric monte carlo codes to provide an estimate.

An interesting quantity to have in a treatment planning system is the a three-dimensonal map of the induced DNA-damage. Let ${\bf{D}}=D[i,j,k]$ be the dose matrix provided as calculated by a classical treatment planning system. Let ${\bf{P}}^{\prime} =p[i,j,k]$ a three-dimensional matrix representing the oxygen concentration. There exists a mapping T which transforms the spatial coordinates of ${\bf{P}}^{\prime}$ to match those of ${\bf{D}}$.

We define a new three-dimensional matrix ${{\bf{M}}}_{d}={M}_{d}[i,j,k]$ representing the damage per cell per giga-base pair (Gbp) in every voxel. For a given spectrum of a single charged particle, the dose delivered by particles with energy E equals the flux ψ(E) times the mass stopping power of the material of in the voxel S/ρ(E). Equation (12) provides the induced damage per cell, per Gbp, per Gy. Hence:

$$\begin{eqnarray}&&{{\bf{M}}}_{{\bf{d}}}={\int }_{{E}_{0}}^{{E}_{\max }}{{\bf{F}}}_{{\bf{d}}}(E,{\bf{P}}){\boldsymbol{\psi }}(E)\displaystyle \frac{{\bf{S}}}{\rho }(E){dE}.\end{eqnarray} \tag{ 13 }$$

Equation (13) can therefore be used to implement a damage scoring tally in a Monte Carlo based simulation system. This is equivalent to using the energy binned F6 tally in MCNP (Stewart et al 2015).

In the special case of electron deposition, we note that the damage induction response is virtually independent of the energy of the electrons. Only at very low energies a relative increase in damage is observed, which is commensurate with the observed data (Hill 2004). Thus, we can apply this formalism by using dose distributions generated by off-the-shelf treatment planning systems, replacing the energy spectrum by the median energy. At clinically relevant energies, the photon dose deposition can be reduced to the dose deposition by secondary electrons, implementing it in both photon and electron treatments. Let ${\bf{P}}^{\prime} =T({\bf{P}})$, with ◦denoting the Hadamard or elementwise product and ${\bf{D}}$ the dose deposition matrix (in Gy). Then we can use the fixed median energy in equation (13) to get an estimate of the damage.

Therefore:

$$\begin{eqnarray}&&{{\bf{M}}}_{{\bf{d}}}={\bf{D}}\circ {F}_{d}({\bf{P}},{E}_{m}).\end{eqnarray} \tag{ 14 }$$

Dose deposition spectra are by definition not mono-energetic and do not consist of single modalities. For any radiation source with a given energy spectrum, an energy depositing charged particle field exists in every voxel. Using general purpose Monte Carlo simulations it is possible to calculate this field and its dose deposition spectrum Ψ(E) in every voxel.

The use of microdosimetric calculations has provided important insight into the mechanisms and effects of radiation deposition. In the past, Monte Carlo simulations of charged particle deposition by various modalities were used to quantify and typify the kinds of damage introduced by the different modalities and many programs are available (Geant4-DNA ⁶ , Topas-nBio ⁷ , and many others (Chatzipapas et al 2020)). Not forgetting the more seminal work by Nikjoo and Friedland (PARTRAC) (Nikjoo et al 1997, Friedland et al 2019).

Of specific note is the Monte Carlo Damage Simulation code (MCDS) developed by Semenenko and Stewart, which generates spatial maps of damaged nucleotides forming many types of clustered DNA lesions, including SSB, DSB, and individual or clustered base damages (Semenenko and Stewart 2006). This approach has been shown to yield a linear relationship of the number of generated DSB's up to a high dosage. It is also the only microdosimetric simulation software that allows the inclusion of oxygen concentration in its input parameters as indicated in the introduction. MCDS version 3.10 was used with parameters as follows. The DNA length was chosen to be 1 Gbp (giga base pair) and nucleus diameter 5 μm. For a more in-depth treatment of these parameters, we refer to the work by Semenenko and Stewart (2005). Variable input parameters in MCDS were; modality (i.e. energy depositing particles (electron, proton,)), energy (in MeV), and oxygen concentration in mmHg partial pressure (Torr). It is this parameter which we now allow to vary along with the energy.

The fitting procedures were performed in the gnuplot-software using a Levenberg–Marquardt minimization routine. ⁸

We repeated the simulation experiment for 4 different modalities: electrons (e⁻), protons (p⁺), Helium ions ${\alpha }^{++}$, and carbon ions (${{\rm{C}}}^{6+}$). Here we only present electron and proton data. The kinetic energy range is presented using a logarithmic scale and such that both the high- and low-LET energy spectrum for the given modality is adequately covered. Oxygen levels vary between 0 and 100 Torr.

Equation (13) implies that to calculate the DNA-damage introduced by a clinical beam, we need to know the spectrum of the dose depositing particles. Not only for the particles in the primary beam but also for all secondary charged particles, which have their own dependency on energy and partial oxygen pressure. Having developed a validated representation of a clinical proton facility, we opted to extend the functionality of FLUKA (version 2020.0.3) to illustrate the effects of oxygen in a clinical application (Battistoni et al 2007, Fiorini et al 2018). It is clear that any general purpose Monte Carlo simulation (Agostinelli et al 2003, Waters et al 2007) or Boltzmann solver package (Vassiliev et al 2010) will be able to do this.

The oxygenation effect model is applied in the following scenario using the Monte Carlo simulation procedure outlined above. A combination of charged particle beams is directed at a water phantom such that a box of 10 × 10 × 10 cm³ receives a prescription dose. The beam is targeting a water tank of size 300 × 300 × 300 mm³. A spread out Bragg peak (SOBP) 10 cm long was generated using a probability distribution for the pencil beam weighting as described by Jette et al (Jette and Chen 2011) and Bortfeld et al (Bortfeld and Schlegel 1996), the maximal nominal energy of the proton pencil beams used was 180 MeV.

In FLUKA, non-standard scoring typically requires including scripts such as fluscw.f in the input file to weigh the standard fluence distribution and tally the desired scoring. USRBIN standard fluence-based scoring can be modified to tally DSB_c damage as follows. We determined the DSB_c parameters in equation (11) for electrons, protons, deuteron, helium ions, Lithium ions, and carbon ions at 0%, 0.1%, 10%, 20% and 50% oxygen levels. These were included in fluscw.f. DSB_c is calculated as in equation (12), using the kinetic energy of the correspondent particle. The equivalent dose (in Gy) for each particle at different oxygen concentrations is then calculated by multiplying the DSB_c by the stopping power through the GETLET() function in the medium (Battistoni et al 2007). Indeed, the function F_d (E, P) is expressed per Gy delivered and dose is calculated as fluence times the stopping power. Similarly, the kinetic energy, particle fluence and LET are recorded separately within the same volume.

Each USRBIN scoring is defined as a cylinder of 100 mm radius, 300 mm deep. The cylinder is subdivided in slices of 1 mm thick and 100 radii, yielding annuli 1 mm thick. The number of simulated primaries is set equal to 10⁸.

The standard dose in Gy is calculated in commscw.f independently to compare the standard dose calculation and appreciate the oxygenation effects.

Finally, this is repeated for all secondary particles and added to the result in every single scoring volume.

The process is repeated in different oxygenation environments: 0%, 0.1%, 10%, and 20% pO₂. Following the rationale defining damage RBE, a damage OER (OER_d) for a particle with energy E is defined such that:

$$\begin{eqnarray}&&{{\rm{OER}}}_{{\rm{d}}}(E,[{{\rm{O}}}_{2}])=\displaystyle \frac{{M}_{{\rm{d}}}(E,[{{\rm{O}}}_{2}])}{{M}_{{\rm{d}}}(E,0)}.\end{eqnarray} \tag{ 15 }$$

In a paper by Prise et al (1990), mammalian V79 cells were irradiated using proton beams with relatively low energy (i.e. 0.76, 1.15, and 1.90 MeV mean energy) in both fully hypoxic and atmospheric conditions. Not only cell survival curves were determined, but also an estimate of the generated DSB was performed using a neutral filter elution technique (Bradley and Kohn 1979, Prise et al 1989).

The irradiation set up and specific spectral data was found in an additional paper by the same group (Folkard et al 1989). We resampled the proton spectra provided in this paper on a grid with a 0.01 MeV resolution. Using expression (13) at different oxygenation levels M_d(E, p) (with p = 0%, 0.1%, 1%, 10%, and 20%) we calculated the number of DSB generated per Gy, per cell, per giga-base pairs (Gbp). Applying equation (15) we readily obtained the OER_d in the different oxygenation conditions. We considered 20% partial oxygenation to be the atmospheric conditions.

The determination of the various parameters and the resulting goodness of fit is shown in figure 2 for two different oxygenation levels calculated using equation (11). Furthermore, it is illustrated over a range as a three-dimensional plot in figure 3 which used equation (13). In table 1 we summarize the statistics of the residual errors of the latter fit. Values of the number of complex lesions range between 5 and 30 expressed per cell, per giga base pair (Gbp), and per Gy. Most outliers are found in the energy range in which the transition of low to high LET regimen occurs.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 4 shows the depth dose curve of the centre of a 10 × 10 cm² size proton treatment with an SOBP of 10 cm. The dose is presented, but also the curves of the damage at 10% normalised to the dose at 0.5 cm depth. As such, the damage curves can be read as an effective dose.

Zoom In Zoom Out Reset image size

On the totality of the irradiation the OER_d increases following increased oxygenation, which is expected. Interestingly the OER_d decreases slightly as the SOBP is reached and roughly stays constant in the high dose volume. Towards the end and past the SOBP the OER_d decreases as the lower energy protons become increasingly more important in the proton spectrum. Within the high dose volume the decrease in OER_d is of the order of 3% percent, which is probably not important enough for clinical purpose as the variation in oxygenation combined with a variety of repair effects will drown out this effect. Once behind the bragg peak the OER_d reduces by about 10%, but almost no dose is deposited.

In table 2 we compare the calculated values of OER_d for beams with a mean energy of 0.76 and 1.15 MeV. The values obtained at 20% partial oxygen pressure are considered equivalent to standard atmospheric environments. Prise et al also determined the OER_d for an x-ray beam with nominal energy of 250 kVp. Making some rough assumptions, namely, that all dose is deposited by secondary electrons with a median energy of 100 keV and taking advantage of the flat response of DSB induction at electron energies above 10 keV, we find a value of 2.861, while 3.50 is reported.

Table 2. Calculated and measured oxygen enhancement ratios based on differences in induced number of double strand breaks (OER_d) in mammalian V97 cells irradiated using protons having different LET. This is shown at different partial oxygen pressures, with 20% being the atmospheric pressure. Measurement data are from Prise et al (1990), using the same methodology this group quote an OER_d = 3.50 for an x-ray beam at 250 kVp.

	OERd
LET (keV μm−1)	$\langle {E}\rangle$ (MeV)	0.1%	1%	10%	20%	Mean	Prise et al
17.0	1.90 MeV	1.810	2.226	2.271	2.293	2.344	—
24.0	1.15 MeV	1.500	1.715	1.732	1.743	1.915	1.64
32.0	0.76 MeV	1.317	1.441	1.451	1.457	1.555	1.49
