Comparative study of the biocompatibility and corrosion behaviour of pure Mg,Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites for orthopaedic implant applications

Partially or fully characterized nanocomposite Mg 0.4Ce/ZnO₂ and Mg Ni/Ti were received from Dr M. Gupta, Associate Professor, Department of Mechanical Engineering, National University of Singapore. Pure magnesium with 99% was used for comparison with its nanocomposites. Pure magnesium with 99% purity has been used in this study. The composition of Mg 0.4Ce/ZnO₂ nanocomposites with the major composition of Mg, 0.4% of Ce, and 1.5% ZnO₂. The composition of Mg Ni/Ti nanocomposites with the major composition of Mg and 1% Ni/Ti nanoparticles. Using an electrical discharge machine, cast blocks were sliced into specimens that are cylindrical and have a diameter of 10 mm and a height of 4 mm. [Ratnaparkhi SC100]. Before being used in the experiments, all samples were sterilized.

An Olympus metallurgical microscope (Olympus, Japan, BX51M-N33MD) was used for the microstructural investigation of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites. The samples were mounted, manually treated, and polished up to 1500 grit with Silicon carbide paper. Then the specimens were etched for 5–10 s in a picral solution containing 10 ml acetic acid, 4.2 g picric acid, 10 ml deionized water, and 70 ml ethanol [60].

Fresh blood was taken from sheep and anticoagulated with 3.8 percent sodium citrate (the blood to sodium citrate ratio was 9:1), followed by centrifugation at 4 °C for 5 min at 4000 rpm [61]. The plasma and buffy coat layer were removed by aspiration. The red blood cells were centrifuged and washed three times in ten volumes of 10 mM phosphate buffer saline (PBS) adjusted to pH 7.4 by centrifugation (4000 rpm, 5 min). During each wash, the supernatant was eliminated. The erythrocytes were obtained by centrifugation (4000 rpm, 5 min) during the final wash. The erythrocytes were resuspended in PBS buffer and maintained at 4 °C until they reached the desired hematocrit level. An erythrocyte suspension (10% hematocrit) was treated with pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites in PBS for 2 h. After incubation, 200 ml of the reaction solutions were removed and diluted with 3.8 ml of PBS before centrifugation at 4000 rpm for 10 min. The absorbance of the resulting samples at 540 nm was determined with a spectrophotometer. The reaction mixtures were treated with the same amount of 3.8 ml distilled water to achieve complete hemolysis. The rate of hemolysis is measured using the following formula:

$$\begin{eqnarray*} &&\% \,{\rm{Hemolysis}}=\left(\displaystyle \frac{{\rm{A}}}{{\rm{B}}}* 100\right){\rm{Where}},{\rm{A}}={\rm{PBS}}\,{\rm{O}}.{\rm{D}};{\rm{B}}={\rm{WATER}}\,{\rm{OD}}\end{eqnarray*}$$

The degradation test was performed in phosphate buffer solution (PBS) at 37 °C in a static condition from the 3rd day to the 14th day [62]. PBS solution comprising 8g sodium chloride (NaCl), 0.2 g potassium chloride (KCl), 1.5 g disodium phosphate (Na₂HPO₄), and 0.2 g potassium dihydrogen phosphate (KH₂PO₄) pH was adjusted to 7.4 to imitate the physiological environment accurately. The deposited white layer as a result of degradation on the surface of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites was removed. Also, the soluble gets deposited at the bottom of the solution. The mass loss is determined by eliminating the products of corrosion from the surface of the samples using chromic acid (180 g l⁻¹ in distilled water). Then the samples were cleaned using distilled water and air-dried. The surface morphology was determined using SEM on the dried samples.

To assess the cytotoxicity of magnesium nanocomposites, MG63 cell lines obtained from National Centre for Cell Sciences (NCCS), Pune, were used. And determine the cell viability using MTT (3-(4, 5-dimethyl-2-thiazolyl)−2,5 diphenyltetrazolium bromide) assay [63]. The cells were cultured in DMEM with 10% FBS, 100 g ml⁻¹ penicillin, and 100 g/ml streptomycin at 37 °C in a humidified condition of 50 g ml⁻¹ CO₂. The pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites samples were seeded in a 24-well plate with 1×10⁵ cells per well and cultured for 24 h at 37 °C with 5% CO₂. There were also controls with the MG63 cells and no magnesium discs. Then, 100 μl ml⁻¹ per well of MTT with a concentration of 5 mg ml⁻¹ in PBS was transferred into each well and incubated for 4 h. During incubation, the mitochondrial enzyme succinate dehydrogenase of viable cells cleaved MTT into water-insoluble, purple-colored formazan crystals. After carefully removing the MTT solution, the formazan crystals that had attached to the cells were released after being mixed with 1 ml of DMSO and incubated at 37 °C until complete solubilization of the crystals. The absorbance of samples was measured at 540 nm (A540) with UV Spectrophotometer and DMSO as a blank solution. All experiments were performed in triplicates, and the results were statistically analyzed using the Student's t-test for independent samples with a predetermined p = 0.01. The viability of cells was expressed as follows:

$$\begin{eqnarray*} &&\% \,Cell\,Viablity=A570\,of\,treated\,cells/A570\,of\,control\,cells* 100 \% \end{eqnarray*}$$

MG63 cells calcium accumulation was identified using ARS. The calcium generated by MG63 cells is bound by the ARS dye [64]. MG63 cells were seeded on pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites samples in a 6-well plate and incubated for 24 h. Before usage, the monolayer cells were cleaned in sterile PBS. The cells were fixed with 2% glutaraldehyde and then treated with ethanol. The cells were stained with 0.1 ml of 1 percent Alizarin red dye for one minute. After being treated with ARS dye, the cells were removed from the 6well plate and placed on a clean, grease-free glass slide. A fluorescent microscope was then used to study the cells (Nikon, Japan).

Figure 1 shows optical images of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites. Figure 1(a) shows pure Mg has a predominantly basal texture (polygrain structure) with nonuniform coarse grains. Because of its fundamental structure, the deformation of magnesium-based materials is exceedingly challenging to comprehend. Pure Mg microstructure at and along grain boundaries displayed a duplex structure consisting of light-colored alpha and dark-colored eutectic phases [65]. The existence of twinning within the grains of pure Mg could be seen. Because the strength and deterioration properties of Mg-based materials are heavily reliant on grain size, grain refining is critical. The microstructure of Mg Ni/Ti composites is shown in figure 1(b), where the inclusion of NiTi as particle reinforcement has substantially decreased the grain size of pure Mg. NiTi helps in the dispersion and strengthening of the Mg matrix composite. During dynamic recrystallization, newly refined grains form inside the twinning and around the grain boundaries of the coarser grain structure, as shown in figure 1(c) [49]. The polycrystalline microstructure of Mg 0.4Ce/ZnO₂ nanocomposites in nature is seen in [50]. Nanocomposites are stable and evenly distributed across grain boundaries. The production of thin lamellar eutectic was achieved by adding nanocomposite at grain boundaries. Zinc oxide nanoparticles and cerium were used to improve the microstructure.

Zoom In Zoom Out Reset image size

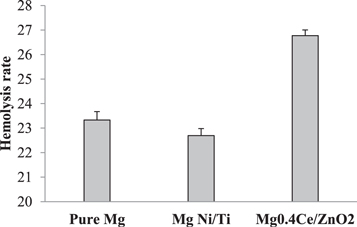

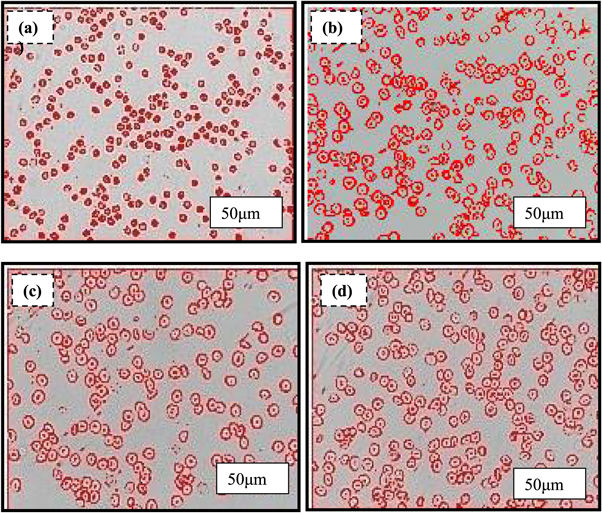

Figure 2 depicts the hemolysis rates of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites samples treated with red blood cells, which were 23.72%, 22.92%, and 26.98%, respectively. The comparison of hemolysis of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites exceeds the medical device safety standard of less than 5%. Figures 3(a)–(d) shows normal RBC cells and hemolytic activity of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites. The presence of high quantities of chlorine in the environment and conductivity to metallic corrosion causes the increase in hemolysis rate in all samples. The increase in hemolysis might be due to a pH greater than 11 surrounding magnesium samples. The erythrocyte membrane becomes unstable when the pH goes too high, resulting in erythrocyte disintegration [66]. Denatured precipitated haemoglobin is eliminated from the hemolysis study since it only evaluates the values of the supernatant, which causes lower absorbance results than the actual values. Figure 3 shows the images that are processed and analyzed in Image J software. The average cell size and count of healthy RBCs are provided in table 1. For the control, pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites, the average cell size is 0.83, 0.68, 0.70, and 0.68, respectively. Compared to Mg Ni/Ti and Mg 0.4Ce/ZnO₂ nanocomposites, pure Mg has a larger cell count of 422. The control has 287 cells, but the Mg Ni/Ti and Mg 0.4Ce/ZnO₂ nanocomposites have 293 and 393 cells, respectively.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Immersion corrosion studies are the basic in-vitro procedure for examining the degradation of pure Mg, Mg Ni/Ti and Mg 0.4Ce/ZnO₂ nanocomposites. ASTM G 102–89 conducted in vitro corrosion tests in phosphate-buffered saline (PBS) at 37 °C [67]. PBS was used to immerse the samples for 3, 5, 7, and 14 days, respectively. The samples immersed in PBS degrade to produce a significant number of alkaline hydroxyl anions, Mg²⁺ ions and hydrogen gas and create Mg(OH)₂ film, which is moderately protective according to previous literature [68]. This is because the dissolving potentials of magnesium metals are less than roughly 1.45 V at all pH settings. Several authors have proposed [69] that Mg could be dissolved as a unipositive ion (Mg⁺).

Dissociation of Magnesium ions

$$\begin{eqnarray}&&{\rm{Mg}}\left({\rm{s}}\right)\to {{\rm{Mg}}}^{2+}\left({\rm{aq}}\right)+2{{\rm{e}}}^{-}\end{eqnarray} \tag{ 1 }$$

The monovalent cation will hydrolyze in water via a secondary chemical reaction spawning an excessive hydrogen gas evolution [70].

Dissociation of water

$$\begin{eqnarray}&&2{{\rm{H}}}_{2}{{\rm{o}}+{\rm{2e}}}^{-}\to {{\rm{H}}}_{2}\left({\rm{g}}\right)\uparrow 2{{\rm{OH}}}^{-}({\rm{aq}})\end{eqnarray} \tag{ 2 }$$

$$\begin{eqnarray}&&{{\rm{Mg}}}^{2+}\,\left({\rm{aq}}\right)+\,2{{\rm{OH}}}^{-}\,\left({\rm{aq}}\right)\to {\rm{Mg}}{({\rm{OH}})}_{2}\,\left({\rm{s}}\right)\end{eqnarray} \tag{ 3 }$$

Precipitation of magnesium chloride

$$\begin{eqnarray}&&{{\rm{Cl}}}^{-}+{\rm{Mg}}{\left({\rm{OH}}\right)}_{2}\to {{\rm{MgCl}}}_{2}+2{{\rm{OH}}}^{-}\end{eqnarray} \tag{ 4 }$$

Direct formation of MgCl₂

$$\begin{eqnarray}&&{{\rm{Mg}}}^{2+}+2{{\rm{Cl}}}^{-}\to {{\rm{MgCl}}}_{2}\end{eqnarray} \tag{ 5 }$$

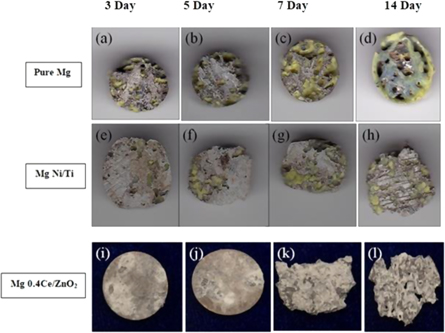

Figures 4(a)–(d) show macroscopic images of corroded pure Mg surfaces on days 3, 5, 7, and 14, respectively. From the third to the fourteenth day, the surface of pure Mg suffers from localized pitting corrosion. The protective film rupture mechanism dominated the cracking and further dissolving of the sample surfaces, and the pure Mg was more susceptible to cracking [71]. Figures 4(e)–(h) show macroscopic pictures of corroded Mg Ni/Ti surfaces on days 3, 5, 7, and 14, respectively. The protective film improves corrosion resistance by generating a barrier against ion diffusion from the phosphate buffer solution. Because the solution penetrated the surface quickly and the ions were aggressive, corrosion on the surface decreased from the third to the fourteenth day. Figures 4(i)–(l) show macroscopic images of the corroded surface of Mg 0.4Ce/ZnO₂ nanocomposites on days 3, 5, 7, and 14, respectively. The protective coating serves as an ion diffusion barrier on the third and fifth days. The corrosion products in the pits on the seventh day altered the corrosion mechanism and reduced the sample size. The samples cracked along the edges, and the massive fragments crumbled and dissolved. The degradation of Mg 0.4Ce/ZnO₂ nanocomposites from the edges slowly migrated inward on the fourteenth day, leaving a rough contour behind. Because of non-homogeneous degradation, the surface of Mg0.4Ce/ZnO₂ began to erode from the edge and move inward, shedding pieces and losing structural integrity [72]. Mg0.4Ce/ZnO₂ nanocomposites degraded much faster in PBS than pure Mg and Mg Ni/Ti nanocomposites. SEM images of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites on the 3rd, 5th, 7th^, and 14th day are shown in figure 4.

Zoom In Zoom Out Reset image size

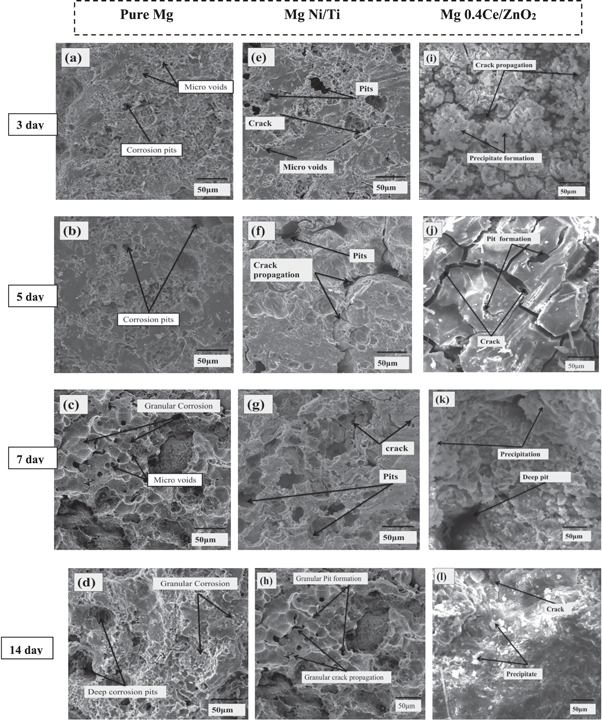

According to earlier literature [73], the following are the reasons for the creation of a corrosion layer on the surface: (i) When metal corrodes, Mg ions are released, resulting in a fine layer of Mg (OH)₂. (ii) The new protective film layer acts as a local barrier, keeping ions from reaching the surface. (iii) A multitude of protective layers shield the material from sensitive Cl⁻ environments. Figures 5(a)–(c) shows the corrosion topography of pure Mg, Mg Ni/Ti, and Mg 0.4Ce/ZnO₂ nanocomposites surfaces immersed in PBS on the third day. In a static environment, the corrosion mechanism causes additional surface corrosion products to be deposited. The product of corrosion is mainly magnesium hydroxide, which forms a defensive coating on the surface and produces hydrogen as a by-product [74]. On the third day, figure 5(a) shows white breakdown products spread across the whole surface of pure Mg. The surface was also originally free of cracks, which reduced Cl₂ ion penetration into the new surface. Large pits developed small pits from the surface of Mg Ni/Ti nanocomposites, as revealed in figure 5(b), indicating persistent, localized corrosion. It is nearly uniform, with some localized pits. As a protective layer, white corrosion products are scattered more erratically on Mg 0.4Ce/ZnO₂ nanocomposite surfaces, as seen in figure 5(c). The protective layer was dense, rough, and heterogeneous, forming good resistance to corrosion. The stability of the protective film is affected by continuous interaction with PBS, which is vital for corrosion resistance. On the fifth day, the corrosion pits emerged over the entire surface of pure Mg by breaking the protective film, as shown in figure 5(d). Now with massive pits, severe localized corrosion is readily obvious. Figure 5(e) shows the surface of Mg Ni/Ti having adjacent large pits with new crack spots. The disintegration of the old protective film attacks the fresh surface. This would result in more localized corrosion at the crack site, and the protective film would be easily broken. Figure 5(f) shows the surface of Mg 0.4Ce/ZnO₂ nanocomposites granular corrosion occurs with more localized pits at the crack site by breaking the protective film. This is because aggressive chloride ions penetrate these protective layers to reach the new surface. During the fifth day, the size of the specimen remains unchanged, but the corrosion mechanism for Mg 0.4Ce/ZnO₂ nanocomposites is more severe than for pure Mg and Mg Ni/Ti nanocomposites. Because of the constant interaction with PBS, the entire surface begins to erode as the immersion time increases. Rajan et al, 2022 reported that the Mg-coated specimens' bioactivity in SBF immersion demonstrated apatite production in 5 days [69]. The white layer that grew on the surface of the samples remained unchanged after the seventh day. The PBS-exposed protective layer had penetrated the top layer and reached the new surface. As seen in figures 5(g), (h), deep pits have grown from the new surface of pure Mg and Mg Ni/Ti nanocomposites, causing further degradation. It was seen that both surfaces were covered with a larger and interconnected deep pit. Over time, the pits grew wider and connected to nearby pits, causing the old surface layer to fall off. Figure 5(i) shows that the surface of Mg 0.4Ce/ZnO₂ nanocomposites is deeply corroded due to pit growth, and new degradation products were formed in the pits. Pitting degradation and pit enlargement is part of the corrosion process, and pitting degradation reoccurs at the newly exposed surfaces. Though the newly formed degradation product and deposited white layer protected the sample from rapid degradation and reduced the corrosion, the sample degradation could not be completely prevented, as evidenced by the change in the size of samples immersed in PBS. On the fourteenth day, as shown in figure 5(j), pure Mg was susceptible to localized corrosion caused by corrosive ions permeating the surfaces through pits. The protective layer on top acts as an ion barrier; such aggressive ions like Cl⁻ can permeate it over time, producing localized corrosion and surface breakdown. Mg Ni/Ti nanocomposite surface thin film develops discontinuously at its initial stage, forming a local barrier and providing instant corrosion resistance, as shown in figure 5(k). This is because the presence of Ti and Ni acts as a barrier, causing the material to degrade at a slower rate. Figure 5(l) shows the structural stability of the Mg 0.4Ce/ZnO₂ nanocomposites is weakened by their lower corrosion resistance. Corrosion products in pits become denser and break down when the immersion time is increased. The discharge of surface fragments may have been regulated by the corrosion products, which may have protected the surface beneath it and so limited localized corrosion development [75].

Zoom In Zoom Out Reset image size

As the spread of pitting corrosion got more brutal to keep the entire degradation layer, the surface eventually fractured into shards. When the protective layer was dissolved by targeting the new surface, pure Mg was shown to have more interconnected deep pits. The presence of Ni and Ti on the Mg Ni/Ti nanocomposite surface safeguarded it from severe corrosion. Little pits are visible on the surface of the Mg Ni/Ti nanocomposite. Mg 0.4Ce/ZnO₂ nanocomposites structural stability deteriorates after 14 days when compared to pure Mg and Mg Ni/Ti nanocomposites. A deterioration of the basal texture and the existence of secondary phases are thought to contribute to more weight loss. According to previous studies, a more uniform corrosion rate depends on a homogeneous second-phase distribution and a refined matrix free of cracks. The mechanism of corrosion is heavily influenced by surface microstructure and local pH. The health of humans is jeopardized by rare elements.

The yield strength of pure Mg was just about half the strength of natural bone, and it was not approved for long-term use (110 MPa). Selection of alloys and mechanical processing must be included to enhance yield strength for implant applications. On the other hand, the material's deterioration rate must be changed based on the fracture type and expected healing time. Metallic implants must have strong corrosion resistance to be utilized successfully in the clinic since severe corrosion reduces mechanical strength and creates harmful ion release. The discharge of harmful metal ions or particles into the body during corrosion is another disadvantage of commercial implants. They must remain as permanent implants (plate, screw, and pin) inside the human body until natural tissue has fully recovered.

To assess the possibility of the safe use of nanocomposites in orthopaedic applications, cytotoxic studies were performed. Cytotoxicity was assessed by MTT assay. Figure 6 shows the percentage of cell viability of MG63 osteoblast cells incubated in Mg and its nanocomposites after 24 h of incubation. In the present study, the % cell viability of pure Mg was observed as 235.64%, and it was high when compared to other Mg nanocomposites. This might be due to better cell adhesion by more cell spreading and a greater degree of cell attachment [76]. The % viability of Mg 0.4Ce/ZnO₂ nanocomposite was found to be 165.03%, and it is supported by the previous report stated that the Mg Zn/CeO₂ nanocomposites exhibited no cytotoxicity to MC3T3-E1 pre-osteoblast cells and based on this findings, the feasibility of Mg Zn/CeO₂ nanocomposites for use as orthopedic implants is systematically discussed [77].

Zoom In Zoom Out Reset image size

Another report stated that ZnO nanoparticles in concentrations up to 20 mg/l have no adverse effect on HeLa cells [78]. Our previous findings demonstrated the results of the MTT assay for the Mg 0.4Ce/ZnO₂ surface appear to have a cytotoxicity effect after one day due to an increase in pH [71]. The % viability of Mg Ni/Ti nanocomposite was found to be 136.18%. Our results, evidenced by the previous report by Tiong Hou Damien Ong et al, 2017 suggested that Mg 2.5 vol% TiO₂, Mg TiC, and Mg TiN have the potential to be qualified as orthopedic implant materials subject to the next level of cytotoxicity tests and results of in vivo studies [79]. Jana Markhoff et al, 2017. The osteoblastic cell line MG-63 as well as human osteoblasts, fibroblasts, and macrophages, were cultured on four titanium alloys to verify cell-specific biocompatibility. Thereby, Ti6Al4V SLM and NiTi revealed the best results regarding the metabolic activity. After 24 h, all the investigated materials showed high cell viability (>90%) in the present study. Based on the ISO 10993–5:2009 standard, the MTT assays have no cytotoxicity potential if the viability is more significant than 70% of the negative control. This indicates that both pure Mg and its nanocomposites are biosafe in terms of cellular metabolism.

Figures 7 (a)–(c) presents the in vitro osteogenic activity of MG63 cells on Mg 0.4Ce/ZnO₂ and Mg Ni/Ti nanocomposites with pure Mg surfaces. The calcium deposition appears as a red brick dot on the surface of Mg 0.4Ce/ZnO₂ nanocomposites and Mg Ni/Ti. When cells are grown directly with a material, environmental changes such as the shift of pH, release of ions, and evolution of hydrogen were discovered to be particularly sensitive. The initial chronological events in contact with a material surface are adhesion, spreading, and cell migration, which are critical for cell survival. Only cells grown in Mg nanocomposites had red biomineralized nodules, which correspond to a calcium-rich extracellular matrix, as shown in figures 7(a) and (b). Pure Mg surface showed less or an absence of calcium deposition by MG63 cells in figure 7(c). Increases in alkaline phosphatase (ALP), frequently followed by an increase in bone mineralization, are linked to calcium deposits [80]. After 24 h, the MG63 cells appear uniformly spread over the sample surface in this investigation.
