Defect and structural imperfection effects on the electronic properties of BiTeI surfaces

The used experimental setup is designed for a comprehensive analysis of the geometric and electronic properties of solid surfaces, both in real space and in reciprocal space. It allows one to perform scanning tunneling microscopy (STM)/STS, ARPES, x-ray photoelectron spectroscopy (XPS), and spot-profile analysis low-energy electron diffraction (SPA-LEED) under ultra-high vaccuum conditions for the same sample without exposing it to air. The combined chamber setup is equipped with an Omicron variable-temperature STM (VT-STM), a Scienta R3000 electron analyzer and an Omicron SPA-LEED system. Additional, high-resolution STM experiments were performed at a separate experimental setup using an Omicron low-temperature STM (LT-STM) operated at T = 5 K.

BiTeI single crystals were cleaved at room temperature along the (0001) direction with a rod glued on top of the samples at pressures below $p=2\times {{10}^{-10}}$ mbar. Submonolayer amounts of Cs were deposited in the VT-STM using commercial alkali dispensers (SAES Getters). All experiments were performed at room temperature except for those carried out at the LT-STM.

STM tips were electrochemically etched from a polycrystalline tungsten wire, prepared on a noble metal (111) surface before scanning BiTeI(0001). For both microscopes dI/dU maps have been taken by means of the lock-in technique with $\nu =789$ Hz. The acquisition of dI/dU maps with variable voltage is a valuable method for surfaces with inhomogeneous terminations as it allows one to compare the density of states (DOS) on different terminations as a function of energy. Additionally, it enables a fast data acquisition which is quite important for samples exhibiting aging processes. In order to obtain such maps we started at $U=-0.05\;{\rm V}$ decreasing the voltage gradually each 26 scan lines by $0.05\;{\rm V}$ to $U=-1$ V. All STM scans have a resolution of 512 × 512 pixels resulting in 20 slices with 26 × 512 pixels for each voltage. The STM data were processed with the software WSxM [36].

The ARPES data were acquired with a non-monochromatized He discharge lamp with He Iα excitation (21.22 eV). The energy resolution was approximately 25 meV. XPS measurements were done with Al ${{{\rm K}}_{\alpha }}$ excitation (1486.6 eV).

Both synthesis and growth of BiTeI were performed in the same evacuated quartz ampoule. Since elementary iodine is very volatile, it is more convenient to prepare ${\rm Bi}{{{\rm I}}_{3}}$ first. For this reason, Bi and I in the ratio ∼1 : 5 were fused at $350\;{}^\circ {\rm C}$. The excess of iodine was taken in order to compensate its loss during evacuation. On the other hand, the residue of iodine may be easily distillated to the cold end of the ampoule. According to the published data, BiTeI melts congruently at $560\;{}^\circ {\rm C}$ [37]. Therefore Bi, Te and ${\rm Bi}{{{\rm I}}_{3}}$ taken in proportion 2 : 3 : 1 were heated to a temperature $20\;{}^\circ {\rm C}$ higher than the melting point. Crystal growth was done by a modified Bridgman method with rotating heat field [38]. After pulling the ampoules through the vertical temperature gradient $\sim 15\;{}^\circ {\rm C}\;{\rm c}{{{\rm m}}^{-1}}$ with a rate of $10\;{\rm cm}\;{\rm da}{{{\rm y}}^{-1}}$ the furnace was switched off.

The calculations were performed within the density functional formalism as implemented in the VASP code [39, 40]. We used the all-electron projector augmented wave [41, 42] basis sets with the generalized gradient approximation of Perdew, Burke and Ernzerhof [43] to the exchange correlation potential. Relativistic effects, including spin-orbit coupling, were fully taken into account. When modeling the Cs diffusion on the BiTeI surfaces, the spin–orbit interaction was neglected. Experimental lattice parameters [45] of BiTeI were used in the calculations. The surface of BiTeI has been reported to suffer from stacking faults leading to mixed surface terminations [7]. To simulate the surface with both terminations, we used a slab composed of 24 atomic layers (which comprises Te- and I-terminated surfaces on its opposite sides) separated by roughly 20 Å vacuum space. Electronic band structure of the single Te-terminated surface was calculated using the slab with I-terminated side passivated by a hydrogen monolayer. The atomic positions for the first two surface layers of the free surfaces of the slab as well as position for passivating hydrogen layer and for Cs adatom at different adsorption sites were optimized.

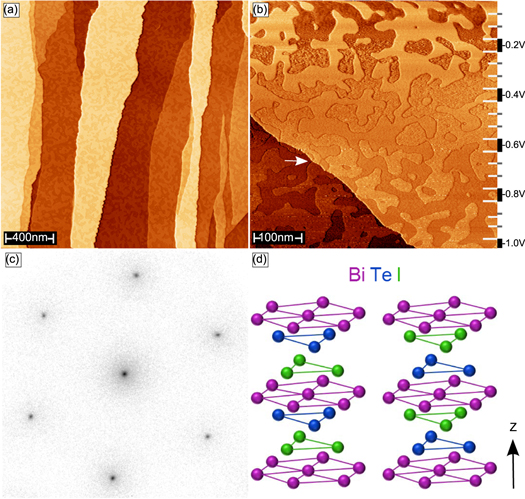

Figure 1(a) shows a large scale STM image for the BiTeI(0001) surface revealing flat terraces extending over several hundred nm in width and over several μm in length. On the individual terraces one can discern an additional mottled texture resulting from two types of surface areas that are about 10–100 nm wide and differ in contrast. A more detailed inspection of this texture is shown in the STM image in figure 1(b) that was acquired with varying gap voltage between −0.05 V and −1 V with an increment of 0.05 V. Starting at the upper part of the image a clear contrast between the two types of areas is observed which, however, fades with lowering the gap voltage, disappears at around −0.5 V, and finally inverts. This observation indicates that the two surface areas correspond to two chemically different terminations [44]. We will show later that one type of surface area is terminated by an I layer and the other one is terminated by a Te layer. Therefore, we will from now on use the terms I termination and Te termination to distinguish between the two different types of surface areas. It is important to note that both surface areas cover step edges without any apparent influence of the latter (see for example the position marked with an arrow in figure 1(b)). This indicates that the observed domains are already present in the bulk crystal and originate from stacking faults with the layer ordering being rotated by 180° (figure 1(d)). The independence of domain boundaries and step edges also allows us to determine the step height between adjacent terraces to 7 Å on both terminations which is in agreement with XRD measurements of the bulk lattice constant [45, 46]. The diffraction image in figure 1(c) represents a superposition of the signals from both terminations because the electron beam spot by far exceeds the length scale on which the two surface terminations vary. The single (1 × 1) pattern which we observe thus excludes any significant mismatch in lateral orientation or the occurrence of a reconstruction on one of the terminations. Based on figure 1(c) we determine the in-plane lattice constant to 4.3 Å, again in good agreement with previous XRD results [45, 46].

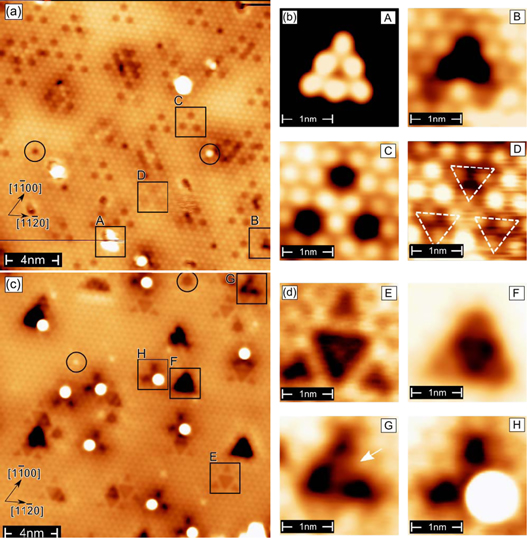

In the following we discuss the two different terminations of BiTeI(0001) surface on the atomic scale. Figures 2(a) and (c) show LT-STM images taken on an I-terminated and a Te-terminated surface area, respectively. In agreement with our SPA-LEED experiments both terminations are found to have the same crystallographic orientation. Defects within the surface layer are marked with circles in figures 2(a) and (c). Those defects with dark appearance correspond to vacancies or antisites, whereas those with bright appearance correspond to antisites or adatoms in on-top position. In addition to these surface defects, both terminations exhibit several on-surface and subsurface defects which are marked by black squares, labeled A–D (figure 2(a)) and E–H (figure 2(b)), and presented at higher magnification in figures 2(b) and (d), respectively. The total densities of defects visible in these topographic images (scanned surface area $400{\mkern 1mu} {\rm n}{{{\rm m}}^{2}}$ each) amount to approximately 50 and 30 for the I- and Te-teminated surface, respectively. Panel (A) in figure 2(b) shows a triangular cluster that consists of six adatoms. It is centred in hollow positions of the surface I layer. These clusters are roughly 3 Å in height and often interact with the STM tip during the scanning process even at 5 K. For example, the horizontal line in the bottom part of figure 2(a) indicates such a material transport during the scan. The atomic species forming these clusters is presently unknown, but the most plausible origin are Te atoms that remain on the surface after the cleaving and arrange in small clusters.

Zoom In Zoom Out Reset image size

For the characterization of the remaining seven subsurface defects we follow the procedure developed by Jiang et al in [30]. Based on the fact that the inter-layer coupling within individual quintuple layers (in our case triple layers) originates from p-orbitals which form chains of σ bonds along [111] directions, they developed a simple and intuitively understandable interpretation scheme. The crucial assumption is that those atoms which are connected with the defect by a straight sequence of the $pp\sigma$ bonds are most strongly affected. Due to the threefold symmetric crystal structure, the surface corrugation resulting from subsurface defects must also exhibit a threefold symmetry. Because of the above-mentioned straight $pp\sigma$ bond, however, the lateral size of the defect structure grows linearly as the depth of the defect site increases. We start with the simplest defect of the I-terminated surface which is shown in panel (B) of figure 2(b). It appears as a roughly triangular depression (dark) which covers three iodine sites. According to the model of Jiang et al [30] the defect must be located in the second layer (Bi) which affects the three neighbouring surface atoms. This defect occurs only rarely indicating a low defect density in the Bi layer. Panel (C) also shows a triangular feature but in this case the depressions are separated by three iodine surface atoms which maintain their original corrugation. Hereafter, features with similar lateral dimensions will be called (3 × 3). According to its larger lateral size we attributed this feature to a defect in the third layer (Te), possibly a vacancy. Panel (D) presents another defect which is characterized by three triangular clusters of iodine atoms (triangles in panel D) with an reduced apparent height. Because of its (3 × 3) size we conclude that this defect is also located in the third layer (Te) and possibly originates from a Bi or I antisite. For the Te-terminated surface we only found surface features with a (3 × 3) size, indicating that these subsurface defects are unanimously located in the third layer (I). The defects in panel (E) and (F) exhibit a regular threefold symmetry and are probably caused by antisites or a vacancy. Interestingly, the defects in panels (G) and (H) are asymmetric (marked by an arrow) and thus do not obey the threefold symmetry of the lattice. One possible origin for this could be a vacancy in the second layer (Bi) which was filled by an atom of the third layer (I) leaving behind a vacancy on this position. In this scenario the combination of second and third layer features breaks threefold symmetry. Indeed, close inspection reveals that defect in panel (H) corresponds to a defect as shown in panel (G) with an adsorbate at the open end. We speculate that the high electronegative charge of iodine in the second layer leads to the pinning of adsorbates and adatoms resulting from the fracturing process. Interestingly, no defects below the first triple layer were observed.

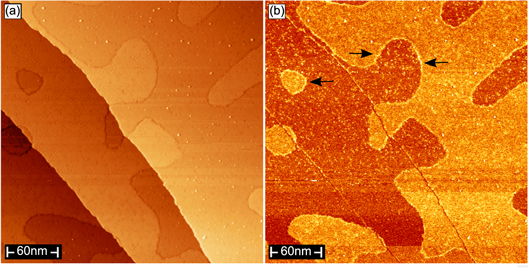

The clusters on the I termination and the bright adsorbates on the Te termination are also visible in the topographic image in figure 3(a) taken at low temperature. The dI/dU map in figure 3(b), acquired at a constant voltage of $-1\;{\rm V}$, reveals a higher DOS on the I termination at this binding energy. At the domain boundaries between two terminations we find an increased DOS (indicated by arrows). This observation points to an edge effect on the electronic charge distribution.

Zoom In Zoom Out Reset image size

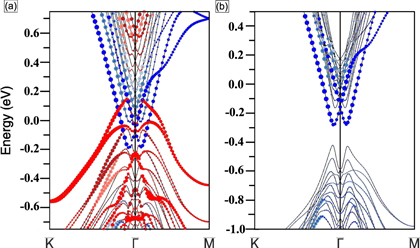

Due to potential changes in the near-surface layers of BiTeI(0001) and related compounds strongly spin–orbit coupled surface states split off from the bulk valence and conduction band edges [6, 7, 9, 12, 13, 15]. The potential change $\Delta V$ is negative for the Te-terminated surface and positive for the I-terminated surface. Figure 4 shows the calculated electronic structure of BiTeI(0001) slab. The simulated slab is terminated by Te layer on one side and by I layer on the opposite side. Hence, the calculated band structure in figure 4(a) can be regarded as a superposition of the surface electronic structures corresponding to the two different terminations. Bands denoted by red (blue) markers correspond to electronic states that are predominantly localized near the I-terminated (Te-terminated) surface. The two most prominent Rashba-split features are an electron-like surface band on the Te termination with a band minimum at $-0.2$ eV and a hole-like surface band on the I termination with a band maximum at 0.15 eV. In general, we find that the negative $\Delta V$ at the Te-terminated side of the slab leads to a downward shift of energies of the electronic states trapped in then near-surface potential while the positive $\Delta V$ at the I-terminated side of the slab produces an upward shift. As a net result, the surface states arising in the system with mixed termination overlap the gap.

Zoom In Zoom Out Reset image size

Figure 5(a) shows an ARPES data set acquired for a freshly cleaved BiTeI(0001) surface. There appear an electron-like Rashba-split state at $\sim -0.2$ meV at $\bar{\Gamma }$ and a hole-like state at lower energy. The respective band minima and maxima of the two states touch each other or even slightly overlap at wave vectors of ±0.1 ${{\overset{\circ}{A} }^{-1}}$. By comparison to our DFT calculations and to previous results [6, 7, 12] we identify the electron-like and the hole-like state as surface states of the Te- and I-terminated domains, respectively.

Zoom In Zoom Out Reset image size

Monitoring the surface electronic structure as a function of time after cleavage we find that significant modifications of the observed spectral features take place on the time scale of hours. This time-dependence is clearly visible in the data sets in figures 5(b)–(d). While the electron-like state on the Te termination remains largely unmodified the hole-like state on the I termination gradually shifts to lower energies. After six hours we find a total energy shift of ∼200 meV. The observed time-evolution of the surface electronic structure of BiTeI(0001) has not been reported previously whereas a similar 'aging' effect was found for the topological insulator surface ${\rm B}{{{\rm i}}_{2}}$ ${\rm S}{{{\rm e}}_{3}}$(0001) and attributed to band bending as a result of residual gas adsorption [32]. In order to further investigate the aging effect we intentionally deposited Cs atoms on the surface thereby mimicking the effect of residual gas atoms. An ARPES data set collected after deposition is shown in figure 5(e). The change of the spectral features is indeed similar to the one due to surface aging: while the electron-like band on the Te termination is insensitive to the adsorption, the hole-like state resided on the I termination shifts to lower energies and eventually merges with the bulk valence band. This result is in perfect agreement with calculated spectrum for the single Te termination (figure 4(b)) where only the electron-like Rashba-split states reside on the surface [12, 13]. It is also interesting to note that the photoemission signal of the hole-like state is more blurry than for the electron-like state. This could be due to the higher defect concentration on the I termination as compared to Te termination found in the STM measurements and due to the preferred adsorption of residual gas species. However, also energy shifts of the spectral features during the finite data aquisition time will cause an additional broadening.

To examine the selective effect of Cs adsorption directly in real space we have performed STM measurements. Figure 5(f) shows a dI/dU map taken at variable gap voltage for a clean sample before Cs deposition. The dependence of the dI/dU signal on energy clearly differs for the two terminations. On the I-terminated surface areas we find a strong increase of the signal at around $-0.15$ V. The relative contrast in comparison to the Te-terminated areas becomes maximal between $-0.25$ V and $-0.30$ V. We attribute this finding to the onset of the hole-like surface state observed in the ARPES data. With further decreasing the gap voltage the contrast fades and finally almost vanishes at $-1$ V. Figure 5(g) shows a dI/dU map that was obtained after deposition of Cs. The most prominent difference to the map for the clean surface is an energy shift of ∼200 meV for the signal measured on the I termination. The sharp rise in contrast now appears at around $-0.35$ V implying a lower energy position for the onset of the hole-like surface state. Note also that between $-0.05$ V and roughly $-0.25$ V the dI/dU signal is lower on the I termination which most likely results from the presence of the electron-like surface state on the Te termination.

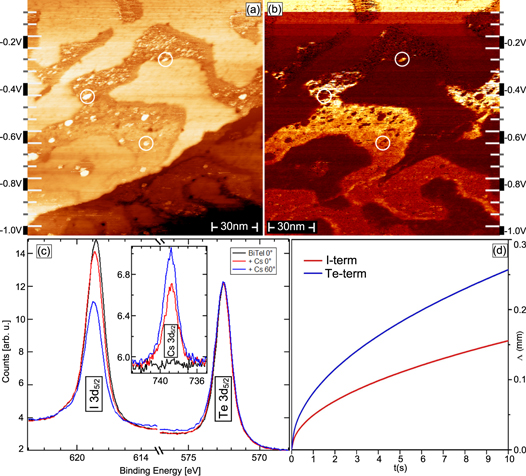

A natural explanation for the modification of states on the I termination is the high chemical reactivity of I which may lead to a preferential positioning of adsorbates on I-terminated domains [35]. Support for this interpretation is provided by the STM measurements for Cs/BiTeI(0001) presented in figure 6(a)–(b). The topographic image in panel (a) reveals that the deposited Cs grows in islands which appear as bright spots (marked by circles). The Cs islands are one monolayer in height and have diameters of several nm. The islands are exclusively located on one termination type. Furthermore, the simultaneously recorded dI/dU map in figure 6(b) provides evidence that the Cs islands are located on the I termination which is identified by the characteristic energy dependence of its dI/dU signal discussed above. Given the large number of defects identified in the STM data in figure 2 we speculate that surface defects may act as nucleation centres and thereby promote the Cs island formation.

Zoom In Zoom Out Reset image size

In order to obtain additional experimental information about the selective Cs adsorption we collected XPS data of the Te $3{{d}_{5/2}}$, I $3{{d}_{5/2}}$ and Cs $3{{d}_{5/2}}$ core levels (see figure 6(c)). The three respective spectra correspond to measurements of the clean surface in normal emission (black lines), after deposition of Cs in normal emission (red lines) and after deposition of Cs with an emission angle of ${{60}^{{}^\circ }}$ (blue lines). In the latter case the measurement is more surface sensitive. We find that Cs adsorption leads to a significant damping of the I $3{{d}_{5/2}}$ signal whereas the Te $3{{d}_{5/2}}$ signal remains largely unchanged. This observation is not compatible with a homogeneous distribution of Cs atoms for which similar dampings of both signals would be expected. It is in line, however, with a preferential positioning of Cs on the I-terminated surface areas. With increasing surface sensitivity the damping of the I signal is further enhanced while the Cs $3{{d}_{5/2}}$ signal is increased. This observation is indicative of the adsorbed Cs being located above the topmost substrate layers, in agreement with the STM measurements in figures 6(a)–(b).

In order to explain the preferential positioning of Cs on I-terminated domains we have theoretically studied adsorption and diffusion of Cs adatoms on Te- and I-terminated surfaces. Our total energy calculations performed within a 4 × 4 surface cell with a single Cs adatom show that for both surface terminations the preferable position for a Cs adatom is the fcc hollow site, while the energy for the hcp site is only slightly higher (by 17 meV and 16 meV on Te- and I-terminated surfaces, respectively). The adsorption energy has been calculated as the difference between the total energies of Cs/BiTeI and clean BiTeI plus an isolated Cs atom. The calculations yield adsorption energies of 1.283 eV and 0.966 eV for fcc-adsorbed Cs on the I and the Te termination, respectively. The difference between the adsorption energies is related to a difference in charge transfer. On the I termination the Cs adatom donates $\sim 0.81$ electrons to the substrate while for the Te termination it is only $\sim 0.76$ electrons. A Cs adatom will gain an energy of 317 meV when changing its position from the Te to the I termination. This indicates that the adatoms should have a tendency to diffuse from Te-terminated to I-terminated surface areas. As deduced from our STM measurements the mean size of Te(I)-terminated surface areas is on the order of a few tens of nm. In order to diffuse from Te- to I-terminated domains on a short time scale the diffusion length for Cs adatoms on the Te termination must be larger than the size of the domains.

To estimate the diffusion mobility of Cs adatoms on Te- and I-terminated surfaces we use an approach proposed in [47]. The mean diffusion length in the low adatom coverage limit is

$$\begin{eqnarray}&&\Lambda =\sqrt{2\alpha Dt},\end{eqnarray} \tag{ 1 }$$

where α is the dimensionality of the problem (here $\alpha =2$ for surface diffusion), t is the time and D is the tracer diffusion coefficient. According to [47] the diffusion coefficient for a 2D hexagonal lattice is defined as

$$\begin{eqnarray}&&D=\frac{6}{2\alpha }\frac{{{\nu }_{hf}}\times {{\nu }_{fh}}}{{{\nu }_{hf}}+{{\nu }_{fh}}}{{l}^{2}}.\end{eqnarray} \tag{ 2 }$$

Here ${{\nu }_{hf}}$ and ${{\nu }_{fh}}$ are hop rates for jumps from hcp- to fcc-sites and from fcc- to hcp-sites, respectively; l is the distance between hcp and fcc hollow sites. The hop rates are defined as

$$\begin{eqnarray}&&\nu =\frac{1}{2d}\sqrt{{{E}_{a}}/\left( 2\;m \right)}\times {{e}^{-{{E}_{a}}/\left( {{k}_{B}}T \right)}},\end{eqnarray} \tag{ 3 }$$

where d is the jump length which is equal to the half-distance between fcc and hcp sites, i.e. $d=l/2$; m is the mass of adatom (Cs); T is the temperature; and ${{E}_{a}}$ is the activation energy for the jump. Thus, the hop rates and consequently, diffusion coefficients for Cs diffusion on Te- and I-terminated surfaces can be completely determined from the activation barriers ${{E}_{a}}$ for $fcc\to hcp$ and $hcp\to fcc$ jumps.

According to our total-energy calculations the energy barriers for Cs diffusion on the I termination are 0.113 and 0.096 eV for $fcc\to hcp$ and $hcp\to fcc$ jumps, respectively, while they are slightly lower on the Te-terminated surface: 0.083 eV for $fcc\to hcp$ jumps and 0.067 eV for $hcp\to fcc$ jumps. The lower barriers on the Te termination is related to a weaker Cs/substrate bonding compared to the I termination.

The calculated room temperature (300 K) diffusion coefficients ${{D}_{{\rm Te}}}=1.651\times {{10}^{-5}}$ and ${{D}_{{\rm I}}}=0.605\times {{10}^{-5}}$ ${\rm c}{{{\rm m}}^{2}}$ ${{{\rm s}}^{-1}}$ allow us to estimate the diffusion lengths for Cs diffusion on Te- and I-terminated surface areas as a function of time. As one can see in figure 6(d) the diffusion mobility of Cs on Te-terminated surface areas is very high. The room temperature diffusion length $\Lambda$ of Cs adatoms reaches hundred of microns within several seconds. Therefore, according to our simulation, Cs atoms deposited on Te-terminated areas are able to reach the I-terminated surface areas through random-walk diffusion on a short time scale. The average time for an adatom to leave an area of radius ${{R}_{0}}$ can be estimated as $\left\langle t \right\rangle =\frac{1}{2\alpha }\frac{R_{0}^{2}}{D}$. If we assume the 'effective' radius of Te-terminated surface areas to be equal to the half of the characteristic length scale of the domains, i.e. $\sim 50$ nm then the average time for a Cs adatom to reach the I-terminated domain is 0.4 μs.
