Updated BaSTI Stellar Evolution Models and Isochrones. II. α-enhanced Calculations

Accurate sets of stellar model calculations and isochrones are necessary to interpret a vast array of spectroscopic and photometric observations of individual stars, star clusters, and galaxies, both resolved and unresolved.

Between 2004 and 2013 we have built and made publicly available the BaSTI (a Bag of Stellar Tracks and Isochrones) stellar models and isochrones library (Pietrinferni et al. 2004, 2006; Cordier et al. 2007; Pietrinferni et al. 2009; Salaris et al. 2010; Pietrinferni et al. 2013), ¹¹ which has been extensively employed by the astronomical community. This library covers a wide range of masses, evolutionary phases, chemical compositions, and also provides integrated magnitudes and spectra of single-age, single-metallicity populations.

In the intervening years, improvements in the physics and chemical inputs of stellar model calculations have become available, most notably the revision of the solar metal composition (e.g., Bergemann & Serenelli 2014, and references therein), plus new electron conduction opacities and some improved reaction rates. We therefore embarked on updating the BaSTI library, starting with models and isochrones for solar-scaled chemical compositions, presented in Hidalgo et al. (2018, hereafter Paper I). In this new BaSTI release we have extended the mass range both toward lower and higher masses, and we also provide some basic asteroseismic properties of the models.

This second paper presents the new BaSTI release of models and isochrones for a α-enhanced metal distribution, suitable to study populations in galactic haloes, spheroids, and dwarf galaxies. Our calculations are the latest addition to the list of α-enhanced model sets computed over the last 22 yr by various authors, sometimes restricted to the mass and metallicity range of Galactic halo stars (Salaris & Weiss 1998; VandenBerg et al. 2000; Salasnich et al. 2000; Kim et al. 2002; Dotter et al. 2008; VandenBerg et al. 2012; Fu et al. 2018).

This paper is is organized as follows. Section 2 briefly summarizes the physics inputs adopted in the new computations, and the heavy element distribution. Section 3 presents the stellar model grid, including the mass and chemical composition parameter space. Section 4 shows comparisons between these new models and previous calculations available in the literature, while Section 5 compares the models with selected observational benchmarks. Final remarks follow in Section 6.

We have employed the same stellar evolution code as in Paper I—and the reader is referred to that paper for more information about the technical improvements made since the first release of the BaSTI database.

The adopted α-enhanced heavy element distribution is listed in Table 1. The α-elements O, Ne, Mg, Si, S, Ca, and Ti have been uniformly enhanced with respect to Fe by [α/Fe] = +0.4, compared with the Caffau et al. (2011) solar metal distribution employed in Paper I. A uniform enhancement of all these α-elements has been adopted also in other large stellar model grids (see, e.g., Kim et al. 2002; Dotter et al. 2008; VandenBerg et al. 2014) and is generally consistent with results from spectroscopy (see, e.g., Cayrel de Strobel et al. 1997; Hayes et al. 2018; Mashonkina et al. 2019; Ramírez et al. 2012). Just oxygen might be slightly more enhanced than the other α-elements, by approximately an extra 0.1–0.15 dex. Extra enhancement of oxygen makes isochrones of a given age and [Fe/H] slightly fainter and cooler in the main-sequence (MS) turnoff (TO) region. This effect is mimicked by considering a slightly older age for isochrones without the extra oxygen, at the level of at most just 3%–4% if [O/Fe] is increased by 0.1–0.15 dex (see Dotter et al. 2007; VandenBerg et al. 2012). Also, the T_eff of the lower MS in the regime of very low-mass stars would become slightly cooler, at the level of about just 2% (see Dotter et al. 2007).

The value [α/Fe] = + 0.4 adopted in our calculations is close to the upper limits measured in the Galaxy; an interpolation in [α/Fe] between our solar-scaled models and these new ones can provide accurate evolutionary tracks and isochrones for any intermediate α-enhancement, as verified with the Dartmouth Stellar Evolution Database (DSEP) model library, that includes several different values of [α/Fe] between −0.2 and +0.8 (Dotter et al. 2008).

Our adopted α-enhanced distribution has been used consistently in the nuclear reaction network, in the calculation of radiative and electron conduction opacities, as well as in the equation of state (EOS). The sources for opacities and EOS are the same as described in Paper I.

The nuclear reaction and neutrino energy loss rates, treatment of superadiabatic convection (all calculations employ a mixing length α_ML = 2.006 obtained from a solar model calibration), outer boundary conditions, treatment of overshooting from the convective cores, and atomic diffusion (without radiative levitation), are all as described in detail in Paper I.

Regarding the outer boundary conditions, for models with masses M ≤ 0.45M_⊙ we use outer boundary conditions provided by the PHOENIX nongray model atmospheres (see Paper I , and references therein) described in Allard et al. (2012). More precisely, we employ the so-called BT-Settl model set. ¹²

As in Paper I , the mass loss is included with the Reimers (1975) formula, and the free parameter η is set to 0.3, following the asteroseismic constraints discussed in Miglio et al. (2012). We continue to use Reimers (1975) formula because its free parameter has been calibrated through asteroseismology in nearby open clusters, and also to be homogeneous with our solar-scaled calculations. Prompted by our referee, we have calculated test models with masses equal to 0.8, 1.8, and 4M_⊙ at a representative [Fe/H] = −1.2, employing the more modern (Schröder & Cuntz 2005) mass-loss formula. We have implemented Equation (4) in (Schröder & Cuntz 2005) with the free parameter η_SC set to 8 × 10⁻¹⁴ M_⊙ yr⁻¹ as recommended by the authors, multiplied by another free parameter η₁, as done in Valcarce et al. (2012). We have then determined the value of η₁ that provides the best agreement with our calculations based on Reimers (1975) formula. We found that for the 0.8 and 1.8 M_⊙ models a value η₁ = 0.6 matches our Reimers calculations in terms of both Hertzspring–Russell diagram (HRD) tracks and amount of mass lost. For the 4M_⊙ a value η₁ = 0.3 gives the best match.

For the 10 and 15M_⊙ models we have experimented using the Nieuwenhuijzen & de Jager (1990) mass-loss formula instead of the Reimers one. MS HRD and lifetimes are identical for both masses and both mass-loss choices, despite the fact that models calculated with the Nieuwenhuijzen & de Jager (1990) formula lose 0.1 and 0.3M_⊙, respectively, compared with 0.01 and 0.02M_⊙ for the referenced Reimers calculations. The HRD and lifetimes of the following evolution are also barely affected by the choice of the mass loss, even though by the end of core He burning the calculations with the Nieuwenhuijzen & de Jager (1990) formula lost 0.32 and 0.62M_⊙, respectively, compared with 0.03M_⊙ for both Reimers computations.

This new BaSTI α-enhanced model library includes calculations for 18 values of the initial metallicity—a larger number than in the previous BaSTI release (Pietrinferni et al. 2006)—ranging from Z ≈ 2 × 10⁻⁵ ([Fe/H] = −3.20) to Z ≈ 0.033 ([Fe/H] = +0.06). The initial values of Y at a given Z have been fixed assuming a primordial Y = 0.247 and a He-enrichment ratio ΔY/ΔZ = 1.31, as discussed in Paper I.

This α-enhanced grid has been calculated for the same [Fe/H] values of the solar-scaled one of Paper I, therefore at a given [Fe/H] the values of Z are higher than for the solar-scaled grid, because of the different metal mixture.

An important difference with respect to the solar-scaled grid of Paper I is that this new α-enhanced release includes multiple values of the initial He abundance, at a given Z. The complete list of available chemical compositions is given in Table 2.

The purpose of these calculations with several initial He abundances is to study stellar populations in environments hosting He-rich stars, such as the Galactic bulge, elliptical galaxies, and also globular clusters. In the case of individual globular clusters, He-enhanced stellar populations display specific patterns of variations of C, N, O, Na, Mg, and Al with respect to the standard α-enhanced composition of the He normal component (see, e.g., Bastian & Lardo 2018; Gratton et al. 2019; Cassisi & Salaris 2020, for recent reviews). As long as the sum of C + N + O is unchanged by these abundance patterns (which seems to be the case for most of the clusters) α-enhanced calculations are appropriate to study globular clusters' multiple populations in the HRD, in optical and generally in infrared color–magnitude-diagrams (CMDs) (see, e.g., Salaris et al. 2006; Pietrinferni et al. 2009; Cassisi & Salaris 2020, and references therein). For CMDs involving wavelengths shorter than the optical range, and for the very low-mass stars in the infrared, appropriate bolometric corrections that account for the specific metal abundance patterns need to be calculated and applied to our isochrones (see Cassisi & Salaris 2020).

For each composition—but for the He-enhanced ones (see below)—we computed 56 evolutionary sequences, in the mass range between 0.1 and 15 M_⊙). For initial masses below 0.2 M_⊙, we computed evolutionary tracks for masses equal to 0.10, 0.12, 0.15, and 0.18 M_⊙. In the range between 0.2 and 0.7 M_⊙, we employed a mass step equal to 0.05 M_⊙. Mass steps equal to 0.1, 0.2, 0.5, and 1 M_⊙ have been adopted for the mass ranges 0.7–2.6 M_⊙, 2.6–3.0 M_⊙, 3.0–10.0 M_⊙, and masses larger than 10.0M_⊙, respectively. For the He-enhanced chemical compositions, the upper mass limit was set to 2.0M_⊙, to cover the observed age range of the massive clusters that display multiple stellar populations, which has a lower limit around ∼1.2–1.4 Gyr (see, e.g., Cabrera-Ziri et al. (2020), and references therein). ¹³

All models less massive than 4.0 M_⊙ have been computed from the pre-main sequence (pre-MS), ¹⁴ whereas more massive model calculations started from the zero-age MS. Relevant to the pre-MS calculations, the initial mass fractions of D, ³He, and ⁷Li are set to 3.9 × 10⁻⁵, 2.3 × 10⁻⁵, and 2.6 × 10⁻⁹, respectively (see Paper I).

As in Paper I, all evolutionary models—except the very low-mass ones whose core H-burning lifetime is much longer than the Hubble time—were calculated until the start of the thermal pulses on the asymptotic giant branch, or C-ignition for the more massive ones. In case of the long-lived lower mass models, we stopped the calculations when the central H mass fraction was ∼0.3 (corresponding to ages already much larger than the Hubble time).

For each initial chemical composition we also provide an extended set of core He-burning models suited to study the horizontal branch (HB) in old stellar populations. For each pair (Z, Y) we computed models of varying total mass (with small mass steps) and fixed He-core mass. Both He-core mass and chemical abundances in the envelope of the HB models are taken from the model of a red giant branch (RGB) progenitor at the He-flash, with an age of ∼12.5 Gyr.

Prompted by the referee and the results by Valcarce et al. (2012), we have quantified the effect of changing the age of the RGB progenitors by performing numerical experiments at [Fe/H] = −1.2. A decrease in the progenitor age from the reference 12.5–6 Gyr lowers the He-core mass at He ignition by 0.004M_⊙ (from 0.4865–0.4822M_⊙), but increases the He abundance in the envelope by ΔY = 0.01 (from Y = 0.26–0.27) due to the variation of the efficiency of the first dredge-up. As a consequence, the luminosity of the zero-age HB (ZAHB) is roughly unchanged, and all tracks for masses above 0.5M_⊙ are essentially identical to the case of 12.5 Gyr progenitors. Only HB models with mass below this threshold—unlikely to be found in 6 Gyr old stellar populations—are affected by this large change in the progenitor age. These tracks are increasingly shifted to lower T_eff with decreasing mass, by up to 15% for the lowest HB mass (equal to 0.487M_⊙, with a ZAHB effective temperature of 30,000 K for the model with a 12.5 Gyr progenitor) but their ZAHB luminosity is unchanged.

When the age changes from 12.5–10 Gyr the variations of the He-core mass and surface He abundance are about half these values, while an increase in the age from 12.5–14 Gyr leaves core masses and He abundances unaffected.

We also performed a second test along the following lines. Our HB models are computed considering the He-core mass and envelope composition of a progenitor whose evolution is calculated with our reference choice of mass-loss efficiency—Reimers formula with η = 0.3. This means that, for example, an HB model with total mass equal to 0.5M_⊙ has been computed with core mass and envelope composition of a progenitor that at He ignition had a mass larger than this value. To check whether this procedure introduces any systematics in our HB calculations, we computed the evolution of several 0.8M_⊙ RGB progenitor models at [Fe/H] = −1.2 (with an age at the tip of the RGB equal to about 12.5 Gyr), varying η from 0–0.63, to reach masses between 0.8 and 0.487M_⊙ at the He-flash. We then calculated the HB evolution of these masses, to compare with the corresponding results obtained with our reference method to calculate the HB models. Also in this case, only HB models with mass below 0.5M_⊙—with very thin envelopes and inefficient H-burning shell—are affected. In this mass range the He-core mass has decreased by 0.001M_⊙ compared to the calculations for η = 0.3, and the tracks are shifted to temperatures lower by at most 7% for the lowest mass. The ZAHB luminosities are unchanged.

As for all evolutionary sequences available in the BaSTI library, these new tracks have been "normalized" to the same number of points to calculate isochrones, and more in general for ease of interpolation and implementation in stellar population synthesis tools. As extensively discussed in Pietrinferni et al. (2004) and Paper I, this normalization is based on the identification of some characteristic homologous points (key points) corresponding to well-defined evolutionary stages along each track. The choice of the key points, and the number of points distributed between two consecutive key points are as described in Paper I. For each chemical composition, these normalized evolutionary tracks are used to compute extended sets of isochrones for ages between 20 Myr and 14.5 Gyr (older isochrones can be computed upon request). For the He-enhanced compositions, the isochrone age range is between ∼600 Myr and 14.5 Gyr.

The solar-scaled calculations of Paper I included four model grids, computed with different choices regarding whether convective core overshooting, atomic diffusion, and mass loss are included or neglected in the calculations (see Table 3 in Paper I). For these α-enhanced calculations we provide just one grid, corresponding to what we consider to be a best physics scenario, that corresponds to Case a of Table 3 in Paper I. This means that these models all include convective core overshooting, atomic diffusion, and mass loss.

Bolometric luminosities and effective temperatures along evolutionary tracks and isochrones have been translated to magnitudes and colors using sets of bolometric corrections (BCs) calculated as described in Paper I. More specifically, we calculated BCs with the ATLAS 9 suite of programs (Kurucz 1970), for the same α-enhanced metal distribution of the stellar evolution models. As in Paper I, these BCs have been complemented in the low T_eff and high-gravity regime with the spectral library by Husser et al. (2013) for [α/Fe] = 0.4, calculated with the PHOENIX code (Hauschildt & Baron 1999).

Table 3 lists all photometric systems presently available in the library, ¹⁵ and provides all the relevant information about the source for the response curve of each filter and the zero-points calibration.

Finally, adiabatic oscillation frequencies for p-modes for all models have been computed by using the Aarhus adiabatic oscillation package (Christensen-Dalsgaard 2008) as described in Paper I. We do not calculate g-mode frequencies because they have limited applications due to the mode identification issue, and the computation is expensive. We provide radial, dipole, quadrupole, and octupole p-mode frequencies for the models with central hydrogen mass fraction larger than 10⁻⁴, and only the radial mode frequencies for more evolved models. We note that non-radial modes can have mixed character in evolved models, i.e., they behave like p- and g-modes depending on the depth. Although mixed modes have been observed in subgiant branch and RGB stars, their analysis as well as the comparison with stellar models are still challenging. We have also calculated the frequency of maximum power (${\nu }_{\max }$), the large frequency separation for the radial mode frequencies (Δν₀), and the asymptotic period spacing for the dipole mode frequencies (ΔP₁).

3.1. A Note on Atomic Diffusion

3.2. Comparison with Solar-scaled Calculations

Salaris et al. (1993) have shown that α-enhanced stellar evolution tracks and isochrones can be well mimicked in the HRD and CMDs by solar-scaled ones with the same total metallicity [M/H]. In their analysis they could not assess the effect of an α-enhancement on the bolometric corrections, and used the same solar-scaled BCs also for their α-enhanced calculations. Cassisi et al. (2004) investigated the effect of an α-enhancement on BCs and colors, finding that the good agreement between solar-scaled and α-enhanced isochrones with the same [M/H] is preserved in VI and infrared CMDs, but is less satisfactory in BV and shorter wavelength CMDs. Similar conclusions are found when considering the DSEP isochrones.

Here we have compared these new α-enhanced isochrones with our Paper I solar-scaled ones, to check whether previous results are confirmed. Indeed we found that in the HRD Salaris et al. (1993) results are confirmed for ages above about 1 Gyr and across the whole range of [M/H] of our calculations. The formula given in Equation (3) of Salaris et al. (1993) that relates the model [M/H] to [Fe/H] and [α/Fe] is consistent with our new calculations at the level of 0.01 dex, despite the different reference solar metal distribution.

Figure 1 shows a representative comparison between selected α-enhanced and solar-scaled isochrones from Paper I for [M/H] = −1.40 and Y = 0.2478. These results are fairly independent of the chosen age (above 1 Gyr) and [M/H].

Zoom In Zoom Out Reset image size

Differences in the HRD are at most equal to 1% in T_eff and about 5% in luminosity (0.02 dex) around the TO and along the ZAHB (α-enhanced isochrones being hotter and brighter). This good agreement is preserved in the VI and JK CMDs, apart from the MS for masses below about 0.5M_⊙, where the α-enhanced isochrones are systematically redder than the solar-scaled ones by at most 0.07 mag in (V − I) and bluer by at most 0.03 mag in (J − K) (the lower MS was not explored by Cassisi et al. (2004)). The TO and ZAHB magnitudes of the α-enhanced isochrones are typically just about 0.04–0.05 mag brighter. In the BV CMD the α-enhanced isochrones are systematically bluer by about 0.04 mag on average.

We also found that these color differences increase when moving to CMDs involving shorter wavelength filters like U, consistent with the results of Cassisi et al. (2004).

We compare here our new α-enhanced isochrones to the previous α-enhanced BaSTI release (more specifically, the isochones calculated with the Reimers parameter η = 0.4, Pietrinferni et al. 2006) and the DSEP (Dotter et al. 2008) α-enhanced models (comparisons of the previous BaSTI release with earlier α-enhanced model libraries are discussed in Pietrinferni et al. 2006). Comparisons are made in the theoretical HRD to avoid additional differences introduced by the choice of the BCs, and we focus on old ages, typical of α-enhanced stellar populations.

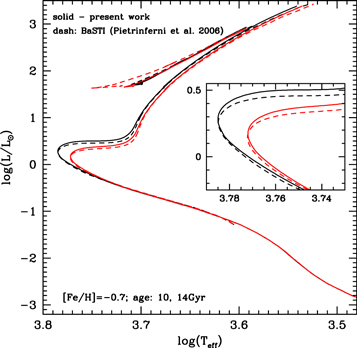

Figures 2 and 3 show the HRD of isochrones with ages equal to 10 and 14 Gyr, and respectively, [Fe/H] = −1.9 and [Fe/H] = −0.7, from both our new calculations and Pietrinferni et al. (2006). At each [Fe/H] the initial Y of the two sets of isochrones is the same within less than 1%; the values of Z are however much less similar, due to the different solar heavy element distributions. At [Fe/H] = −1.9 our new models have an initial Z = 0.0004, compared with Z = 0.0006 in the Pietrinferni et al. (2006) calculations, while at [Fe/H] = −0.7 the new calculations have an initial Z = 0.006, compared to Z = 0.008 in the old BaSTI release. Another difference between the two sets of isochrones arises from the inclusion of atomic diffusion in these new calculations, which was not accounted for in the Pietrinferni et al. (2006) models, with the exception of the solar model computation to calibrate the mixing length and the initial solar He abundance (see Pietrinferni et al. 2004, 2006, for more details).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The MS section of the new isochrones (extended to much lower masses compared to Pietrinferni et al. (2006)) is slightly hotter, due to the lower initial Z, but around the MS TO the differences increase and are metallicity- and age-dependent: this is due to the combined effect of the inclusion of atomic diffusion in our new calculations, differences in the nuclear cross sections for the H-burning discussed in Paper I, and the different initial Z. As a result, the isochrone TO luminosity is generally higher in these new calculations, while the TO effective temperature is higher at the younger age and cooler at the older age displayed. These differences decrease with increasing metallicity (a higher metallicity decreases the effect of atomic diffusion from the convective envelopes, because of the more massive outer convective region).

As for the RGB, the new isochrones are systematically hotter than than those in Pietrinferni et al. (2006), mainly due to the lower initial Z, a result consistent with the comparisons of the solar-scaled isochrones (Paper I). The difference in T_eff increases with increasing [Fe/H]: it is on the order of 20–30 K at [Fe/H] = −1.9, increasing up to ∼120 K at [Fe/H] = −0.7.

The core He-burning stage in the new isochrones is generally shifted to hotter T_eff and higher luminosities. These differences are caused by the lower mass in Pietrinferni et al. (2006) isochrones, caused by a larger value of the Reimers parameter η (η = 0.4 compared to η = 0.3 in the new calculations) and a brighter tip of the RGB (TRGB), which increases further the amount of mass lost along the RGB.

To explain more thoroughly the results of this comparison of core He-burning isochrones, it is helpful to study the corresponding ZAHB models. Figure 4 shows the HRD of ZAHB models (obtained from progenitors with an age of 12.5 Gyr at the TRGB) in our new calculations and Pietrinferni et al. (2006). A lower total mass shifts the ZAHB models toward hotter effective temperatures, and hence lower luminosities, and this explains why the Pietrinferni et al. (2006) core He-burning isochrones, with a lower evolving mass, are fainter than our new isochrones despite a generally brighter ZAHB at fixed T_eff.

Zoom In Zoom Out Reset image size

To understand why the ZAHB luminosities of new and old calculations are different, three points need to be taken into account. First, the new calculations include atomic diffusion, whose impact on ZAHB models has been extensively investigated by Cassisi et al. (1998) (see also Cassisi & Salaris 2013, and references therein). Atomic diffusion increases the mass of the He-core at He ignition for a given initial chemical composition and decreases the He abundance in the envelope. The second point is that the improved electron conduction opacities employed in these new calculations decrease the size of the He-core at He ignition, compared to the Pietrinferni et al. (2006) models (for a detailed discussion on this point we refer the reader to Cassisi et al. (2007), Paper I). Finally, at a given [Fe/H], the new ZAHB models have a lower initial Z, because of the different solar metal distribution.

At the hot end of the ZAHB, above about 16,000 K, it is the He-core mass that controls the luminosity, and here old and new calculations have roughly the same luminosity; this happens because the increase of the He-core mass due to the inclusion of diffusion in the new models, approximately balances the decrease caused by the updated electron conduction opacities. At lower effective temperatures the H-burning shell also contributes to the ZAHB luminosity, and the situation is different: in this regime, despite the higher metallicity that tends to make the ZAHB fainter, the old BaSTI calculations are systematically brighter than the new models, by about ${\rm{\Delta }}\mathrm{log}(L/{L}_{\odot })=0.02\mbox{--}0.04$ dex at the level of the RR Lyrae instability strip. This difference is driven by the reduction of the He content of the envelope due to the inclusion of atomic diffusion (that decreases the energy generation efficiency of the H-burning shell ¹⁶ ) in the new models, together with the reduced He-core mass caused by the improved electron conduction opacities.

The average mass of the new ZAHB models within the RR Lyrae instability strip (M_RR) taken at $\mathrm{log}({T}_{\mathrm{eff}})=3.83$ is also different from the Pietrinferni et al. (2006) models. At [Fe/H] = −1.9 our new models give M_RR = 0.675M_⊙ compared to 0.72M_⊙ in Pietrinferni et al. (2006), while at [Fe/H] = −1.3, the new calculations provide M_RR = 0.635M_⊙ compared with ∼0.615M_⊙ for the old release. At [Fe/H] = −0.7 we get M_RR = 0.58M_⊙, while M_RR = 0.568M_⊙ in the Pietrinferni et al. (2006) models.

Next, we compare our new isochrones up to the TRGB with the DSEP ones (Dotter et al. 2008), for the same [Fe/H] and age values of the comparison with Pietrinferni et al. (2006). These isochrones have been downloaded from the DSEP web tool, 2012 version, choosing the models with [α/Fe] = +0.4, as in our calculations. The DSEP models also include atomic diffusion without radiative levitation, but there are differences in the physics inputs, most notably the boundary conditions, electron conduction opacities, and also the details of the EOS. Despite a different reference solar heavy element distribution (Grevesse & Sauval 1998) and a higher ΔY/ΔZ, initial metallicities (Z = 0.00041 and Z = 0.0065) and He mass fractions (Y = 0.2457 and Y = 0.2555, respectively) are very close to our values in these comparisons.

At [Fe/H] = −1.9 the two sets of isochrones are very similar, as shown in Figure 5. The MS of the DSEP calculations is slightly cooler, the TO luminosity is essentially the same, while the subgiant branch of our calculations is slightly brighter. Along the RGB the DSEP isochrones have a different slope; they start hotter than ours at the base of the RGB, to become cooler than our isochrones at higher luminosities, but T_eff differences are small, within ±50 K. The inset in the right panel of Figure 5 shows the RGB bump region along the 14 Gyr old isochrones, that cannot be detected in the DSEP isochrone, likely due to the sparse sampling of the RGB.

Zoom In Zoom Out Reset image size

The situation is similar at [Fe/H] = −0.7, as shown in Figure 6, but the T_eff differences along the MS and at the TO are slightly amplified at this higher metallicity. On the RGB the DSEP isochrones are this time systematically cooler than ours, by ∼60–80 K, and the RGB bump in the 14 Gyr old isochrone is fainter than our results by ${\rm{\Delta }}\mathrm{log}(L/{L}_{\odot })\sim 0.06$ dex.

Zoom In Zoom Out Reset image size

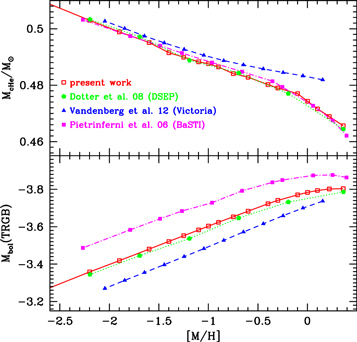

Figure 7 shows the bolometric magnitude and He-core mass at the TRGB (M_cHe) of our new isochrones, compared with the values from the Pietrinferni et al. (2006), DSEP, and Victoria (VandenBerg et al. 2012) models at a reference age of 12.5 Gyr, as a function of the total metallicity [M/H]. We use [M/H] in this comparison to minimize the effect of different reference solar heavy element distributions and [α/Fe]. ¹⁷ There are however several differences in the physics inputs and initial Y among these sets of models.

Zoom In Zoom Out Reset image size

The values of M_cHe in our new models and the Pietrinferni et al. (2006) results are very similar, with a difference of only about 0.002 M_⊙ between [M/H] ∼ −1.6, and [M/H] ∼ −0.3, with the previous BaSTI values being higher. In general, the models compared in Figure 7 display M_cHe values within about ± 0.004 M_⊙ around our results, the exception being the Victoria models, which for [M/H] > −0.9 provide increasingly higher values compared to ours. This latter behavior is likely due to the assumption of a constant Y at all metallicities in the Victoria models, while all other calculations have Y increasing with Z. An increase of Y at fixed Z tends to decrease M_cHe, and this explains at least qualitatively the comparison with the Victoria models. ¹⁸

Regarding the TRGB, Figure 7 shows that our new models are significantly fainter—by about ∼0.15 mag at [M/H] = −1.3—than the previous BaSTI predictions. This is partially due to the smaller He-core mass in the new calculations, but the main reason is the different reference solar metal distribution and the inclusion of atomic diffusion. The DSEP models are only slightly underluminous, and the Victoria models are consistently fainter by about 0.1 mag, despite their larger M_cHe. This is partially due the different definition of M_cHe as well as to the lower initial He abundance adopted in the Victoria model library.

As a reference, Table 4 reports several quantities at the TRGB as a function of [Fe/H] from our calculations, including M_cHe, the bolometric luminosity of the TRGB, and absolute magnitudes in selected filters used for the TRGB distance scale (see the next section).

Table 4. Initial Mass M_ini, Actual Mass M_fin, Bolometric Luminosity, Effective Temperature, He-core Mass, and Absolute Magnitudes in the I, J, H, K Filters as a Function of [Fe/H], for the TRGB of Our 12.5 Gyr Isochrones

[Fe/H]	Mini(M⊙)	Mfin(M⊙)	$\mathrm{log}({L}_{\mathrm{TRGB}}/{L}_{\odot })$	$\mathrm{log}{T}_{\mathrm{eff}}$	McHe(M⊙)	MI	MJ	MH	MK
−3.20	0.801	0.715	3.180	3.651	0.5130	−3.88	−4.69	−5.32	−5.42
−2.50	0.800	0.706	3.239	3.646	0.5030	−4.02	−4.85	−5.51	−5.60
−2.20	0.801	0.701	3.264	3.637	0.4989	−4.07	−4.93	−5.62	−5.72
−1.90	0.806	0.699	3.288	3.623	0.4951	−4.09	−5.01	−5.77	−5.87
−1.70	0.812	0.699	3.305	3.612	0.4915	−4.09	−5.07	−5.87	−5.98
−1.55	0.818	0.701	3.317	3.603	0.4899	−4.10	−5.11	−5.96	−6.07
−1.40	0.826	0.703	3.329	3.592	0.4883	−4.08	−5.15	−6.04	−6.17
−1.30	0.833	0.707	3.337	3.585	0.4876	−4.07	−5.18	−6.10	−6.24
−1.20	0.840	0.711	3.345	3.577	0.4865	−4.06	−5.21	−6.16	−6.31
−1.05	0.855	0.720	3.357	3.566	0.4841	−4.04	−5.26	−6.24	−6.41
−0.90	0.874	0.735	3.369	3.555	0.4828	−4.01	−5.31	−6.32	−6.50
−0.70	0.905	0.759	3.385	3.537	0.4802	−3.95	−5.39	−6.44	−6.65
−0.60	0.923	0.775	3.392	3.528	0.4790	−3.91	−5.43	−6.50	−6.72
−0.40	0.967	0.818	3.404	3.511	0.4770	−3.81	−5.52	−6.61	−6.86
−0.30	0.981	0.830	3.410	3.501	0.4743	−3.75	−5.57	−6.67	−6.93
−0.20	1.003	0.853	3.414	3.492	0.4716	−3.68	−5.61	−6.72	−7.00
−0.08	1.027	0.879	3.417	3.481	0.4689	−3.59	−5.67	−6.78	−7.07
+0.06	1.054	0.908	3.418	3.468	0.4656	−3.46	−5.72	−6.83	−7.15

Download table as:  ASCIITypeset image

Figure 8 compares the luminosity of our new ZAHB models at the RR Lyrae instability strip (taken at $\mathrm{log}{T}_{\mathrm{eff}}=3.83$) with the Pietrinferni et al. (2006), DSEP, and Victoria results, again as a function of the total metallicity [M/H]. The results of the Victoria models are very close to ours (only slightly underluminous), while luminosities from the older BaSTI models are typically higher, with differences increasing for increasing [M/H]. The DSEP models are much brighter at the lowest metallicities, then become close to our calculations. On the whole, at [M/H] between ∼−1.2 and 0.0, the DSEP and Victoria models are consistent with our new results within about ±0.02 dex. Table 5 summarizes some of the main properties of our ZAHB models at the RR Lyrae instability strip.

Zoom In Zoom Out Reset image size

Table 5. Bolometric Luminosity, Absolute Magnitudes in the BVRIJHK Filters, and the Mass M_RR of the ZAHB Model at $\mathrm{log}{T}_{\mathrm{eff}}=3.83$—Taken as Representative of the Average T_eff within the RR Lyrae Instability Strip (Marconi et al. 2015)—as a Function of [Fe/H]

[Fe/H]	MRR(M⊙)	$\mathrm{log}({L}_{\mathrm{ZAHB}}/{L}_{\odot })$	MB	MV	MR	MI	MJ	MH	MK
−2.20	0.791	1.728	0.709	0.42	0.20	−0.03	−0.31	−0.52	−0.54
−1.90	0.723	1.691	0.794	0.50	0.28	0.06	−0.22	−0.43	−0.45
−1.70	0.687	1.670	0.847	0.55	0.33	0.11	−0.17	−0.38	−0.40
−1.55	0.665	1.654	0.886	0.58	0.37	0.15	−0.13	−0.34	−0.37
−1.40	0.646	1.641	0.915	0.61	0.39	0.17	−0.10	−0.31	−0.33
−1.30	0.635	1.627	0.950	0.64	0.43	0.21	−0.07	−0.27	−0.30
−1.20	0.624	1.615	0.979	0.67	0.45	0.23	−0.04	−0.24	−0.27
−1.05	0.608	1.596	1.023	0.71	0.49	0.27	0.00	−0.20	−0.23
−0.90	0.596	1.574	1.086	0.76	0.54	0.33	0.06	−0.15	−0.17
−0.70	0.580	1.541	1.155	0.83	0.61	0.39	0.13	−0.07	−0.09
−0.60	0.573	1.520	1.227	0.88	0.66	0.45	0.18	−0.01	−0.04
−0.40	0.562	1.475	1.334	0.98	0.75	0.55	0.28	0.09	0.06
−0.30	0.555	1.458	1.404	1.03	0.81	0.60	0.33	0.14	0.11
−0.20	0.547	1.439	1.424	1.06	0.83	0.62	0.36	0.18	0.15
−0.08	0.539	1.413	1.483	1.11	0.88	0.67	0.42	0.24	0.21
+0.06	0.531	1.381	1.571	1.18	0.95	0.75	0.49	0.31	0.29

Download table as:  ASCIITypeset image

In this section, we discuss the results of a few tests to assess the general consistency of our new models and isochrones with selected observational constraints. In all of these comparisons, we included the effect of extinction according to the standard Cardelli et al. (1989) reddening law, with R_V ≡ A_V /E(B − V) = 3.1, and calculated the ratios A_λ /A_V for the relevant photometric filters, as described in Girardi et al. (2002). ¹⁹

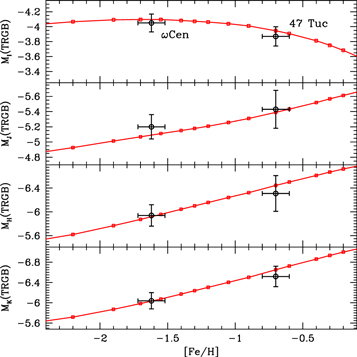

The first test is shown in Figure 9, which displays a comparison between the new theoretical IJHK TRGB absolute magnitudes of Table 4, and the empirical results for 47 Tuc and ω Centauri by Bellazzini et al. (2004). Their derived absolute magnitudes for the TRGB of 47 Tuc have been shifted by +0.04 mag to account for the new eclipsing binary distance by Thompson et al. (2020). The values for ω Centauri are unchanged, because they are already based on an eclipsing binary distance to this cluster (see the discussion in Bellazzini et al. 2004). The metallicity assigned to ω Centauri is the [Fe/H] of the main cluster population, as discussed in Bellazzini et al. (2004). Our theoretical TRGB magnitudes appear nicely consistent with these results in all filters, within the corresponding error bars.

Zoom In Zoom Out Reset image size

Figure 10 displays a comparison of the model ZAHB luminosities reported in Table 5 with the semiempirical results by de Santis & Cassisi (1999), based on the pulsational properties of RR Lyrae stars in GCs. Also in this case we find a general consistency with our models. ²⁰

Zoom In Zoom Out Reset image size

We also compared our HB models with Gaia Data Release 2 results for a sample of Galactic field RR Lyrae stars with accurate parallaxes, magnitudes, and high-resolution spectroscopic measurements of [Fe/H], taken from Marconi et al. (2020; their Table A1). To remove uncertainties associated with both the poorly constrained extinction and α-element enhancement, Figure 11 shows the relation between the measured values of the reddening-free Wesenheit index W_G = M_G − 1.90 × (G_BP − G_RP ) (see Ripepi et al. 2019) and the iron abundance of the stars in the sample. This data is compared with the corresponding relationship—taken at $\mathrm{log}{T}_{\mathrm{eff}}=3.83$ (see the previous discussion)—predicted by both α-enhanced and solar-scaled (from Paper I ) ZAHB models, which display almost identical W_G values at fixed [Fe/H]. The evolution off-ZAHB of the tracks in the instability strip display a small increase of W_G by at most ∼0.2 mag at intermediate and high [Fe/H], followed by a steady decrease until the exhaustion of the central He (the sequences corresponding to the exhaustion of the central He are also displayed). But for a few peculiar cases that would need to be analyzed individually, the large majority of the stars across the whole [Fe/H] range lie either slightly below (fainter W_G ) the ZAHB—consistent with the evolutionary path of the tracks—or above it, as expected from the models. There are also several objects located above the sequences corresponding to the exhaustion of the central He, but we refrain from speculating about their origin, given the large errors on W_G that affect most of these stars.

Zoom In Zoom Out Reset image size

A test of the CMDs of the metal-poor Galactic globular clusters (GGCs) NGC 6397 ([Fe/H] = −2.03 ± 0.05, [α/Fe] = 0.34 ± 0.02) (see Gratton et al. 2003) follows in Figures 12 and 13. The first comparison is between our [Fe/H] = −1.9, Y = 0.248 isochrones, and ZAHB models, and the Johnson–Cousins VI photometry by Stetson (2000), as shown in Figure 12. The fit of the theoretical ZAHB and the lower MS to the observed CMD constrain the distance modulus and reddening to E(B − V) = 0.19 and ${\left(m-M\right)}_{0}$ = 11.96, respectively. The TO region is matched by a 13.5 Gyr isochrone that is also nicely consistent with the observed RGB. These values of reddening and distance agree well with E(B − V) = 0.183 ± 0.005(stat) ± 0.011(syst) estimated by Gratton et al. (2003), and ${\left(m-M\right)}_{0}=11.89\pm 0.07(\mathrm{stat})\,\pm 0.09(\mathrm{syst})$ determined by Brown et al. (2018), from measurements of the cluster parallax distance using the HST/WFC3 spatial-scanning mode.

Zoom In Zoom Out Reset image size

Like most GGCs, stars in this cluster displays the well-known O-Na and C-N abundance anticorrelations (see, e.g., Bastian & Lardo 2018, for a review on the topic), also usually associated with a range of He abundances. The anticorrelations do not affect isochrones and bolometric corrections in the optical filters, but the initial He abundance does, through its effect on model luminosities, lifetimes, and T_eff (see, e.g., Cassisi & Salaris 2020, for a review). However, the He-abundance spread is negligible in this cluster (as derived by Milone et al. 2018) and isochrones for a single, standard value of Y are appropriate to match the observed CMD.

The deep HST/ACS optical CMD from Richer et al. (2008) is displayed in Figure 13, together with the same isochrone of Figure 12 but in the filter system of the ACS camera onboard the HST, using the same distance modulus and reddening of the comparison in the Johnson–Cousins CMD. In this case, we note that between ∼1 and ∼5 F606W magnitudes below the TO the isochrone is systematically bluer than the data; the same happens when F606W is fainter than ∼7 magnitudes below the TO. While this latter discrepancy is found also for the higher metallicity example discussed below (see the discussion on 47 Tuc that follows), the same is not true for the brighter magnitude range. The reason might be related to possible metallicity-dependent offsets of the bolometric corrections for the HST/ACS system, but comparisons with more clusters are required to reach a definitive conclusion.

Zoom In Zoom Out Reset image size

The next comparison is with the BV CMD (from Bergbusch & Stetson 2009) of the metal-rich GGC 47 Tuc ([Fe/H] = −0.66 ± 0.04, [α/Fe] = 0.30 ± 0.02) (see Gratton et al. 2003). This cluster has an internal He-abundance spread with a range of ΔY ∼0.03–0.05 (di Criscienzo et al. 2010; Salaris et al. 2016; Milone et al. 2018), and we use ZAHB and isochrones for both normal Y = 0.255 and enhanced Y = 0.300 He. We fix simultaneously the distance modulus ${\left(m-M\right)}_{0}=13.30$ and reddening E(B − V) = 0.02, by matching the lower envelope of the red HB and approximately the red edge of the lower MS, with ZAHB and isochrones for Y = 0.255. We then tested that for the same reddening and distance the He-enhanced isochrones and ZAHB are still consistent with the observed sequences in the CMD. Figure 14 displays a comparison between the cluster CMD and 12.3 Gyr, [Fe/H] = −0.7, Y = 0.255 and Y = 0.300 isochrones, which match the position of the cluster TO, together with ZAHB models for both He abundances. The derived value of E(B − V) is in excellent agreement with E(B − V) = 0.024 ± 0.004(stat) ± 0.011(syst) estimated by Gratton et al. (2003); the distance is fully consistent with the average ${\left(m-M\right)}_{0}=13.27\pm 0.07$ obtained from two cluster eclipsing binaries (Thompson et al. 2010, 2020).

Zoom In Zoom Out Reset image size

Another empirical and independent distance determination for this cluster, based on the Gaia Data Release 2 results, provides ${\left(m-M\right)}_{0}=13.24\pm 0.005(\mathrm{stat})\pm 0.058(\mathrm{sys})$ mag (Chen et al. 2018), consistent with both our result and the eclipsing binary analysis.

Figure 15 displays the much deeper HST/ACS optical CMD by Kalirai et al. (2012) compared to the same isochrones of Figure 14, using the same distance modulus and extinction. As for the case of the more metal-poor cluster NGC 6397, the fainter part of the isochrone MS (for both values of the initial He) is systematically bluer than the observations. To investigate this issue, we show in Figure 16 the HST/WFC3 infrared CMD by Kalirai et al. (2012), compared only to the Y = 0.255 isochrone, using again the same distance modulus and extinction of Figure 14. In this CMD the isochrone does not appear systematically bluer than the data along the lower MS, and follows well the observed changing shape, due to the competition between the collision-induced absorption of the H₂ molecule in the infrared (that shifts the colors to the blue) and the increase of the radiative opacity with decreasing T_eff (see, e.g., Cassisi & Salaris 2013, and references therein). This suggests that the systematic difference between theory and observations found in optical colors might be due to the adopted bolometric corrections. Below F160W ∼18.5 the (F110W–F160W) color is sensitive to the specific metal abundance patterns of the He-enhanced multiple populations hosted by the cluster, which affect the bolometric corrections. As shown by Milone et al. (2012), the result is to have redder colors at fixed F160W, compared to models with a standard α-enhanced composition.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

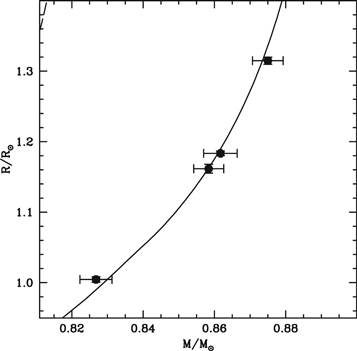

Figure 17 shows the 12.3 Gyr Y = 0.255 isochrone in a mass–radius diagram, compared with the masses and radii of the components of the two cluster eclipsing binaries. The age determined from the CMD is nicely consistent with the radius of the eclipsing binary components. The isochrone for Y = 0.300 lies outside the boundaries of this diagram, shifted to masses too low to be consistent with the data.

Zoom In Zoom Out Reset image size

We have presented an overview of the updated BaSTI α-enhanced models, whose input physics and reference solar metal mixture are consistent with the updated solar-scaled models of Paper I . Like for the new solar-scaled models, the updated α-enhanced library significantly increases the number of available metallicities, includes the very low-mass star regime, accounts consistently for the pre-MS evolution in the isochrone calculations, and also provides the asteroseismic properties of the models.

We successfully tested these new calculations compared with the luminosities of the ZAHB and TRGB in selected GGCs. We also compared the isochrones with CMDs of one metal-rich (47 Tuc) and one metal-poor (NGC 6397) GGC; they provide a good fit to the observed CMDs, for distance moduli consistent with both the parallax and eclipsing binary distance to 47 Tuc, and the parallax distance to NGC 6397. The best-fit isochrone for 47 Tuc can also nicely match the mass–radius diagram of the components of two cluster eclipsing binaries.

Like for the updated solar-scaled library, the entire α-enhanced database is publicly available at the following dedicated websites: http://basti-iac.oa-abruzzo.inaf.it and https://basti-iac.iac.es. Here we include stellar evolution tracks and isochrones in several photometric systems and the asteroseismic properties of our grid of stellar evolution calculations. We can also provide, upon request, additional calculations (both evolutionary and asteroseismic outputs) for masses not included in our standard grids. These websites include also a web tool to calculate online synthetic CMDs for any arbitrary star formation history (SFH) and age–metallicity relation, using the updated BaSTI isochrones. Details about the inputs to specify when running this web tool, as well as a detailed discussion of the outputs, are provided in the Appendix.

We warmly thank the referee for the very constructive comments that greatly improved the presentation of our results. We also wish to warmly thank M. Correnti, J. Kalirai, M. Marconi, and V. Ripepi for sharing the results of their research. A.P. and S.C. acknowledge financial support from "Progetto Premiale" MIUR MITIC (PI: B. Garilli), and progetto INAF Mainstream (PI: S. Cassisi). S.C. acknowledges support from PLATO ASI-INAF agreement No. 2015-019-R.1-2018, and from INFN (Iniziativa specifica TAsP). This research has been supported by the Spanish Ministry of Science and Innovation (P.I. S. Hidalgo) under grant No. AYA2017-89841-P.

As for the previous release of the library, the new BaSTI website contains a tool for the computation of synthetic CMDs (http://basti-iac.oa-teramo.inaf.it/syncmd.html). This tool can be used after requesting a user ID from the BaSTI-IAC team members by using the link http://basti-iac.oa-abruzzo.inaf.it/requests.html. Here we provide information about the inputs and how the code works (see Figure 18). The user has to select among a combination of heavy element mixtures (solar-scaled or α-enhanced) and available grids of models (various options about overshooting, diffusion, and mass loss). Variations of the He abundance at fixed metallicity cannot yet be considered, but this is a feature that will be implemented in the near future. The user can also choose to identify the radial pulsators in the synthetic population, and determine their type and pulsation periods.

Zoom In Zoom Out Reset image size

After this selection, two sets of input parameters are requested: SFH and photometric input parameters. The SFH input parameters are as follows:

• 1.
  Age: A list of ages t_i (in Myr, older age first, with age = 0 denoting stars that are forming now). A maximum of 50 age values are allowed.
• 2.
  Star formation rate (SFR): Relative SFR at each age. The code rescales the individual values to the maximum one provided.
• 3.
  Metallicity: [Fe/H] of stars formed at each t_i .
• 4.
  Metallicity spread: 1σ Gaussian spread (in dex) around each metallicity.
• 5.
  SFR scale: This number (the maximum value allowed is equal to 2 × 10⁶) is multiplied by the value of the SFR to provide the number of stars formed between age t_i and age t_i+1.
• 6.
  Low mass: Lower stellar mass mass (in units of M_⊙) to be included in the calculations (between 0.1 and 120 M_⊙).
• 7.
  Binaries: Fraction of unresolved binaries. If the fraction is different from zero, the mass of the second component is selected randomly following Woo et al. (2003), and the fluxes of the two unresolved components are properly added.
• 8.
  Mass ratio: Minimum mass ratio for binary systems (upper value is 1.0).
• 9.
  Initial mass function (IMF): IMF type (0 for a single power law, 1 for Kroupa et al. (1993)). If a single power law is selected, the slope must be given (e.g., −2.35).
• 10.
  Variables: If a value equal to 1 is assigned to this parameter, the code identifies the radial pulsators in the synthetic population, and calculates their properties. A value equal to 0 makes the code skip the identification of radial pulsators.
• 11.
  Random 1 and 2: Seeds for the Monte Carlo number generator. The system will generate these numbers automatically if none are given.

The photometric input parameters are:

• 1.
  Photometric error: Mean photometric error (mag).
• 2.
  Photometric error type: None, constant, or error table.
• 3.
  Photometric system: Select one of the photometric systems available.

The code computes the synthetic CMD as follows: for each age t_i , the number of stars formed between t_i and t_i+1 is obtained by multiplying the SFR scale by the value of the SFR at t_i . For each star born in this age interval, a random age t (t_i ≤ t < t_i+1) is drawn from a flat probability distribution, together with a mass m selected according to the specified IMF, and the corresponding value of [Fe/H]_i. If a value different from zero for σ([Fe/H]_i) is specified, then [Fe/H]_i is perturbed using a Gaussian probability distribution centered in [Fe/H]_i and sigma = σ([Fe/H]_i). With these three values of t, m, and [Fe/H] the program interpolates quadratically in age, metallicity and mass among the isochrones in the grid, to calculate the star's photometric properties, plus luminosity and effective temperature. The code also checks whether the synthetic star is located within the instability strip for radial pulsations, by comparing its position in the HRD with the boundaries of the instability strip predicted by accurate pulsation models of RR Lyrae stars (see Marconi et al. 2015, and references therein), anomalous Cepheids (Fiorentino et al. 2006), and classical Cepheids (Fiorentino et al. 2007; De Somma et al. 2020). If the star is located within a given instability strip, the corresponding pulsation period is calculated by using the appropriate theoretical relationship (see the previous references) between period, luminosity, effective temperature, mass, and metallicity.

Once all stars formed between ages t_i and t_i+1 are generated, the next time interval is considered and the cycle is repeated, ending when all stars in the final age bin between t_n−1 and t_n are generated. The values of the SFR and [Fe/H] at t_n are not considered and can be set to any arbitrary number. To compute the synthetic CMD of a single-age stellar population, just one age value needs to be provided as the input. The BaSTI website provides some examples of SFHs and the corresponding web-tool inputs.

Once a run is completed, the user will receive an email with instructions to download two files: one with the synthetic stars and another with the integrated properties of the population. The content of the first file is as follows:

• 1.
  Column 1: Star number (+2 if unresolved binary).
• 2.
  Column 2: Logarithm of the age in years.
• 3.
  Column 3: [Fe/H].
• 4.
  Column 4: Value of the current stellar mass in M_⊙.
• 5.
  Column 5: $\mathrm{log}(L/{L}_{\odot })$.
• 6.
  Column 6: log(T_eff).
• 7.
  Column 7: Initial mass of the unresolved secondary star (M_⊙) if different from 0.0.
• 8.
  Column 8: Index that denotes the type of radial pulsator. A value equal to 0 stands for no pulsations, 1 corresponds to fundamental-mode RR Lyraes, 2 identifies the first overtone RR Lyraes, 3 corresponds to fundamental-mode anomalous Cepheids, 4 labels the first overtone anomalous Cepheids, and 5 denotes fundamental-mode classical Cepheids.
• 9.
  Column 9: log(P), with P being the period of pulsations (in days). It is set to 99.99 if the synthetic star does not pulsate (refer to the previous discussion).
• 10.
  Column 10 to the end: Absolute magnitudes in the selected photometric system.

The integrated properties file contains the following information:

• 1.
  Integrated magnitudes in all bands for the selected photometric system.
• 2.
  Total mass of formed stars (M_⊙).
• 3.
  Number of stars evolving in the synthetic CMD, including unresolved stars companions.
• 4.
  Number of fundamental-mode RR Lyrae stars.
• 5.
  Number of first overtone RR Lyrae stars.
• 6.
  Number of fundamental-mode anomalous Cepheids.
• 7.
  Number of first overtone anomalous Cepheids.
• 8.
  Number of fundamental-mode classical Cepheids
