Mitigation of LEO Satellite Brightness and Trail Effects on the Rubin Observatory LSST

Innovation in spacecraft manufacturing and launch technology has resulted in a profusion of proposals to build, launch, and operate constellations of many low-Earth-orbit⁹ (LEO) commercial satellites. Currently, about one thousand operational LEO satellites (LEOsats) provide communications and earth-imagery services, but regulatory applications filed with international agencies project an increase by over 100 fold in the next 5–10 yr. Many such constellations are either U.S. licensed or have sought permission to operate in the U.S. There are also several other LEOsat operators in other countries with plans to launch their own constellations.¹⁰ Several LEOsat projects plan to offer global broadband services. In order to offer low-latency internet access to less-populated areas of the world, companies are proposing constellations of unprecedented size. While it is unclear how many of the proposed LEOsat projects will receive funding to build and deploy, the prospect of >48,000 LEOsats in aggregate would represent a potentially significant impact for optical astronomy.

LEOsats scatter sunlight for several hours after sunset or before sunrise, are relatively close to Earth and bright, and can affect ground-based optical observations (Hainaut & Williams 2020; McDowell 2020; Seitzer 2020). The impact of individual LEOsats on astronomy depends on the rate of interfering luminous trails and their brightness, which are in turn affected by spacecraft design and their operational attitude. Both of these factors are exacerbated for large wide-field ground-based facilities such as Vera C. Rubin Observatory and its planned 10-year Legacy Survey of Space and Time (LSST).

Ranked as the highest priority ground-based astronomical facility in the 2010 NAS Decadal Survey of Astronomy & Astrophysics (National Research Council 2010), construction of the NSF- and DOE-funded Rubin Observatory is nearing completion. The LSST will begin deep repeated scans of the entire visible sky from Cerro Pachón in Chile on the same timescale (2023–2033) that many of the proposed constellation projects plan to deploy tens of thousands of LEOsats. Every night for 10 years, the LSST will take close to 1000 exposures of the deep sky with a 3200 megapixel camera (LSSTCam) covering a 9.6 square degree field of view (Ivezić et al. 2019). Because of the large collecting area, each 30 s exposure can reveal distant objects down to a limiting magnitude of 24.5 (20 million times fainter than visible with the unaided eye; Crumey 2014), opening a new window on the universe. By comparison, a typical LEOsat can be seen for several hours in twilight without the aid of a telescope, and is visible for an even longer portion of the night during summer. The rate at which a telescope-camera facility can survey the sky to a given faintness is proportional to its etendue, or the product of the telescope effective light collecting area times the angular field of view in square degrees. The Rubin Observatory has the highest etendue of any existing or planned optical facility. This allows frequent repeated visits to each sky field. It is thus heavily impacted by LEOsat constellations. The number of photons collected in an exposure scales with etendue, for both the satellite trails and all celestial objects. Depending on aperture and focal plane instrumentation, spectroscopic facilities may also be impacted due to their long exposures.

1.1. How LEOsats Affect the LSST

1.2. Rubin Observatory—SpaceX Collaboration

1.3. Paper Outline

Most of the LSST observations will be scheduled in near-real time using a Markov decision process (Naghib et al. 2019). A robust scheduling simulation suite has been built for the LSST, incorporating a mechanical model of the telescope as well as realistic weather and downtime (Delgado et al. 2006). This scheduler balances the priorities of (1) maintaining a uniform survey footprint, (2) minimizing the time spent slewing, (3) observing lower airmass regions, and (4) minimizing the number of filter changes. The scheduler is optimized using science metrics developed by the project and the general scientific community (Jones et al. 2014). An important aspect of the LSST scheduler is that outside of twilight time, the sky conditions will be relatively stable and slowly changing, allowing for ∼40-minute blocks of observations to be scheduled.

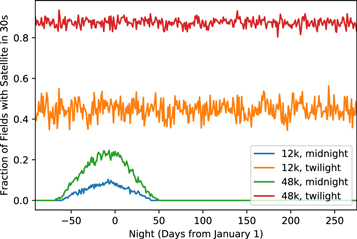

Using the scheduler simulation framework, we test how a Starlink-like constellation would impact LSST observations. We use a satellite distribution simulation developed by Benjamin Winkel,¹¹ and populate a range of orbital inclinations and altitudes with either the currently authorized 12,000 or the aspirational 48,000 satellites planned. The number of illuminated LEOsats expected in LSSTCam images as a function of time of year and total constellation numbers are shown in Figure 1.

Zoom In Zoom Out Reset image size

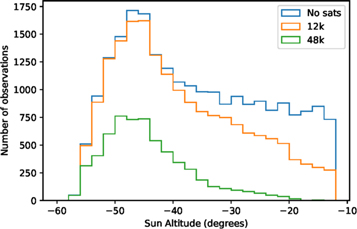

At midnight in the Southern Hemisphere winter, all the Starlink satellites enter the Earth's shadow and do not leave trails. In the summer, however, a small fraction of satellites can remain illuminated even at midnight, causing 10%–20% of LSST images to have trails. With the maximum planned 48,000 satellite constellation at 550 km in place, we estimate that about 30% of LSST images will contain at least one LEOsat trail. In this scenario, at least 0.3% of pixels would be masked, given 0.6% per trail per exposure, as discussed in Section 3. Typically, a satellite trail would traverse about 13–16 of the camera's 189 charge-coupled device (CCD) sensors. In addition to 4–8 hr of nightly imaging centered on midnight, the LSST will regularly observe the sky during nautical twilight, specifically to search for near-Earth asteroids. We find that between 40% and 90% of the observations taken in twilight, depending on the number of satellites, have at least one trail. The 90% is for 48,000 LEOsats in twilight. For twilight observing and for 48,000 LEOsats at 300–700 km, about 1% of the pixels would be masked. This is estimated via simulations of LSST twilight observing including planetary programs, using the number of trails, the angular speed of the satellite, and the width of the masks as estimated in Section 3. If in addition plans for other constellations at 1200 km materialize, they would be visible all night—raising these numbers by an order of magnitude.

2.1. Satellite Avoidance Simulations

We have tested a naive satellite-dodging scheme, where the observatory checks if a satellite is expected to cross during an exposure. If a crossing will happen, the scheduler pauses for 10 s (to give the satellite time to clear the field of view) and attempts to schedule an observation again. An observation can be attempted up to three times before the scheduler abandons it and moves on to the next target in the observing queue. In the limit of very few satellites, this strategy should add a fairly negligible overhead to the night (e.g., 100 pauses of 10 s would only result in a 3.4% loss of efficiency). In the high satellite density limit, the scheduler will only be able to observe when it gets lucky and stumbles onto an open patch of sky. The results of this strategy are shown in Figure 2. The baseline survey where no dodging is attempted makes 22,662 observations over the course of 30 days. When we attempt to avoid a 12,000 LEOsat constellation, the efficiency drops and only 18,255 observations are completed (about 80%). For a 48,000 LEOsat constellation, only 5956 observations are completed (about 26%). As expected, the largest hits in observing efficiency come when more satellites are illuminated. With 48,000 LEOsats, the scheduler rarely if ever finds empty areas of sky once the Sun rises above an altitude of −18°.

Zoom In Zoom Out Reset image size

In theory, scientists could compute satellite positions ahead of time and schedule observations around them. This requires LEOsat operators to make location data publicly available, which is not uniformly the practice in the commercial satellite industry.¹² While this may be a useful technique for some narrow-field ground-based optical telescopes, it presents a daunting task for Rubin because of its wide field of view and because most observations need to be taken in pairs separated by ∼20 minutes. This is necessary to identify moving objects in the solar system, such as near-Earth asteroids. The high efficiency of the LSST scheduler comes from the ability to predominantly schedule observations of neighboring fields. For wide-field observatories like Rubin, efforts to dodge satellites while continuing to gather pairs of observations would require the scheduler to plan longer slews between observations, which is operationally inefficient. Successful preplanning of ∼40-minute observing blocks to avoid satellites would also require a very precise kinematic model of the telescope or require that larger inefficient overheads for slewing between pointings are included.

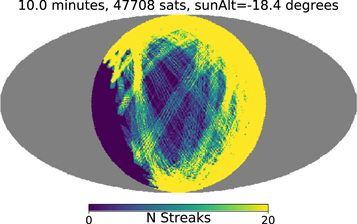

Figure 3 illustrates the difficulty of trying to schedule observations around precomputed satellite paths. For a constellation with 48,000 satellites, over half the usually available sky area is contaminated in a 30 s exposure. In such a case, any scheduler would be forced to observe areas of the sky that are available rather than desired areas that have better conditions or have fallen behind in the survey.

Zoom In Zoom Out Reset image size

In order to quantitatively assess the impact of satellite trails on LSST science, we must know the peak trail brightness in e⁻ per pixel for LEOsats as a function of satellite apparent magnitude. An LSSTCam pixel subtends 02. To address this, we computationally simulate the effect of LEOsat trails on the LSSTCam.

Illuminated by twilight, the satellite apparent brightness depends on many factors, including telescope zenith angle, distance (range), phase angle, satellite geometry, and the bidirectional reflectance distribution function (BRDF) for each component. Our simulations are based on the latest knowledge the Rubin Observatory construction team has on the as-built system, including optical throughput of the mirrors and lenses, as well as the quantum efficiency and read noise of the detectors.¹³ The satellites are given a solar spectral energy distribution. Our sky background model (Yoachim et al. 2016) is based on the ESO SkyCalc Sky Model Calculator extended to twilight using measurements from an all-sky camera on the Rubin Observatory site.

The surface brightness profile of a LEOsat trail θ_eff is affected by the angular size of the satellite, the delivered seeing (typically dominated by free atmospheric seeing), and the angular size of the telescope mirror:

$$\begin{eqnarray}&&{\theta }_{\mathrm{eff}}^{2}={\theta }_{\mathrm{atm}}^{2}+\displaystyle \frac{{D}_{\mathrm{satellite}}^{2}+{D}_{\mathrm{mirror}}^{2}}{{d}^{2}},\end{eqnarray} \tag{ 1 }$$

where θ_atm is the delivered seeing (in radians), d is the range (distance) to the satellite, D_satellite is the satellite effective projected size, and D_mirror is the diameter of the telescope primary mirror (Bektešević et al. 2018). The mirror size enters because the telescope optics are focused for parallel rays, while satellites have a finite range. A simulation of a 2 m satellite at 550 km height seen at 40 deg zenith angle with the Rubin Observatory is shown in Figure 4. Because of the out-of-focus effect, the instantaneous image of the satellite has a donut shape, and the transverse profile of the trail has a double-peaked structure. At 550 km height and 40 deg zenith angle, the full width at half maximum (FWHM) of the trail is about 26. For comparison, the FWHM of a typical stellar point-spread function (PSF) is about 07. Similar broad trails with square surface brightness cross section have been seen on images from the Subaru telescope (Iye et al. 2007).

Zoom In Zoom Out Reset image size

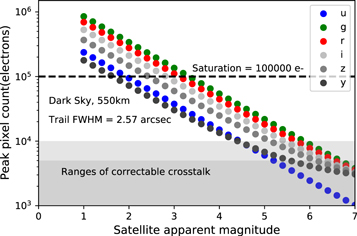

In Figure 5 we show the peak counts (in e⁻ per pixel) in the slightly resolved satellite trail versus the apparent AB magnitude in each of the Rubin Observatory optical bands for a satellite at 550 km. Saturation magnitudes vary by about 2 mag across the bandpasses (yuzirg, brightest in the y band). The saturation level is also dependent on seeing and satellite size. With the original brighter v0.9 Starlink satellites at ∼4.5g AB magnitude (see Section 4), the peak electron count is about 40,000 e⁻ per pixel in the LSSTCam, which is then echoed across each affected CCD due to the nonlinear crosstalk of the camera readout described in Section 7. Figure 5 shows the ranges of crosstalk correction depending on precision of crosstalk measurement for brighter satellites, as discussed in Section 7. This leads to a darkening goal of 7th mag for LEOsats at 550 km. Various parameters from these pixel count calculations are found in Table 1.

Zoom In Zoom Out Reset image size

Table 1.  Parameters from Peak Pixel Count Calculations

	u	g	r	i	z	y
mskya	22.96	22.26	21.20	20.48	19.60	18.61
Nskyb	81	411	819	1173	1783	2371
Tbc	0.036	0.129	0.105	0.080	0.055	0.027
mstad	1.50	2.89	2.67	2.37	1.98	1.19
mtrae	14.27	15.66	15.44	15.15	14.75	13.96
mstaXf	4.44	5.87	5.70	5.44	5.12	4.41

Notes. The satellite is assumed to be at 550 km height, 40° zenith angle, with an apparent size of 2 m and angular speed of 0.5 deg s⁻¹. The exposure time is 30 s. Since the trail width for LSSTCam is dominated by the primary mirror size, we use 07 seeing in all the bands.

^aExpected sky brightness at Cerro Pachón (AB mag arcsec⁻²) based on Yoachim et al. (2016). ^bSky counts (e⁻ per pixel) corresponding to m_sky and 30 s exposure. ^cThroughput integral, ${T}_{b}=\int {S}^{\mathrm{atm}}(\lambda ){S}_{b}^{\mathrm{sys}}(\lambda ){\lambda }^{-1}d\lambda$, where λ is the wavelength, S^atm(λ) is the atmospheric throughput, and S^sys_b(λ) is the system throughput in each band. ^dSatellite stationary magnitude whose peak pixel count reaches the saturation level of 100,000 e⁻. ^eSatellite trail surface brightness (AB mag arcsec⁻²) corresponding to m_sta. ^fSatellite stationary magnitude whose peak pixel count reaches the approximate best-case crosstalk correctable limit of 10,000 e⁻.

Download table as:  ASCIITypeset image

The large 8.4 m primary mirror helps lower the surface brightness from 100,000 e⁻ per pixel for satellites at 550 km because they are slightly out of focus (see Equation (1)). For comparison, we create the same plot for satellites at 1200 km in Figure 6. At this altitude, a satellite would be more in focus. In our simulations, we find that a LEOsat at 1200 km would have to be g ∼ 8 mag or fainter in order to be well within the range of correctable crosstalk because the trail is less spread out.

Zoom In Zoom Out Reset image size

For given LEOsat stationary magnitudes and exposure time, we can predict the DECam ADU counts and the trail surface brightness. As a constency check, we carry out the same simulations for the Dark Energy Camera (DECam) using public filter throughput data.¹⁴ These results agree well with the real measurements, which are presented in Section 6.

Our current baseline approach is to mask the trails in the data products. As discussed in Section 9, the residual surface brightness systematic error target is 1 e−/pixel for correlated pixels along a line. While a stack of ∼100 images in a band will be input to the detection and photometry, the actual masking is done on individual single exposures. Variants of the Hough transform have been used to detect and mask trails (Matas et al. 2000; Fernandes & Oliveira 2008; Morganson et al. 2018). Masking algorithms that automatically mask pixels along a trail above 5σ of sky noise create parallel lines of correlated pixels at the mask edge, which are then diluted in the coadd. The residual correlations in these linear features are near the outer surface brightness of the faint galaxies used for cosmic shear. Growing the mask to suppress this to 10% of the surface brightness of these faint galaxies leads to a conservative mask threshold of 1% of the sky noise.

The width of the satellite trail at a given surface brightness depends on the PSF, the satellite apparent magnitude, its size and range, and the size of the telescope mirror. We show in Figure 7 the width of a trail from a 2 m satellite at 550 km and range 1000 km at a surface brightness corresponding to 1% of the sky background noise for a 30 s exposure in six bands for Rubin Observatory. The seeing profile is simulated with a von Kármán turbulence model (Borgnino 1990; Ziad et al. 2000) with an outer scale of 30 m. The uncertainty of the sky background is taken as ${\sigma }_{\mathrm{sky}}=\sqrt{{N}_{\mathrm{sky}}}$, where N_sky is the sky surface brightness expressed in counts per pixel; the values used in our calculations are listed in Table 1. At the apparent magnitude of current LEO satellites, approximately 0.6% of the pixels in the LSSTCam would have to be masked per exposure per trail (we have used a trail width of 1' in this calculation, which corresponds to a 1% level of the sky noise). In a 30 s visit for the LSST, a typical satellite would have traveled ∼15 deg, which is much larger than the 3.5 deg diameter of the field of view. For an image with a single trail, the fraction of lost pixels is proportional to the ratio of the trail width to the field diameter. Therefore the fraction of lost pixels in all LSST images is independent of etendue and increases linearly with exposure time and trail width. Many exposures during twilight will have multiple trails (the expectation value for LSSTCam is about two trails per twilight exposure). The science impact of the LEO satellites, which is of course also proportional to the total number of satellites, goes much beyond the fraction of lost pixels.

Zoom In Zoom Out Reset image size

Prior to the current generation of LEOsat constellation deployments, the periodic and short-duration visibility of LEOsats in the hours shortly after nautical twilight was considered to be more of a curiosity, and only a minor nuisance to astronomical observation. The SpaceX 2019 May launch of 60 v0.9 Starlink satellites in a single deployment yielded a level of visibility and impact on optical observations that surprised both the astronomical community and designers of satellite constellations. Trains of the 60 starlink satellites were visible to the unaided eye, and appeared as parallel trails in sidereal-tracking, wide-field, long-exposure ground-based astronomical observations.¹⁵ Because the Starlink satellites do not emit visible light, sunlight reflected from the satellite is the source of the observed visible signature.

Solar radiation is a double-edged sword from the standpoint of satellite design. While the solar array generates all spacecraft power from sunlight, solar radiation presents a significant thermal load for nonarray satellite components. This load is typically reduced by decreasing the absorptivity of external surfaces. Solar radiation brightness peaks at ∼555 nm, or the center of the visible band. Reduced absorptivity in the visible band results in an increased optical signature of the satellite because conservation of energy requires nonabsorbed light to reflect. Ignoring the effects of thermal transients and close coupling to Earth, the equilibrium temperature of a notional, spherical, sunlit graybody involves a balance between between absorbed sunlight, electronics heating, and thermal radiation (∼9–10 μm) to deep space. The equilibrium temperature T of the satellite may be written as

$$\begin{eqnarray}&&T={\left[\displaystyle \frac{\alpha S}{4{\epsilon }_{\mathrm{IR}}\sigma }(1+f)\right]}^{\tfrac{1}{4}},\end{eqnarray} \tag{ 2 }$$

where α and _IR are the values of emissivity (λ), weighted using incoming solar flux and appropriate thermal infrared emission flux, respectively, where S is the solar flux (∼1360 W m⁻²), σ is the Stefan–Boltzmann constant, and f is the ratio of the satellite component power dissipation (primarily electronics) to the absorbed power from the projected area of sunlight illuminating the bus. Reducing the αS product reduces the equilibrium temperature, but results in an increased optical signature (more reflected solar light).

A key tool for satellite thermal control is the radiator, which has the dual purpose of reducing solar absorption (i.e., reflecting) sunlight while maintaining a high emissivity in the thermal infrared band. Reflected light may be broken down into two basic classes: specular (mirror-like reflection) and diffuse (reflections spread over a wide solid angle). A specular reflection is observed in only one direction, while a diffuse reflection may be observed in any direction from the surface (albeit at a much lower intensity than a specular reflection). A specular or diffuse surface can be generally categorized as white (>90% reflectivity) or black (<10% reflectivity).

The original v0.9 Starlink satellites had diffuse white external surfaces comprised of bare metal, anodized aluminum, white electronic components, and dedicated radiator surfaces (composed of an optically transparent outer layer that radiates in the thermal infrared and an optically reflective inner layer to reject sunlight). Initially, the optically reflective thermal radiator surfaces were thought to be the main source of reflected sunlight, but observations of the satellite under directional light showed the radiator surfaces to be dark, with the majority of visible light reflecting from the diffuse white surfaces (antennas and bare metal).

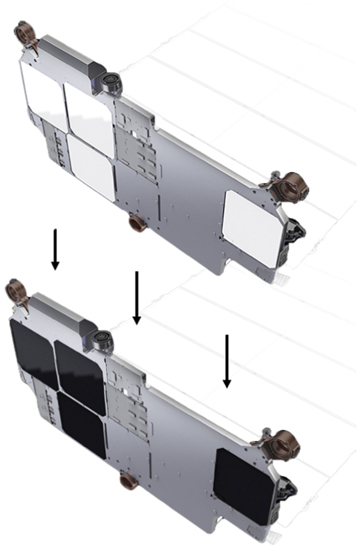

An experimental satellite (Starlink-1130, or "DarkSat") was launched in 2020 January. Previously white satellite surfaces were covered with either black diffuse applique or the thermal radiator surfaces mentioned previously. Communication elements (antennas) were painted with a specular black paint. Additionally, 18 of the other 59 satellites launched with Starlink-1130 had previously bare metal elements covered with the thermal radiator material. Four of the darkened phased array antenna panels are shown in Figure 8.

Zoom In Zoom Out Reset image size

An alternative method of darkening the white diffuse phased array panels is to use an external, radio-frequency transparent "sunshade" to block sunlight from reaching the white panels. This has the added benefit of reducing the equilibrium temperature of the phased array antennas. An experimental follow-on satellite ("VisorSat") will be the subject of future observations and analysis.

To understand the origin of the remaining sources of optical brightness of the satellite, SpaceX is developing an optical signature model that moves beyond simple Lambertian scattering and phase approximations. The model combines CAD geometry and source material BRDF measurements to predict the radiant intensity profile of each component, calibrated via material sample measurement and ground-based observations. This will be a useful tool in predicting the apparent brightness of the complex satellite shape as a function of solar illumination and observer location.

The multiple changes to the spacecraft discussed here, plus new mitigations, will be implemented in future Starlinks.

In late 2019 May, SpaceX launched the first 60 of its planned constellation of 12,000 LEOsats. For optical astronomy, the noted concerns are the number and brightness of satellite trails, and the anticipated effects on survey data. In order to assess the LEOsat brightness impact on Rubin Observatory, Todd Boroson of Las Cumbres Observatory (LCO) Global Observatory¹⁶ obtained repeated photometry on one v0.9 Starlink satellite at its 550 km operational altitude (private communication).

Using several LCO Global 1 m and 40 cm telescopes instrumented with 20' × 30' field CCD cameras, Boroson made eight attempts to observe Starlink-81 (NORAD 44292), all in the V band, from 23 to 72 deg altitude. A trail from the satellite was detected in four of the images in 3'' seeing. These showed integrated V apparent magnitudes from 5.8 to 7.6, all between 70 and 95 minutes from sunrise or sunset. Two attempted observations of the satellite about 3.5 hr before sunrise did not detect it. It is important to point out that the peak surface brightness of a satellite trail (above the sky level, measured in units of e⁻ per pixel) is independent of the exposure time as long as the exposure time is longer than the time it takes the satellite to trail across the field of view.

To calibrate ADU per sec per V mag, Boroson measured the total flux in the trail over many pixels, and then divided by the time that it took the satellite to travel over that many pixels. The resulting surface brightness is the equivalent magnitude over 1'' of the trail. All the measurements were calibrated via stars of known brightness in the fields.

Extrapolated to zenith, this v0.9 Starlink was 4.5–5 g AB mag. We can extrapolate this calibrated photometry to the peak trail surface brightness that the Rubin Observatory LSSTCam would see. After correcting for the better 07 seeing on Cerro Pachón and for the larger telescope primary mirror, we found that this satellite at zenith would appear sufficiently bright to generate artifacts in LSSTCam images, above 50,000 e⁻ pixel⁻¹. These initial observations informed and motivated the laboratory measurements on LSSTCam CCDs described in Section 7.

Recently, Tregloan-Reed et al. (2020) reported photometry of Starlink DarkSat in the r band with a 0.6 m telescope. They find that when scaled to a range of 550 km and corrected for the solar and observer phase angles, a reduction by a factor of two is seen in the reflected solar flux between DarkSat and one of its siblings on the same launch, Starlink-1113.

We report here an analysis of Starlink g-band observations obtained using the Blanco 4 m telescope DECam resulting from our Director's Discretionary time application, which obtained data during observations for the DELVE Survey¹⁷ led by Alex Drlica-Wagner. Five Starlink satellites are studied. As described below, we find that DarkSat is 1.1 mag fainter than its closest companion.

6.1. Photometry of Five Recent Starlink Satellites

6.2. DarkSat Compared to Its Brighter Siblings

A key value in Table 2 is the column "Stationary mag," which is the magnitude the satellite would have if it were not moving. The following column, "Zenith mag," is the stationary magnitude extrapolated to zenith.

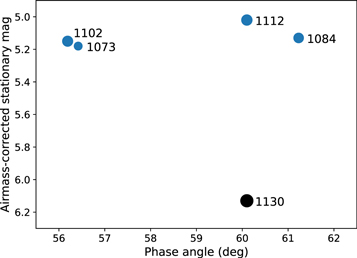

Figure 9 illustrates the reduction of brightness by 1.1 mag for DarkSat (Starlink-1130) compared to Starlink-1112 which was observed in the same visit. The satellites that we call "bright siblings" here are fainter by about 0.5 mag than the original v0.9 Starlink satellites (Boroson's measurements at LCOGT). The difference is due to a change from diffuse reflection (by aluminum surfaces) to specular reflection due to mitigation efforts described in Section 4. Each of the four siblings of Starlink-1130 had previously bare metal elements covered with the thermal radiator material. This explains why they are nearly equal in apparent magnitude when normalized to zenith. To within error, these measurements are consistent with those of Tregloan-Reed et al. (2020).

Zoom In Zoom Out Reset image size

All satellite trails in these data analyzed here are widened by the effects described in Section 3 and shown in Equation (1). The observed trail FWHM is the sum in quadrature of the seeing (PSF FWHM in Table 2), the angular size of the satellite, and the angular size of the telescope mirror. The last term is due to the telescope being focused for parallel rays coming from a source at infinity. The derived satellite sizes at zenith (Size in Table 2, or D_satellite) corresponds to ∼3 m at 550 km, which agrees with expectations.

Figure 10 shows the surface brightness profile of Starlink-1102 in the 4 m Blanco telescope data as well as a typical stellar PSF profile for reference. Both are normalized to unity. From Table 2, this observation was taken when the satellite was about 14 deg from zenith and the solar phase angle was 56 deg. Assuming a 550 km orbit altitude, the distance d from the telescope to the satellite was 565 km. Figure 10 is the real Blanco telescope equivalent of Figure 4, which shows the same profile comparison as simulated for Rubin Observatory. In both cases, the satellite trail is wider than the PSF profile.

Zoom In Zoom Out Reset image size

To better understand systematic effects of bright linear features on LSSTCam images, we began laboratory tests on science-grade CCDs in early summer 2019. While we carried out tests using two separate systems with differing readout electronics, we describe results from a LSSTCam CCD hardware beam simulator here. The first laboratory beam simulator imaging campaign preceded the LSSTCam testing, and we obtained similar initial results on multiple LSSTCam CCDs.

Various methods for simulating the trail of a satellite have been tested, including diagonal and linear dithering of bright spots and lasers, as well as projector systems and photolithographic masks. So far, the most realistic satellite streaks have come from using the LSST f/1.2 re-imaging facility (Tyson et al. 2014) to re-image a ∼40 μm wide slit on a science-grade LSST e2v CCD, where we use an optical beam identical to LSSTCam to form a line about four pixels wide extending across most of the detector. This does not use the LSSTCam electronics, but the crosstalk effects seen are very similar to those with the LSSTCam tests. We took several thousand exposures at various illumination levels going from 100 e⁻ to 250,000 e⁻ per pixel, along with random slit mask rotations in order to collect data representing random LEOsat crossings across many revisits to a field.

The result of our tests unsurprisingly indicate that LEOsat trails cause many undesirable image artifacts in the CCD data. The severity of the artifacts depends on the brightness of the satellite compared to CCD saturation. Earlier simulations of the LSSTCam optics showed that at very bright levels, corresponding perhaps to zeroth-magnitude flashes or glints of sunlight off spacecraft surfaces, the satellite can cause scattered light within the telescope optics and the cryostat, and blooming of charge across the CCD. Entire exposures, or at least large segments of the focal plane, would be lost. However, this should be an extremely rare (10⁻⁴ per satellite pass, although this is not well known; Hainaut & Williams 2020) occurrence for LEOsats only at certain orientations and orbital phases. We anticipate that the net impact on LSST would be negligible.

With satellite trails below CCD saturation, the main concern is crosstalk of the trail into neighboring channels of a CCD. Each CCD has 16 one-megapixel segments that are each read out by independent, parallel processing channels. These "video" channels traverse cables in close physical proximity, and are processed simultaneously at 500,000 pixels s⁻¹, causing low-level coupling between the channels within a CCD. It is also possible that some crosstalk originates in the readout electronics, which amplifies the video signals and executes correlated double sampling with dual slope integration. As mentioned above, the tests we carried out involve different electronics. The LSSTCam system incorporates an application-specific integrated circuit (ASIC), and while tests of that system have only begun, some contribution to the nonlinear crosstalk appears to originate in the ASIC.

For both systems, this crosstalk coupling appears to be a hundredth of a percent at worst (10⁻⁴) and <10⁻⁶ at best between well-separated channels. In contrast to classic capacitive coupling, it can also be negative and nonlinear with respect to the main trail signal. This nonlinear behavior with flux is new and noteworthy. This unavoidable crosstalk means that trails left by satellites have a multiplicative effect, causing the appearance of lower level "electronic ghosts" alongside the main trail.

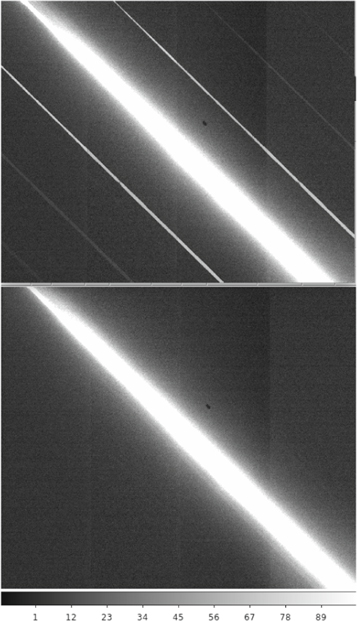

The top panel of Figure 11 shows a 4-megapixel cutout of an LSST e2v 16-megapixel CCD image of with a bright (subsaturation) artificial satellite trail and several orders of crosstalk. The exact pattern and amplitude of channel-to-channel crosstalk varies among CCDs and readout electronics, but we find that it is stable and confined to a given CCD. Inter-CCD crosstalk is below the measurement error. Correction therefore requires measurement of the crosstalk coupling between each pair of 16 channels for each CCD. Crosstalk matrix measurement and correction is described in Section 7.1 and demonstrated in the bottom panel of Figure 11, which shows the same trail after a preliminary nonlinear crosstalk correction method has been applied to the raw image.

Zoom In Zoom Out Reset image size

Based on the hypothesis that the crosstalk is due to capacitive coupling between nearby signal lines, one would naively expect only positive crosstalk to be seen and only in the nearest-neighbor channels. However, we observe the crosstalk from trails to be bipolar and also nonlinear above some modest flux level. We know there are at least three sources of crosstalk: on-chip effects, ribbon cable capacitive coupling of video signals, and crosstalk originating in the electronics (Antilogus et al. 2017). Further studies into the sources of the crosstalk and its nonlinearity are ongoing, and it may be possible to reduce some crosstalk effects at the hardware level. Regardless of the source, the crosstalk coefficients must be well characterized in intensity to allow correction at any brightness level.

7.1. Nonlinear Crosstalk Removal Algorithm

The crosstalk of the satellite trail presents a new challenge for image-correction algorithms because now the main trail has a variable multiplicative effect on neighboring channels, depending in a nonlinear way on the amplitude of the main trail. The correction algorithm we report here is preliminary and may be improved in both accuracy and speed in the future.

Simply masking the affected pixels would impact survey efficiency and uniformity, but doing so can introduce systematic errors. The crosstalk removal algorithm must specifically address these long, highly correlated crosstalk electronic ghost images at multiple positions over the affected CCD. These images could masquerade as faint sources or transient objects, as well as generate systematic errors via correlated lines of noise.

Crosstalk between the 16 video channels of our CCDs has been studied earlier (O'Connor 2015), but these measurements were limited and the CCD readout sequence has also been considerably changed. In our slit-illumination experiment, we observed nonlinear crosstalk between segments of the CCD at levels of ∼5 × 10⁻⁴ of trail flux, depending on the segment, but also nonlinearity in the crosstalk coefficients as a function of flux.

Figure 12 shows the nonlinear behavior we measured on one of the LSSTCam e2v CCDs in the laboratory at the University of California Davis, showing crosstalk versus satellite trail illumination for various nearest-neighbor segments of the CCD. The measurements are reproducible and stable within the errors shown. If crosstalk were linear, all curves in Figure 12 would be flat at 1.0. Instead, the crosstalk in nearest-neighbor channels is measurably nonlinear, with variations in crosstalk coefficients of 10% or larger across the full response of the CCD. There are nonlinear nonmonotonic deviations in crosstalk. Channels that are two or more apart show an even larger nonlinear dependence, although the crosstalk amplitude itself is smaller and sometimes negative.

Zoom In Zoom Out Reset image size

To measure crosstalk, we take the ratio of overscan (bias level) subtracted pixel values of the "crosstalk trail" channel to the "main trail" channel. The former has been corrected for the small scattered light background that the crosstalk signal is superimposed upon, and the latter has had the bias level of the CCD subtracted. Estimating the bias and background levels is critical to the crosstalk measurement process as it provides the baseline upon which crosstalk is superimposed, and errors in its estimation can introduce systematic errors in the crosstalk coefficients used for correction.

At each intensity level, these crosstalk matrix coefficients are measured between all 16 channels in a CCD, forming the basis of a 16 × 16 nonlinear crosstalk matrix. The ratio is calculated for each of thousands of pixels in each channel image at each intensity to form the measurement of crosstalk. These flux-dependent crosstalk coefficients are plotted in Figure 12, where the points and error bars represent the mean and standard deviation of the distribution of crosstalk ratios measured between pairs of neighboring channels shown in differing colors. The error bars in the figure represent the combination of statistical error due to Poisson counts and errors in the estimation of the background level.

Crosstalk correction is finally performed by multiplying the nonlinear crosstalk coefficients by each pixel of the main trail channel (which has been bias overscan corrected), and this product is subtracted from raw crosstalk trail channels. Preliminary tests of this measurement and correction method have been successful on the f/1.2 beam simulator trails as shown in Figure 11, as well as on LSSTCam hardware, which exhibits similar nonlinear crosstalk behavior.

Crosstalk between subsections of a CCD that are read out simultaneously has been known for some time. Indeed, most CCD cameras exhibit some level of video channel crosstalk. What is new is the throughput of the LSSTCam, the nonlinearity of its crosstalk response, and the sensitivity of the full survey to low-level systematics. For a given crosstalk measurement precision during operations, there is a maximum satellite trail brightness for which the crosstalk trails can be reduced to a small fraction of sky noise. Our measurements of the CCD impact of the satellite trails indicate that trails with more than about 5000–10,000 e⁻ induce disproportionately large and variable crosstalk relative to their parent streak, corresponding to LEOsats brighter than approximately the seventh apparent g magnitude based on the LSSTCam exposure simulations described in Section 3. Providing that the peak trail flux is lower than about 5000–10,000 e⁻, depending on the precision of measurement, the preliminary nonlinear correction algorithm we report here can correct for most of the variation in crosstalk coefficients, assuming that they are stable during the survey and can be characterized to the precision presented here. However, further study is still needed to determine the origin of the crosstalk and improve its correction in hardware and implementation in software, as well as to validate that it can correct the full dynamic range of each satellite trail down to well below the noise level of the survey. The issue of measurement precision is illustrated by the two gray bands in Figures 5 and 6. If the net measurement plus correction precision of the small crosstalk elements is 20%, then the light gray band shows the range of correction to 10% of the sky noise. The dark band corresponds to a net crosstalk measurement plus correction precision of 10%.

Our motivation is to evaluate the impact and investigate solutions to mitigate the optical interference created by any LEOsat constellation. The SpaceX Starlink constellation is the first to deploy many hundreds of LEOsats, and the company engaged with the astronomical community to share design and operational information. They also tested and quickly fielded experiments to explore mitigation of Starlink visibility. We are therefore able to analyze the impact of actual LEOsats at various operational phases and undertake mitigation studies. While Rubin Observatory is the present limiting case because of its unprecedented etendue (but we recall that observations with very long exposure times are very vulnerable as well), most other observatories—ground-based and space-based—will be affected indirectly because some of their science programs over the coming decade will rely on LSST data in place of the Sloan Digital Sky Survey. This is particularly true for transient follow-up. Moreover, other LEOsat operators in the coming decade will benefit from this mitigation work in their efforts to be environmentally friendly.

Combining the analyses in Sections 3 and 7, to get well into the linear response region for LSSTCam, LEOsats should not be brighter than g ∼ 7 mag at any airmass. Our analysis of the DECam data in Section 6.1 shows that v1.0 Starlink satellites are brighter than this—closer to g ∼ 5.1 (no mitigation) and g ∼ 6.1 (DarkSat) at zenith. Making the connection to physical radiant intensity for the satellite due to reflected sunlight, the seventh apparent magnitude for a satellite viewed at a range of 1000 km is equivalent to 44 W sr⁻¹.

At the time of this writing, the SpaceX effort to darken Starlink spacecraft, with both the DarkSat and VisorSat experiments, is on track to reach the level where we think we can suppress most or all LSSTCam artifacts from the resulting fainter satellite trail. This is a promising development, but after suppressing the artifacts, we are left with the satellite trails themselves. While it has not been decided exactly how the LSST Project will handle satellite trails, they are likely to be masked in the data products, much as saturated pixels from bright stars will be masked. The LSST Project will do what is expedient, optimized for the general user community. Whatever the LSST Project ultimately does to remove the trails from the catalog, some signature of that process will remain, and the science data analysis may be variously sensitive to such signatures. The fraction of lost pixels is small but not zero. The most significant science impact may arise from systematic errors caused by low surface brightness residuals from the processing of satellite trails. The science community may have to do some amount of extra work to reach the promise of using the LSST to discover the unexpected. There may be cost and schedule impacts, and the presence of LEOsats may require the LSST to run for longer than 10 years to achieve all science goals.

In addition to the visibility of Starlink satellites when on-orbit, where they are expected to operate for 5–7 yr, the astronomy community has also noted the impact from the trains of multiple LEOsats in the 4–8 weeks following deployment, when they are operating at a lower-altitude parking orbit at 380 km, before they are raised to 550 km. These Starlink satellites can appear many magnitudes brighter due to the "open book" configuration of the solar panel in this operational phase, where solar panel and satellite bus are coplanar and aligned with the velocity vector in order to reduce drag. In this configuration, Starlink satellites have been reported at 1–2 g mag, with flares to −2 mag (Seitzer 2020). While this operational phase is significantly shorter in duration than the on-orbit phase, SpaceX has been maintaining a regular cadence of Starlink launches, each deploying 60 satellites in order to populate the constellation for useful broadband service and to meet U.S. and international regulatory deployment milestones. SpaceX estimates 200–300 such satellites will be deployed in this steady state during their active deployment periods. In order to mitigate the significant brightness of Starlink satellites during these shorter periods, SpaceX is employing an operational mitigation of rolling the satellite bus edge-on to the Sun to reduce the projected area illuminated by the Sun, and diffuse reflections visible from the ground. This operational-roll technique was first tested in 2020 April, along with observations to determine its effectiveness. It is estimated that along with accurate orbit information provided publicly by constellation operators such as SpaceX, Rubin Observatory will be able to avoid as many as 300 known bright objects such as LEOsats in an optimized observation scheduler.

Taking multiple exposures is a partial mitigation. When the nominal LSST visit time of 30 s is split into two back-to-back exposures of 15 s, as currently planned, the comparison of these exposures using difference imaging could be used to identify a satellite trail. The exposure with the satellite trail in it can be rejected, or the trail can be masked. This mitigation scenario would cost 8% of the LSST observing time in order to accommodate the additional readout time and shutter motion, assuming a negligible cost due to rejected pixels, and it only mitigates some science.

Ultimately, we should plan on a combination of the best of these mitigation measures.

If each LEOsat can be darkened to approximately seventh g mag during Rubin Observatory operations, we may be able to correct for the many image artifacts caused by satellite trails at this level, and most science may be unaffected. However, this conclusion relies on fewer than ∼48,000 LEOsats in approximately 500–600 km orbits, as well as all satellite operators darkening their LEOsats to seventh g mag or fainter. LEOsats at 1200 km present another challenge because at this altitude, they are visible all night long (Seitzer 2020).

We have no way to guarantee that other LEOsat companies will follow the darkening example set by SpaceX, and no way to know how many LEOsats will ultimately be present during LSST operations. Rubin Observatory and SpaceX are committed to continuing their joint effort in assessing both the impact of Starlink LEOsats and the effectiveness of mitigation techniques as identified, fielded, and observed. We plan to revisit this analysis in another paper after the next iteration of signature reduction (VisorSat) reaches operational altitude, photometric observations are completed and analyzed, more progress is made on image artifact suppression, and after exploration of new dodging algorithms. The conclusions of this paper are predicated on all future LEOsats having successful on-satellite darkening mitigations to the g ∼ 7 AB mag level.

Some LSST science is particularly sensitive to low-level systematic errors. Other transient object science can be affected by the trails left by LEOsats, even with mitigations. Additional impacts arise from the processing, detection, cataloging, and science analysis overheads due to any satellite trails. Even with LEOsats darkened to seventh magnitude, satellite trails will still exist at the level of ∼100 times sky background noise. These trails will generate systematic errors that may impact data analysis and limit some science. It remains to be seen if it will be feasible to custom-model and subtract each trail to high precision.

In the past, sky survey science has been limited by sample size n, so that statistical root-n errors have dominated. With the unprecedented 40 billion objects expected from the LSST, the situation is different. LSST science will be mostly limited by systematic errors, and model-subtracted or masked satellite trails will contribute to the systematic error budget, along with bright stars and other masked sources. However, the imprint of these two types of masks has different types of symmetry: stars have point symmetry, and trails have line symmetry. Some measures of cosmology are symmetry-dependent and may be affected by these kinds of systematic errors at low surface brightness. It is useful to compare the expected satellite trail brightness with the faint limits the LSST is expected to reach. For example, a relatively faint 10,000 e⁻ per pixel LEOsat trail would have a surface brightness about 1000 times greater than most galaxies in the LSST. By comparison, one of the faint galaxies in our "gold sample" of several billion galaxies has ∼12 e⁻ per pixel average surface brightness in a 30 s g-band exposure (equivalent to 26.5 g mag arcsec⁻²). To avoid obvious residuals, the process of satellite trail removal from the LSST alerts and database would have to achieve a surface brightness precision of 3e−3 on each exposure. As shown in Figure 7, this would require special masking scaled to each trail. For example, the bright time sky noise in a 30 s exposure in r band is about 85 e−/pixel, and a 5σ threshold for the automated detect/mask gives 400 e−/pixel at the edge of the initial mask. This would be diluted to about 4 e−/pixel in the coadd. Because the faint galaxies used in lensing have an outer surface brightness below 1 e−/pixel, we instead would grow the mask in an exposure so that the contribution to the coadd at the grown mask edge is less than this—leading to the conservative grown mask reaching a level of 1% sky noise in an exposure.

There are eight Rubin Observatory science collaborations: Galaxies; Stars, Milky Way, and Local Volume; Solar System; Dark Energy; Active Galactic Nuclei; Transients and Variable Stars; Strong Lensing; and Information and Statistics. The LSST Science Book (LSST Science Collaboration et al. 2009)²⁰ outlines over 100 examples of unprecedented science reach in many types of probes of our universe using LSST data. Of course we cannot explicitly list the unexpected discoveries; LSST is specifically designed to search for the unexpected, and many of the same characteristics that make LSST vulnerable to LEOsats also make it ideally suited for this.

Using this first study of the possible impacts of LEOsat trails on the LSST data, it will be possible over the coming year for each science collaboration to undertake simulations of impact on their particular science programs. We need to investigate bogus signals or systematic errors resulting from LEOsat artifacts in the images and catalog and the degree to which they might negatively affect LSST science programs. As one example, the lines of correlated pixels due to residuals after trail removal could bias weak gravitational lensing cosmic shear probes of the nature of dark energy and dark matter. To investigate the level of cosmic shear noise arising from the cumulative effects of this small print-through bias, future work should include full simulations of the LSST (spanning ∼20,000 deg² and with 50–150 visits per field per filter band) with many long stripes of no data to simulate satellite trails.

Another example is the impact on transient and moving-object detections. Specifically, bogus transient events and false alerts, as well as tracklet linkage degradation in planetary programs, especially those designed to detect near-Earth asteroids in early twilight. Taken together, these are only a handful of examples of scientific impact of the LEOsat trail mitigation that the scientific community needs to investigate. This represents significant work beyond the original scope needed to do science with the Rubin Observatory LSST, and will slow the pace of discovery and scientific advancement.

We plan a second paper on this subject in the next year to report on the next phase of SpaceX mitigation experiments as well as preliminary science impact simulations. The Rubin Observatory commissioning camera (one 36 megapixel 3 × 3 CCD raft installed on the telescope in advance of the main 3.2 gigapixel LSSTCam) will be the first-light instrument. Direct tests of the effects of LEOsat trails on the LSST will be a natural part of the commissioning camera's mission of validating the telescope and observatory operations via its on-sky observing campaign.
