Redox States of Initial Atmospheres Outgassed on Rocky Planets and Planetesimals

As in our previous work, we use a Gibbs energy minimization code of the type described by van Zeggeren & Storey (1970) to calculate thermochemical equilibrium of meteoritic materials. The input parameters for this code are the bulk elemental composition of the system, temperature, and total pressure. Given these parameters, the code simultaneously calculates the equilibrium abundances of all stable solid phases and gas compounds while maintaining mass balance. Our calculations consider 18 major rock-forming elements, minor elements, and volatiles in chondritic material (Al, C, Ca, Cl, Cr, F, Fe, H, K, Mg, Mn, N, Na, O, P, S, Si, and Ti). Elemental compositions of the meteoritic materials used in the calculations are given in Table 1 and discussed further in the following section. We use the IVTANTHERMO database (Belov et al. 1999), supplemented with thermodynamic data for complex oxides and silicates commonly found in meteorites from Robie & Hemingway (1995) and Holland & Powell (2011). The final database used here contains 978 compounds (225 solid, 754 gas). In our nominal calculations, solid compounds are assumed to be pure phases, rather than solid solutions, although we discuss how using solid solutions can affect the results. The use of pure phases is done for comparison with our previous work, as well as to make the computation tractable.

Table 1.  Compositions of Meteoritic Materials Used in Calculations

Element	CIa	CVb	Hc	EHd	Eucritee
H (ppm)	19730	22.4	459	1309	85
C (ppm)	34800	2700	1200	4100	18
N (ppm)	2948	80	34	560	0.453
O (wt%)	46.225	37.07	33.46	28.51	42.8
F (ppm)	58.2	56	27	191	19
Na (ppm)	4990	3185	6454	7493	2800
Mg (wt%)	9.595	14.82	14.12	10.54	4.0
Al (wt%)	0.858	1.73	1.24	0.77	7.1
Si (wt%)	10.57	15.96	17.06	16.48	23.0
P (ppm)	924	1090	1135	2269	397
S (wt%)	5.35	2.14	1.94	5.18	0.15
Cl (ppm)	700	290	77	615	18
K (ppm)	543	250	830	913	222
Ca (wt%)	0.9076	1.88	1.21	0.68	7.7
Ti (wt%)	0.0439	0.096	0.07	0.03	0.38
Cr (ppm)	2630	3620	3216	3216	2090
Mn (ppm)	1920	1550	2323	1936	3990
Fe (wt%)	18.347	23.54	27.52	33.15	14.5
Co (ppm)	507	599	800	794	4
Ni (wt%)	1.067	1.41	1.70	1.82	0.00047
Total	99.94	99.99	99.98	99.50	100.59

Notes.

^aCI: Orgueil (Lodders 2003). ^bCV: Allende (Jarosewich et al. 1987), N (Lodders & Fegley 1997a), O increased within error to provide best ${f}_{{{\rm{O}}}_{2}}$ match. ^cH: average (Schaefer & Fegley 2007). ^dEH: Indarch, bulk (Wiik 1956), C (Moore & Lewis 1966), N (Moore & Gibson 1969; Grady et al. 1986), Cl (Wiik 1969; Garrison et al. 2000), F (Fisher 1963; Reed 1964). ^eEucrite: Juvinas, bulk (Wänke et al. 1972), S, P (Kitts & Lodders 1998), H (average of two analyses; Duke & Silver 1967; Yanai & Kojima 1995), C (Grady et al. 1997), N (Miura & Sugiura 1993).

Download table as:  ASCIITypeset image

Calculations are done for a range of temperature and pressure conditions simulating planetary outgassing and atmosphere–surface equilibrium. Equilibrium calculations for individual meteoritic materials are done at temperatures ranging from 300 to 2000 K at a nominal pressure of 1 bar. All binary and ternary mixtures are calculated at the nominal pressure of 1 bar and temperature of 1500 K, which is within the observed range of basaltic lava eruption temperatures and therefore applicable to planetary volcanic outgassing.

We find small variations (<0.1 log units) in oxygen fugacity with total pressure up to several kilobars, equivalent to the deep crust or upper mantle on the Earth or central pressures of large planetesimals. The pressure dependence is small because the change in the molar volume of solid phases, which buffer the oxygen fugacity, is relatively small. Campbell et al. (2009) measured the pressure effect on two metal-oxide oxygen fugacity buffers and found that at the pressures found in the upper mantle, the oxygen fugacity increased by about 0.3–0.4 log units per GPa at 1500 K. As pressure increases, the difference in molar volume between the metal and oxide phases decreases, resulting in an increase in the oxygen fugacity.

In this paper, we consider the outgassing of mixtures of different types of meteoritic materials, both chondritic and achondritic. The chondrites are undifferentiated (i.e., unmelted) stony meteorites containing metal, sulfide, and silicate phases. Geochemical data show that the Earth has an approximately chondritic composition, although it cannot be identified with any single chondritic group (e.g., Jagoutz et al. 1979; Hart & Zindler 1986; Kargel & Lewis 1993; Lodders & Fegley 1997a; Palme & O'Neill 2014). For example, Jagoutz et al. (1979) analyzed a suite of six carefully selected ultramafic nodules from alkali basalts for major, minor, and trace elements. They reached several major conclusions. Quoting their paper (Jagoutz et al. 1979; pg. 2039): "These [ultramafic] nodules with compositions near the intersection of the geochemical and cosmochemical trend lines in Figure 2 have chondritic element ratios of compatible refractory elements. Thus, a mantle composition fixed at this unfractionated point of intersection seems to be a plausible choice for a primitive mantle, bearing in mind that neither the geochemical nor the cosmochemical trend line of Figure 2 are extremely well defined. There are however, several possibilities which could change Si or Si and Mg concentrations but would leave the refractory element ratios unchanged."

Figure 1, which is a modified version of their figure, shows that all the primitive mantle compositions summarized by Palme & O'Neill (2014, their Table 3 and that of Kargel & Lewis 1993) fall inside the rectangle near the intersection of the two fractionation lines proposed by Jagoutz et al. (1979). The red star shows the mean values (Mg/Si = 1.05 ± 0.03 and Al/Si 0.10 ± 0.01) from an unweighted average of the nine BSE compositions (all those in Table 3 of Palme & O'Neill 2014 and Kargel & Lewis 1993). As noted by Jagoutz et al. (1979), the high Mg/Si ratio of the BSE may be due to evaporative loss of Si from the Earth, removal of some Si into Earth's core, or may be an artifact due to different Mg/Si ratios in Earth's upper and lower mantles (Ringwood 1958; Anderson 1977; Ringwood & Kesson 1977). This issue remains unresolved but computations of silica dissolution in Earth's primordial steam atmosphere, Si isotopic measurements, and an enstatite chondrite model for the Earth (e.g., Georg et al. 2007; Javoy et al. 2010; Fegley et al. 2016) support each of the three alternatives. Palme & O'Neill (2014) discuss the bulk Earth Fe/Mg ratio and conclude it is ∼2.1–2.2, higher than the CI chondritic value. The ∼10% differences between Earth's Mg/Si and Fe/Mg ratios and those of the major chondrite groups may reflect its accretion from a yet unknown type of chondritic material, our uncertain knowledge of lower mantle and core composition, or another elemental fractionation during the Moon-forming impact. In any case, we conclude Earth's bulk composition is chondritic to first approximation (within ∼10%) and thus use chondritic meteorites as proxies for the nebular material accreted by Earth during its formation.

Zoom In Zoom Out Reset image size

Boyet & Carlson (2005) reported a 20 ppm excess in ${}^{142}\mathrm{Nd}$/${}^{144}\mathrm{Nd}$ in ancient terrestrial rocks relative to chondritic meteorites. Decay of the short-lived radionuclide ${}^{146}\mathrm{Sm}$ (half-life 103 Ma and now extinct) produces ${}^{142}\mathrm{Nd}$, and the reported excess originated within 30 Ma of the formation of the solar system. The ${}^{142}\mathrm{Nd}$ excess apparently required a Sm/Nd ratio larger than chondritic for the accessible silicate Earth. Thus, several groups suggested either a ${}^{142}\mathrm{Nd}$-depleted reservoir in the lower mantle or the loss of such a reservoir to space via collisional erosion; see Campbell & O'Neill (2012), Boyet & Carlson (2005), Caro et al. (2008), and, O'Neill & Palme (2008). However, recent work by Burkhardt et al. (2016) shows that after correction for nucleosynthetic Nd isotopic heterogeneity, the ${}^{142}\mathrm{Nd}$/${}^{144}\mathrm{Nd}$ ratios of chondrites and the accessible silicate Earth are indistinguishable within ∼5 ppm, the current level of analytical precision. Consequently, the long-standing paradigm of a chondritic Sm/Nd ratio for the bulk Earth still holds. In turn, this means the bulk Earth is probably chondritic for all refractory lithophile elements, as long argued by Wänke and colleagues (e.g., Wänke 1981 and references therein).

Hafnium-tungsten dating of achondrites suggests that igneous differentiation of planetesimals occurred within the first 10 Myr of solar system formation (Jacobsen et al. 2008; Kleine et al. 2009). Other radioisotopic systems provide similar timelines (e.g., Wadhwa et al. 2009). Additionally, dynamical models of planetary accretion also suggest that the terrestrial planets accreted from a number of protoplanets of varying degrees of differentiation, which have been processed and reprocessed by impact events (e.g., Asphaug 2010). Burbine & O'Brien (2004) determine that very few combinations of chondritic materials are able to reproduce the major chemical composition of the Earth, which they suggest means that either the Earth is primarily composed of materials not represented by known chondritic material, or substantial Si has been sequestered into the Earth's core.

Table 1 lists the meteoritic materials that we include in our calculations. We select compositions for two carbonaceous chondrites (CI, CV), one ordinary chondrite (H), one enstatite chondrite (EH), and one achondrite (eucrite). We chose these meteoritic types because they sample the diversity of known stony meteorite types. As discussed above, the Earth's bulk composition can be approximated by mixing of at least one of these reducing components with small amounts of one or more carbonaceous chondrites (e.g., Lodders 1991; Lodders & Fegley 1997a; Lodders 2000; Warren 2011; Fitoussi & Bourdon 2012).

Rather than explore all known carbonaceous chondrites, we have chosen to focus on CI and CV chondritic materials. Although CI chondrites experienced extensive aqueous alteration on their parent body, they are considered the most compositionally primitive of carbonaceous chondrites and provide the best match to solar photospheric abundances (Lodders 2003). They are also the most oxidized of all meteoritic materials as measured by the distribution of Fe among metal, silicates, and oxides (Krot et al. 2014). CV chondrites are less oxidized than CI chondrites but may also have experienced some degree of aqueous alteration. The CV chondrites are subdivided into an oxidized and a reduced group based on the ratio of metal to magnetite abundances, as well as the nickel content of metal and sulfides. The best characterized CV chondrite is Allende, which is a member of the oxidized group. We use the selected abundances of the Orgueil CI chondrite, which is the best characterized of the CI chondrites, from Lodders (2003). For the CV chondrite, we use the reference model bulk composition of the Allende meteorite determined by Jarosewich et al. (1987), which includes H as chemically bound water and carbon. Jarosewich et al. (1987) do not determine the N abundance of Allende, so we use the average abundance of N in CV chondrites from Lodders & Fegley (1997a).

We also consider ordinary and enstatite chondritic material. As we showed in Schaefer & Fegley (2007), the gas compositions and oxygen fugacity for the different ordinary chondrite groups (H, L, and LL) are very similar to one another, so we only consider H chondrites here, using the average composition determined in our previous paper. This average composition includes all petrographic types from H3 to H6. Volatile abundances (H, C, N) in the unequilibrated type 3s are larger than those for the higher petrographic types, so this average composition represents a somewhat volatile-poor H chondrite composition. Enstatite chondrites are the most reduced of the major chondritic meteorite groups. We only consider EH chondrites here, in particular the Indarch EH4 chondrite for its well-characterized volatile abundances (see Table 1). Note that while enstatite chondrites are reduced, they are known to be very volatile rich, which is why the H, C, and N abundances are larger than those of the H chondrite (Grady et al. 1986; Robert 2003). EL chondrites would likely give similar results, but volatile abundances are relatively poorly characterized.

Finally, we chose as a representative achondritic meteoritic material the Juvinas eucrite. Eucrites are the most abundant type of achondrite and have basaltic compositions. They are members of the HED meteorite family, which are all believed to derive from the asteroid 4 Vesta. Juvinas is a brecciated monomict eucrite, which has been well characterized (Kitts & Lodders 1998). Calculations for representative howardites and diogenites produced results very similar to the results for Juvinas, and so are not shown here. While the very low volatile abundances of eucrites indicates that the Earth cannot be built solely from differentiated materials, mixtures of these differentiated materials with the volatile-rich chondrites may approximate the Earth's volatile inventory.

We do not consider iron or stony-iron meteoritic materials because volatile element abundances in these meteorites are poorly constrained.

Traditionally, the relative oxidation state of meteoritic types is determined by the distribution of Fe among its three common oxidation states: metal (0), ${\mathrm{Fe}}^{2+}$-bearing oxides and silicates (e.g., ${\mathrm{Fe}}_{2}{\mathrm{SiO}}_{4}$ in olivine and ${\mathrm{FeSiO}}_{3}$ in pyroxene), and ${\mathrm{Fe}}^{3+}$-bearing oxides and silicates (e.g., magnetite, hematite, laihunite; Rubin et al. 1988; Krot et al. 2014). This can be described by a Urey–Craig diagram, which plots the abundance of Fe in metal and sulfides versus the abundance of Fe in silicates and oxides (all normalized to Si). By this ranking, the oxidation state decreases from CI > CV > H > EH (Rubin et al. 1988).

Figure 2 shows the oxygen fugacities of the meteoritic materials in Table 1 as a function of temperature in comparison to solid state buffers. The regression coefficients for the polynomial fits are given in Table 2. Our calculations agree with the ranking of oxidation states for chondritic meteorites on the basis of Fe oxidation state discussed above. We find that the eucritic material, which is not included in the above ranking, has the same ${f}_{{{\rm{O}}}_{2}}$ as the enstatite chondritic material.

Zoom In Zoom Out Reset image size

Opaque mineral assemblages found in chondrules, CAIs, and matrix in CV chondrites provide a record of the temperature and ${f}_{{{\rm{O}}}_{2}}$ of the parent body during post-accretionary alteration. These mineral assemblages include Ni-rich metal and Ni-poor magnetite. The Ni-poor magnetite is thought to have formed by oxidation of the metal phase during aqueous alteration of the parent body (Choi et al. 1997). The ${f}_{{{\rm{O}}}_{2}}$ of these conditions was constrained by McMahon et al. (1980) and Blum et al. (1989) to a region between the pure iron−magnetite buffer and a buffer defined by ${\mathrm{Ni}}_{3}\mathrm{Fe}$ metal and magnetite. We found that the nominal Allende standard reference model (Jarosewich et al. 1987) did not match this buffer, so we varied the Fe and O abundances until we calculated a matching ${f}_{{{\rm{O}}}_{2}}$ and found both Ni-rich metal and magnetite to be stable. Note that to do this, we used ideal solid solutions for a mixture of Fe and Ni, which we use in all of our calculations. Our final Fe abundance of 23.54 wt% agrees well with the mean value of 23.55 ± 0.16 wt% given in Jarosewich et al. (1987). No recommended total oxygen abundance is given, but we calculate a mean value from all of the given analyses of 37.10 with a standard deviation of 1.24 wt%. Our final oxygen abundance of 37.07 wt% matches the average value very well. Including additional ideal solid solutions for the silicate phases reduces the ${f}_{{{\rm{O}}}_{2}}$ of the CV chondrite by 0.5–0.7 log units between 1000 and 1500 K.

As we showed in Schaefer & Fegley (2007), our calculations of the ${f}_{{{\rm{O}}}_{2}}$ for ordinary chondritic material are in very good agreement with the intrinsic oxygen fugacity measurements of Brett & Sato (1984). In contrast, McSween & Labotka (1993) looked at variations in the Fe abundance in different minerals as a function of petrographic type in ordinary chondrites and found evidence for systematic oxidation at higher petrographic types. They speculated that a reaction such as the ferrosilite−iron−fayalite (FIF) buffer,

$$\begin{eqnarray}&&\mathrm{Fe}+\displaystyle \frac{1}{2}{{\rm{O}}}_{2}({\rm{g}})+{\mathrm{FeSiO}}_{3}={\mathrm{Fe}}_{2}{\mathrm{SiO}}_{4},\end{eqnarray} \tag{ 6 }$$

was responsible for the progressive oxidation of Fe. They calculated the ${f}_{{{\rm{O}}}_{2}}$ for these minerals to be 2 log units below the intrinsic oxygen fugacity measurements of Brett & Sato (1984) at 1000 K. The trends have slightly different slopes, so they are less discrepant when extrapolated to the higher temperatures measured by Brett & Sato (1984). In contrast, ours agree very well with the measurements, and in fact our calculated ${f}_{{{\rm{O}}}_{2}}$ corresponds very closely to the FIF buffer. Including olivine and orthopyroxene solid solutions in our calculations, rather than pure phases, does cause our calculated ${f}_{{{\rm{O}}}_{2}}$ to decrease by ∼1–1.4 log units. This agrees with the lower bounds of the intrinsic ${f}_{{{\rm{O}}}_{2}}$ measurements of Brett & Sato (1984), but is still higher than the calculations of McSween & Labotka (1993). As we discussed in our previous paper, McSween & Labotka (1993) used an equilibrium constant for the FIF buffer that gives a lower ${f}_{{{\rm{O}}}_{2}}$ than the IVTAN database. Compared to our present calculations, their FIF buffer is ∼0.5 log units lower than ours at 1200 K. Raising their calculated ${f}_{{{\rm{O}}}_{2}}$ by this amount brings their calculations into good agreement with our solid solution calculations, as we should expect.

Berthet et al. (2009) did partial melting experiments at 1 GPa on the Indarch EH4 chondrite and on samples with 2–6 wt% Si metal added to the Indarch EH4 bulk composition. The ${f}_{{{\rm{O}}}_{2}}$ of the natural Indarch EH4 sample was about IW−1, in agreement with our calculations for the same bulk composition. The ${f}_{{{\rm{O}}}_{2}}$ values of their artificially reduced samples—containing excess elemental Si—reached IW−5 log units. We also did calculations for an Indarch EH4 composition plus 2 wt% Si and found ${f}_{{{\rm{O}}}_{2}}$ values 9–10 log bar units lower than the Indarch EH4 material, far lower than the values reported by Berthet et al. (2009). Other partial melting experiments by McCoy et al. (1999) suggest that the intrinsic ${f}_{{{\rm{O}}}_{2}}$ of Indarch is near the Cr–${\mathrm{Cr}}_{2}{{\rm{O}}}_{3}$ buffer, which is at about IW−6 at 1500 K. This is different than that reported by Berthet et al. (2009) for their Indarch EH4 sample. Including the silicate solid solutions reduces the ${f}_{{{\rm{O}}}_{2}}$ of our calculations by 1.2–1.3 log units to about IW−2.5.

There are no measurements of intrinsic oxygen fugacity for eucritic material, although there have been measurements for diogenites, a closely related meteoritic type. Petrographic studies indicated that the presence of metallic iron and small amounts of hematite indicated that the eucrites formed at much lower oxygen fugacities than terrestrial basalts. Hewins & Ulmer (1984) measured ${f}_{{{\rm{O}}}_{2}}$ for two diogenites, which they found to be around the IW buffer. Partial melting experiments have suggested that eucrites formed by partial melting of a carbonaceous chondrite under reducing conditions of about IW−1 (Stolper 1977; Jurewicz et al. 1993, 1995). Other achondrites have both higher (angrites: IW + 1) and lower (aubrites: IW−5) redox conditions (Wadhwa 2008). Our results are consistent with the partial melting experiments for eucritic material, giving ${f}_{{{\rm{O}}}_{2}}$ of IW−1.4 at 1000 K to IW−0.8 at 1500 K. Including olivine and orthopyroxene solid solutions has a small effect and only reduces the ${f}_{{{\rm{O}}}_{2}}$ by 0.2–0.4 log units.

In Schaefer & Fegley (2010), we speculated that the atmospheres of mixtures of meteoritic materials could be found by simple linear combinations of the atmospheres of the individual components. However, this proves to be incorrect. Figure 3 compares the major gas composition of a mixture of 10% CV chondritic material and 90% H chondritic material from calculations (solid lines) versus a linear combination (e.g., ${X}_{i}=0.1{X}_{i}^{\mathrm{CV}}+0.9{X}_{i}^{{\rm{H}}}$) (dashed lines). Variations between the linear combination and the calculated mixture are non-uniform. At 1500 K, the abundances of ${{\rm{H}}}_{2}$ and $\mathrm{CO}$ from the linear combination are 4% and 17% lower than the abundances calculated for the mixture, whereas ${{\rm{H}}}_{2}{\rm{O}}$ and ${\mathrm{CO}}_{2}$ are 2% and 75% larger, respectively. The predicted abundance of ${\mathrm{CO}}_{2}$ shows the worst agreement between the two models. The lower panel compares the ${f}_{{{\rm{O}}}_{2}}$ from the calculated mixtures and the linear mixture. The linear mixture overestimates the ${f}_{{{\rm{O}}}_{2}}$ at all temperatures. Variations are larger at lower temperatures. The difference between the linear combinations and calculated mixtures is due to changes in the equilibrium condensed phases.

Zoom In Zoom Out Reset image size

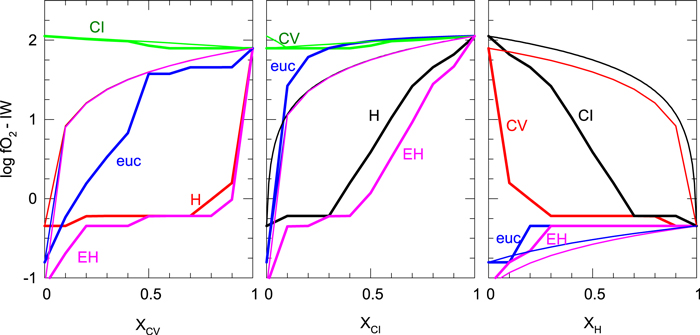

Figure 4 shows the oxygen fugacities of binary mixtures as a function of composition for the nominal conditions of 1 bar and 1500 K, relative to the iron−wustite (IW) buffer. The x-axis gives the mole fraction of CV (left), CI (center), or H (right) chondritic material present in the binaries. Note that some binaries appear on two of the panels (e.g., CI–CV appear left and center). The bold lines show the results of equilibrium calculations, whereas the thin lines are the result of linear mixing of the end components. The two carbonaceous chondritic materials have similar oxygen fugacities, and their binary shows a relatively smooth transition in oxygen fugacity from CI to CV. The linear mixing results agree fairly well with the calculated values.

Zoom In Zoom Out Reset image size

The binaries of the carbonaceous chondritic materials with the more reducing eucritic material show a much different behavior. For these mixtures, the linear mixing results do a much poorer job of predicting the ${f}_{{{\rm{O}}}_{2}}$ of the binaries. The binaries of CI and CV with the eucritic material remain at the ${f}_{{{\rm{O}}}_{2}}$ of the carbonaceous chondritic material for greater than ∼20% CI in the mixture, whereas for the CV–eucritic material mixture, the ${f}_{{{\rm{O}}}_{2}}$ drops when there is less than 50% CV. The linear mixing model underpredicts the ${f}_{{{\rm{O}}}_{2}}$ for the CI binary, but overpredicts for the CV binary.

The binaries of the H and EH chondritic material with the carbonaceous chondritic materials show a different behavior from the binaries with the eucritic material. These binaries remain at the ${f}_{{{\rm{O}}}_{2}}$ of the reduced component up to relatively high fractions of carbonaceous chondritic material before they abruptly increase. This indicates a reduced buffering system of minerals. The transition between low and high ${f}_{{{\rm{O}}}_{2}}$ is much more sudden for CV binaries than for CI binaries. The linear mixing model strongly overpredicts the ${f}_{{{\rm{O}}}_{2}}$ for all compositions. The binaries of H chondritic material with eucritic and EH chondritic material hold steady at the H chondritic material ${f}_{{{\rm{O}}}_{2}}$ across most of the compositional range, again indicating possible buffering by the FIF buffer. The linear mixing model underpredicts the ${f}_{{{\rm{O}}}_{2}}$ of these mixtures.

As can be seen, linear mixtures do a poor job of estimating the oxygen fugacity of the binary mixtures when one of the components is metal bearing (e.g., H, EH). The eucrites are known to contain significantly less metal (<0.5 wt%, Duke 1965) than the H (∼16 wt%) and EH (∼24 wt%) chondrites.

Figure 5 shows the oxygen fugacity of the CI–H binary mixtures as a function of temperature compared to standard buffers. The numbers on the curves indicate the mole fraction of H chondritic material present in the mixture. Note that above ∼70% H chondritic material, the ${f}_{{{\rm{O}}}_{2}}$ of the mixture is identical to the pure H chondritic material, which is consistent with the compositional trends shown in Figure 4. The ${f}_{{{\rm{O}}}_{2}}$ of the H chondritic material is nearly linear with inverse temperature, but the ${f}_{{{\rm{O}}}_{2}}$ of CI chondritic material is more closely approximated by a fourth-order polynomial. Consequently, the temperature dependence of the binary mixtures does change slightly with composition. We provide fits for the temperature dependence of the binary mixtures in Table 3.

Zoom In Zoom Out Reset image size

Work done on outgassed atmosphere compositions by Bukvic (1980) also looked at mixtures of CI and H chondritic materials. Bukvic reported gas compositions for mixtures of 90%–99% H chondritic material with the remainder of CI chondritic material. He found log ${f}_{{{\rm{O}}}_{2}}$ values at 1500 K of ∼−12 for all of the mixtures, which agrees very well with our calculations.

The ternary systems that we consider are shown in Figure 6(a) CI–CV–H and (b) CI–CV–eucrite. These mixtures simulate the addition of volatile-rich material to a meteorite parent body or other asteroid as well as the Earth. Mixtures that substitute EH for H chondritic materials provide nearly identical results.

Zoom In Zoom Out Reset image size

For the CI–CV–H ternary system, the mixture has the highest ${f}_{{{\rm{O}}}_{2}}$ when H chondritic material is less than 20% of the composition. Strong oxidation persists up to ∼40% H chondritic material, but the mixture is uniformly reduced when it contains more than ∼40% of the H chondritic material. Mixtures of CI–CV with EH chondritic material, not shown here, produce nearly identical results, with only a slight compression of the oxidized region to smaller EH contents (i.e., there is slightly more dark blue on the CI–CV–EH ternary diagram).

In contrast, the CI–CV–eucritic material ternary has a uniformly high oxygen fugacity, with only a very small region of reduced conditions in the top corner near 100% eucritic material fraction. This shows, as seen in the binary diagrams of Figure 4, that the eucritic material does not exert a strong influence on the oxygen fugacity of the material. That is, for a planet that contains abundant volatiles from a carbonaceous body, addition of silicate material from a differentiated body will not strongly affect the oxidation state of the mantle or the composition of the atmosphere.

The average oxygen fugacity of Earth's present-day upper mantle is within ±2 log units of the QFM buffer (Frost & McCammon 2008). This average ${f}_{{{\rm{O}}}_{2}}$ is derived from several types of measurements including (1) chemical analyses of the ferric to total iron ratio in mid-ocean ridge basalts formed by partial melting of the mantle (Bézos & Humler 2005; Christie et al. 1986), (2) measured (Sato & Wright 1966; Sato et al. 1973; Benhamou et al. 1988; Rosen et al. 1993; Osadchii et al. 1997) and computed (Symonds et al. 1994) ${f}_{{{\rm{O}}}_{2}}$ of volcanic gases, (3) ${f}_{{{\rm{O}}}_{2}}$ computed from ${\mathrm{Fe}}^{2+}$/${\mathrm{Fe}}^{3+}$-bearing mineral assemblages in fresh volcanic rocks (e.g., Section 1.3.4.3 of Basaltic Volcanism Study Project 1981; Benhamou et al. 1988), and (4) ${f}_{{{\rm{O}}}_{2}}$ calculated from ${\mathrm{Fe}}^{2+}$/${\mathrm{Fe}}^{3+}$-bearing mineral assemblages in upper mantle samples (xenoliths) from varying depths (up to ∼200 km) that were transported to the surface in kimberlites and other magmas (Ionov & Wood 1992; Canil et al. 1994; Frost & McCammon 2008). Kasting et al. (1993) briefly review earlier studies that come to essentially the same conclusion—the upper mantle ${f}_{{{\rm{O}}}_{2}}$ is near QFM ± a few log units.

The mantle becomes more reducing with increasing depth (higher pressure) because the ΔV of reactions favors the ${\mathrm{Fe}}^{3+}$–bearing components of garnets at pressures above 3 GPa, which gives lower ${f}_{{{\rm{O}}}_{2}}$ values for ${\mathrm{Fe}}^{2+}$–${\mathrm{Fe}}^{3+}$ mineral buffers at higher pressures. The ${f}_{{{\rm{O}}}_{2}}$ at the base of the upper mantle, in the transition zone, and in the lower mantle is 4–5 log units below QFM and Ni–Fe metal alloy is stable. The ${f}_{{{\rm{O}}}_{2}}$ of Earth's mantle ranges from IW to IW−1.5 (lower mantle) to QFM ± 2 log units (upper mantle; Frost & McCammon 2008). Figure 9 shows the position of the QFM and IW oxygen fugacity buffers in relation to the calculated ${f}_{{{\rm{O}}}_{2}}$ of individual types of meteoritic material, present-day volcanic gases, and our calculated ${f}_{{{\rm{O}}}_{2}}$ for the bulk silicate Earth from previous work (Fegley & Schaefer 2014). The oxygen fugacities of all the mixtures of meteoritic materials that we studied fall between the end-member values for CI and EH chondritic materials (also shown). The most oxidized mixture is CI chondritic material at about QFM−1, which is within the range of ${f}_{{{\rm{O}}}_{2}}$ values for the upper mantle (shaded gray region). The most reduced mixture is EH chondritic material at ∼IW−1. Metal-free eucrites are about as reduced as EH chondrites, showing that Fe metal is not required for reducing conditions. This point is also illustrated by our prior chemical equilibrium computations of gases formed by heating of H chondritic material with and without metal or FeS (Figures 7 and 8 in Fegley & Schaefer 2014). These calculations show that highly reducing atmospheres are produced from H chondritic material before and after removal of metal and FeS, e.g., during core formation.

Zoom In Zoom Out Reset image size

The ${f}_{{{\rm{O}}}_{2}}$ curves for EH and CI chondritic material quantify the ${f}_{{{\rm{O}}}_{2}}$ of the reduced and oxidized end-members in the two-component models of Ringwood (1979) and Wänke for the formation of the Earth (Wänke 1981; Wänke & Dreibus 1982, 1988; Wänke et al. 1984). Their oxidized component is CI chondritic material while their reduced component is as reducing as EH chondritic material but ideally volatile free. They did this for simplicity in the mixing calculations and in reality the reduced component has to contain some volatiles, otherwise redox reactions involving H, C, N, and S could not occur.

The Ringwood and Wänke two-component models mix 85% of the reduced component and 15% of the oxidized component to form the Earth. Wänke also considers a gradual transition from the reduced to the oxidized component that starts after about 67% of the Earth has accreted (e.g., see p. 9 of Wänke et al. 1984 or pp. 547–548 of Wänke & Dreibus 1988). However, as Figure 4 shows, the ${f}_{{{\rm{O}}}_{2}}$ computed from binary mixtures of CI and EH chondritic material is relatively insensitive to the proportion of CI material in the 10%–40% range. So whether we take 85%−15% or 67%−33% for the proportions of reduced and oxidized components is not critical. The ${f}_{{{\rm{O}}}_{2}}$ of the two-component mixture (at one bar and 1500 K) is about IW−0.3 log units. The equations in the Appendix are useful for computing the temperature-dependent ${f}_{{{\rm{O}}}_{2}}$ (at one bar total pressure) of the CI–EH chondritic (or any other) binary mixture that we considered in our work.

A variety of evidence indicates that the ${f}_{{{\rm{O}}}_{2}}$ of the upper mantle has shown relatively little variation with time, at least since 4.35 Gyr ago. This evidence is based on variations of elemental abundances (V, Cr) or elemental ratios (V/Sc) in upper-mantle-derived mafic and ultramafic rocks (Canil 1997, 1999, 2002; Delano 2001; Aulbach & Stagno 2016), the Ce abundance in zircons (Trail et al. 2011; Smythe & Brenan 2016), or the V abundance in olivine and/or chromite in komatiite rocks (Nicklas et al. 2016). All studies conclude that the ${f}_{{{\rm{O}}}_{2}}$ of the upper mantle has been within a few log units of the QFM buffer over time. Typical values (relative to QFM) are ≤−0.3 (Archaean basalts; Li & Lee 2004), ±0.5 (Archaean basalts; Delano 2001), −1.5 to +1.5 (Archaean komatiite; Canil 1997), −1.5 to 0 (cratonic peridotites; Canil 2002), −1.19 ± 0.33 (Aulbach & Stagno 2016), −0.5 ± 2.3 (Hadean zircons; Trail et al. 2011), −1.0 to +2.5 (Hadean zircons; Smythe & Brenan 2016), and finally −0.29 ± 0.04 relative to the Ni–NiO buffer, equivalent to ∼+0.5 log units relative to QFM (Archaean komatiite; Nicklas et al. 2016). (Figure 9 shows that the Ni–NiO buffer is ∼0.8 log units above the QFM line.)

However, there is also evidence that the Earth's mantle experienced a reducing magma ocean state during the time of core formation. During core formation, the silicate portion of the Earth would have been in equilibrium with an Fe–Ni alloy, which would have resulted in an oxygen fugacity of about IW−1 (Frost & McCammon 2008). Trace siderophile element abundances in the mantle are used in models of core formation to try and determine the conditions under which metal−silicate equilibration occurred (e.g., Wade & Wood 2005; Rubie et al. 2011; Righter & Ghiorso 2012). Wade & Wood (2005) require the mantle to increase in oxidation state (FeO content) as the planet grew, and further suggest that the mantle self-oxidizes due to disproportionation of ${\mathrm{Fe}}^{2+}$ to ${\mathrm{Fe}}^{3+}$ in the lower mantle. Rubie et al. (2011) find that during accretion, the oxygen fugacity (FeO content) of the material accreted to the Earth must have been initially reduced and become progressively more oxidized in order to explain the trace element abundances. Numerous later studies agree with this general trend of oxidation during accretion. However, the final oxygen fugacities of these models is generally still too low to explain the Earth's present-day value. For instance, the model of Wade & Wood (2005) uses an increase in ${f}_{{{\rm{O}}}_{2}}$ from IW−4 to IW−2, whereas the highest ${f}_{{{\rm{O}}}_{2}}$ in the Rubie et al. (2011) study is IW−1.9.

Therefore, significant oxidation must have occurred since then to account for the present-day ${f}_{{{\rm{O}}}_{2}}$. The apparent constancy of the ${f}_{{{\rm{O}}}_{2}}$ of the upper mantle over geologic time, at least within the ±2 log unit variability observed for the present-day mantle, implies that dramatic changes (if any) in the oxidation state of the mantle had to take place before the oldest zircons studied by Trail et al. (2011) and Smythe & Brenan (2016) were formed ∼4.35–4.40 Gyr ago. This means sometime within 150–200 million years after the Earth formed ∼4.55 Gyr ago (Patterson 1956; Allègre et al. 1995; Jacobsen et al. 2008). We return to this point in the following section.

Kasting et al. (1993) discuss four possible methods to oxidize the Earth's mantle to its present-day state: (1) reaction of ferrous iron in the mantle with water after metal segregation to produce small amounts of ferric iron, (2) disproportionation of ferrous iron to ferric iron and metal in the lower mantle and later homogenization of the mantle through convection, (3) late accretion of oxidized material following core formation and escape of hydrogen gas, and (4) slow oxidation through volatile recycling into the mantle and loss of hydrogen gas. Sharp et al. (2013) and Hamano et al. (2013) also suggest that escape of hydrogen from the atmosphere during the early magma ocean stages could result in oxidation of the mantle. We return to hydrogen escape in the next section. However, we note that the CI–CV–eucrite ternary mixture is then suggestive of Kasting's third possible oxidation mechanism. The relatively reduced eucrite is representative of a differentiated silicate, the residue of a mantle after core segregation. The addition of only small amounts of oxidized material (here the CI or CV chondritic material) has a controlling influence on the ${f}_{{{\rm{O}}}_{2}}$ of the mixture. For CI–eucritic binaries, only 2% to 3% of CI material is needed to raise the ${f}_{{{\rm{O}}}_{2}}$ 2.5 log units. Although CI material is not quite oxidized enough to explain the upper mantle, loss of hydrogen could have further increased the ${f}_{{{\rm{O}}}_{2}}$ as we discuss below. So, the addition of a small amount of carbonaceous material to the mantle after core formation as suggested in the late veneer model plus slight oxidation through outgassing may have been sufficient to produce the present-day mantle oxidation state.

Studies of degassing of volatiles from magmas have shown that the oxygen fugacity of a volcanic gas is typically not the same as the parent lava, which may also have a different oxidation state than the parent magma (e.g., Mathez 1984; Burgisser & Scaillet 2007; Humphreys et al. 2015). Humphreys et al. (2015) have shown that degassing experiments produce an increase in the ${\mathrm{Fe}}^{3+}$/ΣFe with decreasing ${{\rm{H}}}_{2}{\rm{O}}$ concentration, due to loss of ${{\rm{H}}}_{2}$ into bubbles during decompression. That is, as a lava degasses and loses H, it should become more oxidized. Mathez (1984), however, showed that as the ${f}_{{{\rm{O}}}_{2}}$ of a system increases, the reaction

$$\begin{eqnarray}&&\mathrm{FeO}+0.25{{\rm{O}}}_{2}={\mathrm{FeO}}_{1.5}\end{eqnarray} \tag{ 21 }$$

exerts a greater buffering influence on the system. Therefore, for reduced compositions with ${f}_{{{\rm{O}}}_{2}}$ near IW, the degassing of the lava changes the ${f}_{{{\rm{O}}}_{2}}$ very little, whereas degassing hydrogen gas from lavas that are originally more oxidized may have a stronger effect on increasing the ${f}_{{{\rm{O}}}_{2}}$. As described by Kasting et al. (1993) and Sharp et al. (2013), net oxidation of the planet can occur if the outgassed hydrogen escapes from the atmosphere.

As a quick test of the degree to which hydrogen loss would affect the oxidation state of our calculated atmospheres, we recompute the binary mixtures of the reduced components (H, EH, and eucrite) with CI chondritic material with lower total hydrogen abundances (50% and 10% of initial values). Results are shown in Figure 10 compared to the nominal calculations from Figure 4. The figure shows that the loss of H has a much larger effect on the oxidized CI chondritic material than on the reduced materials, as we had supposed. This is likely due to both the initial source of hydrogen in these materials and the presence of buffering phases in the reduced materials. Hydrogen in the CI chondritic material is mostly in the form of bound water, whereas in EH chondritic material, much of the hydrogen is bound in insoluble organic material (Robert 2003). Therefore, loss of hydrogen from carbonaceous materials frees up oxygen, whereas loss of hydrogen from EH chondritic material does not. Although some of the hydrogen in ordinary chondrites is in the form of bound water, there are also buffering phases in both the EH and H chondritic materials (metal and reduced carbon). As noted in Sharp et al. (2013), loss of hydrogen gas will not raise the oxygen fugacity until the buffering phases have been fully oxidized. We note that hydrogen loss from the binary of the CI chondritic material with the differentiated eucritic material produces strong oxidation across the binary range. The differentiated eucrite has small volatile abundances and no strongly buffering mineral components, which is why the binary becomes strongly oxidized by the loss of H.

Zoom In Zoom Out Reset image size

The importance of atmospheric escape has been known for decades but the exact effects on atmospheric composition are still debated vigorously. The hydrogen escape rate from the primordial Earth is difficult to constrain because it depends on whether or not escape is diffusion limited (as it is today due to the high exospheric temperature >1000 K) or energy limited (as it would be for lower exospheric temperatures such as those in the ${\mathrm{CO}}_{2}$-rich atmospheres of Venus and Mars, and possibly in an early anoxic atmosphere on the early Earth). The difference may be large—Tian et al. (2005) compute a 100× smaller ${{\rm{H}}}_{2}$ escape rate on early Earth—but their result is controversial (e.g., see the discussion in Catling 2006; Kuramoto et al. 2013; Tian 2015). For instance, Kuramoto et al. (2013) found H escape rates a few to a few tens of times larger than Tian et al. (2005) using a more sophisticated numerical scheme. Also, it is possible that hydrodynamic escape occurred, either while the early Sun had an enhanced extreme UV (EUV) flux or perhaps driven by the Moon-forming impact.

The current hydrogen escape rate from the Earth is 3 × 10⁸ H atoms cm⁻² s⁻¹, which is ∼4 × 10¹⁰ moles ${{\rm{H}}}_{2}$ per year. This is diffusion limited and depends on the total ${{\rm{H}}}_{2}$ mixing ratio at the homopause, above which diffusive separation of gases occurs (Hunten & Donahue 1976). To first approximation, the ${{\rm{H}}}_{2}$ escape rate (ϕ) from Earth's atmosphere is $\phi =2.5\times {10}^{13}{f}_{{\rm{T}}}({{\rm{H}}}_{2}\,\mathrm{molecules}\,{\mathrm{cm}}^{-2}\,{{\rm{s}}}^{-1})$, where f_T is the total mixing ratio of ${{\rm{H}}}_{2}$-bearing species at the homopause (∼6 parts per million by volume (ppmv) in Earth's atmosphere).

Following Walker (1982), we now consider hydrogen escape from a primordial Earth with its composition given by the two-component models of Ringwood and Wänke. In both models, the Earth is made from 15% CI chondritic material, which contains ∼2% hydrogen (see Table 1), so the total H added is ($5.97\times {10}^{24}$ kg)(0.15)(0.01973) = $1.77\times {10}^{22}$ kg = $1.76\,\times {10}^{25}$ moles H. Palme & O'Neill (2014) give ∼120 μg g⁻¹ H in the BSE, and assuming no additional H in the core, Earth's current H inventory is 4.84 × 10²⁰ kg (4.80 × 10²³ moles). This is about 3% of the amount initially added by the two-component models. Walker (1982) computed a similar number by considering only water in Earth's oceans. The removal of the "excess" 1.72 × 10²² kg (1.71 × 10²⁵ moles) H requires a hydrogen escape rate significantly greater than the current value. Taking at face value the indicators of mantle ${f}_{{{\rm{O}}}_{2}}$ over time, the excess H has to be removed within 150–200 million years of Earth's formation. This requires H escape rates of (0.85–1.14) × 10¹⁷ moles per year, about 2.1–2.8 million times faster than at present. We have not attempted to model the hydrodynamic escape of hydrogen from the early Earth because this is beyond the scope of this paper, but this value may be close to the upper limit of the possible escape rate for the Earth from impinging solar EUV radiation. Two alternative scenarios are possible to explain any excess early hydrogen escape. The first is that the Moon-forming impact removed the excess hydrogen from the early Earth but the amount of atmosphere lost in a big impact is model dependent and varies from 10% in the absence of oceans (Genda & Abe 2003) to 99% in the presence of oceans (Genda & Abe 2005). Schlichting et al. (2015) have also shown that the balance between impact erosion and addition to the atmosphere by impact degassing depends sensitively on the size distribution of impactors and their volatile contents. Pepin (1997) considered hydrodynamic escape driven by the thermal energy of the Moon-forming impact but focused on the implications for noble gases. The implications for hydrogen loss and D/H fractionation were not explored. Clearly, more work is needed to answer this question. Even if the Moon-forming impact caused extensive hydrogen loss on Earth, it is doubtful this mechanism affected all rocky planets with atmospheres. The second alternative is that the large required H escape rate may be a sign that the oldest indicators of mantle ${f}_{{{\rm{O}}}_{2}}$ may be compromised and/or non-unique and that reducing conditions existed for a much longer time.

Hamano et al. (2013) modeled magma ocean evolution with a steam atmosphere for planets at different orbital distances from the Sun. In their model, dissociation of steam in the atmosphere followed by hydrogen escape produced free oxygen, which they assumed was absorbed into the magma ocean. At the Earth's orbit, the authors determined that the amount of oxygen absorbed could have increased the ${\mathrm{Fe}}_{2}{{\rm{O}}}_{3}$ abundance in the mantle by 0.07 wt%. However, their model assumed a pure steam atmosphere, whereas the magma ocean following the giant Moon-forming impact and associated with core formation should have been reduced, with an oxygen fugacity below IW as previously discussed. The atmosphere would therefore have been dominated by ${{\rm{H}}}_{2}$ gas rather than steam, and so their model may underestimate the amount of hydrogen lost.

Venus has ∼270,000 times less observable hydrogen than the Earth. The 30 ppm ${{\rm{H}}}_{2}{\rm{O}}$ in the Venusian atmosphere corresponds to a column density of ∼1 g cm⁻² versus ∼270,000 g cm⁻² water in Earth's oceans. The deuterium (D) to hydrogen (H) atomic ratio in Venusian water vapor is 0.025 ± 0.005, which is about 160 ± 32 times larger than the terrestrial D/H ratio of 1.558 × 10⁻⁴ in standard mean ocean water. Venus' water deficit and high D/H ratio are generally ascribed to massive hydrogen escape (Donahue et al. 1997). The mean FeO/MnO ratio of Venus' surface from Venera 13, 14, and Vega 2 measurements is ∼52 (Surkov et al. 1984, 1986; Volkov et al. 1986), only slightly less than that of the bulk silicate Earth (∼60). The FeO/MnO ratio depends strongly on a planet's oxidation state (Wänke et al. 1973). The values for Earth and Venus fall into an orderly sequence (from the most oxidizing to most reducing): CI chondrites 96, angrites 88, Earth 60, Venus 52, Mars (SNC parent body) 40, Vesta (eucrite parent body) 34, and mesosiderites 24. Thus, massive loss of hydrogen from Venus has not dramatically oxidized its silicate portion more than that of the Earth. The absence of any detectable ${\mathrm{SO}}_{3}$ and ${{\rm{O}}}_{2}$ in Venus' atmosphere and the presence of ${\mathrm{SO}}_{2}$, OCS, and sulfur vapor argue for volcanic degassing at oxygen fugacity values in the range of the QFM and Ni-NiO buffers like the Earth.

Mars has a FeO/MnO ratio of 40 (from SNC meteorites; Wänke & Dreibus 1988), which is lower (i.e., more reducing) than that of the Earth. Wadhwa (2008) reviews the indirect ${f}_{{{\rm{O}}}_{2}}$ determinations of SNC meteorites, which have ${f}_{{{\rm{O}}}_{2}}$ ranging from IW−1 to IW+4. The correlation of the ${f}_{{{\rm{O}}}_{2}}$ values with other geochemical and isotopic data indicates the Martian mantle ${f}_{{{\rm{O}}}_{2}}$ is about that of the IW buffer. However, Mars has undergone extensive hydrogen escape to elevate the D/H ratio of atmospheric water vapor to ∼5 times the terrestrial D/H ratio (Owen et al. 1988; Yung et al. 1988; Donahue 1995; Krasnopolsky et al. 1997; Krasnopolsky 2015).

Thus, Venus and Mars have likely lost large amounts of hydrogen at some time in the past yet neither of them are significantly more oxidized than the Earth. The volatile recycling model of Kasting et al. (1993) and the hydrogen escape during the magma ocean phase of Hamano et al. (2013) and Sharp et al. (2013) both require sufficient initial volatile abundances to oxidize any mineral buffers. The volatiles must also at some time be sequestered in the mantle to have this oxidizing effect. The lack of oxidation of Mars and Venus suggests that possibly one of these conditions was not met (insufficient volatiles, no recycling of volatiles into the mantle) on these planets. Whatever the truth, the effects of hydrogen escape on the redox state of bulk silicate planets are extremely complicated and require additional studies.

An important issue is the very large escape rates required to remove excess hydrogen from rocky planets formed by the accretion of volatile-rich chondritic material. Planets at close orbital separations and planets around M dwarfs are likely subjected to much higher energetic radiation environments than the Earth. Studies by Luger & Barnes (2015), Schaefer et al. (2016), and Barnes et al. (2016), to name a few, have looked at models similar to those of Hamano et al. (2013) for hydrogen loss and oxygen build-up on rocky exoplanets during a magma ocean phase. Schaefer et al. (2016) showed that oxygen absorption into the magma ocean is not complete, and that the amount of oxygen absorbed is a balance between the rate of oxygen escape and the rate of solidification of the magma ocean. The results of these studies show that planets farther out in orbital space are less likely to lose significant amounts of hydrogen. Zahnle & Catling (2017) also consider the question of atmospheric escape due to both stellar radiation as well as impacts. They present figures showing a large number of exoplanets that fall into their region of atmospheric stability, suggesting that hydrogen escape may be less important for some rocky exoplanets.
