The Electrochemical Properties of Sr(Ti,Fe)O_3-δ for Anodes in Solid Oxide Fuel Cells

Microelectrodes were fabricated by photolithographic micro-structuring from STF thin films with current collectors, deposited on polished 10*10*0.5 mm³ YSZ substrates. A 30 mm² large electrode of the same STF film with current collectors was used as counter electrode. Owing to its much larger size it did not affect the measured impedance spectra. Each microelectrode contains two current collectors, as shown in Figure 1a. In the electrochemical contacting mode the entire microelectrode is polarized against the larger counter electrode. Equivalent circuit models for such microelectrodes were derived in Ref. 4. The width and distance between the current collecting fingers were both varied between 5, 15 and 30 μm, resulting in the 9 different current collector geometries shown in Figure 1e. Microelectrodes of all 9 geometries were investigated in an asymmetrically heated, gastight micro-contact measurement chamber using gold-plated steel contact tips. A ceramic heating stage (Linkam TMS 1000) was employed to heat the samples up to ∼650°C sample temperature in humidified Ar-H₂ (Alphagaz Arcal 10), containing 25 mbar H₂ and ca. 18 mbar H₂O. Furthermore, such samples were characterized in a tube furnace micro contact setup with precisely controlled, homogeneous temperature³⁵ in varying H₂:H₂O mixing ratio.

STF thin films on MgO substrates were used for in-plane conductictivity measurements and fabricated similarly to the samples with microelectrodes and embedded current collectors, only structuring of the STF layer was omitted, because the in-plane current is anyway restricted to the region between the current collecting fingers sketched in Figure 1b. These sampes were characterized by impedance spectroscopy in a homogeneously heated tube furnace setup at 650°C under varying H₂:H₂O mixing ratio. An optimized contacting stage with two moveable contact tips was used to contact both interdigitating current collectors.

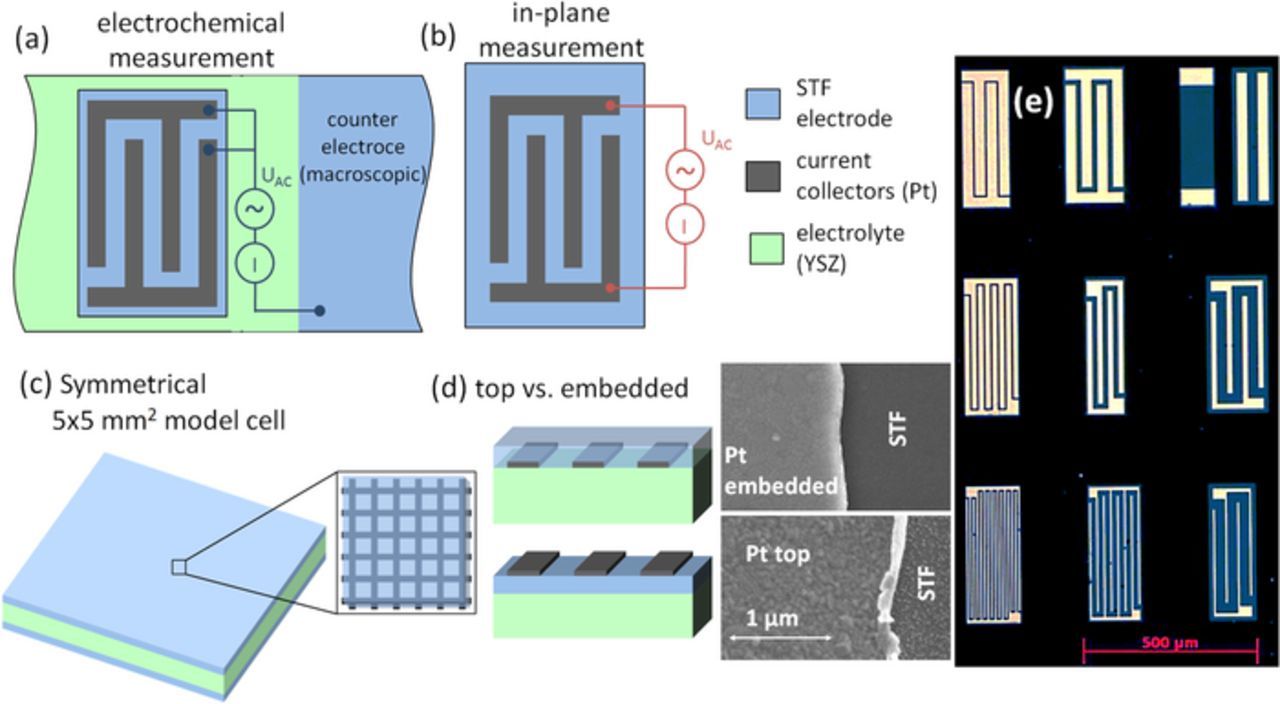

Symmetrical samples with 'macroscopic' electrodes were prepared by deposition of STF electrodes with embedded current collectors on both sides of YSZ substrates, as sketched in Figure 1c. Sample dimensions were 5 × 5 × 0.5 mm³ and the current collector was fabricated as a fine structured grid (4 μm stripes, 11 × 11 μm² open space). Also these samples were measured in a homogeneously heated tube furnace setup in a temperature range of 350–800°C, using humidified Ar-H₂ mixture (25 mbar H₂, 25 mbar H₂O).

All impedance measurements were performed with a Novocontrol Alpha-A impedance analyzer at 10 mV RMS.

The oxygen non-stoichiometry of STF37 sample was determined at 650°C by thermogravimetric analysis (TGA). The powder for TGA was produced by the same solid state reaction as the PLD targets, except for a lower firing temperature of 1200°C for 1 h in air to avoid excessive sintering. A highly sensitive thermogravimetric equipment consisting of a symmetrical thermobalance based on a Cahn 1000 electrobalance coupled to a ZrO₂-based oxygen pump and sensor system³⁶ was used, which allows determination of sample mass changes within ±10 μg with 0.6 g of STF37 powder. The oxygen partial pressure (pO₂) was varied between 10⁻²⁵ and 1 bar by using O₂-Ar and H₂-H₂O mixtures. For quantification of the oxygen content, the plateau in the isotherm of mass vs pO₂ was used. This plateau corresponds to full Fe³⁺ formation, meaning 3-δ = 2.65 for 70% Fe doped STF, and it is a common feature of Fe containing perovskites.^37,38

The electronic and ionic in-plane conductivity of STF37 and STF73 thin films on insulating magnesia substrates was investigated by impedance spectroscopy, using the interdigitating embedded current collectors sketched in Figure 1b. The impedance spectra were measured at 650°C in different H₂:H₂O mixtures, corresponding to a pO₂ range of about 10⁻²¹ to 10⁻²⁵ bar. A typical spectrum recorded on STF37 is shown in Figure 2 (circles). It consists of the onset of a distorted high frequency arc (not considered in the fit), and a well separated low frequency feature. The latter deviates from an ideal semicircle, partly resembling a 45° Warburg type impedance, indicative of a diffusive process. Hence, two real axis intercepts are found, one at higher frequencies (denoted AC resistance R_AC) and one at low frequencies (DC resistance R_DC).

Zoom In Zoom Out Reset image size

Additional variation of the finger distance (between 5 and 30 μm) revealed a linear increase of the measured AC and DC resistances with finger distance. This shows that in-plane conduction processes in the STF film are predominant while surface exchange processes have a negligible impact. In such a case, the high frequency axis intercept corresponds to the total conductivity, while the DC resistance reflects the electronic conductivity only, due to the ion blocking electrodes. This very simple first analysis, also sketched in Figure 2b, yields essentially the same conductivity values as fitting to the impedance model discussed in the following. Fitting the data to the circuit model shown in Figure 2a helps validating the interpretation by also considering the shape of the low frequency arc and furthermore reveals information on capacitances.

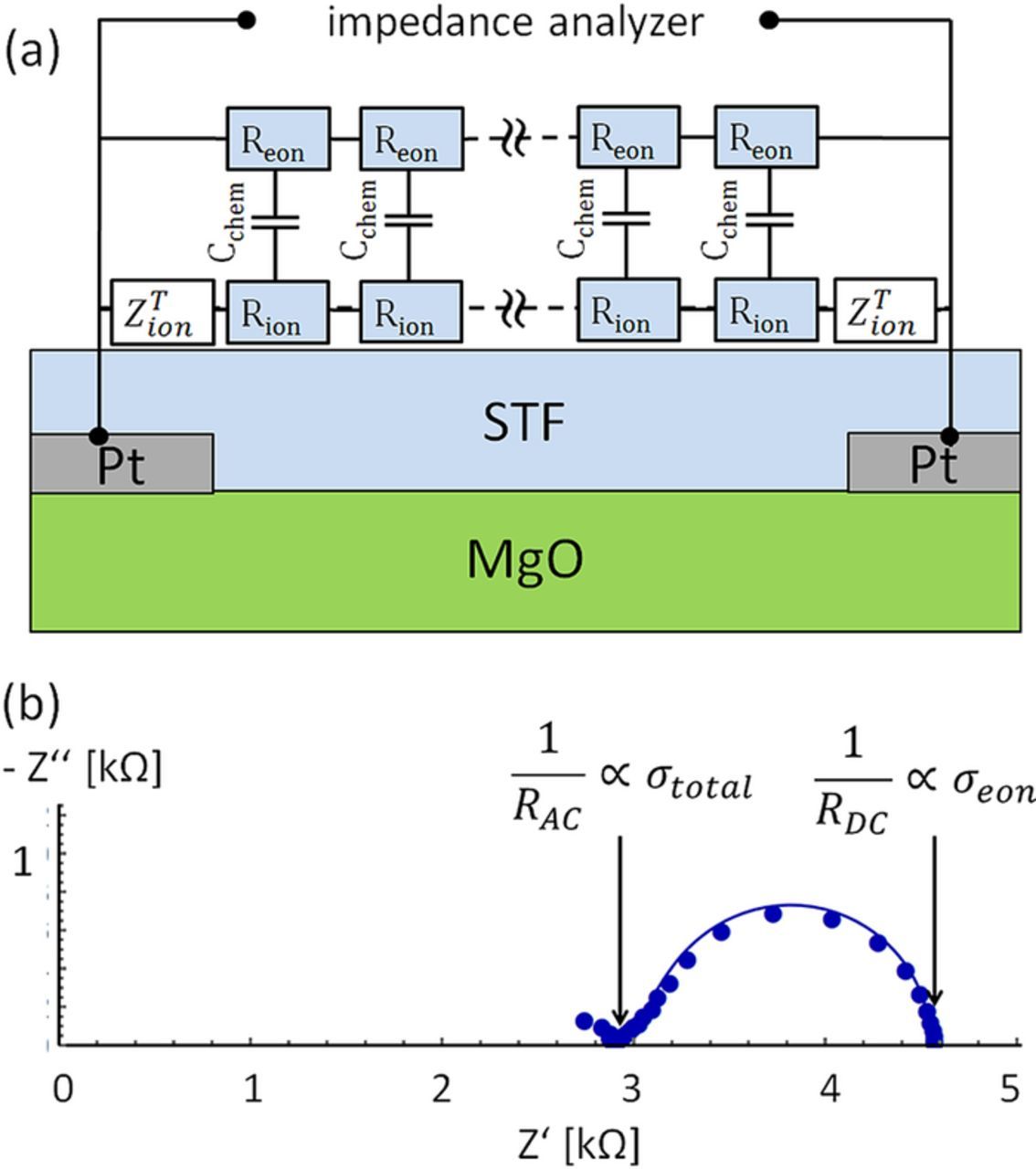

This circuit model for a mixed conducting film on an insulating substrate consists of a transmission line with an ionic (ion) and an electronic (eon) rail, which are coupled via chemical capacitors. This circuit model and its analytic impedance function were derived in Ref. 23, with electronic and ionic terminal impedances still to be specified. Electrons can be reversibly exchanged between STF and current collector, which is treated by a short circuit. Oxygen ions, on the other hand, cannot be exchanged at the current collector interface. The typical treatment of an (ion) blocking electrode would be a capacitor in the ionic rail. However, in our specific case the current collectors are in parallel to the thin film plane. Hence also in-plane migration of oxygen ions on top of the current collector may take place. This is modelled by an open Warburg impedance as terminating element with the impedance function

R_ion is the ionic sheet resistance (resistivity divided by film thickness), C_chem the area-specific chemical capacitance and w_finger the width of the current collecting finger. Although the analytical impedance function of the circuit model in Figure 2a with Z^T_ion from Eq. 1 is rather complex,²³ it includes only three fit parameters (ionic and electronic conductivity, and chemical capacitance), provided the in-plane ionic conductivity and chemical capacitance of the thin film is assumed independent of the substrate (current collector or MgO). Fitting of the in-plane impedance spectra to this equivalent circuit model (performed by minimizing the sum of squared relative errors using Mathematica) yielded the conductivities and capacitances shown in Figure 3 with very small fitting errors.

Zoom In Zoom Out Reset image size

The results are discussed in terms of the following point defect model for STF:^30,32,38 Electronic and ionic conductivity as well as chemical capacitance are governed by the concentrations and mobilities of oxygen vacancies (V^{· ·}_O) and electronic defects. The latter correspond to different oxidation states of Fe, namely Fe²⁺(Fe^''_Ti) and Fe³⁺(Fe'_Ti). The concentration of electron holes (formally Fe^{4 +} = Fe^×_Ti) is negligible in reducing atmospheres. The results presented here, as well as XPS³⁴ and thermogravimetric measurements³⁸ support the treatment of electronic defect states as localized point defects, rather than as electrons in a conduction band.

In the low pO₂ regime, Fe in STF is mainly present as Fe³⁺, and the defect charge is largely compensated by oxygen vacancies, making them the majority charge carrier with a concentration [V^{· ·}_O]  ≈ 0.5[Fe_Ti]. In this defect regime, the concentration of 'electrons' [Fe^''_Ti] as the minority charge carrier should have a simple dependence on pO₂ according to

Most likely, a Fe^''_Ti polaron hopping mechanism causes the electron conductivity (σ_eon). Hence, also the electronic conductivity, which is expected to be proportional to the Fe^''_Ti concentration should exhibit a pO₂^−0.25 dependence. Moreover, the chemical capacitance per cm³ is expected to be proportional to [Fe^''_Ti] via the relation³⁹

where e is the elementary charge and k_b Boltzmann's constant. The atmospheric oxygen partial pressure (pO₂) can be varied via variation of the H₂:H₂O mixing ratio and calculated by the mass action law

Here, Δ_rG⁰ is the Gibbs free energy of hydrogen oxidation at standard pressure.⁴⁰ Already here we note that the effective pO₂ in the electrode bulk can also be varied by application of an overpotential. According to Nernst's equation we get for surface limited oxygen exchange kinetics

The overpotential η of the electrode is calculated from the applied potential by subtracting resistive losses within the electrolyte. Due to the microelectrode arrangement, overpotential losses in the much larger counter electrode are negligible. In line with the presented defect chemical model, the measured ionic conductivity plotted in Figure 3b is (within experimental error) independent of pO₂, and for STF37 it even exceeds the conductivity of the single crystalline 9.5 mol% Y₂O₃ doped YSZ substrates used in this study (0.022 vs 0.009 Scm⁻¹ at 650°C). Oxygen vacancy diffusivities can be calculated by the relation , with the vacancy concentration c_VO being one half of the Fe concentration. We find 1.8*10⁻⁷ cm²/s and 4.8*10⁻⁷ cm²/s for STF73 and STF37, respectively. These values are lower than those typically reported for only slightly doped SrTiO₃⁴³ (between 2*10⁻⁶ and 9*10⁻⁶ cm²/s at 650°C). This is most probably due to defect interaction which lowers the mobility with increasing defect concentration. However, is close to the values found in other good oxide ion conductors with high vacancy concentration, such as the YSZ substrates used here (5.5*10⁻⁷ cm²/s), or 20% Gd-doped ceria⁴² (1.3*10⁻⁶ cm²/s). The measured increase of the vacancy mobility with higher Fe concentration might be surprising at first sight; in highly doped zirconia or ceria, for example, the vacancy mobility decreases with increasing doping concentration.^41,42 This effect of high Fe concentration in STF is most likely caused by the dependence of the migration barriers of a vacancy jump on the specific nearest neighbor cation configuration, with Fe presumably lowering this barrier.

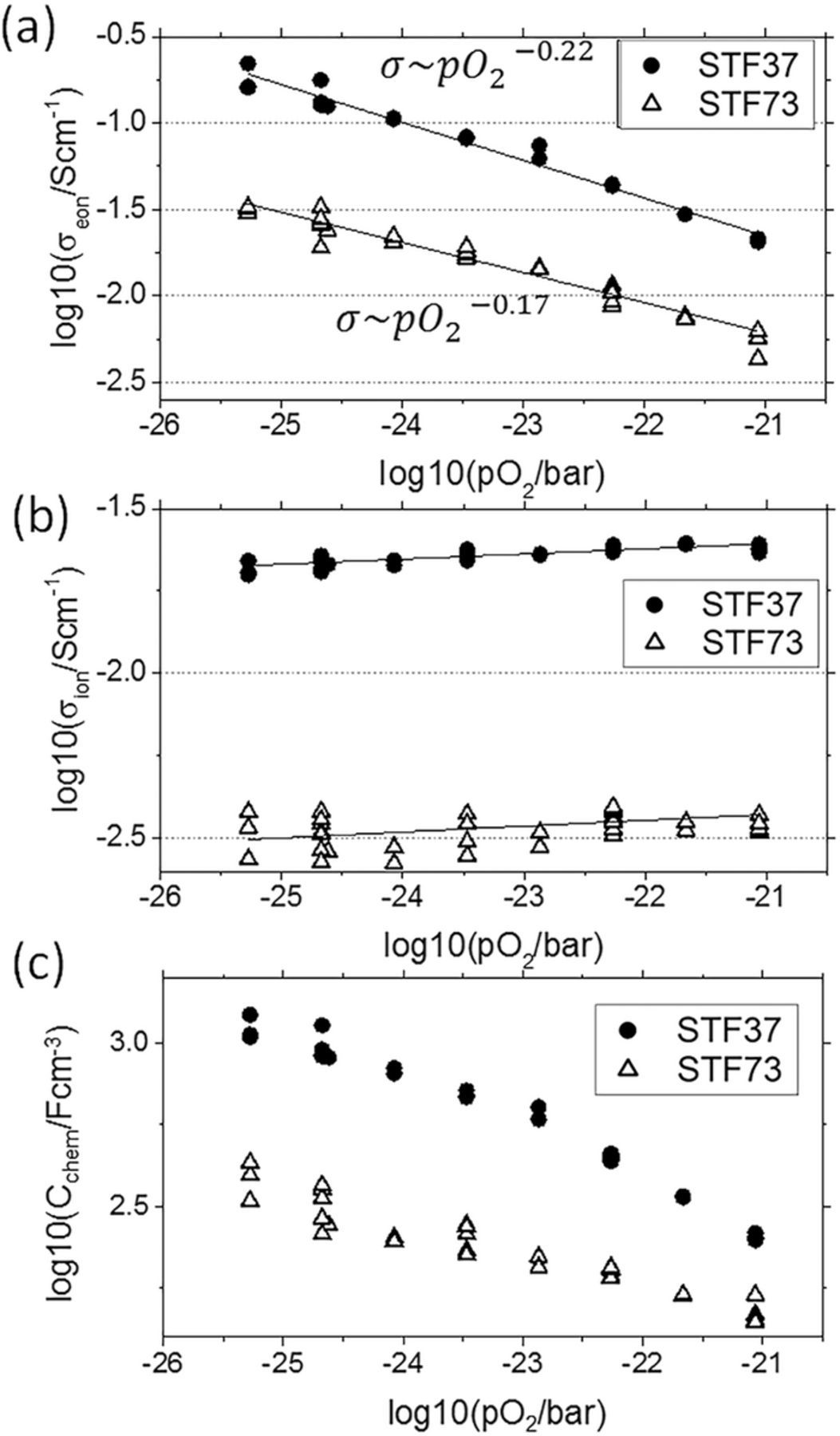

Figure 3a shows the electronic conductivity for STF37. The increase of conductivity for lower pO₂ is in agreement with the defect model discussed above, but the slopes are slightly flatter than expected from the model: σ_eon ∼ pO^{− 0.22}₂ is found for STF37 and σ_eon ∼ pO^{− 0.17}₂ for STF73. These differences may be caused by defect-defect interactions. The total conductivity of the measurements presented here (including the slightly flatter slopes) also matches the (total) conductivity vs. pO₂ curves of sintered STF³² pellets with similar Fe content, when the slightly different temperature (750 vs 650°C) is accounted for.

Also the chemical capacitance (Figure 3c) qualitatively follows the defect chemical model. However, the fitting values may be not very accurate, especially when the ionic transference number is small and thus the "arc" in the impedance spectrum is very small compared to the high frequency intercept (R_AC). A more reliable measurement of the chemical capacitance by fitting impedance spectra in the electrochemical mode is therefore given in section Oxygen partial pressure dependence of Fe oxidation states.

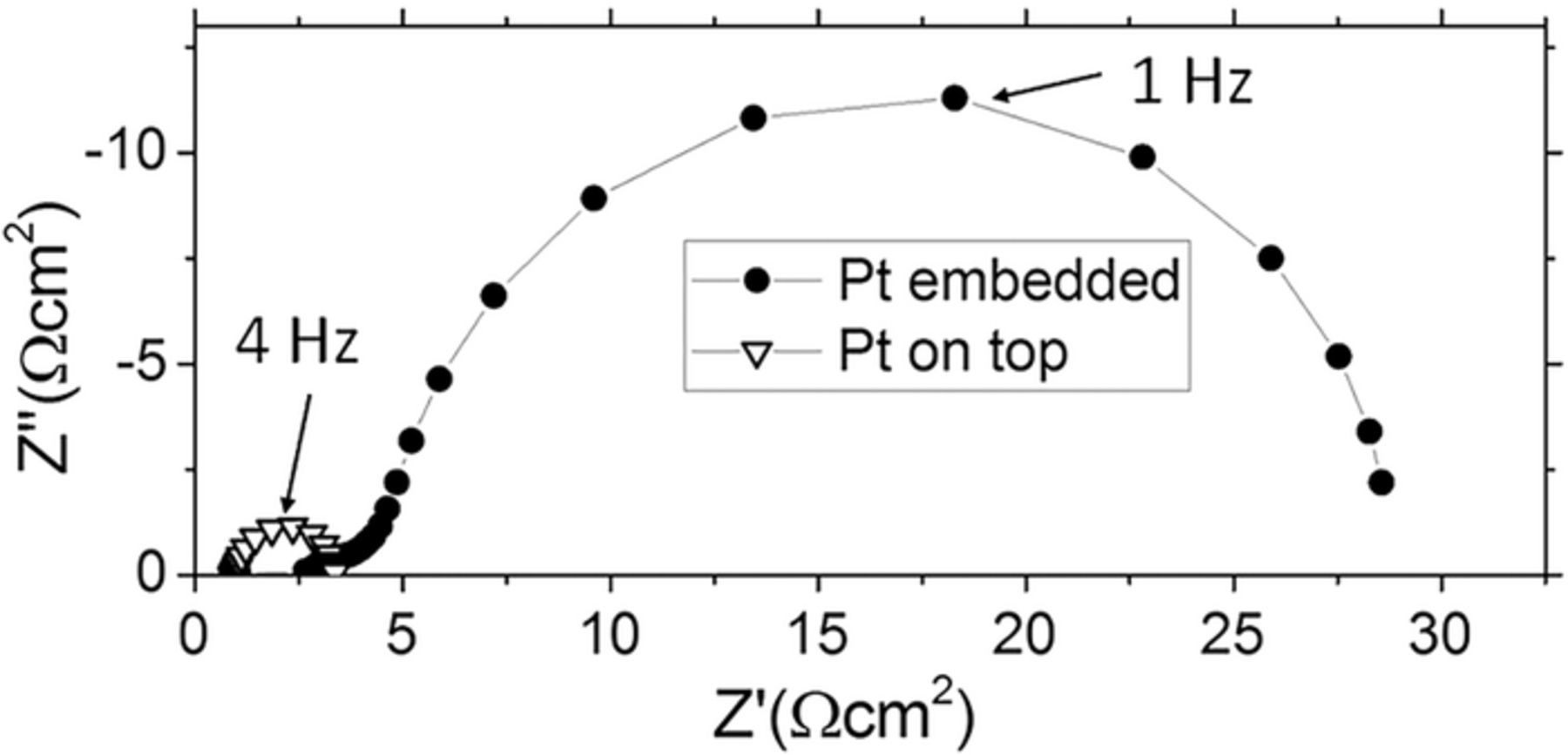

The area-specific resistance (ASR) of the surface reaction was investigated on STF37 microelectrodes with current collectors either on top or beneath the STF thin film, see sketches in Figures 1a, 1d. Exemplary electrochemical impedance spectra of STF37, measured at 650°C in pH₂ = 25 mbar and pH₂O = 18 mbar, are given in Figure 4. The difference in the high frequency offset in Figure 4 is caused by normalization to different electrochemically active areas. Circuit models elaborated in Ref. 4 for different current collector positions may explain the slightly different shape of the two impedance spectra due to different ion conduction paths. The following measurements, however, show that also the mechanism of oxygen exchange depends on the placement of the current collector.

Zoom In Zoom Out Reset image size

When the current collector is placed on top of the electrodes, a part of the STF film is covered by Pt. Mapping of ¹⁸O exchange on similar electrodes revealed that the Pt film is not permeable for oxygen and therefore reduces the electrochemically active area of the STF electrode.²⁶ At the triple phase boundary (TPB), however, the oxygen exchange is catalyzed by the platinum,^42,44 causing the much smaller electrode arc with Pt on top. The contributions of the STF surface and the TPB can be separated by measuring electrodes of all 9 geometries shown in Figure 1e. The area-specific resistances of the electrodes were determined by fitting the dominant low frequency arc of the impedance spectra with a resistor (R_pol) in parallel to a constant phase element due to the chemical capacitance (CPE_chem) and normalizing the resistance to the atmosphere-exposed STF area. The TPB density was calculated by dividing the circumference of the current collectors (given from the photomask) by the atmosphere-exposed STF area. Although electronic and ionic charge transport may have a significant impact on the impedance of STF thin film electrodes,⁴ we can show that R_pol measured on the electrodes investigated here is mainly caused by the surface reaction (see below).

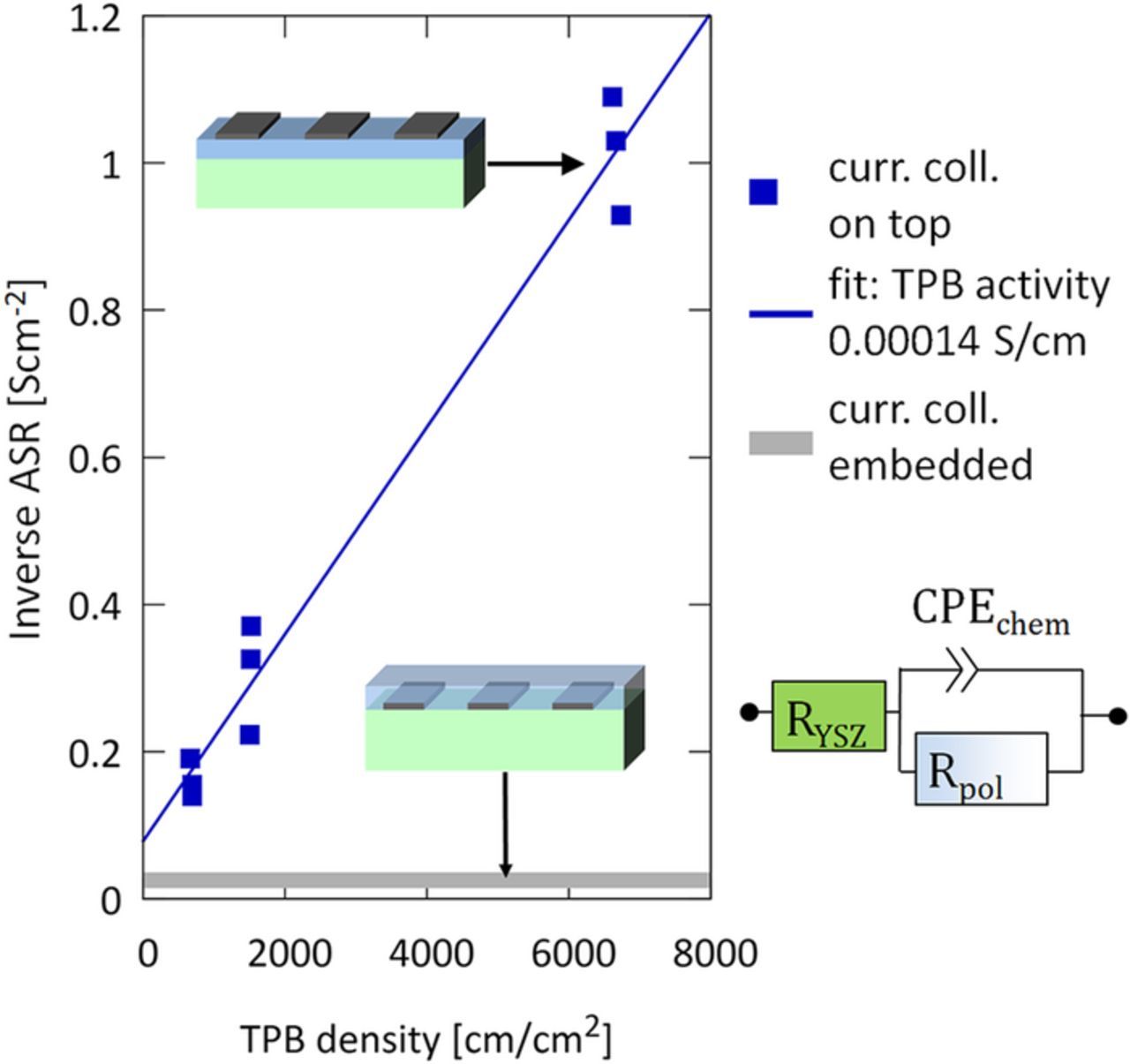

When plotting the inverse of this resistance against the TPB density of the electrode, the contributions from different reaction paths (STF surface vs TPB) can be separated by a simple linear regression, see Figure 5. The effect of the TPB density on the electrochemical activity of the surface is very pronounced and a length-specific activity of 0.00014 S/cm or 7000 Ωcm can be estimated. For comparison, Ni-YSZ anodes typically exhibit 10–100 times lower TPB activity⁴⁵ at the same temperature.

Zoom In Zoom Out Reset image size

Recently, isotope exchange⁴⁶ on thin film electrodes and electrochemical measurements on porous⁴⁷ electrodes showed that the hydrogen oxidation rate on various oxide anodes, including STF37, is limited by hydrogen adsorption. The adsorption limitation is especially important for the conditions used in the present measurements – temperatures below 800°C and relatively low pH₂. It was further shown in Ref. 47 that a catalytic metal on the oxide surface promotes hydrogen dissociative adsorption, with subsequent "spillover" of H atoms from the metal onto the oxide surface. A spillover mechanism can also explain why the 5 nm Ti adhesion layer does not strongly impede the TPB effect. Note that the hydrogen oxidation process at Ni-YSZ TPBs is often modeled using a similar mechanisms with hydrogen spillover from Ni onto YSZ.⁴⁸ Superior H₂ dissociation kinetics of Pt and/or a larger active zone for electrochemical reduction of spillover species can explain the much higher performance of Pt/STF compared to Ni/YSZ TPBs.

On samples with embedded current collectors of different geometries, i.e. electrodes which do not have atmosphere-exposed platinum, the inverse ASR of the two-phase surface reaction is 0.026 ± 0.012 Scm⁻² (39 ± 20 Ωcm²). Significant variance of the area-specific resistance even on geometrically identical electrodes on the same substrate causes a comparatively large standard deviation. Statistical errors may be also the reason why the linear fit in Figure 5 does not exactly meet the inverse ASR of STF electrodes with embedded current collectors at zero TPB density.

For embedded current collectors a further data analysis is possible. As elaborated in Ref. 4, the ASR and the in-plane conductivity shown in Figure 3 can be used to calculate the characteristic in-plane charge transport length L_c

where d_STF is the thickness of the STF film, and σ is either the electronic (for electronic in-plane charge transport in STF on YSZ), or the ionic (for in-plane ionic charge transport in STF on top of the current collectors). When either the distance or width of the current collectors is larger than L_c, the electrode is not homogeneously active for electrochemical oxygen exchange and the ASR increases, due to limiting in-plane conductivity. Using the conductivity and ASR_surface observed in a 1:1 H₂:H₂O mixture for STF37, this length is 25 ± 10 μm for ions and 45 ± 10 μm for electrons. Therefore, in-plane charge transport losses play only a minor role in our study. On electrode geometries with the largest current collector separation and width of 30 μm, in-plane losses may contribute significantly to the total polarization resistance, but the abovementioned strong ASR scatter even on geometrically identical electrodes prevails a clear identification or disproof of this effect.

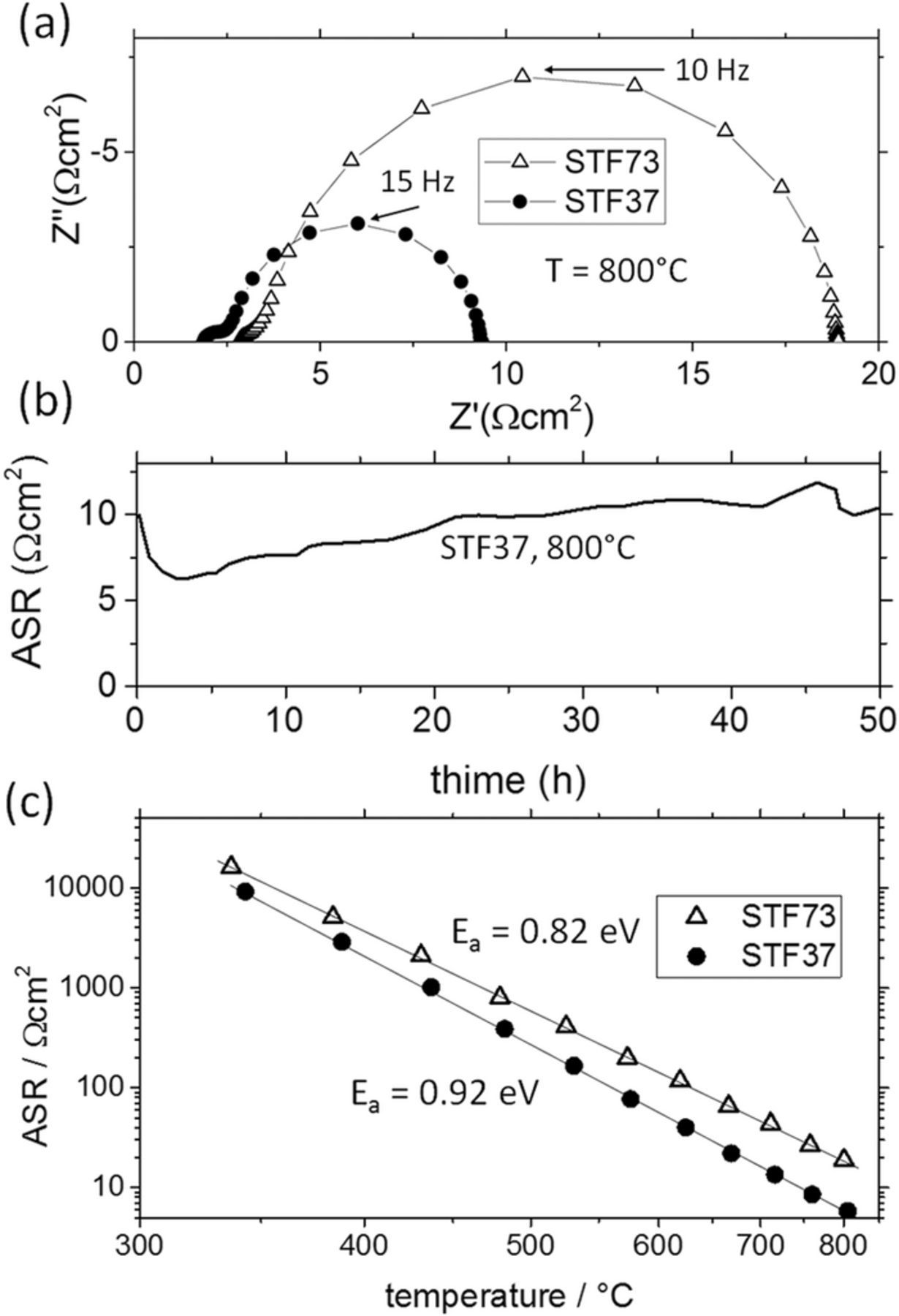

The temperature dependence of the area-specific resistance of the surface reaction was investigated in more detail using symmetrical model cells with "macroscopic" 5 × 5 mm² model electrodes, as sketched Figure 1c. A TPB-free, embedded current collector grid with small feature size (11 × 11 μm² holes and 4 μm stripes) was used to ensure homogeneous polarization of the entire STF film and negligible in-plane charge transport resistances due to the small in-plane length scales. Hence, the diameter of the electrode arc seen in Figure 6a is a measure for the ASR, which is relatively stable over time, as shown in Figure 6b. Temperature dependent measurements in 25 mbar H₂ + 25 mbar H₂O therefore deliver reliable values for the activation energy of the ASR. At 800°C the ASR of STF37 is roughly half as large as for STF73, see Figure 6a. The better performance for higher Fe content is in line with studies using STF as a cathode material¹⁷ and studies using porous STF-GDC composite anodes.¹¹ Activation energies extracted from the Arrhenius plots in Figure 6c are below 1 eV in both cases (0.82 eV on STF73 and 0.92 eV on STF37). Such values are in the range of other mixed conducting hydrogen electrode materials, such as ceria,^49,50 but they are very low, compared to the activation energy of O₂ reduction reaction on STF (nearly 2 eV¹⁷). This difference highlights the mechanistic difference between oxidizing and reducing oxygen exchange.

Zoom In Zoom Out Reset image size

These results can be compared with recent data from SOFCs with porous STF37 anodes.⁴⁷ Although an ASR activation energy was not provided in ^Ref.47, the temperature dependence of the ASR values suggests a similar activation energy.   The main porous STF37 anode response appears at a few Hz, similar to the value shown here. Finally, the ASR due to oxygen surface exchange at 750°C in Figure 6c, 9 Ωcm², can be compared with the ASR of 0.85 Ω cm² measured under the conditions in Ref.⁴⁷ closest to the present conditions – 750°C, 100 mbar H₂, and 30 mbar H₂O. From the electrochemical data of the thin film, the ASR of a porous electrode can be calculated by using a transmission line circuit model⁵¹ and microstructural data from 3D tomography:⁴⁷

In Eq. 7 R_surf is the surface-specific oxygen exchange resistance (9 Ωcm² according to our thin film measurements), L is the electrode thickness (9 μm), a is the anode surface area (1.6 μm⁻¹), and σ_ion,eff the STF effective ionic conductivity (the conductivity given in Figure 3, 0.022 S/cm, times the anode solid fraction, 0.77, and divided by the solid-phase tortuosity, 1.1). The resulting ASR value of 0.64 Ω cm² is in fair agreement with the porous electrode value in Ref. 47. Although there is significant uncertainty in estimating the effective ionic conductivity of the porous electrode, due to different temperature and microstructure of electrodes in the two types of experiment, this only has minimal impact on the projected ASR, which is mainly caused by the surface reaction (ASR ≈ R_surf/aL).

Further insight into the defect chemistry and thermo-chemical stability of STF was gained from impedance measurements on STF microelectrodes as sketched in Figure 1a. Changing the H₂:H₂O mixing ratio at constant total pressure (pH₂ + pH₂O = 25 mbar) resulted in an atmospheric oxygen partial pressure range of 10⁻²¹ to 10⁻²⁵ bar at 650°C. Electrochemical impedance spectra were measured on microelectrodes with a current collector separation of 15 μm (for experiment geometry see Figure 1a) and fitted to the simplified equivalent circuit in Figure 5. The chemical capacitance determined from this fit is plotted in Figure 7a. Chemical capacitance and polaron concentration [Fe²⁺] on the left and right Y-axes are linked by Eq. 3.

Zoom In Zoom Out Reset image size

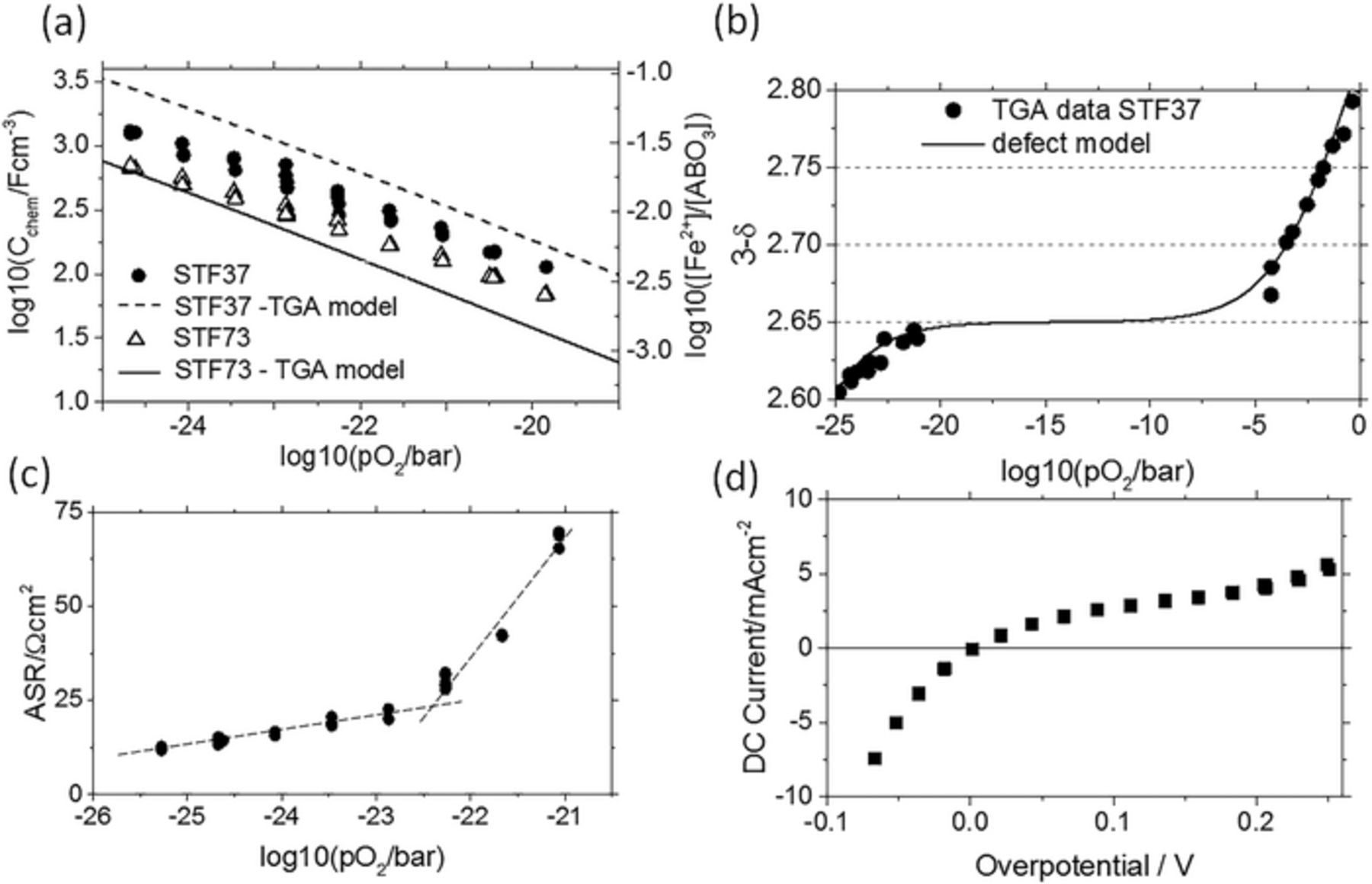

Also thermogravimetric analysis (TGA) can be used to determine a polaron concentration. Thermogravimetric analysis (TGA) of STF37 powder was performed at 650°C. The measured data are shown in Fig. 7b and fitted to the defect chemical model for an acceptor-doped mixed conductor from Ref. 37. The resulting polaron concentration is shon in Fig. 7a (dashed line). Moreover, values determined from TGA literature data for 35% Fe-doped STF³⁸ are shown (solid line). Even though differences between Fe²⁺ concentrations of STF37 and STF73 are somewhat larger for TGA data, there is good agreement of the absolute values as well as of the pO₂ dependence of thin film chemical capacitance and thermogravimetric data. The moderate mismatch of TGA and impedance-derived nonstoichiometry may be caused by the methodology, but can also originate from the higher density of interfaces in the polycrystalline thin films. We conclude that both methods deliver reliable information on the types and concentrations of electronic and ionic defects.

The mobility of a charge carrier x (μ_x) can be calculated from the conductivity (σ_x) and concentration (c_x) of the charge carrier via σ_x = z_xeμ_xc_x. The data plotted in Figure 3a and Figure 7a therefore allows the estimation of the electron mobility. We obtain μ_eon ≈ 6*10^{− 4}cm²V^{− 1}s^{− 1} for STF73 and μ_eon ≈ 1.4*10^{− 3}cm²V^{− 1}s^{− 1} for STF37 at 650°C. These values are only two orders of magnitude larger than the oxygen vacancy mobility at 650°C, calculated from Fig. 3b and [V^{· ·}_O] ≈ 0.5[Fe_Ti] (μ_ion ≈ 4.6*10^{− 6}cm²V^{− 1}s^{− 1} for STF73 and μ_ion ≈ 1.2*10^{− 5}cm²V^{− 1}s^{− 1} for STF37). The rather low mobility of electronic defects supports the model that those are localized to Fe²⁺ ions; this was already suggested by ambient pressure XPS.³⁴ Most likely, electron transport in STF is similar to the thoroughly investigated Ce³⁺ polaron conduction in ceria, where polaron mobilities are almost the same as for STF.^52–54

The redox activity of iron also plays an important role for explaining the pO₂ dependence of the surface ASR and the DC characteristics of STF37 electrodes shown in Figures 7c–7d. In a previous ambient-pressure XPS study, the exsolution of Fe⁰ on the surface of STF73 and La_0.6Sr_0.4FeO_3-δ electrodes was observed during cathodic polarization in 1:1 H₂:H₂O atmosphere.³⁴ This Fe0 formation was accompanied by strongly increased electrochemical water splitting kinetics. Improvement of the hydrogen electrode performance by exsolution of easily reducible transition metals was also demonstrated on various (La,Sr)TiO₃ based materials,^9,55,56 (La,Sr)FeO_3-δ,³³ (La,Sr)CrO_3-δ based materials,^57–60 and rare earth vanadates.⁶¹ Decreased anode polarization resistance in cells with (La,Sr)(Cr,Ru)O_3-δ anodes was quantitatively modelled by enhanced hydrogen dissociative adsorption at exsolved Ru nanoparticles.⁴⁷

Here, the extent and electrochemical implications of Fe exsolution from STF were further investigated. STF thin films on YSZ were reduced at 650°C or 800°C for 5 hours in 25 mbar H₂ + 0.6 mbar H₂O, which is sufficiently reducing for metallic Fe to be stable compared to Fe oxide.⁴⁰ As shown by the SEM images in Figure 8, (metallic) particles can be clearly observed on STF37 after reduction at 650°C. At 800°C, these particles are much larger and the roughening of the remaining STF37 surface even suggests volume decomposition. STF73, on the other hand, appears more stable, and thermally induced Fe exsolution was not observed in SEM.

Zoom In Zoom Out Reset image size

The exsolved Fe particles are metallic in hydrogen rich atmospheres and become oxidized, or may be again incorporated in the perovskite lattice, in water rich atmospheres. This can explain the change of the slope in the ASR vs log(pO₂) plot and the steeper increase of the ASR in less reducing atmospheres shown in Figure 7c. Such a pronounced change in the pO₂ dependence of the ASR was absent on STF73 (not shown). This is in line with the SEM images in Figure 8, which do not show any evidence for Fe⁰ particles. Additionaly, a less reducing atmosphere also implies a smaller H₂ pressure in the atmosphere (the sum of pH₂+pH₂O is kept constant). Since we assume that H₂ adsorption/dissociation, is rate limiting, the low H₂ pressure probably also influences ASR increase in the higher pO₂ regime in Figure 7c.

The catalytic effect of Fe° can also explain the untypical current-voltage characteristics in hydrogen-rich conditions depicted in Figure 7d. Two DC sweeps were recorded at 650°C in a H₂:H₂O mixture of 12:1. The curve becomes rather steep for cathodic overpotential and shallow under anodic overpotential. This behavior cannot be fitted by the sum of two exponential curves, i.e. by a kind of Butler-Volmer type kinetics. In accordance with Eq. 5, the overpotential affects the oxygen chemical potential or effective partial pressure pO^eff₂ in the electrode. In line with an ambient-pressure XPS study³⁴ and the SEM images in Figure 8, metallic Fe nanoparticles are therefore expected at open circuit potential and particularly upon cathodic polarization. Those particles increase the water splitting capability and this probably causes the cathodic current increase. During anodic polarization, the particles become reoxidized and the U-I curve is shallow. The high reproducibility of the ASR and chemical capacitance values during pO₂ or bias cycles at 650°C and the absence of any hysteresis suggest that Fe⁰ precipitates mainly in near-surface regions while the bulk remains primarily in the perovskite phase.

However, at 800°C conductivity and ASR measurements become irreproducible in hydrogen rich conditions (not shown) and also SEM images (Figure 8) indicate decomposition of STF37. This supposed decomposition of STF37 at 800°C seems to be in contradiction with the chemical stability observed for STF-GDC composite anodes in 0.97+0.03 bar H₂+H₂O at 800°C.¹¹ There, however, the electrodes were tested in an electrochemical cell operating at 0.7 V and thus during anodic polarization of the STF electrode. The anodic overpotential increases the chemical potential of oxygen in the anode bulk (or pO^eff₂) compared to the atmosphere and stabilizes the perovskite phase. Overall, these results indicate that the exsolution of metallic Fe from STF can strongly increase the electrode kinetics, but only occurs under conditions that are very close to decomposition of the perovskite phase.
