Enhanced Electrocatalytic Oxidation of Formic Acid on Au(111) in the Presence of Pyridine

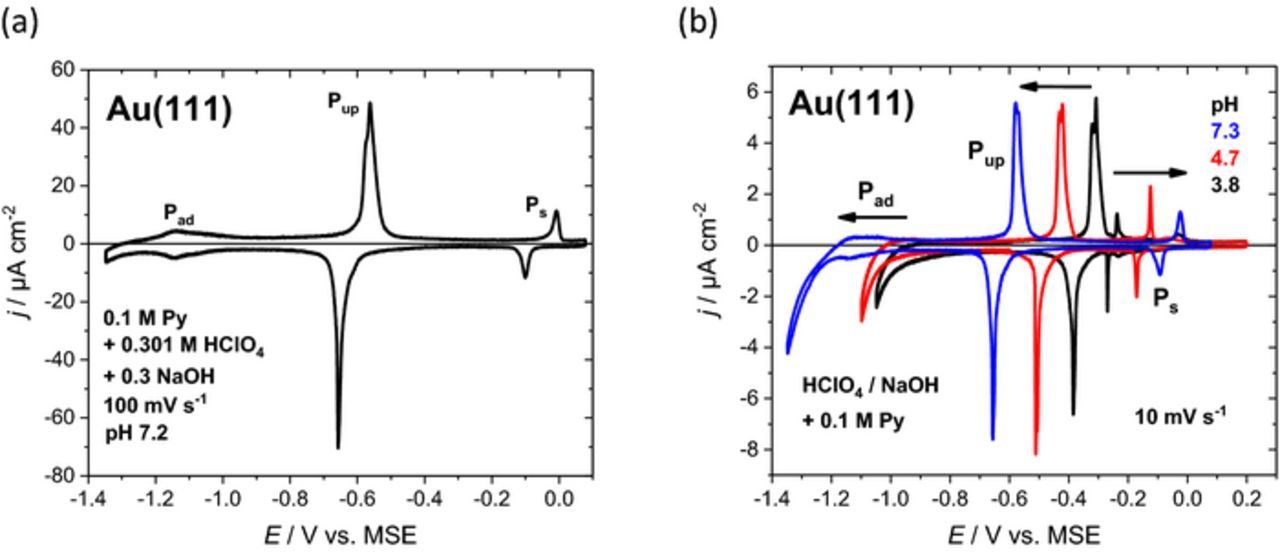

Figure 1a depicts a typical cyclic voltammogram for Au(111) in 0.301 M HClO₄ + 0.3 M NaOH + 0.1 M pyridine at pH 7.2 and 100 mV s⁻¹. A broad peak P_ad between −1.2 and −1.0 V indicates adsorption of pyridine¹³ on the reconstructed Au(111) surface in a flat configuration, where the π-electrons of the aromatic ring interact with the surface.^19,20 Orientation of pyridine changes at peak P_up around −0.6 V, where an upright configuration has been reported.¹³ Pyridine is then bound to the (1 × 1) surface via its N atom. The relatively large charge density of around 20 μC cm⁻² for P_up is related with a substantial shift of the potential of zero charge by −0.6 V.¹³ Peak P_up is composed of several contributions giving rise to shoulders and spikes, especially for lower scan rates. However, in the following, these details shall not be taken into account, but rather the stability of various surface phases of pyridine shall be discussed. A further peak P_s close to 0 V (Figure 1a) corresponds to another phase transition were the adsorption of a second layer of pyridine had been suggested.²¹ It will be shown below that process P_s is related to the presence of both pyridine and perchlorate. In any case, the anodic and cathodic parts of P_up and P_s show a marked peak-to-peak separation for the different scan directions.

Zoom In Zoom Out Reset image size

In Figure 1b, a series of cyclic voltammograms for different pH values is shown. The various peaks P_ad, P_up and P_s indicating changes in the adsorption structures of pyridine on Au(111) are distinctly pH-dependent. For P_ad and P_up a shift toward more negative potentials for pH values increasing from 3.8 to 7.3 can be observed. However, for peak P_s the opposite behavior is observed. This process shifts to more positive potentials with increasing pH. For pH > 9 those two peaks are accompanied by the commencing surface oxidation of Au(111) and at pH 12 they are not present anymore. In all three cases, no further potential shifts have been observed for pH values higher than 6, where the solution contains pyridine in the unprotonated form (pK_a = 5.23).

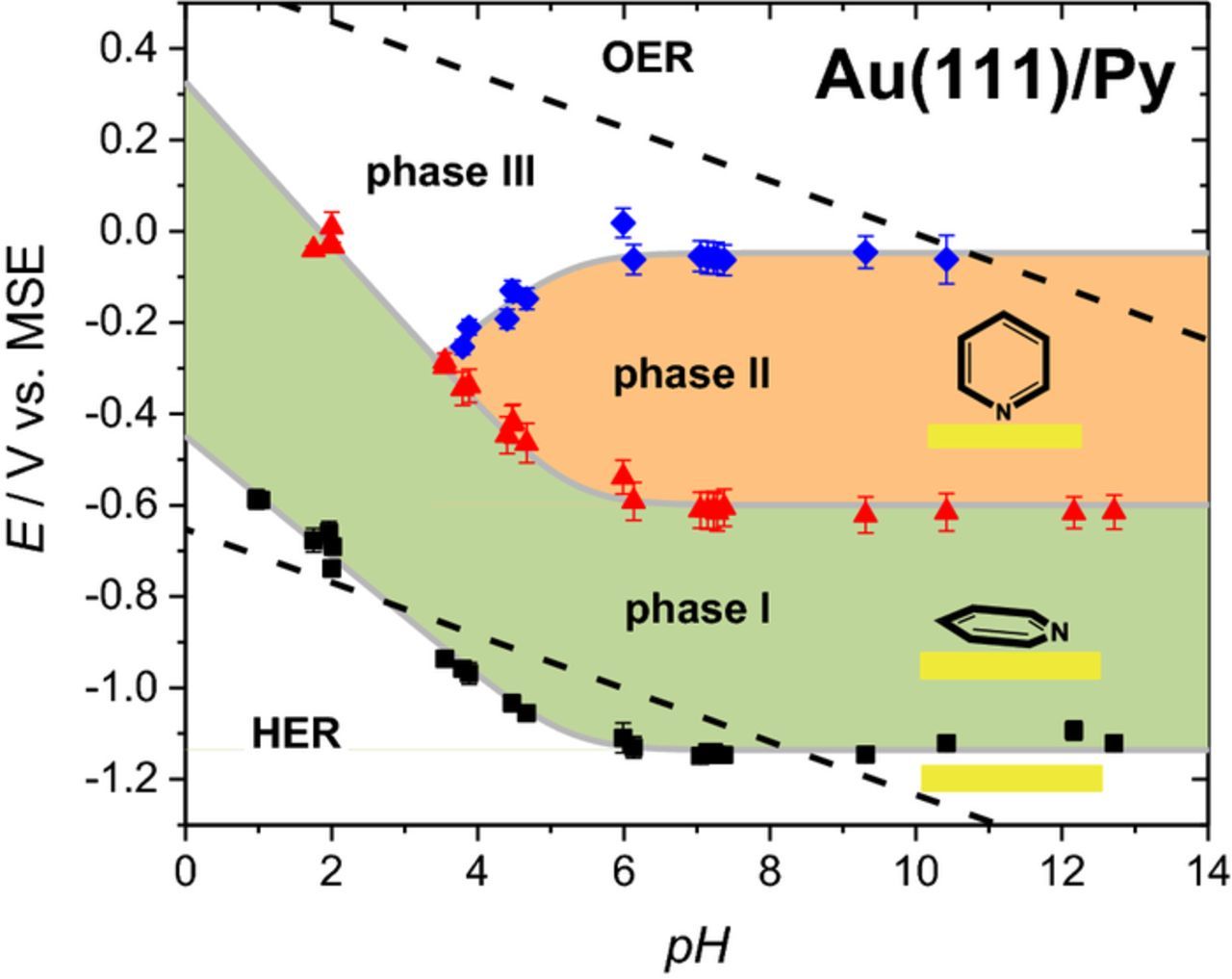

A systematic series of measurements in a wide pH range has been performed in addition to the data given in Figure 1. From the positions of the different peaks, P_ad, P_up and P_s, a potential/pH diagram for pyridine adsorption on Au(111) has been derived (Figure 2). In general, cyclic voltammograms with a scan rate of 10 mV s⁻¹ were used for the potentials of P_up and P_s. Higher scanrates were chosen to better identify P_ad, because pyridine adsorption overlaps with the hydrogen evolution reaction (HER). The potential/pH diagram in Figure 2 contains information about these voltammetric peaks for 25 experiments of pyridine adsorption on Au(111) at various pH values between 1 and 13. For the individual data points, "error bars" indicate the peak-to-peak separation for anodic and cathodic peaks of the individual processes.

Zoom In Zoom Out Reset image size

Between the reversible potentials for the HER and the oxygen evolution reaction (OER), various stable phases for pyridine on Au(111) can be classified.

• Phase I: Pyridine adsorbs in a flat orientation on the reconstructed surface and is bound mainly through the π-system of the aromatic ring. The coverage is around 0.06 ML¹³ and DFT calculations suggest a certain small tilt angle of the molecule relative to the Au(111) surface.²²
• Phase II: After a gradual change from flat to vertical orientation which is related to shoulders and spikes within the main peak P_up, pyridine is now σ-bonded via the nitrogen to the Au(111) surface.¹⁵ The coverage has increased to about 0.3 ML.¹³ The relatively high peak charge density of P_up arises from a substantial shift in pzc.¹³
• Phase III: The coverage and the orientation of pyridine only slightly change, while anion adsorption takes place and the Au(111) surface reconstruction is lifted.²³

It is expected that the potentials of phase boundaries do not change with pH, because pyridine as neutral molecule does not involve the transfer of protons. The pH dependence of the peak potentials below pH 6 is assumed to be mostly connected to the lower concentration of unprotonated pyridine in solution. The diagram in Figure 2 for 0.1 M pyridine solutions thus reflects a concentration effect with slopes dE/dpH for P_ad: −0.12 to 0.13 V dec⁻¹, P_up: −0.18 V dec⁻¹ and P_s: +0.13 V dec⁻¹. Knowledge of this behavior is crucial for understanding the electrooxidation of formic acid in presence of pyridine in the pH range studied.

The effect of pyridine on the electrocatalytic formic acid oxidation is very strongly dependent on pH, as will be discussed in the following and as shown in Figures 3–5. Already before adding pyridine to the system, the formic acid oxidation shows a distinct intrinsic pH influence (red curves in Figures 3–5).^9,10 The maximum current density of the bell-shaped oxidation peak increases with increasing pH until an activity plateau is reached for pH > 5. Different pH regimes of enhancement can be identified, depending on the effect of 0.1 M pyridine (Py) on HCOOH oxidation. It should be noticed that adequate amounts of HClO₄ and/or NaOH were also added together with pyridine in order to keep the solution pH constant for sake of comparison (blue curves in Figures 3–5). This has other consequences, because anion effects play a central role in formic acid oxidation on Au(111) with and without adsorbed pyridine, as will be discussed below. For very low and very high pH values the enhancement effect of pyridine is much less pronounced than for the intermediate region 2 < pH < 10 (see below). At first, the two former regions shall be discussed, before the strong enhancement is addressed.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

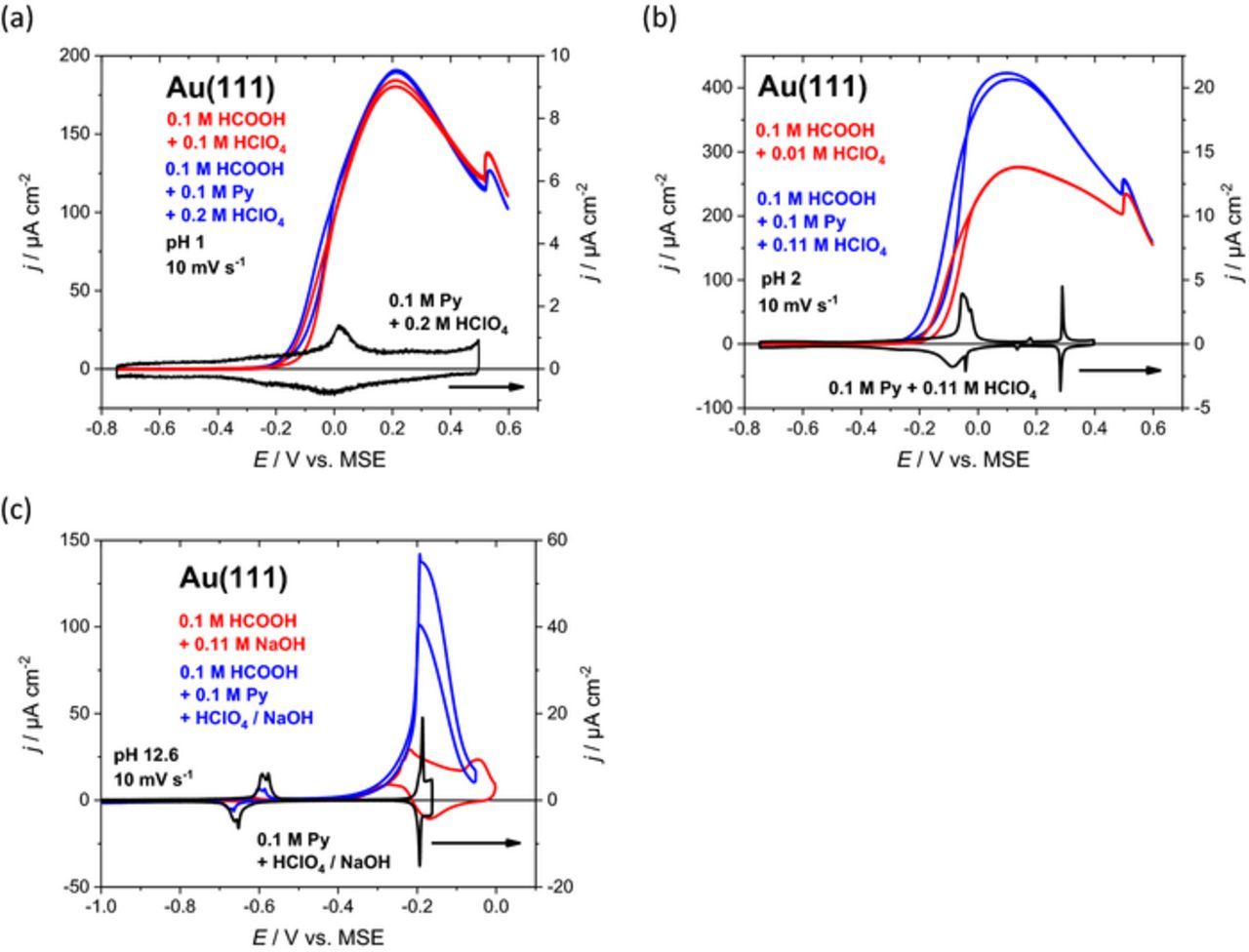

pH 1: Addition of 0.1 M pyridine shows little effect on HCOOH oxidation (Figure 3a, blue curve; red curve without pyridine for comparison). It seems that the pyridinium cation, which is dominating in solution does not interact strongly with the Au(111) surface. The black curve in Figure 3a shows a cyclic voltammogram for Au(111) in 0.2 M HClO₄ + 0.1 M pyridine, with no characteristic pyridine peaks as for higher pH values. The surface reconstruction is lifted around 0 V. The molar fraction of unprotonated pyridine is quite small and therefore shows little effect and no characteristic pyridine peaks under these conditions. Essentially, the well-known bell-shaped formic acid oxidation curve including the characteristic step-up in current due to a phase transition within the strongly bound formate adlayer¹¹ at around 0.52 V is observed with and without pyridine in solution (red and blue curves in Figure 3a). The slight hysteresis in electrocatalytic activity between −0.2 and −0.05 V is caused by reconstruction phenomena,²⁴ the reconstructed surface being less active for formic acid oxidation than the (1 × 1) surface.

pH 2: The onset of formic acid oxidation is only slightly shifted toward more negative potentials after adding 0.1 M pyridine to the solution (red and blue curves in Figure 3b). In this low potential region, the electrocatalytic enhancement is quite pronounced but diminishes with increasing potential until the oxidation curves merge at potentials above 0.5 V, where the presence of the characteristic current kink suggests that strongly bound formate dominates the interfacial adlayer. This observation indicates that adsorbed pyridine is displaced by strongly bound formate at sufficiently high potentials. The current density reaches a maximum of more than 400 μA cm⁻² at a potential where pyridine itself adopts the vertical orientation on Au(111). The base system Au(111) in 0.1 M pyridine + 0.11 M HClO₄ yields a peak at −0.05 V corresponding to the formation of the vertical pyridine structure. However, in the presence of HCOOH there is no clear indication of this phase transition within the pyridine adlayer. A closer inspection of the electrocatalytic current densities with and without pyridine shows an enhancement of about 50% in the potential region between −0.1 V and 0.2 V, which decreases gradually for increasing electrode potentials (Figure 3b). It is assumed that a mixed pyridine + formate adlayer is formed with gradual increase in anion coverage at E > 0.2 V. At lower potentials, negative of peak P_up, the electrocatalytic enhancement is clearly larger than 50%, which shows that the flat orientation of pyridine with the low coverage reveals a real boosting effect under these experimental conditions.

It can be summarized (i) that pyridine in the flat orientation promotes the FAO more strongly than the vertical orientation and (ii) that coadsorption of anions diminishes the boosting effect of adsorbed pyridine (specific adsorption of spectator species leads to blocking of active centers already in the absence of pyridine).¹¹ For pH 2, the molar fraction of unprotonated pyridine is around 10⁻³ leading to an effective concentration of 0.1 mM, which is enough to enhance the electrocatalytic activity by 50% at the current maximum.

pH 12: The oxidation reaction commences in the same potential region after adding 0.1 M pyridine (red and blue curve in Figure 3c). In this case, the vertical orientation of pyridine is already present and the electrocatalytic activity is at first only slightly increased. Sharp oxidation peaks with substantially increased current densities occur for both scan directions around −0.2 V. It is supposed that OH adsorbs on Au(111) above −0.2 V (see black curve in Figure 3c). Adsorbed pyridine shifts surface oxidation toward slightly more positive potentials, which allows for a FAO enhancement in a narrow potential region. This means that adsorbed pyridine unmasks the intrinsic FAO activity of Au(111) by a small shift of OH adsorption toward more positive potentials.

The intermediate pH region (2 < pH < 10) shows a dramatic enhancement of formic acid oxidation after adding 0.1 M pyridine (blue curves in Figures 4a+4b and 5a–5c). In these cases, pyridine is in its vertical adsorption configuration already, when the oxidation of formic acid commences. For pH values below pK_a of pyridinium (5.23), i.e. for low concentrations of unprotonated pyridine, there are relatively sharp FAO current maxima at about 0.05 V before the enhancement breaks down at positive potentials, where the boosting effect of pyridine vanishes and curves with and without pyridine merge (blue and red curves in Figures 4a+4b). It is also observed from the inset of Figure 4a that the phase formed positive of peak P_s at −0.25 V is less active than the vertical pyridine phase formed at peak P_up, since the oxidation current density decreases with increasing potential. It can be concluded that FAO activity is influenced by the presence of both pyridine and perchlorate, which gives rise to process P_s. While it typically belongs to the weakly adsorbing anions, it is surprising that perchlorate lowers the electrocatalytic activity in alliance with adsorbed pyridine.

Zoom In Zoom Out Reset image size

Though the orientation and the surface coverage of adsorbed pyridine on Au(111) are strongly dependent on pH and electrode potential (Figure 2), the stability range of the individual surface phases can be shifted by varying the pyridine concentration by ca. 0.15 V dec⁻¹.¹⁴ Since the flat pyridine configuration was identified to be more active than the vertical orientation (see above), it was attempted to shift peak P_up toward more positive potentials by lowering the pyridine concentration.

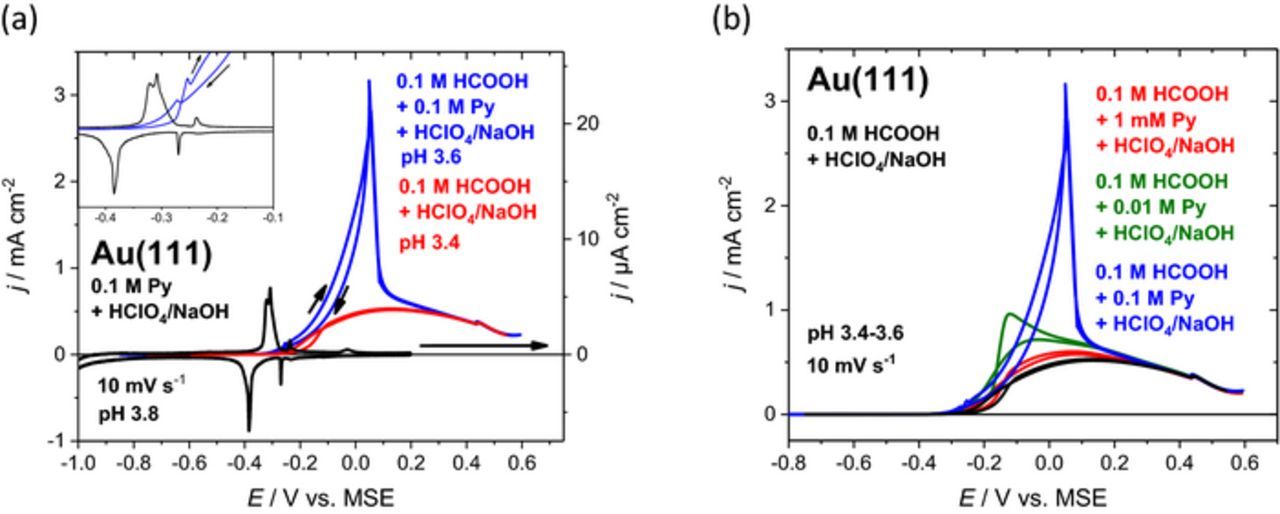

The dependence of the formic acid oxidation on pyridine concentration is displayed in Figure 4b at 10 mV s⁻¹ and at an almost constant pH of 3.5 ± 0.1. In contrast to 0.1 M pyridine, there is no sharp FAO current maximum anymore with 10 mM pyridine (Figure 4b, green curve). Indeed, as expected for the flat pyridine adlayer, in a narrow potential range between −0.2 V and −0.1 V the FAO activity is larger with 10 mM than with 0.1 M. If the pyridine concentration is too low, e.g. 1 mM, the enhancement effect is negligible (red curve). In all cases, pyridine seems to be displaced by strongly bound formate at E > 0.2 V and the current–potential profiles become independent on pyridine concentration.

The catalytic effect of adsorbed pyridine in this intermediate pH region is manifold: (i) Pyridine is able to shift the adsorption of strongly bound formate to more positive potentials. Since strongly bound formate blocks reactive sites, the presence of pyridine is advantageous. (ii) Pyridine represents a strong molecular dipole, which may help to bring weakly bound formate species into the reactive configuration and not to the strongly bound bidentate adsorption state. (iii) Pyridine can act as a strong base to accept protons generated during the formic acid oxidation reaction. (iv) Pyridine might interact directly with reactive intermediates in a catalytic step.

It is clear that electrochemical measurements alone are not sufficient to identify the catalytic role of pyridine. While further spectroscopic and theoretical studies are needed to elucidate the reaction mechanism for FAO on pyridine-modified Au(111), the present electrochemical study highlights the effects of pH and electrode potential in a systematic way. So far, the suppression of specific adsorption of anions by adsorbed pyridine in a certain potential region is supposed to be most important.

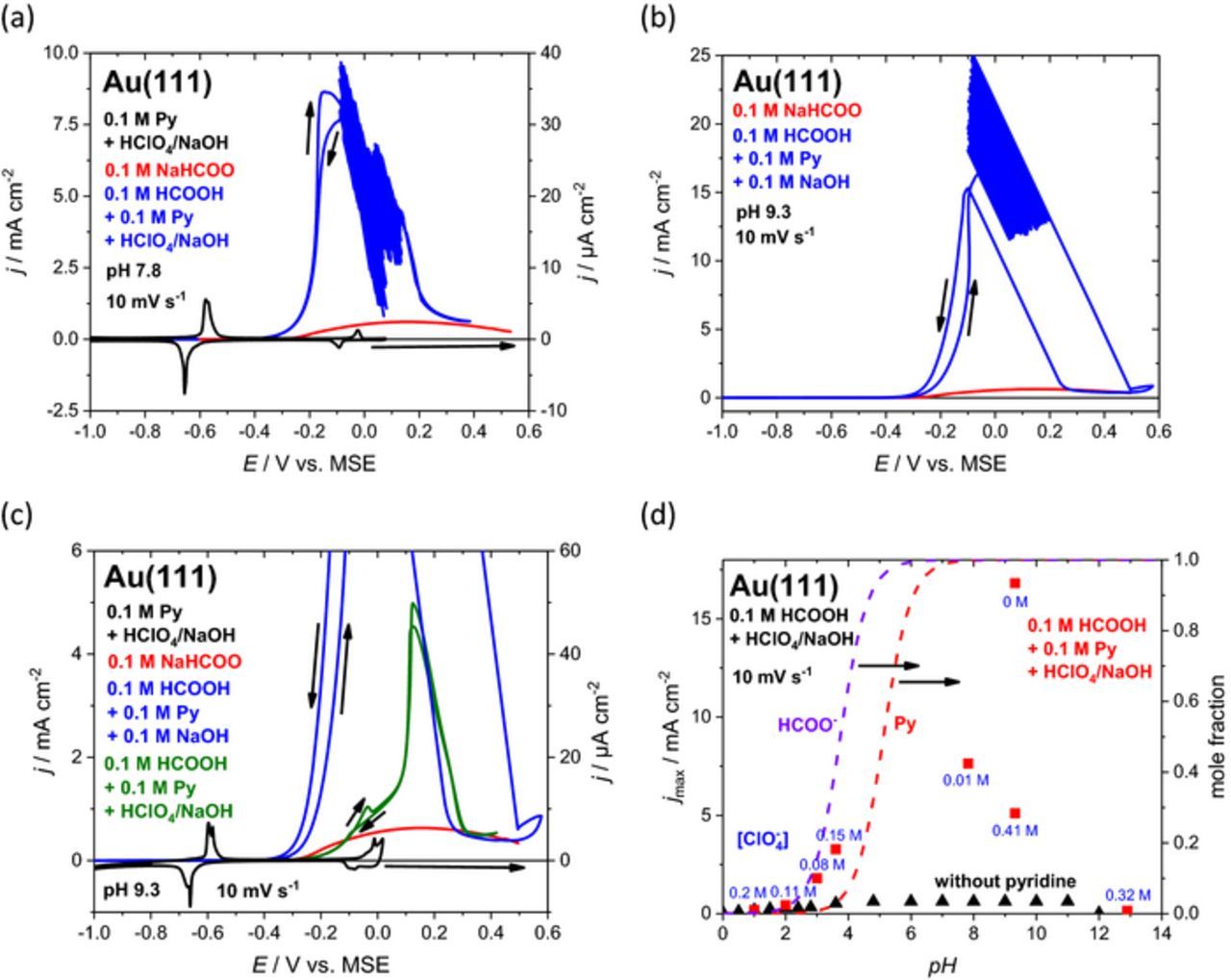

At pH values greater than the pK_a of pyridinium the appearance of the current potential curves changes dramatically. The current maxima in Figures 5a+5b for FAO are less sharp than for lower pH values, but the observed current densities are exceedingly high. In addition, characteristic oscillations occur near the current density maxima. Similar oscillations are known for formic acid oxidation on other noble metal surfaces, especially for Pt electrodes.^25,26

The results for enhancement in formic acid oxidation gathered over the wide pH range suggest that not only the absolute concentration of pyridine but also the molar ratio of both formate and pyridine is relevant. This is substantiated by the cyclic voltammograms in Figure 4b, where the pyridine concentration is varied at constant pH and constant formic acid concentration. For high pyridine concentrations the sharp peak (see above) is present which diminishes for lower concentrations.

Accordingly, the ratio r of free formate and pyridine concentration (Eq. 1) changes over pH and three regions can be identified (total concentrations are 0.1 M). (i, r > 25) At pH values far below the pK_a of HCOOH the concentrations of both unprotonated pyridine and formate in solution are small (e.g. at pH 2), which results in smooth curves and an enhancement over a wide potential range. (ii, 5 < r < 25) At pH values near the pK_a of HCOOH the absolute concentration of formate is already noticeably higher and the positive limit of the enhancement is shifted toward more negative potentials due to formate adsorption. (iii, 1 ⩽ r ⩽ 5) At pH values close to or higher than pK_a of pyridinium, the absolute concentrations of pyridine and formate are high and their ratio is close to equimolar. The reaction is enhanced up to more positive potentials.

An overview on boosting reaction kinetics by pyridine is given in Figure 5d, where maximum current densities for formic acid oxidation with and without pyridine present are plotted as a function of pH. The formic acid oxidation without pyridine exhibits rising current densities for pH values lower than the pK_a of formic acid followed by an activity plateau until pH 11. At pH > 12 the activity breaks down due to competing adsorption of hydroxide on Au(111) (see also Figure 3c). In the presence of pyridine the enhancement is obvious from pH 3 to 10 and vanishes for very high pH values (poor activity at pH 13). In Figure 5d, the concentration of perchlorate is indicated in blue next to the data points. Especially for pH 9 a dramatic suppressing effect of this weakly adsorbing anion is obvious. At the same time, changes in the base electrolyte composition lead to the disappearance of the oscillations, an effect that has been observed for related systems.²⁷

In addition to the remarkable boosting effect of pyridine on formic acid oxidation, it is clear that coadsorbed anions play a central role in this electrocatalytic system. Not only the concentration of perchlorate influences the maximum electrocatalytic currents (Figure 5d), also adsorption of strongly bound formate at positive potentials disables the enhancement so that currents with and without pyridine become identical (Figures 3–5). Unfortunately, the study of formate adsorption is hampered by the oxidation reaction itself. For this reason the behavior of other oxyanions in addition to adsorbed pyridine will be addressed in the following.

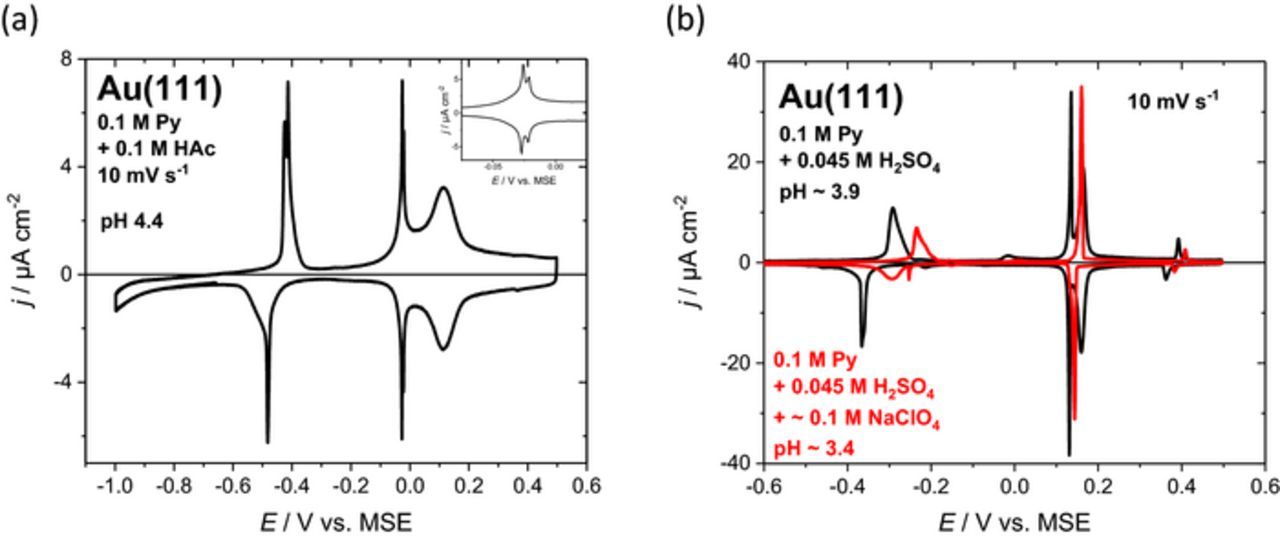

Acetate as carboxylate is chosen because its adsorption behavior is assumed to be very similar to that of formate (spectator species in FAO). Figure 6a shows a cyclic voltammogram of Au(111) in 0.1 M HAc + 0.1 M pyridine (pH 4.4). The process of the orientational change in the pyridine layer at −0.45 V is unaffected by the presence of acetate. At a potential of −0.03 V a "double-spike" (Figure 6a, inset) emerges followed by a broad peak at 0.11 V. These processes have a remarkably low peak-to-peak separation of less than 10 mV, the "double-spike" at −0.03 V shows a split of 5 mV. These processes are associated to acetate adsorption on Au(111) and correspond to a total charge density of about 70 μC cm⁻². The onset of acetate adsorption is slightly hindered by the vertical pyridine structure. At the sharp spike (around 0 V) the adsorbing acetate seems to break up the pyridine structure. At more positive potentials, coadsorption and/or the advancing replacement of adsorbed pyridine occur. A comparison of the adsorption behavior of acetate with the findings for formate adsorption during formic acid oxidation at pH 3.6 (see above and Figure 4a) provides evidence for shifting anion adsorption toward slightly more positive potentials by adsorbed pyridine, which represents an essential part of the enhancing effect. Once the pyridine structure breaks down due to anion (co)adsorption at positive potentials, the enhancement vanishes.

Zoom In Zoom Out Reset image size

Sulfate represents another strongly adsorbing oxyanion. In comparison to acetate, it shows a very similar effect on the current–potential curve of Au(111) in 0.1 M pyridine (Figure 6b, black curve). The addition of perchlorate to the electrolyte (red curve) will be discussed below. Sulfate exhibits a combination of sharp spike at 0.13 V and broader adsorption peak at 0.16 V. The peak P_up for the formation of the vertical pyridine structure at −0.29 V displays a clearly different shape compared to acetate and perchlorate containing electrolytes. In addition, a second spike at 0.39 V appears. This second spike is easily related with the formation of the well-known (√7 × √3)R19.1° structure of sulfate on Au(111).²⁸ Also in this case, adsorbed pyridine is displaced by specifically adsorbed anions.

Hydroxide is another example of a strongly adsorbing anion, which is especially important for surface oxidation of metals at positive potentials in aqueous electrolytes. For pH 12 ([OH⁻] ≈ 0.01 M), a spike is observed in the commencing OH adsorption at a potential of −0.195 V (Figure 3c, black curve).

Surprisingly, voltammograms for pyridine adsorption with strongly adsorbing anions present are very similar to that of pyridine adsorption in the presence of perchlorate. In contrast to the anions discussed above, perchlorate is considered to be weakly adsorbing and is therefore used in the majority of studies of pyridine adsorption.^13,14,21,23 Figure 3b shows the current potential curve for Au(111) in 0.1 M pyridine + 0.11 M HClO₄ (black curve). Pyridine adsorption occurs at −0.65 V and the orientational change takes place around −0.05 V at peak P_up. The other two processes at 0.15 V and 0.28 V were only observed in the region close to pH 2. Remarkably, the sharp spike at 0.28 V exhibits a very small peak-to-peak separation, which is also seen for the specifically adsorbing anions (see above). The narrow pH range for the occurrence of these two voltammetric features is likely linked to the extreme ratio of free pyridine and perchlorate. Under these conditions perchlorate seems to interact with the pyridine covered Au(111) surface in a way very similar to the strongly adsorbing anions.

The unique adsorption behavior of perchlorate is also evident for mixed electrolytes. The red curve in Figure 6b is obtained for Au(111) in 0.1 M pyridine + 0.1 M NaClO₄ + 0.045 M H₂SO₄. A significantly altered behavior for the adsorption of sulfate compared to the measurement without perchlorate is observed (compare black curve in Figure 6b). The sharp spike followed by further adsorption merges into a single sharp peak at a potential of 0.15 V with noticeable peak-to-peak separation. This significant change in the adsorption behavior by perchlorate points to surprisingly strong interactions of perchlorate with the pyridine adlayer. Furthermore, it is in accordance with the observed strongly decreased current for formic acid oxidation in the presence of perchlorate (Figure 5c). Although perchlorates are prone to chloride contamination we believe that this is a genuine effect of perchlorate as no accumulation effects caused by chloride adsorption have been observed.
