Chemical Bonding of Nitrogenated Ultrananocrystalline Diamond Films Deposited on Titanium Substrates by Pulsed Laser Deposition

Approximately 100 nm UNCD/a-C:N and UNCD/a-C:H:N films were deposited on polished titanium substrates at a substrate temperature of 550°C at a nitrogen pressure of 53.3 Pa by PLD using a graphite target. The chamber was evacuated down to a base pressure of less than 10⁻⁴ Pa, and the ambient nitrogen pressure during the film deposition was set to be 53.3 Pa at a nitrogen flow rate of 3 sccm for the preparation of UNCD/a-C:N films. For comparison, UNCD/a-C:H:N films were prepared in a nitrogen and hydrogen mixed gas atmosphere at nitrogen and hydrogen gas inflow rates of 3 and 5 sccm, respectively. Unlike CVD methods that requires the pretreatment of substrates with diamond powder, PLD need not such a seeding procedure. Prior to the deposition, titanium substrates were cleaned by acetone and methanol using ultrasonic method. The distance between the substrate and target was fixed to be 15 mm. An ArF excimer laser beam with a wavelength of 193 nm and full-width at half-maximum of 20 ns was employed for ablation. The energy and repetition rate of pulsed laser beams was 100 mJ and 50 Hz. The laser beam was focused onto a rotating graphite target using a spherical lens at an angel of 45°. The irradiation area on the target was approximately 2 mm² and the irradiance was 1.8 × 10⁸ W/cm².

The existence of UNCD grains was examined by powder X-ray diffraction (XRD) with 12 keV X-rays from synchrotron radiation at beamline 15 of the Kyushu Synchrotron Light Research Center/SAGA Light Source. For its measurement, the film peeled from the substrate was powdered and placed in a capillary with a diameter of 0.3 mm, and Debye-Scherrer rings were recorded on imaging plates. The details were reported in our previous work.^15,22 In addition, the debris of films peeled from the substrates were observed by transmission electron microscopy (TEM). The chemical bonding structures of the films were evaluated by X-ray photoemission and near-edge X-ray absorption fine-structure (NEXAFS) spectroscopies using synchrotron radiation at beamline 12 of the Kyushu Synchrotron Light Research Center/SAGA Light Source. For the X-ray photoemission spectroscopic measurement for estimating the chemical composition of films, a MgKα line (1253.6 eV) was also employed as an incident light source, in addition to 350 eV light from synchrotron radiation for investigating the chemical bonding structures. The chemical composition in the film depth direction was measured by energy dispersive X-ray (EDX) spectroscopy. All the X-ray photoemission spectra were measured at an emission angle of 90° to the film surface and room-temperature. Argon ion bombardment etching was not carried out in order to avoid the destruction of diamond grains and a change in the chemical bonding structure near the film surface.²³ The intensity of NEXAFS spectra was calibrated with an incident photon flux and the measurement was made in total electron yield (TEY) mode by measuring the current from the sample to ground. Highly oriented pyrolytic graphite (HOPG) was used as a reference sample for energy calibration and comparison.

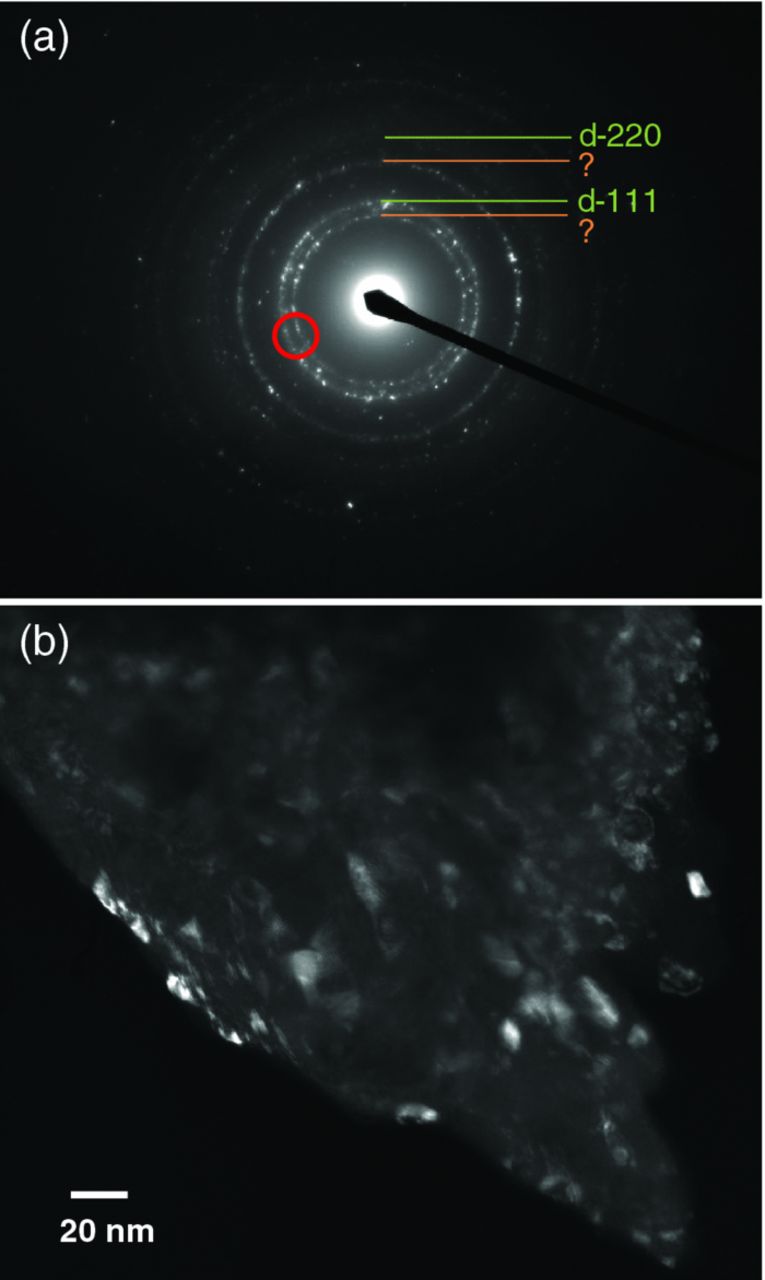

The existence of UNCD grain was confirmed from the XRD powder measurement. The grain size was estimated to be approximately 8.5 nm and 2.5 nm from diamond 111 peaks for UNCD/a-C:N and UNCD/a-C:H:N films, respectively, as reported in our previous works.^15,22 Figure 1a shows the electron diffraction (ED) pattern of UNCD/a-C:N film. Since UNCD grains are easily destroyed and changed to amorphous carbon, by ion bombardment, the sample for this measurement is the debris of film peeled from the substrate and it is not processed. The ED pattern exhibits diffraction rings due to diamond 111 and 220 and additional unknown rings, whereas the UNCD/a-C:H:N film exhibits diffraction rings due to diamond. In the UNCD/a-C:N film, grains of unknown phase and diamond coexist. The unknown rings might be attributable to some carbon nitride or distorted diamond. We could not find carbon nitride phases assignable to the unknown rings. The assignment requires additional structural analysis. The dark field TEM image, which was taken with the partial diffraction beam indicated in red in Fig. 1a, certainly shows the existence of diamond grains in the debris.

Zoom In Zoom Out Reset image size

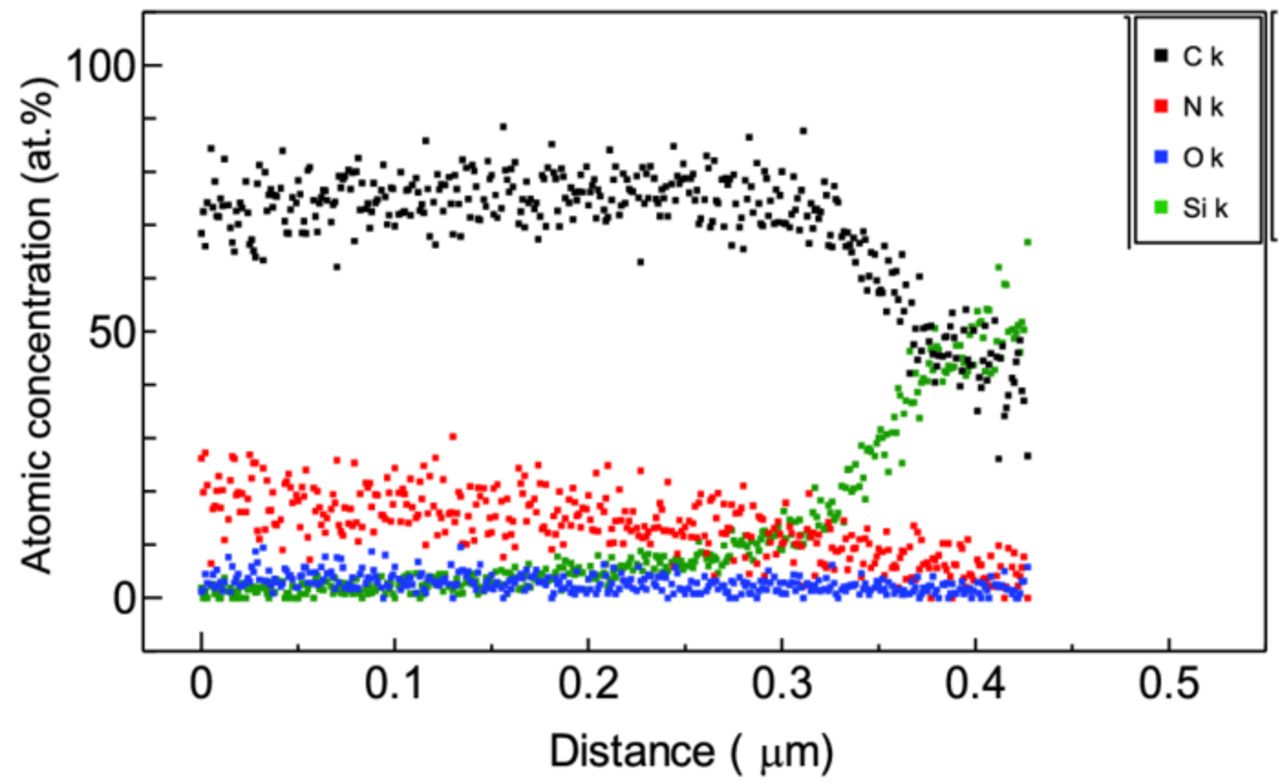

We have already reported that the film quality is uniform in the film depth direction on the basis of the cross-sectional TEM observation of films.¹² The growth of UNCD/a-C:H films by PLD is, so to speak, the accumulation of repeated nucleation in pulsed deposition processes. Thus, the deposition need not the pretreatment of substrates with diamond powder and the resultant films have no distribution of the quality in the depth direction. Figure 2 shows the depth profile in the chemical composition of a UNCD/a-C:H:N film deposited on a Si subatrate, measured by EDX spectroscopy. The chemical composition does not have an evident distribution in the film depth direction. The similar results has been obtained also from the X-ray photoemission spectroscopy combined with Ar ion bombardment etching.

Zoom In Zoom Out Reset image size

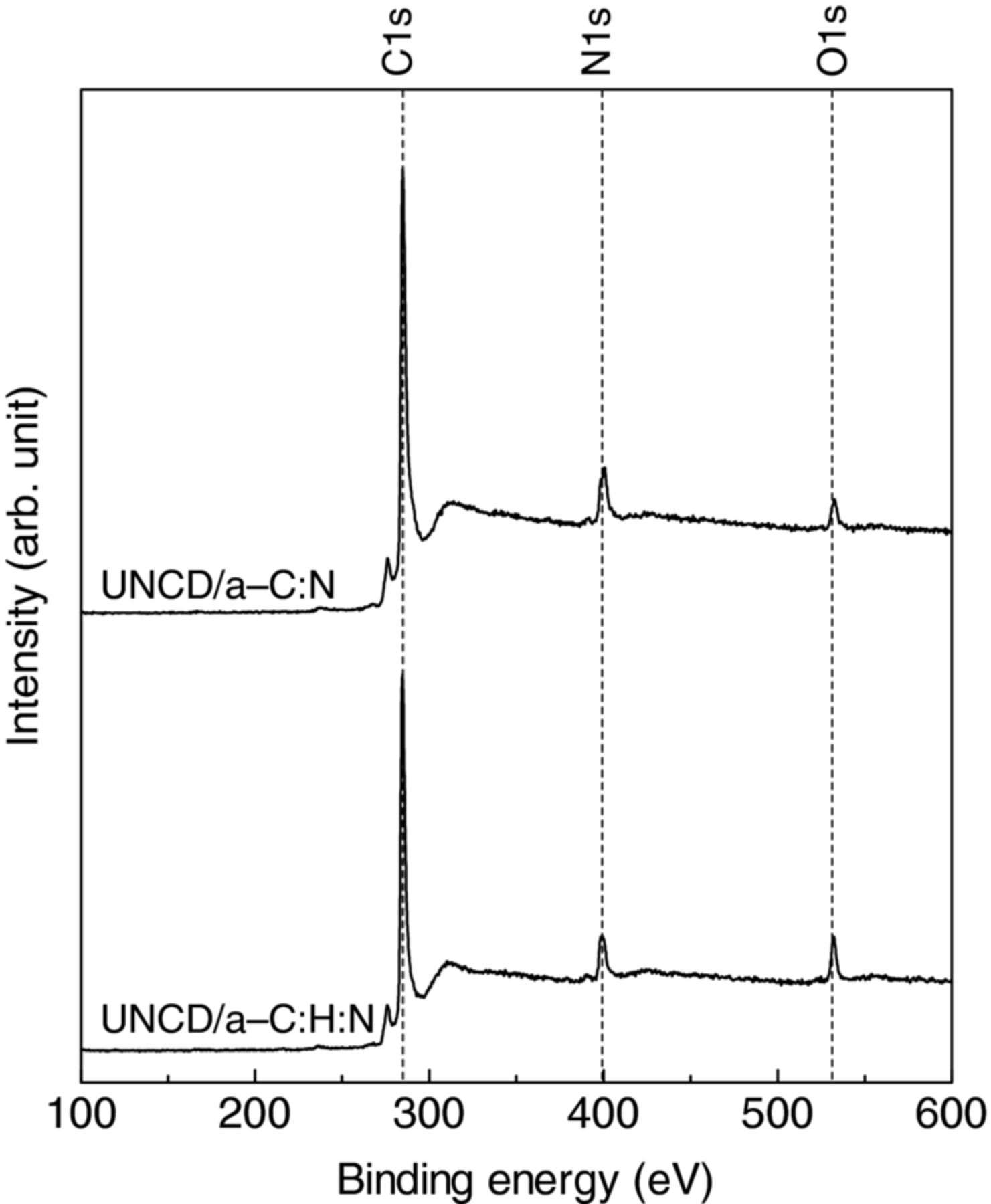

The X-ray photoemission spectra of UNCD/a-C:N and UNCD/a-C:H:N films, which were measured in a wide range, are shown in Fig. 3. A N 1s peak is clearly observed, which evidently indicates the incorporation of nitrogen atoms into the deposited film from the nitrogen atmosphere. The nitrogen atomic fraction (f_N) was calculated in the same manner as that in our previous work,¹⁷ using the following equation:

Here, A_N, S_N, and ∑ A_i/S_i are the area of N 1s peak, atomic sensitivity factor of nitrogen, and summation of the ratios between peak areas and atomic sensitivity factors, respectively. The values of atomic sensitivity factors for C 1s, N 1s, and O 1s are 1.00, 1.77, and 2.85.^24,25 The O 1s peak disappears immediately for argon ion bombardment. Thus, the origin of the oxygen peak does not come from the bulk of film. The nitrogen atomic concentration was estimated to be 9.7 at% and 9.9 at% for the UNCD/a-C:N and UNCD/a-C:H:N films, respectively. Even if the contribution of the oxygen peak to the estimation is considered, the estimated nitrogen concentration was 9.5 and 9.4 at% for the UNCD/a-C:N and UNCD/a-C:H:N films, respectively. The existence of the oxygen peak hardly affect the estimation of nitrogen atomic concentration.

Zoom In Zoom Out Reset image size

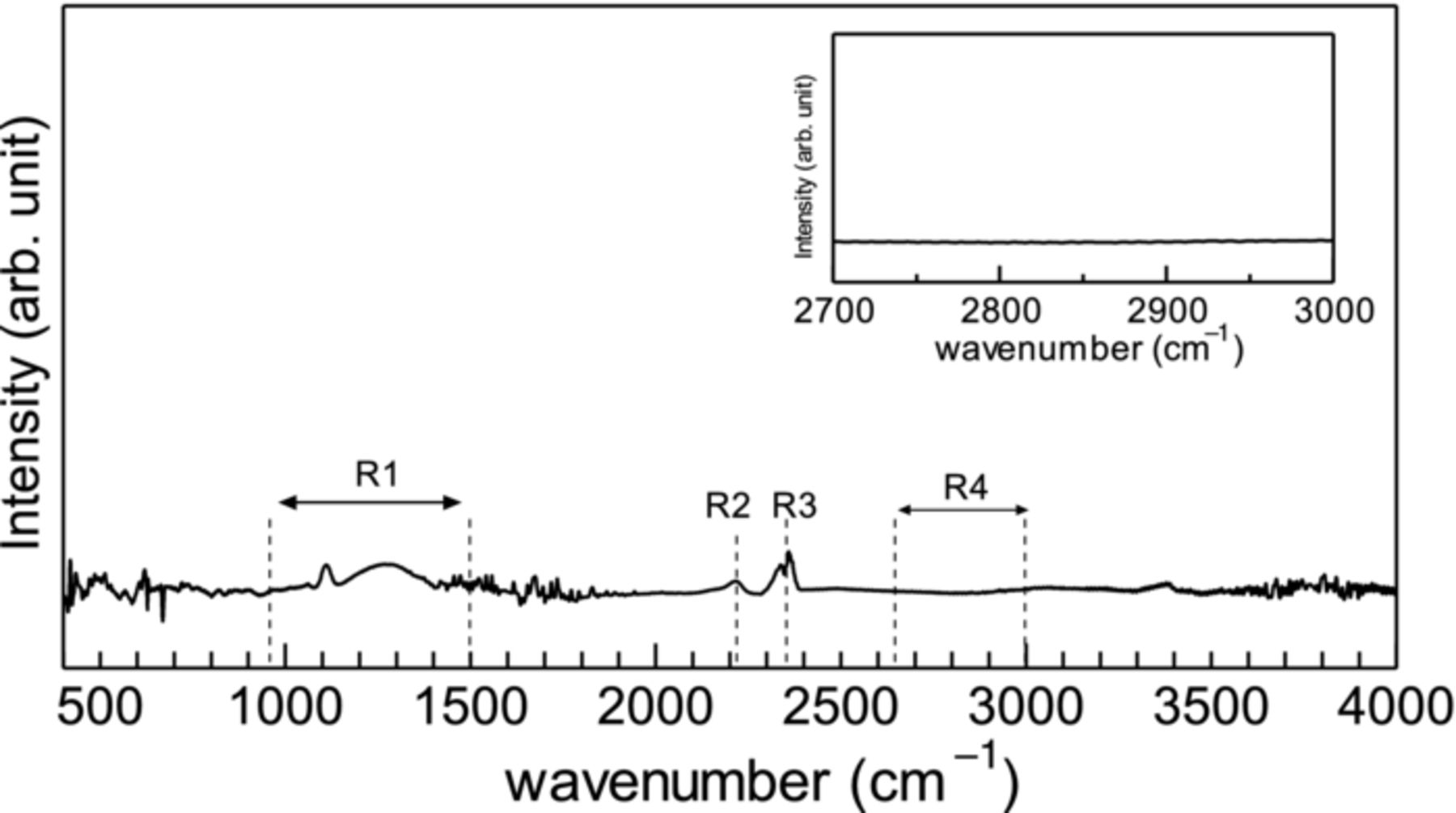

Figure 4 shows the Fourier transform infrared (FTIR) spectrum of UNCD/a-C:N film. The R1 range spectrum is due to C=N, C=C, and C−N. The R2 and R3 range spectra are due to C≡C and CO₂, respectively. A spectrum due to CH_n is not observed in the R4 range at all, which indicates that the UNCD/a-C:N film does not contain hydrogen as naturally-expected.

Zoom In Zoom Out Reset image size

C 1s X-ray photoemission spectra measured with 350 eV X-ray from synchrotron radiation were decomposed into several components with Gaussian (80%)/Lorentizian (20%) functions¹⁷ after the backgrounds were subtracted by Shirley's method.²⁶ In addition to the binding energy of spectra being sensitively influenced by the chemical bonding environment,²⁷ a charged sample surface also cause an energy shift, namely false chemical shift.²⁸ Thus, the effects of charge up on the measurement were carefully checked by comparing with the HOPG spectrum.

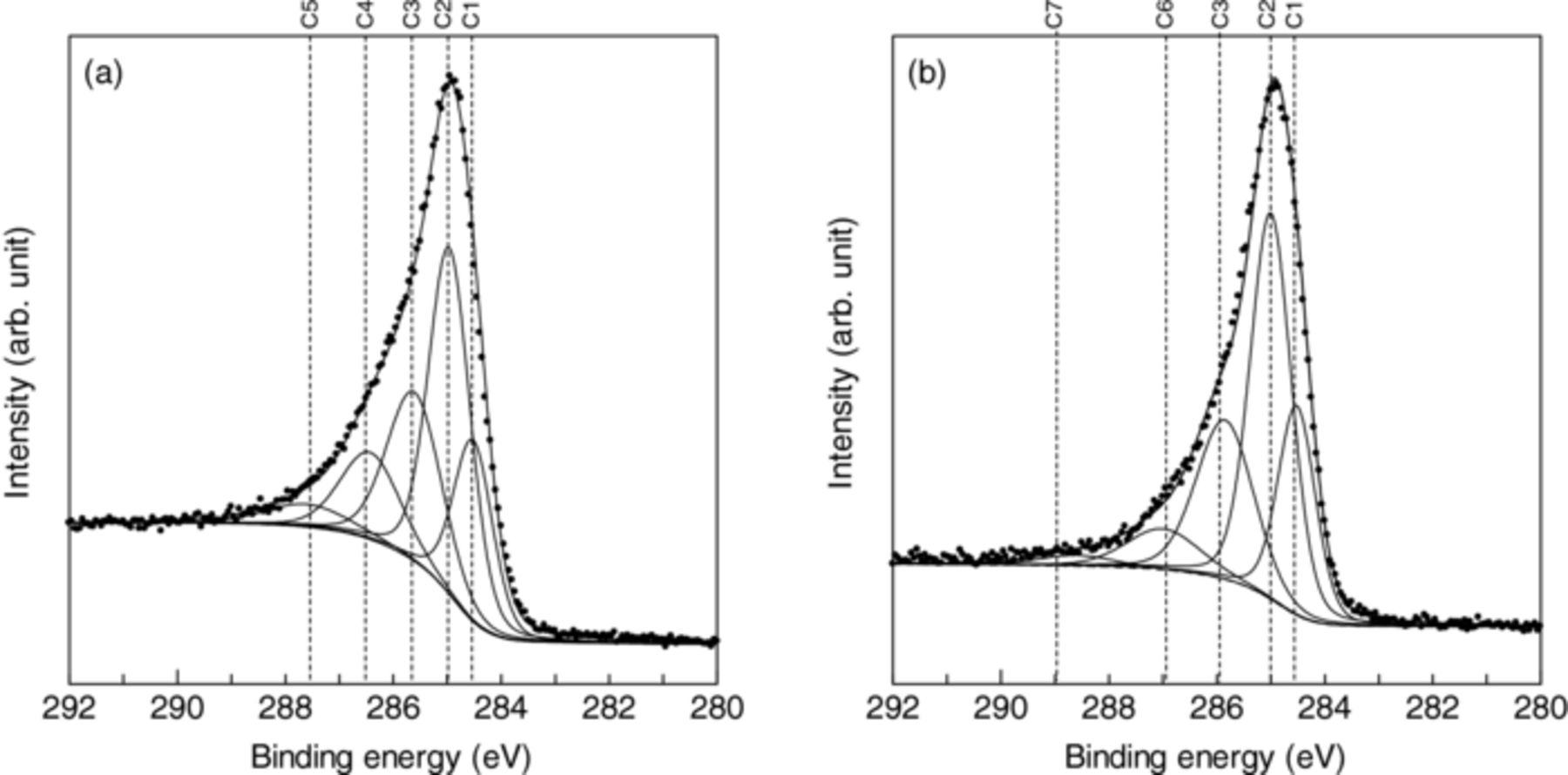

The spectrum of the UNCD/a-C:N film were decomposed into several component spectra. The components C1, C2, C3, C4, and C5 are centered at 284.5, 285.0, 285.6, 286.4, and 287.6 eV, respectively, as shown in Fig. 5a. The C1 and C2 components are due to C=C (sp²) and (C–C) (sp³) bonding, respectively.¹⁸ The C5 component is probably due to C=O bonding,²⁹ which is resultant from the exposure of the film to air. The C3 component is assigned to be due to C=N bonding,³⁰ which indicates incorporated nitrogen atoms certainly form the bonds with carbon. The assignment of the C4 component might be due to C–N and/or C≡N bonds. In the range between 286 and 287 eV, components assigned to C–N and C≡N bonds were reported for polymers and carbon nitride materials,^31–33 and their binding energies are very close to each other. It has been reported that at a large nitrogen concentration nitrile-like structure mainly comprising C≡N bonds is formed and its amount increases with the nitrogen concentration.³⁴ Since the nitrogen concentration of 9.7 at.% is relatively large, C≡N bonds are expected to be formed. Figure. 5b shows the X-ray photoemission spectrum of UNCD/a-C:H:N film. It contains a well resolved component C6 centered at 287.0 eV and it might be predominantly attributable to C–N bonds. The component C7 is assigned to COOH bonds.

Zoom In Zoom Out Reset image size

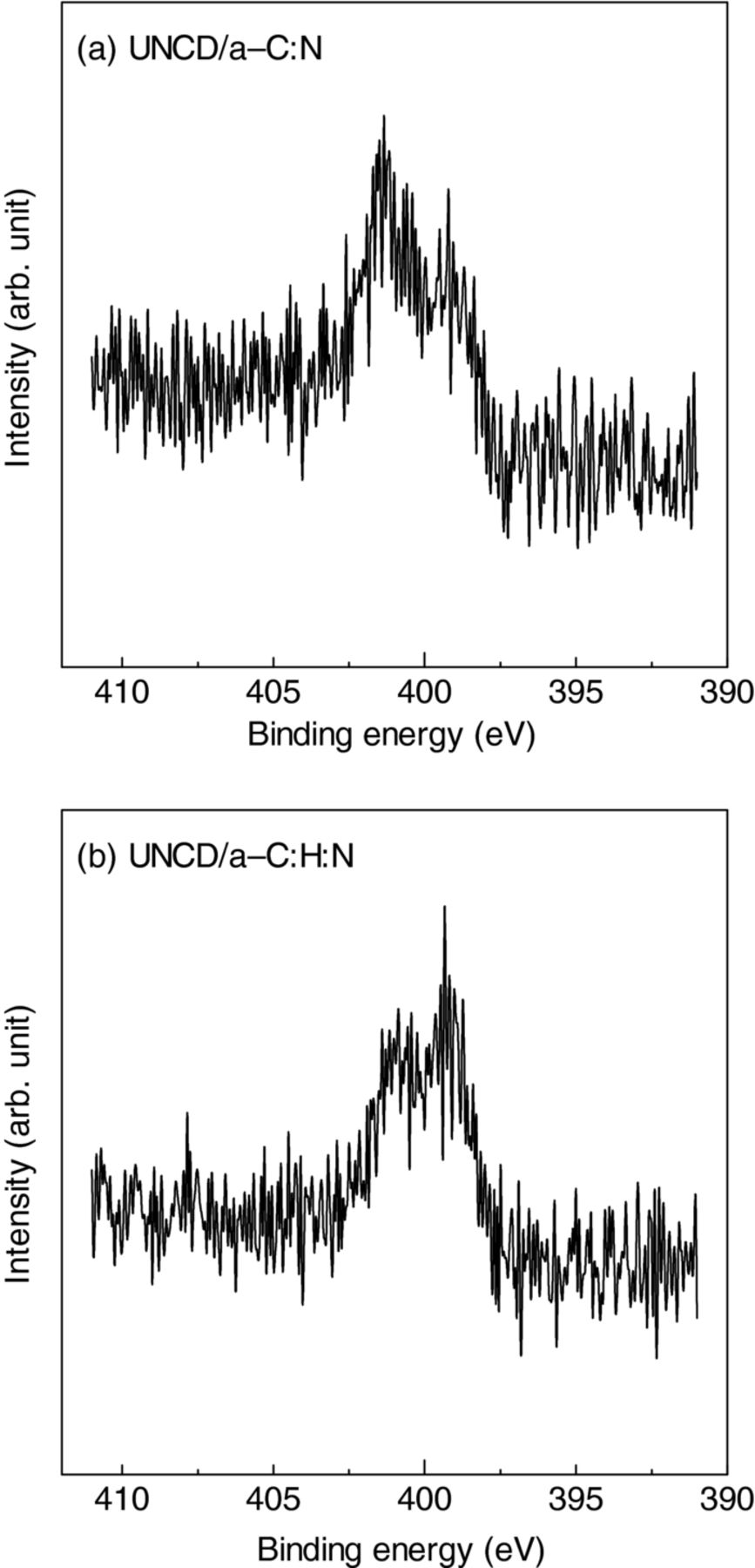

The N 1s X-ray photoemission spectra of UNCD/a-C:N and UNCD/a-C:H:N films are shown in Fig. 6. The N 1s spectra have two peaks centered at 398.7 and 400.17 eV and they are assigned to C–N and/or C≡N and C=N bonds, respectively. The UNCD/a-C:N film exhibits the intense 398.7 eV peak compared with that in the spectrum of UNCD/a-C:H:N film, which is perhaps attributable to the existence of C≡N bonds.

Zoom In Zoom Out Reset image size

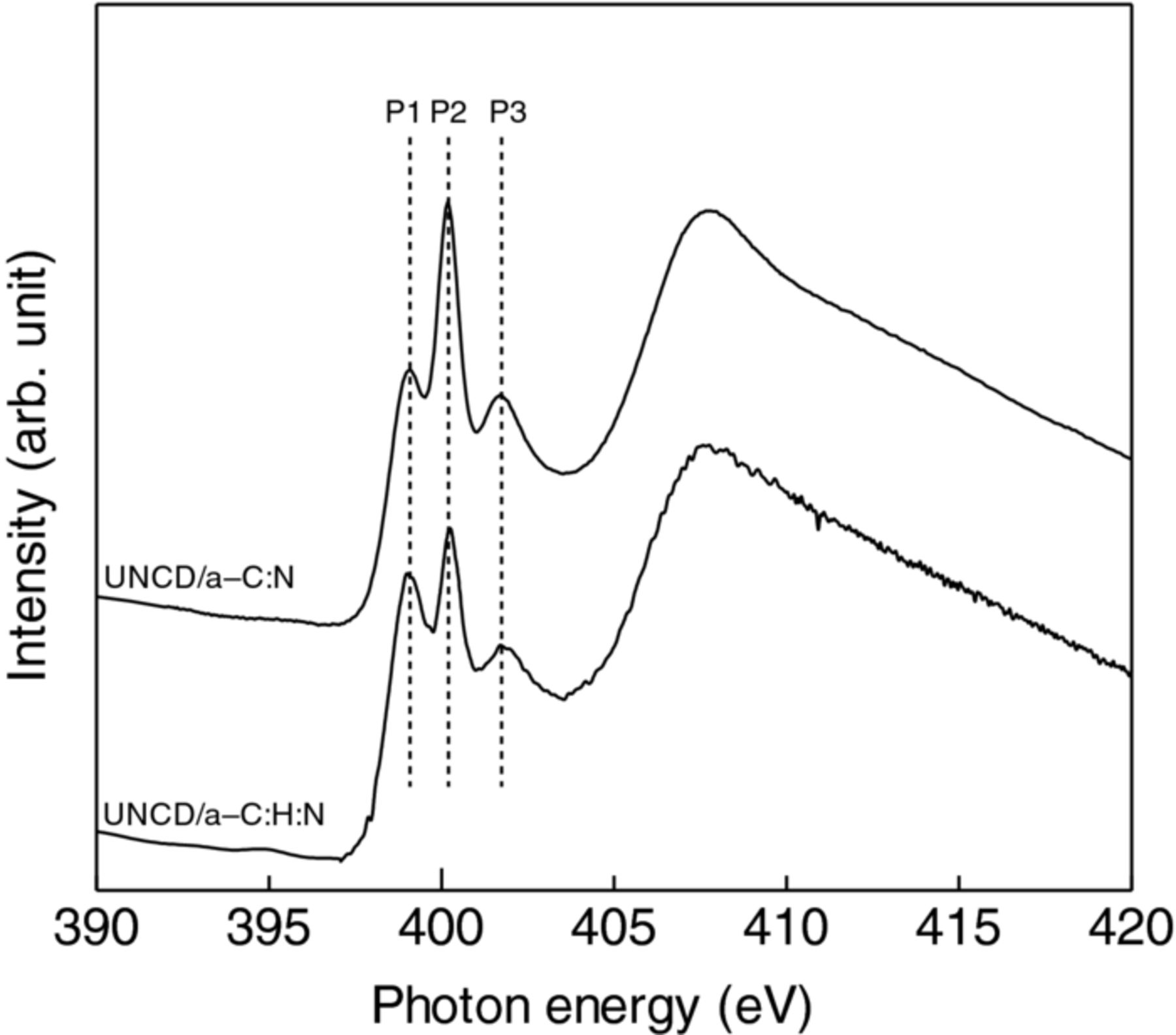

NEXAFS, in a which core electrons is excited to an unoccupied state, is a sensitive method to probe local chemical and electronic structures of atoms. For carbon nitride materials, N K-edge NEXAFS spectra have received much attention since they are normally composed of three distinctive components.^35–41 Figure 7 shows the N K-edge NEXAFS spectra of UNCD/a-C:H:N and UNCD/a-C:N films. The relative intensity of each peak might represent a clue to know chemical bonding environments of nitrogen and carbon atoms. The P₁ peak is probably due to the C=N bonds from previous reports.^42,43 The P₃ peak is probably due to substitutionally incorporated nitrogen atoms that form aromatic rings⁴⁴ or three-fold nitrogen in a graphitic network.^45,46

Zoom In Zoom Out Reset image size

The P₂ peak is the most important peak that receives much attraction from many scientists, since its appearance depends on the structure of nitride materials. The P₂ peak might be predominantly attributable to C≡N bonds from the following reasons: (a) a theoretical calculation made by N. Hellgren et al.³⁷ predicts that a peak at 399.5 eV is sharpened due to the formation of nitrile structure; (b) in comparison with a spectrum reported by Cameron et al., the appearance of this peak coincides with the formation of C≡N bonds that mainly construct polyacrylonitrile (PAN) structure;⁴⁷ (c) it is well known that nitrile is preferentially formed at a large nitrogen concentration, and thus 9.7 at.% nitrogen-incorporated film in this study probably comprise C≡N bonds accompanied by the formation of nitrile. The P₂ peak in the UNCD/a-C:N film spectrum is intense as compared with that in the UNCD/a-C:H:N film spectrum. This implies that the UNCD/a-C:N film more probably comprises C≡N bonds, which is not in contradiction with the X-ray photoemission results.

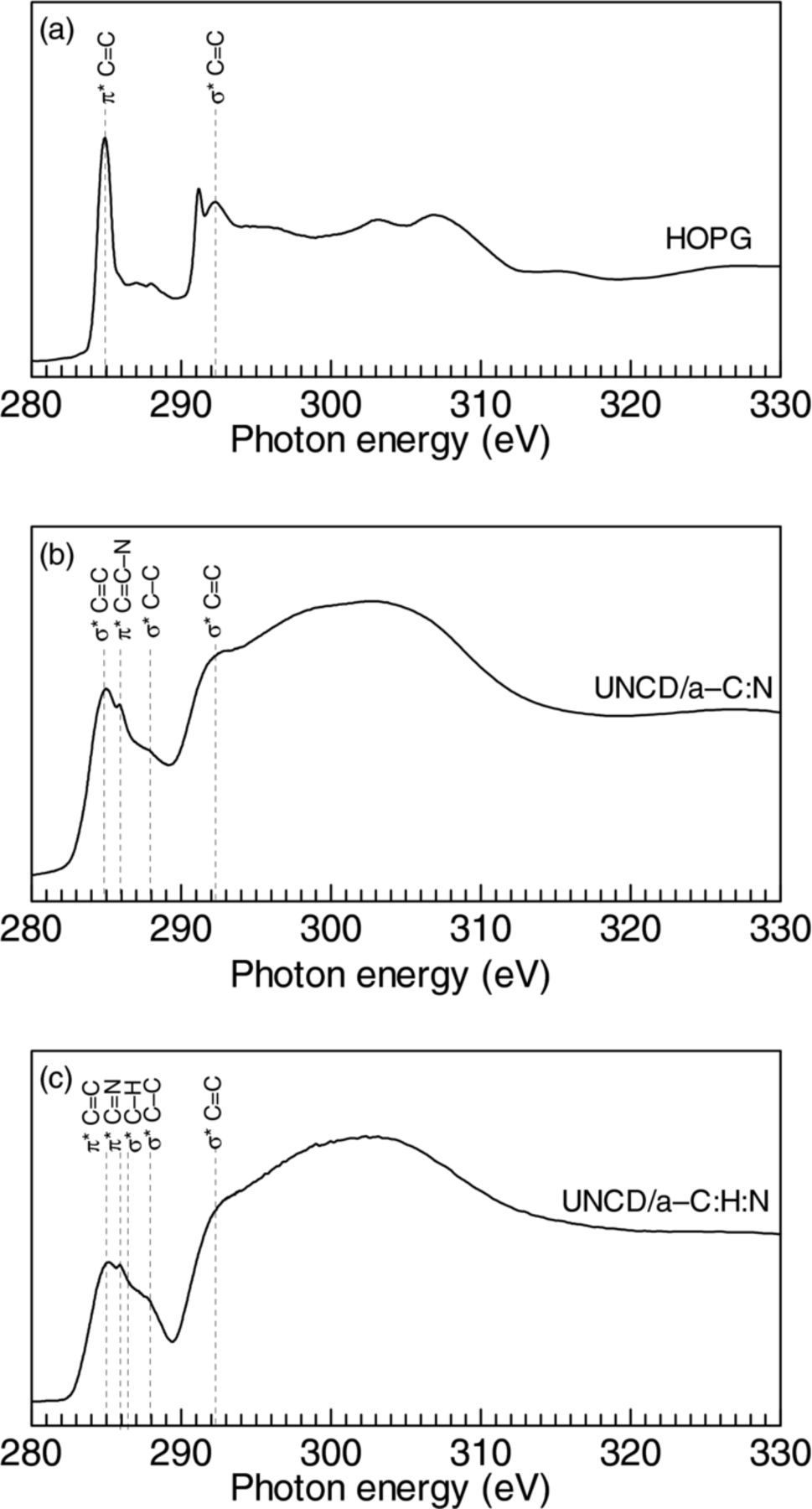

The C K-edge NEXAFS spectra of (a) HOPG for comparison, (b) UNCD/a-C:N, and (c) UNCD/a-C:H:N films are shown in Fig. 8. The HOPG spectrum shows a well-known signatures of π^* states at 285 eV and σ^* states at 292 eV, respectively. Since HOPG has an anisotropic structure, the HOPG spectrum is strongly affected by an incident angle of X-ray:^48–50 π^* peak becomes minimal for incident X-ray perpendicular to π^* orbital, and on the other hand, the peak strengthens for X-ray parallel to the π^* orbital.⁴⁸ In this measurement, HOPG was measured at an incidence angle of 45°. For both films, UNCD grains in the films are nonoriented, and thus the incidence angle does not influence the spectral profile. The HOPG spectrum shows two clear peaks due to π^* C=C and σ^* C=C bonds at 285.0 eV and 292.5 eV, respectively.

Zoom In Zoom Out Reset image size

The UNCD/a-C:N film shows distinctive characteristics as follows. A peak at 285 eV and peak at 292.1 eV are attributable to π^* C=C and σ^* C=C bonds, respectively, according to previous reports.¹⁶ A peak at 288.4 eV is attributable to σ^* C–C bonds. The existence of UNCD grains is expected to partially contribute to this peak.

A peak at 285.5 ∼ 287.0 eV is a puzzler for assignment, and it might originate from the nitrogenation of the film. From the peak position, the candidates are π^*C=C–N,⁵¹ π^*C=N,^{13,16,35,43,52} and C≡N bonds. The above-mentioned X-ray photoemission spectroscopic results indicated a possibility of the PAN formation⁵³ with a structure of (C₃H₃N)_n comprising C≡N bonds. Since it is reported that the C K-edge NEXAFS spectrum of PAN structure exhibits a sharp π^*C≡N transition at 287 eV,⁴³ the assignment to C≡N bond is most likely. As another possibility, the formation of N–C≡N or C=N=N bonds were reported for hydrogen-free carbon nitride.⁵⁴ Our film is structurally similar except for the existence of UNCD grains, and thus the assignment to π^*C=N is also probable, which is also consistent with the X-ray photoemission spectroscopic results. For the UNCD/a-C:H:N, as shown in Fig. 6c, the π^*C=C peak is obviously broad with a shoulder at 286 eV.¹⁶ This is perhaps due to the existence of π^*C=N bonds. From the appearance of σ^* C−H peak, hydrogen incorporation was confirmed.¹⁶

UNCD/a-C:N films with a nitrogen content of 9.7 at.% and UNCD/a-C:H:N films with a nitrogen content of 9.9 at.% were deposited on titanium substrates by PLD with graphite targets. From the chemical bonding structural analysis by NEXAFS and X-ray photoemission spectroscopies, it was found that the formation of C=C, C≡C, C=N, and C≡N bonds is specific to the UNCD/a-C:N films. These formations among predominant sp³ bonding configuration including UNCD grains is expected to locally soften the film, which might result in a release of an internal stress in the film. The specific to UNCD/a-C:N films is containing a large number of grain boundaries (GBs) inside the films. Here, GBs exactly denote the interfaces between UNCD grains and those between UNCD grains and an a-C matrix. It is well known that incorporated foreign elements are preferentially located in grain boundaries. Thus, C=C, C≡C, C=N, and C≡N bonds might be preferentially formed at GBs, and its formation might effectively release an internal stress in the films. UNCD/a-C:N is a unique candidate material for coating and also is applicable to a buffer layers for depositing diamond and nanodiamond films on metal substrates.
