Effect of Reverse Pulse on Additives Adsorption and Copper Filling for Through Silicon Via

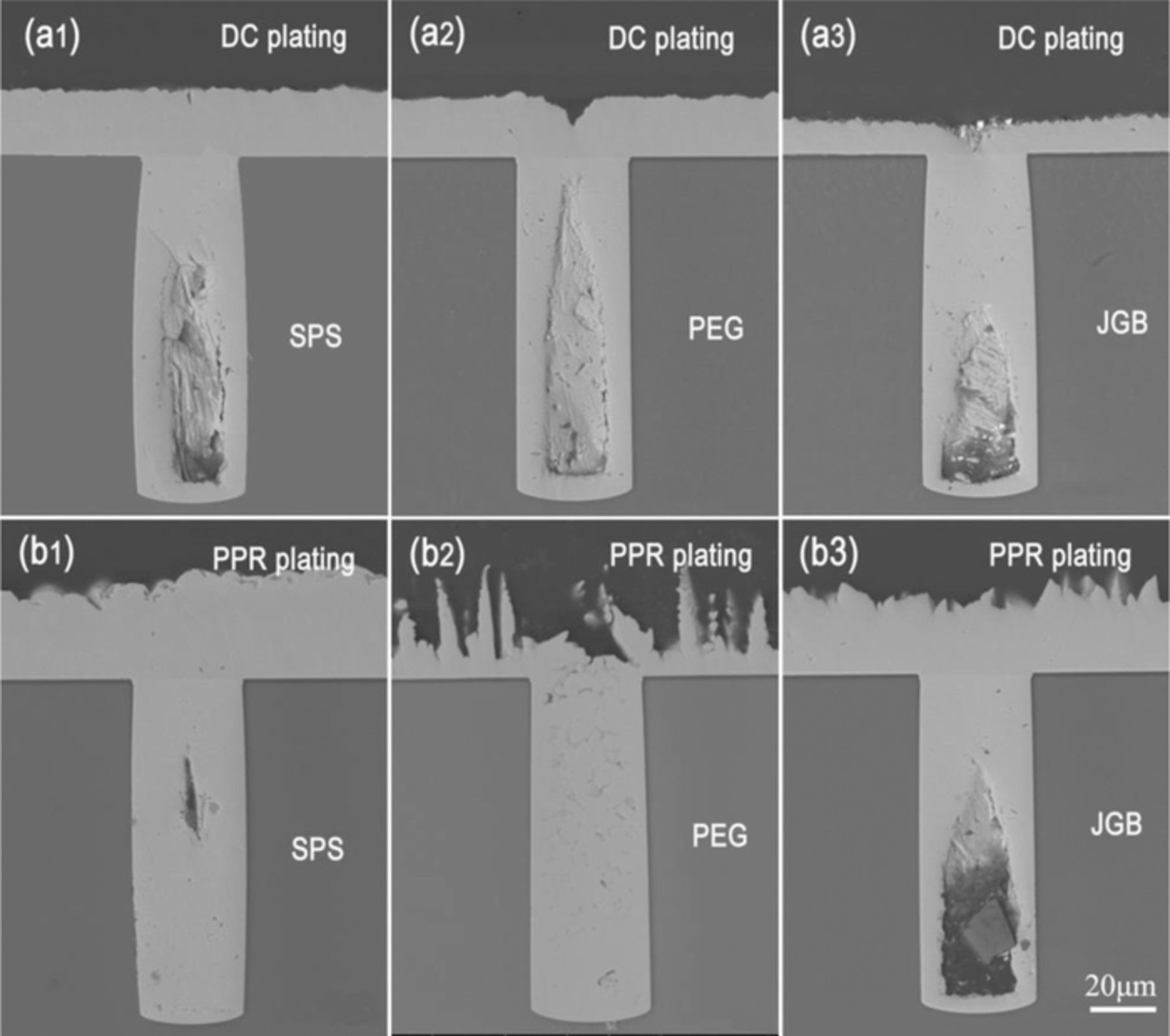

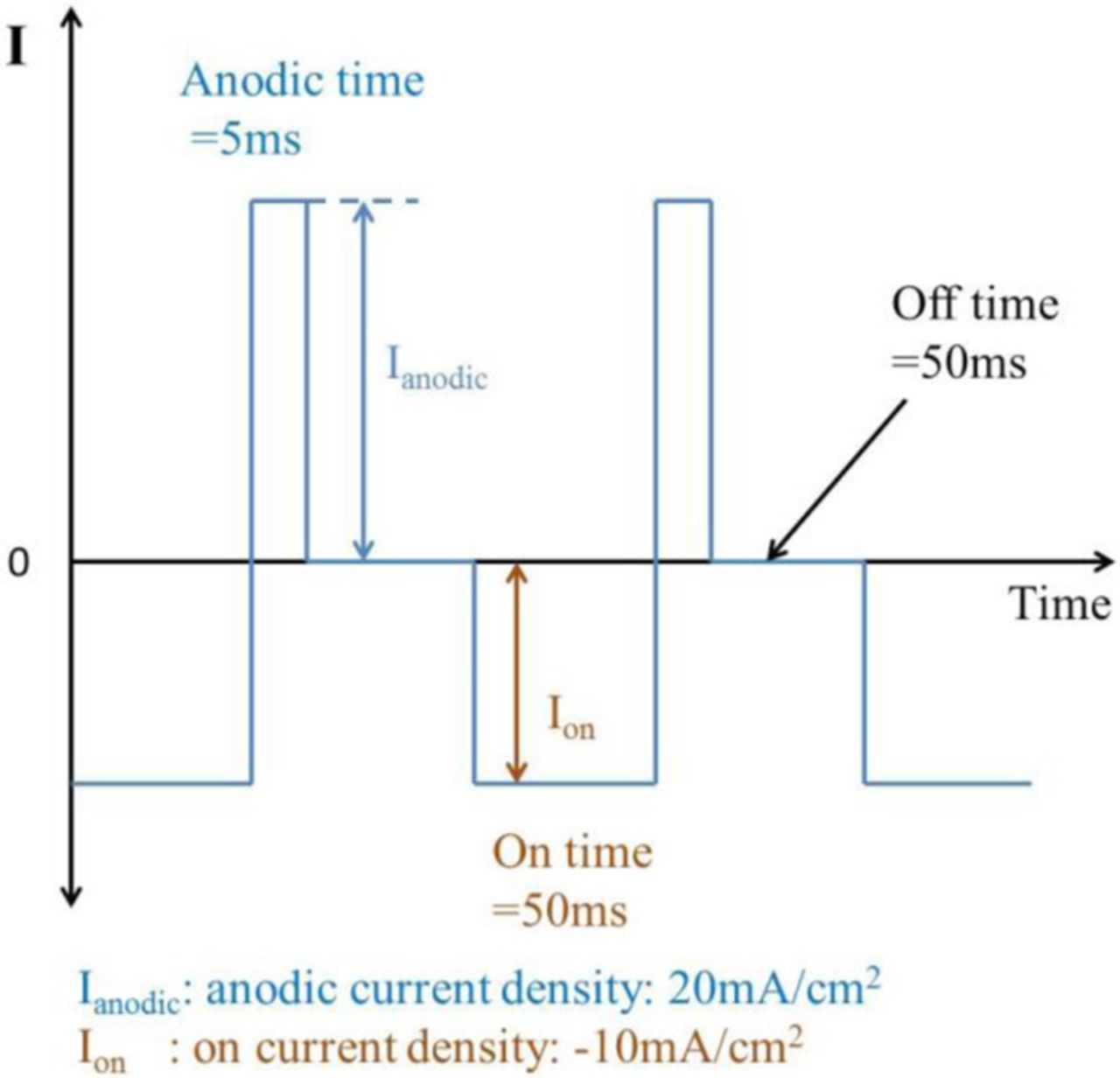

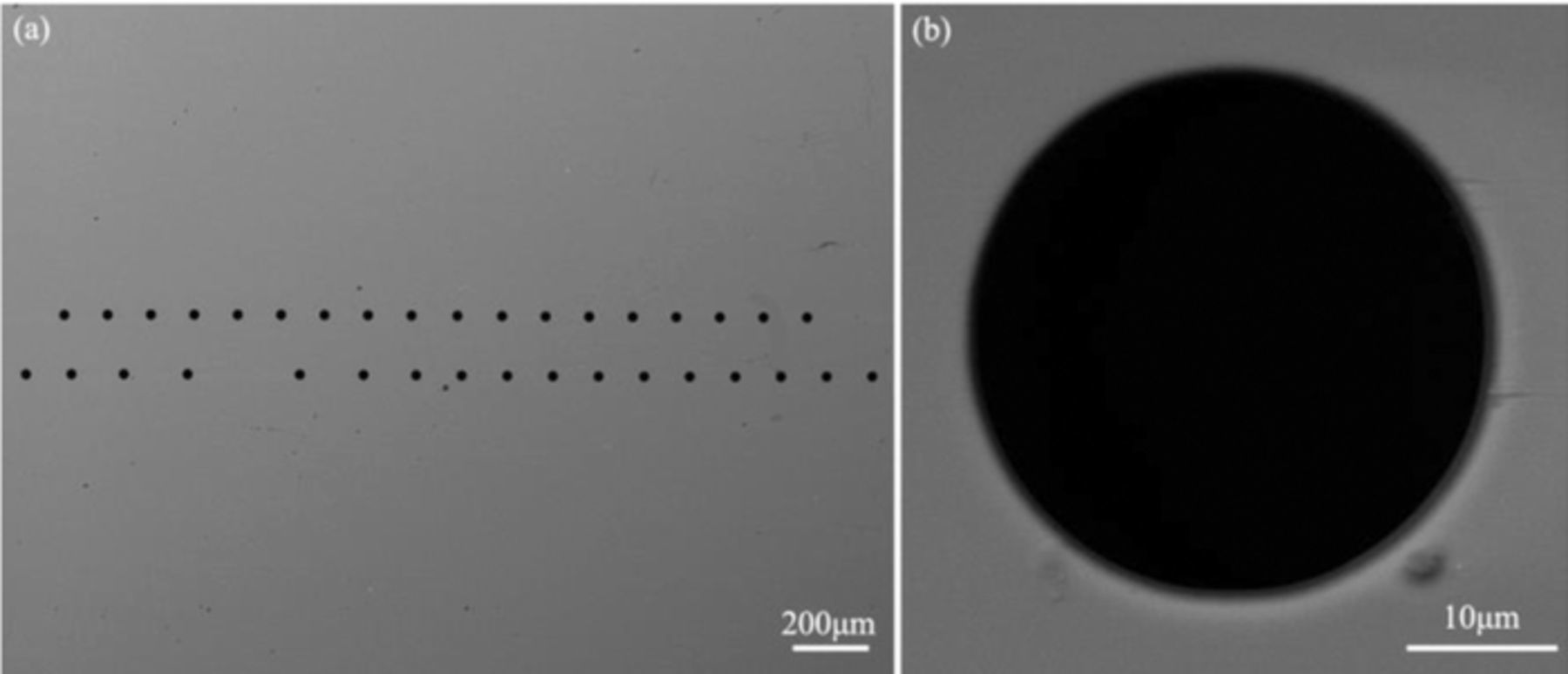

The TSV filling performances by DC and PPR electroplating using the Cu electrolytes containing single additives and 60 ppm Cl⁻ were shown in Fig. 3. In DC electroplating, the voids appeared in filled profiles using any a single additive, as shown in Figs. 3a1–3a3. The occurrence of the voids was generally resulted from the failure of a bottom-up growth mode, i.e., the premature closure of microvia entrance.²⁴ Figs. 3b1–3b3 showed the filling results by PPR electroplating. It was noted that the PPR electroplating could significantly improve the filling performance compared to those by DC plating in the electrolytes with single SPS or PEG additive. Especially using single PEG additive, a completely void-free filling effect could be successfully acquired in PPR plating. However, for the single JGB additive, the filling effect in PPR plating had no an obvious improvement compared to that in DC plating.

Zoom In Zoom Out Reset image size

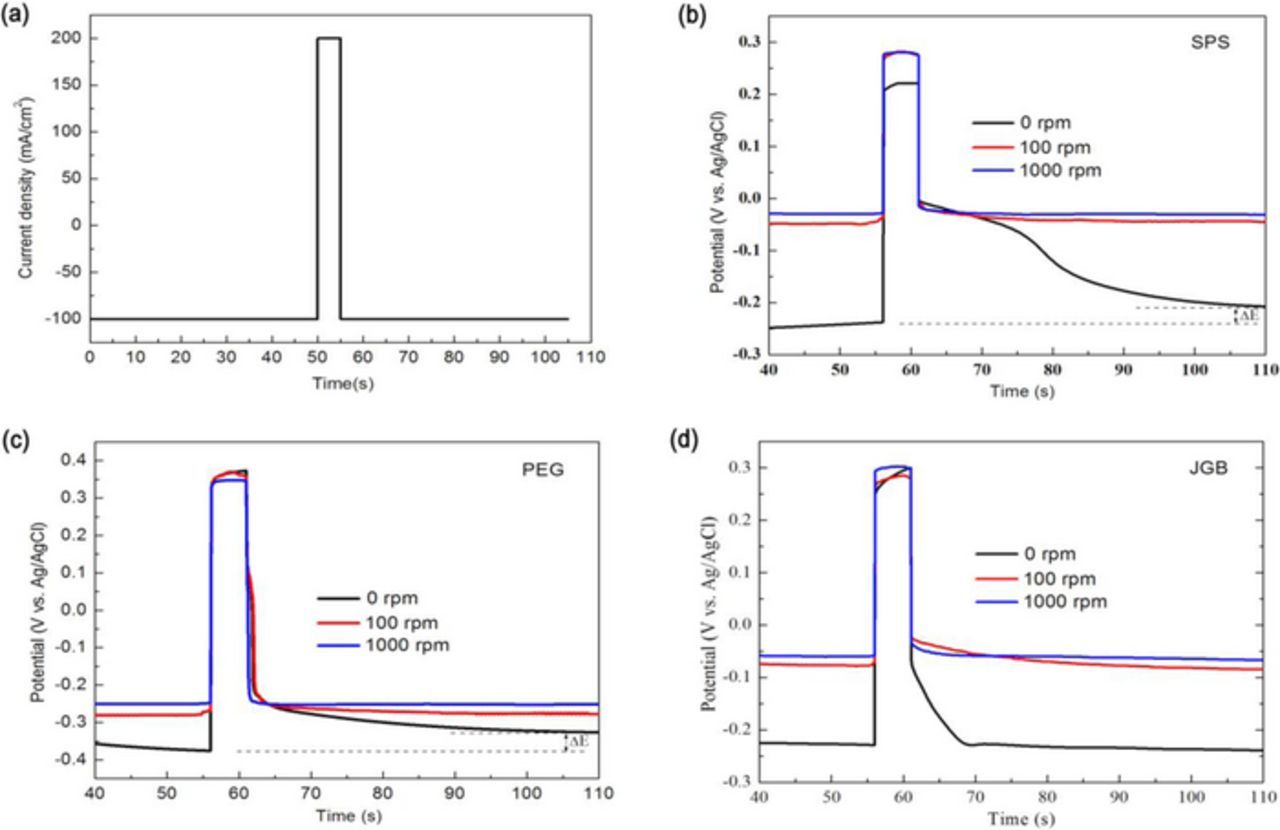

In chronopotentiometry measurements, the applied constant current profile was shown in Fig. 4a, where a short-time anodic current with a high current density was applied to simulate the reverse current in PPR plating. The effect of reverse current on the adsorption or desorption of additives was monitored through the potential variation. Figs. 4b and 4c showed the potential variation with time for the electrolytes with single additive SPS and PEG respectively. During the first deposition current for 50 s, the responding potential over working electrode reached an equilibrium value. Then after a reverse pulse, the potential shifted into a more positive value at the low rotation rates of 0 rpm or 100 rpm while almost kept constant at the high rotation rate of 1000 rpm. It meant that the deposition at the microvia bottom with a low convection force would be accelerated while the deposition rate near the microvia entrance with a high convection force kept unchanged. The accelerating effect at the bottom was generally helpful for a bottom-up filling mode, which well agreed with the improved filling performance by PPR plating compared to DC plating using single PEG or SPS additive. In contrast, for the electrolyte with single JGB additive, the potential hardly changed after reverse pulse at low rotation rates of 0 rpm or 100 rpm. It meant that the reverse pulse had no significant effect on the deposition rate at the microvia bottom, which accounted for a similar filling performance between PPR and DC plating using single JGB additive.

Zoom In Zoom Out Reset image size

The mechanism of PEG adsorption on the cathode surface was dependent on the chloride ions.^{11,13,25–27} The PEG-Cu⁺ and PEG-Cu²⁺ complexes were the main existing forms of PEG in Cu electrolyte without Cl⁻, which absorbed on the cathode surface mainly by two acting forces, i.e., the Van der Waals force and the electrostatic force between the negatively charged cathode and positively charged PEG-Cu⁺ and PEG-Cu²⁺.¹³ In the electrolyte with Cl⁻, the adsorption of Cl⁻ on the copper surface could immediately form Cu-Cl⁻,(i.e., CuCl precursor), which was demonstrated to be the adsorbing site for additives on the copper surface.^11,25,26 Thus, the adsorption of PEG was mainly in the form of PEG-Cu⁺-Cl⁻ which arose from the coordinating behavior of copper ions with PEG and Cl⁻. In this PEG-Cu⁺-Cl⁻ complex, the Cl⁻ played a role of bridge to connect the cathode and PEG.

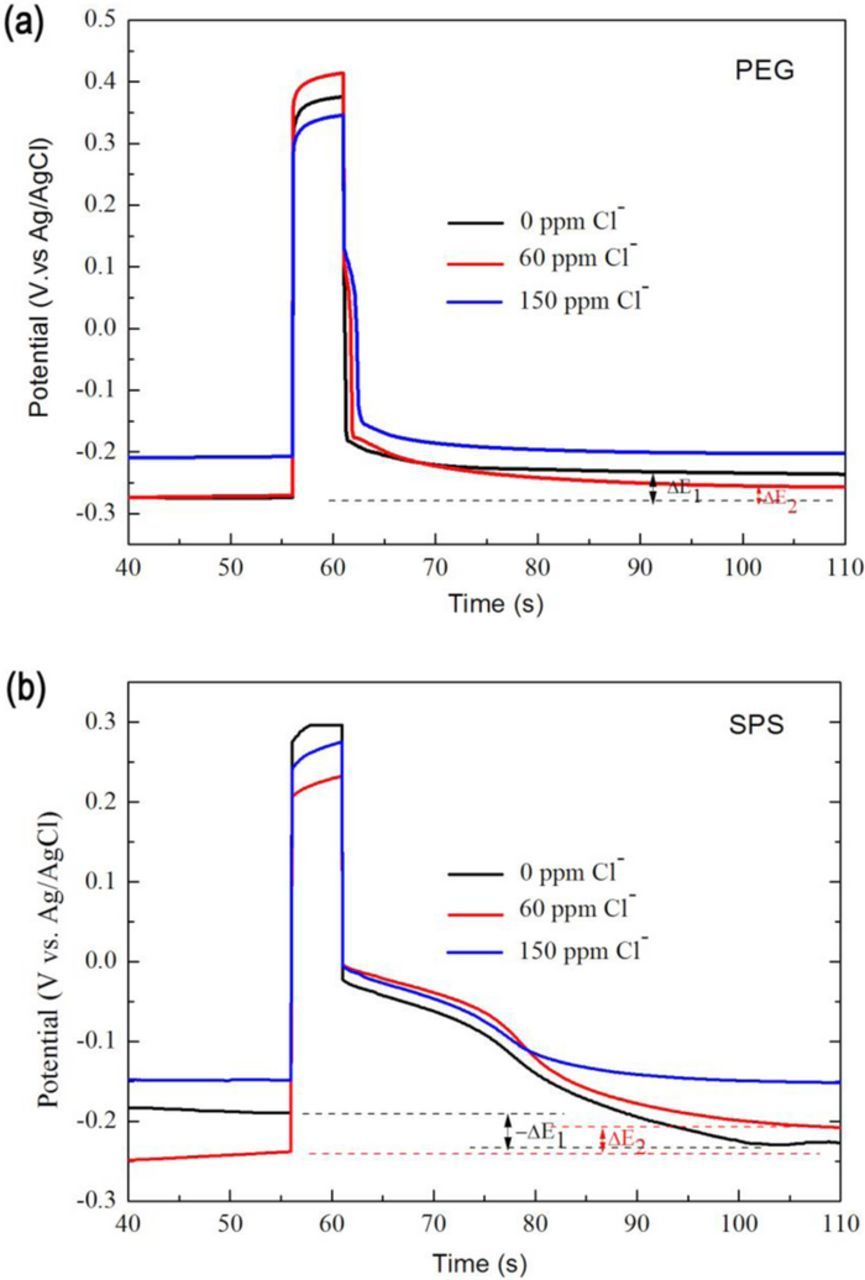

The influence of reverse pulse on the additive adsorption was related to the transient electrostatic force between the positively charged cathode and the complex. When the Cl⁻ concentration was zero, the PEG-Cu⁺ was the only complex form. Due to the positive charge of the PEG-Cu⁺, the positive pulse current produced repulsive force to this complex, which result in the detachment of PEG from the cathode surface. Thus, with the reduction of this inhibitor, the potential exhibited a positive shift, as shown in Fig. 5a. In comparison, the positive pulse current produced an attractive force to the Cl⁻ in the electrolyte. The attracted Cl⁻ afforded more sites to form the PEG-Cu⁺-Cl⁻ complex in the cathode, which was beneficial to the adsorption of PEG. When the Cl⁻ concentration was 60 ppm, the complex was consisted of both PEG-Cu⁺ and PEG-Cu⁺-Cl⁻. If the amount of positively charged PEG-Cu⁺ was more than that of negatively charged PEG-Cu⁺-Cl⁻, the repelled PEG should be more than the attracted PEG by the positive pulse. Therefore, the adsorption of PEG was reduced in total, which could be reflected by the positive shift of potential, as shown in Fig. 5a. Due to carrying less positive charge, the amount of potential shift after reverse pulse at 60 ppm of Cl⁻ was smaller than that at 0 ppm. If reducing the adsorption of this inhibitor at the microvia bottom, the filling performance could be improved, as shown in Figs. 3a2, 3b2. When the Cl⁻ increased to a sufficient concentration of 150 ppm, the excessive adsorption sites resulted in a complete complex of PEG-Cu⁺-Cl⁻ and also might reach a saturated adsorption. As a result, the positive pulse current would not exhibit an obvious effect on the PEG adsorption.

Zoom In Zoom Out Reset image size

The previous studies have shown that the adsorption of SPS was closely associated with the chloride ions.^{11,22,23,28,29} When the Cl⁻ was added, a stable cuprous complex of CuCl would be formed on the surface, which was the preferential site for the adsorption of the SPS, forming a complex derivative of Cu-SPS-Cl⁻. The SPS could also directly adsorb on the sites of cuprous ions to form Cu⁺-SPS specie. Due to the transient electrostatic force, the positive pulse current will capture more Cl⁻ to form Cu-SPS-Cl⁻ complex while detach the positively charged Cu⁺-SPS complex. Therefore, the effect of positive pulse on the SPS adsorption was also determined by the Cl⁻ concentration.

When the Cl⁻ concentration was 60 ppm, it was thought that the amount of negatively charged Cu-SPS-Cl⁻ was more than positively charged Cu⁺-SPS complex. Thus, the adsorption of SPS could be enhanced by the positive pulse, which could be reflected by the positive shift of potential, as shown in Fig. 5b. Due to the increased SPS adsorption at the bottom, the PPR electroplating could obtain a better void-free effect than DC electroplating, as shown in Figs. 3a1, 3b1. When the Cl⁻ concentration was zero, the positive pulse current had an expelling effect to the positively charged Cu⁺-SPS complex, which led to a desorption effect of SPS. Thus the potential shifted into a more negative value after pulse current, as shown in Fig. 5b. When Cl⁻ had an excessive concentration of 150 ppm, the Cu-SPS-Cl⁻ complex could reach a saturated adsorption on the cathode, leaving little space for further adsorption by the electrostatic force. Therefore, the potential showed an imperceptible change after positive pulse current.

Besides the condition of excessive Cl⁻ concentration, the adsorption of the Cu-SPS-Cl⁻ or Cu-PEG-Cl⁻ complexes could also reach a saturated adsorption under strong convection condition because the Cl⁻ could be promptly provided for the formation of these complexes. Therefore, at high rotation speed of 1000 rpm, the potential exhibited an invisible change after the positive pulse current, as shown in Fig. 4. It appeared that the effect of reverse pulse on the adsorption of these complexes with Cl⁻ was visible at the microvia bottom with weak convection force. Therefore, in PPR electroplating, it is important to optimize the Cl⁻ concentration based on the corresponding PEG or SPS concentration, so that obtain an effect of promoting accelerator or reducing suppressor adsorption at the microvia bottom by reverse pulse, which is favor to a bottom-up filling mode.

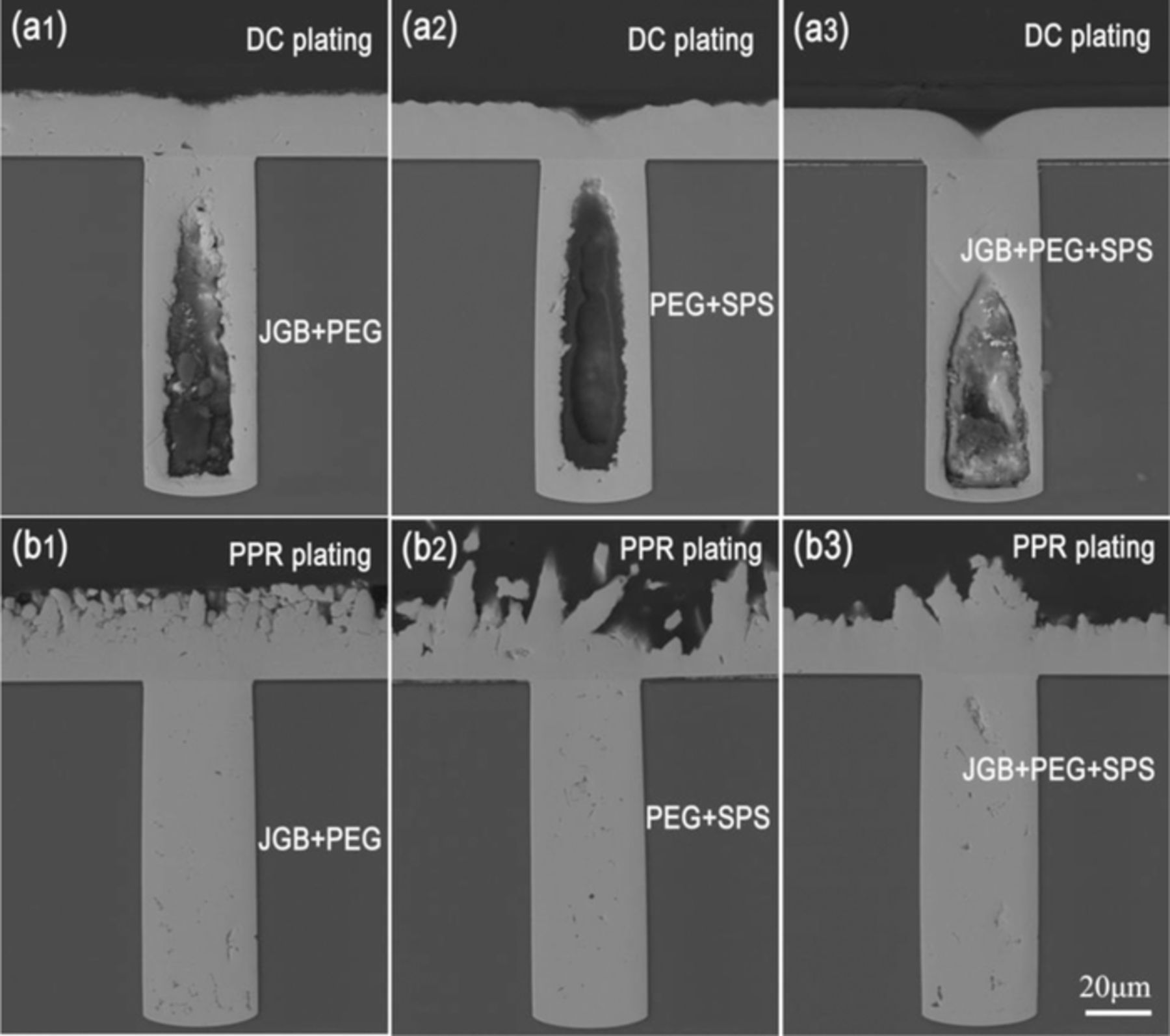

Fig. 6 showed the filling results of TSV by DC and PPR electroplating in the Cu electrolytes containing two or three additives. There were large voids occurring within microvia in DC plating, as shown in Figs. 6a1–6a3, which demonstrated that the present additive formulas could not satisfy the requirement of bottom-up mode under the applied electroplating condition. In contrast, as shown in Figs. 6b1–6b3, the perfectly void-free filling results could be acquired by PPR plating using the same additives formulas.

Zoom In Zoom Out Reset image size

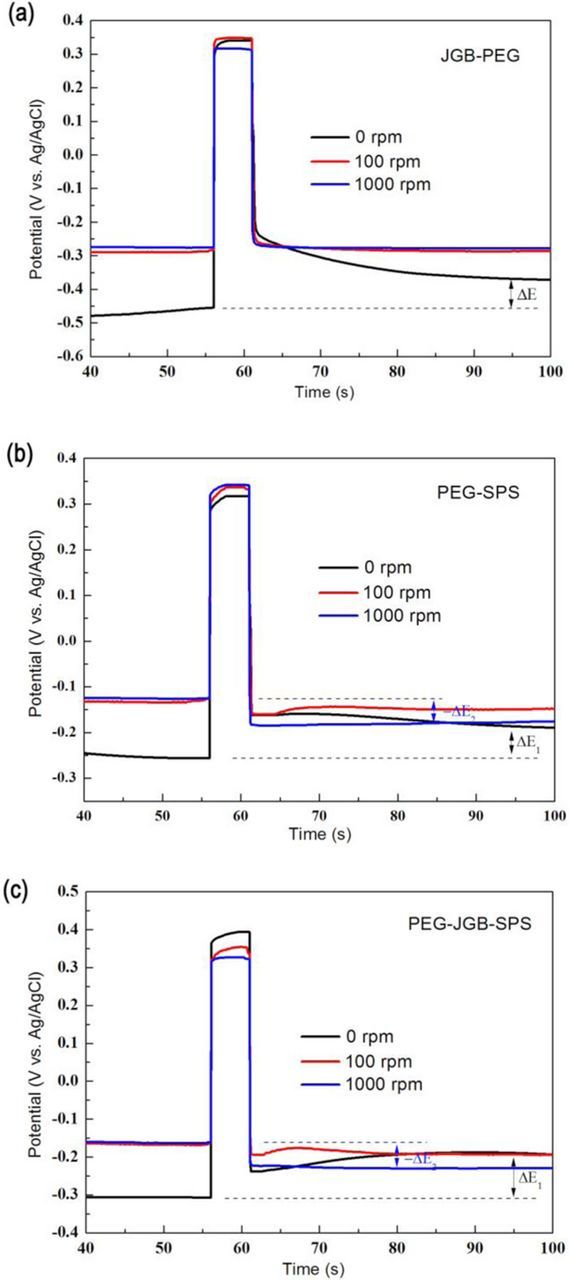

The chronopotentiometry curves of the PEG-JGB additive were shown in Fig. 7a. The potential became more positive after reverse pulse at low rotation speed and kept constant at high rotation speed. The more positive potential suggested that the inhibitor adsorption was reduced and consequently the deposition rate was improved at the microvia bottom, which was consistent with the greatly improved filling performance by PPR plating using PEG-JGB electrolyte. The effect of reverse pulse on the adsorption of PEG-SPS and PEG-JGB-SPS was revealed by the chronopotentiometry curves, as shown in Figs. 7b and 7c. After reverse pulse, the potential became more positive at low rotation rate. It was interestingly noted that the potential became more negative at high rotation speed, which was never found in any a single additive or the PEG-JGB at high rotation speed of 1000 rpm. This result meant that the Cu deposition was not only speeded up at the microvia bottom but also inhibited at the microvia entrance, which provided more favorable conditions for a void-free filling. In the following parts, we will discuss detailedly the operating mechanism of reverse pulse on the adsorption of composite additives within the microvia.

Zoom In Zoom Out Reset image size

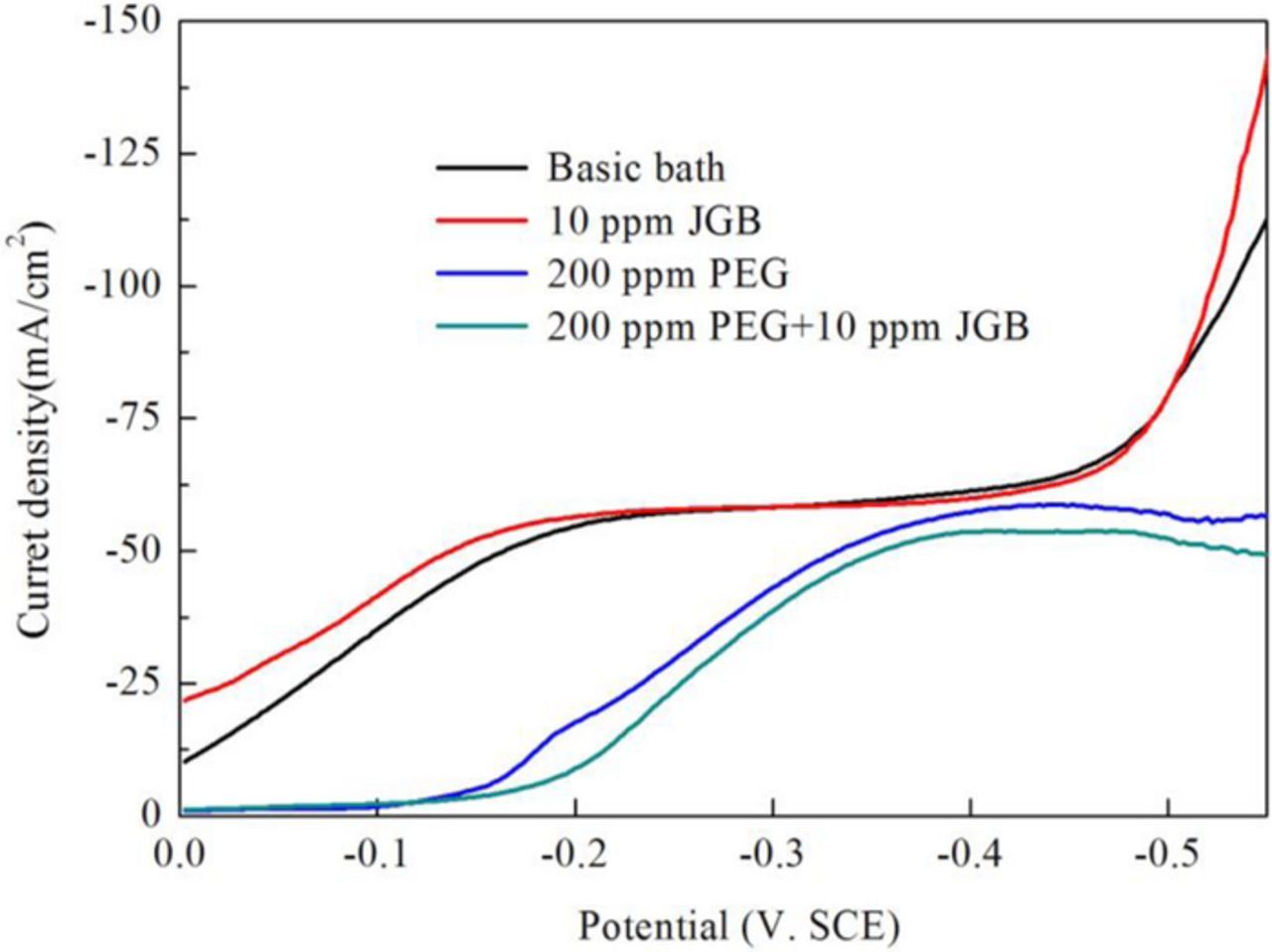

JGB belongs to the heterocyclic aromatic compounds containing quaternary ammonium, which can be adsorbed preferentially on the protrusion of cathode surface.^30–32 Unlike the PEG or SPS, the JGB have not been found to form the complex with the Cu⁺ or Cl⁻. Therefore, the reverse pulse hardly had an effect on the adsorption behavior of single JGB, which had been testified by the unchanged microvia filling performance and the potential in chronopotentiometry curve after reverse pulse. As shown in Fig. 8, the single JGB did not exhibit a strong inhibition effect if the PEG was not present in the electrolyte. Compared to the single JGB, the PEG-JGB compositor exhibited a significant suppressing effect at the rotation speed of 100 rpm. Dow et al. thought that the inhibition effect was caused by the synergistic operation of JGB and PEG and this composite suppressor was found to be strongly convection-dependent.³³ Like the PEG-Cu⁺-Cl⁻, the (JGB-PEG)-Cu⁺-Cl⁻ complex was estimated to be positively charged when the Cl⁻ concentration was 60 ppm. In the same way, it was thought that the positive pulse current would have an expelling effect on the (JGB-PEG)-Cu⁺-Cl⁻ complex at the microvia bottom. On the other hand, due to the saturated adsorption at the entrance, the adsorption was hardly impacted by the positive pulse current. When the deposition was accelerated at the microvia bottom because of the detachment of this strong inhibitor of PEG-JGB, the bottom-up deposition was greatly promoted, which contributed to a perfectly void-free filling result by PPR electroplating using the JGB-PEG composite additive, as shown in Figs. 6a1, 6b1.

Zoom In Zoom Out Reset image size

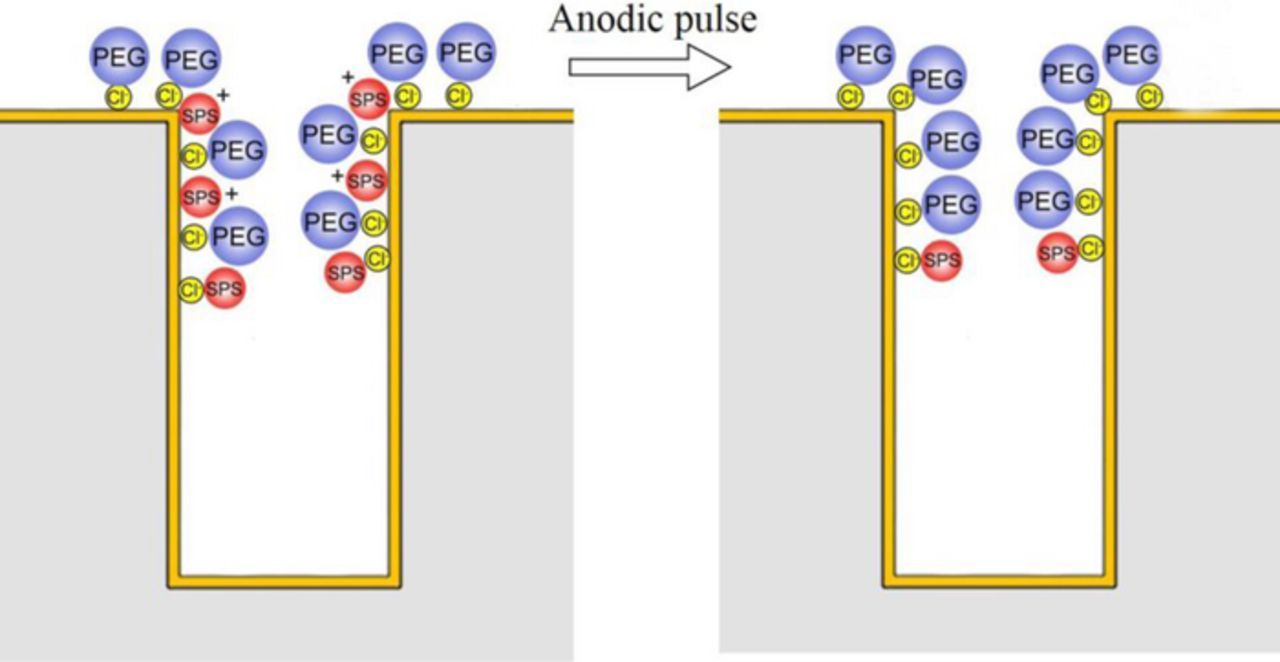

For the single additives or composite PEG-JGB, the reverse pulse had hardly influence on the potential at the high rotation of 1000 rpm because of enough supplement of Cl⁻. However, for the composite additive of PEG-SPS or PEG-JGB-SPS, the reverse pulse had a significant effect on the potential at the high rotation of 1000 rpm, as shown in Figs. 7b and 7c. It was known that the adsorption of PEG or PEG-JGB was strongly dependent on the convection force.³³ Therefore, at the entrance with a strong convection force, the adsorption capability of PEG or PEG-JGB was much stronger than SPS. In the presence of PEG, this suppressor would preferentially form a dense layer of Cu⁺-PEG-Cl⁻. This layer could effectively block the transportation of Cl⁻ to reach the copper surface and then few sites of Cl⁻ were left for the SPS adsorption. The main existing form of SPS was the positively charged Cu⁺-SPS complex. Thus, the reverse pulse would easily detach this positively charged complex. The related operating mechanism was illustrated in Fig. 9. M. Hayase et al. also reported that the SPS could be desorbed at the microvia entrance by the reverse pulse in a PEG-JGB-SPS electrolyte,^20,34 which well supported the present mechanism model. This model explained that the accelerator SPS could be detached at the entrance by the reverse pulse in the presence of sufficient Cl⁻ and PEG or PEG-JGB. In the absence of PEG or PEG-JGB, the SPS could not be removed at the entrance by the reverse pulse even though sufficient Cl-, which had been affirmed by the above result, as shown in Fig. 4b. In total, the detachment of SPS at the microvia entrance by the reverse pulse was contributed to a weaker adsorption competitiveness of SPS against the PEG or PEG-JGB under strong convection force.

Zoom In Zoom Out Reset image size

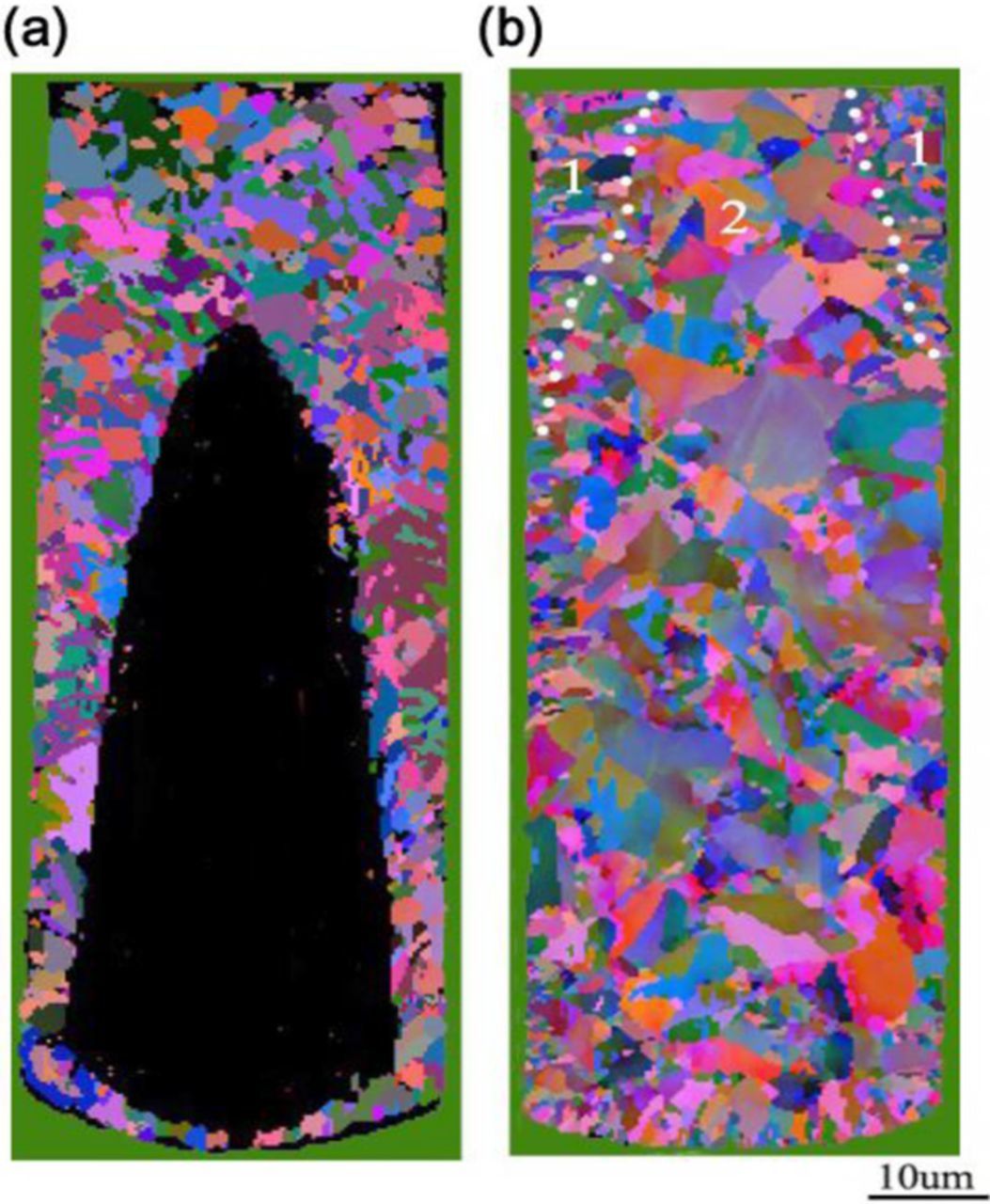

The filling performance and microstructures using DC and PPR plating in a PEG-JGB-SPS electrolyte were shown in Fig. 10. For DC electroplating, the occurrence of large void was resulted from the early closure at the microvia entrance. In the PPR plating, the detachment of SPS at the entrance and the enhanced adsorption of SPS at the bottom by reverse pulse greatly facilitated a void-free filling for the microvia. The grain size by DC plating had a relatively uniform distribution. However, in the PPR plating, the grain size in the edge zone was notably finer than that in the center zone, which reflected a selective adsorption behavior of additives in PPR plating. Compared to the grains in DC plating, the finer grain in zone 1 demonstrated that the Cu growth was dominated by the suppressor, which verified the fact of effective removing of the accelerator SPS by the reverse pulse at microvia entrance. The sustained acceleration on the upward-moving "V" shaped deposit surface speeded up grain growth.^35,36 This rapid grain growth dominated by the accelerator could be reflected by the relatively coarse grain in the middle region (zone 2) along the central axis of "V" shaped filling profile, as shown in Fig. 10b.
