RADIO ASTROMETRY OF THE CLOSE ACTIVE BINARY HR 5110

Late-type stars in short-period binary systems often exhibit signposts of enhanced magnetic activity. These include persistent photospheric spots, ultraviolet chromospheric emission, X-ray emission from hot coronae, and non-thermal radio emission (e.g., Guinan & Giménez 1993). The conventional interpretation is that tidal effects enforce spin–orbit coupling, and the consequent rapid rotation drives a robust magnetic dynamo on one or both components of the system (e.g., Schrijver & Zwaan 1991).

Close active binaries are categorized by whether one of both companions fill their respective Roche lobes. The eponymous RS CVn systems have both components detached and no mass transfer (Hall et al. 1978), while Algol systems are semi-detached with one component (typically the cooler, more evolved star) filling its Roche lobe, leading to episodic mass transfer. Finally, contact binaries have both components within each other's Roche lobes and continuously transfer mass. Curiously, radio luminosities do not differ greatly among these three classes (Umana et al. 1998), while the mean X-ray luminosity of Algol-class systems is 3–4 times lower than RS CVn's (Singh et al. 1996). This suggests that dynamical processes, such as mass transfer, and accretion disks may be decoupled from emission processes related to enhanced magnetic fields.

An important open question for these systems is whether the magnetically driven enhanced emission arises primarily from a single active component or from a magnetic interaction region between the stars. Very long baseline radio interferometry (VLBI) provides a powerful method to address this question, since for nearby (d ≲ 100 pc) systems it can probe the structure of the radio coronae at spatial scales smaller than the binary orbit. A number of close active binaries have been studied using VLBI arrays for several decades (e.g., Clark et al. 1976; Lestrade et al. 1984, 1988; Mutel et al. 1984, 1985; Massi et al. 1988; Trigilio et al. 1993; Lebach et al. 1999; Ransom et al. 2003). However, locating the radio structure within the binary system requires high-precision astrometric techniques such as rapidly switching between the target star and one or more extragalactic phase reference sources with precisely determined positions. Multi-epoch observations over several years are needed in order to simultaneously solve for the astrometric parameters (parallax, proper motion, orbital motion) with sub-mas accuracy.

The first measurements of this type were made by Lestrade et al. (1993), who showed that the radio centroid of Algol's inner binary moved with the KIV secondary. Subsequent astrometric VLBI studies of Algol (Peterson et al. 2010, 2011) confirmed the K-star association. They also showed that during flares, the radio structure consisted of a large coronal loop approximately one stellar diameter in height, with a base straddling the sub-giant and oriented toward the B star. Other recent astrometric VLBI studies of close active binaries include UX Arietis (Peterson et al. 2011) and IM Peg (Ransom et al. 2012). In all three cases, the radio emission is associated with the more evolved star, a K subgiant or giant.

In this paper, we report on an astrometric VLBI study of a fourth close active binary. HR 5110 (BH CVn, HD118216) is a short-period (2.61 day) binary composed of an F2 IV primary and a K2 IV secondary. The orbit is circular and is oriented nearly face-on toward the observer (Eker & Doherty 1987). This orientation is well suited to investigate whether the radio emission is associated with a single component or with an interaction region. It also provides a convenient test of active region association with polar spots (Huenemoerder et al. 2009), assuming that the magnetic and rotational axes are parallel and normal to the orbital plane, and hence oriented toward the observer.

Although no spots have been directly detected on HR 5110, Little-Marenin et al. (1986) found that the IR spectrum can be best fit by assuming a persistent spot on the K secondary with a filling factor of ∼0.25. It has been categorized both as an RS CVn system (Hall et al. 1978) and an Algol system (Little-Marenin et al. 1986), although UV observations have found no direct evidence of an accretion flow or disk. However, Little-Marenin et al. (1986) argue that the secondary must fill its Roche lobe based on the spectral classification and its close binary separation.

There have been several estimates of the size and location of the active region in HR 5110. Previous VLBI studies of the radio corona (Mutel et al. 1985; Ransom et al. 2003) found a "core–halo" structure, with a compact core size of the order of the K-star radius and a more extended halo somewhat larger than the orbital separation. This is similar to the results of Umana et al. (1993), who measured the radio spectrum of HR 5110 between 1.4 and 15 GHz during several epochs of moderate activity. They found that the spectral energy distribution could be fit with a two component gyrosynchrotron model consisting of a higher density core with a size of about one-half the K-star radius and a lower density extended component approximately the size of the binary system.

Observations at other wavelengths provide additional constraints on the active region's size and location. Little-Marenin et al. (1986) found that UV emission lines are best fit with the K secondary's chromosphere and transition region, hence locating UV flares on the K star. Mullan et al. (2006) modeled UV flare observations with a compact active loop whose length was smaller than 0.42 stellar radii. However, Graffagnino et al. (1995) argued that the active region may be much larger. They fit ROSAT X-ray data from a large outburst lasting more than three days. They found that a very large emission region, on the scale of the binary separation, is required to fit the observed light curve. They suggest that the flare may have been driven by magnetic reconnection in the interbinary region between the stars. Assuming the radio, UV, and X-ray emission regions share a common active region site, an open question exists. Where in the binary system does this region lie?

We observed HR 5110 at multiple epochs using an intercontinental phase-referenced VLBI array. The observations were made at a frequency of 15 GHz, which provided twice the angular resolution of any previous VLBI study of this system. The primary goal of the observations was to determine the location of the radio emission within the binary system. We also modeled the observed emission properties (flux density, circular polarization, angular size) using a power-law gyrosynchrotron emission model to derive constraints on plasma parameters in the source region.

HR 5110 was observed at six epochs of 10 hours each with a global VLBI array consisting of the 10 25 m telescopes of the Very Long Baseline Array (VLBA)³ and the 100 m Effelsberg telescope near Bonn, Germany. We scheduled observations with a cadence that allowed sampling at approximately evenly spaced orbital phases. The receivers sampled 64 × 2 MHz channels using 2-bit sampling centered at 15.4 GHz in dual polarization mode. The synthesized beam was 0.4 mas in its smallest dimension which is approximately one-fifth the binary's major axis (Table 1).

All epochs were calibrated and imaged using the NRAO Astronomical Image Processing Software package (AIPS, Greisen 2003). Standard VLBI amplitude and delay-rate corrections were applied, followed by the transfer of complex gain corrections from the primary calibrator (J1308+3546) to the target (HR 5110) and secondary phase calibrator (J1310+3220; Diamond 1995). We assumed a flux density of 0.6 Jy for J1308+3546. After calibration, we imaged all sources using Fourier inversion and numerical deconvolution (AIPS task IMAGR using the Clark CLEAN algorithm). We used the nodding phase-referencing scheme (Lestrade et al. 1990), cycling at three-minute intervals between J1308+3546 and HR 5110. We observed J1310+3220 once every 15 minutes to check the stability of the phase-referencing scheme.

The nodding phase-referencing technique requires accurate interpolation of phases from calibrator scans to target scans. This proved to be problematic, both because of the relatively large angular separation⁴ between phase calibrator and HR 5110 (55) and also because all epochs were scheduled during summer months, which often results in large short-timescale phase fluctuations caused from wet-component tropospheric variations (Pradel et al. 2006). Although we were able to successfully transfer phase solutions from calibrator to target scans, it required careful inspection and flagging of excessive phase jumps (AIPS task SNFLG). We flagged all time-baseline visibilities for which the phase difference between adjacent 30 s calibrator phase solutions exceeded 60°, indicating a possible phase wrap ambiguity over the three-minute nodding cycle. This resulted in more than half the visibilities in each 10 hr observing epoch being flagged.

In spite of this significant data loss, the positional accuracy of the radio centroid positions was only modestly degraded. To establish the positional accuracy at each epoch, we measured variations in the measured position of the secondary phase calibrator (J1310+3220, angular separation 33 from J1308+3546) compared with its ICRF position. At all epochs, except for epoch A (2012.495), the measured position was within ±0.1 mas of its ICRF position. This is consistent with the extrapolated uncertainty estimate of Pradel et al. (2006), who studied the astrometric accuracy of VLBA phase-referenced observations as a function of source-calibrator angular separation and declination for a range of tropospheric conditions.

The expected astrometric accuracy of phase referencing can be estimated by linearly extrapolating the rms position uncertainty trend given in Figure 2 of Pradel et al. (2006). For a source at declination $\delta =+25^\circ$, and source-phase reference angular separation ${\rm{\Delta }}\theta$ degrees, at an observing frequency of 15 GHz and with a significant wet tropospheric component, this can be written as

$$\begin{eqnarray*}&&\sigma ({\rm{\Delta }}\theta )\sim 30\ \mu \mathrm{as}\times {\rm{\Delta }}\theta ,\end{eqnarray*}$$

where σ is the positional uncertainty in micro-arcseconds for VLBA observations. Hence, the expected total rms positional uncertainty at 33 separation (primary-secondary calibrator) is 0.1 mas, in excellent agreement with our observations, and 0.17 mas at 55 separation (primary-target separation). We have used this estimate for the formal position uncertainties at epochs B-F. For epoch A, the peak-to-peak position jitter of the secondary calibrator was 0.2 mas, possibly resulting from an excessively wet troposphere at several telescopes. Scaling this uncertainty to 55 separation resulted in an estimated uncertainty of 0.33 mas for the position of HR 5110 at Epoch A.

The radio centroid could move by up to 0.7 mas over the course of each 10-hour observing epoch if the source were located at the KIV secondary. This position shift would significantly smear out the source brightness in maps made using the entire 10-hr observation. The motion can be corrected by adjusting the map phase center (using AIPS task CLCOR) with a model of the source location within the orbit versus time. This is problematic since the source position is not known a priori! In our case, this correction was unnecessary, since the flagging described above resulted in using only ∼3 hr contiguous unflaggged time intervals at each epoch. These were typically near the end of each 10-hr observation. Because the source motion on this timescale is less than a resolving beam, there was no significant smearing effect.

In addition to the VLBI observations in this paper, we also calibrated and imaged five unpublished phase-referenced observations of HR 5110 from the public VLBA archive. Although these observations lack the spatial resolution and temporal sampling cadence to determine the position of the radio source within the binary orbit, the measured positions, along with the published position of Lestrade et al. (1999), allowed us to make a more precise determination of the proper motion of HR 5110.

We determined new proper motions for HR 5110 (Table 1) by combining our six-epoch position determinations with the previously published position of Lestrade et al. (1999) and positions that we determined from archival VLBA observations, as listed in Table 2. Our calculated right ascension proper motion is in good agreement with the Lestrade et al. (1999) value, while the declination proper motion is three standard deviations from their value.

Table 1.  HR 5110 Properties And Orbital Elements

Parameter	Symbol	Value	Referencesa
Fixed values
Parallax	Π	22.21 mas	1
Spectral type	⋯	F2 IV + K2 IV	2
Primary mass	mA	1.5 ${M}_{\odot }$	2
Secondary mass	mB	0.8 ${M}_{\odot }$	2
Primary radius	rA	2.6 ${R}_{\odot }$ (0.27 mas)	2
Secondary radius	rB	3.4 ${R}_{\odot }$ (0.35 mas)	2
Reference epoch [phase 0.0]b	T	2445766.655	2
Eccentricity	e	0.00	2
Inclinatione	i	1711	2
Semimajor axes	${a}_{1},{a}_{2}$	0.017 AU (0.38 mas), 0.032 AU (0.71 mas)	2
Component separation	${a}_{1}+{a}_{2}$	0.049 AU (1.09 mas)	2
Period	P	2.613214 day	3
Derived values
Longitude of ascending nodec	Ω	89° ± 10°
R.A. proper motion	${\mu }_{\alpha }\mathrm{cos}\delta$	85.62 ± 0.07 mas yr−1
decl. proper motion	${\mu }_{\delta }$	−9.68 ± 0.07 mas yr−1
Fiduciald R.A.	${\alpha }_{0}$	13:34:47.75949 ± 0.00008
Fiduciald Decl.	${\delta }_{0}$	37:10:56.7605 ± 0.0006

Notes.

^aReferences: (1) Lestrade et al. (1999), (2) Eker & Doherty (1987), (3) Mayor & Mazeh (1987). ^bSecondary is in conjunction (in front; Eker & Doherty 1987). ^cAssumes radio centroid is centered on K subgiant (see text). ^dCenter of mass position at fiducial epoch (JD = 2449028.000). ^eInclination from Eker & Doherty (1987), but corrected for CW rotation (c.f Section 3).

Download table as:  ASCIITypeset image

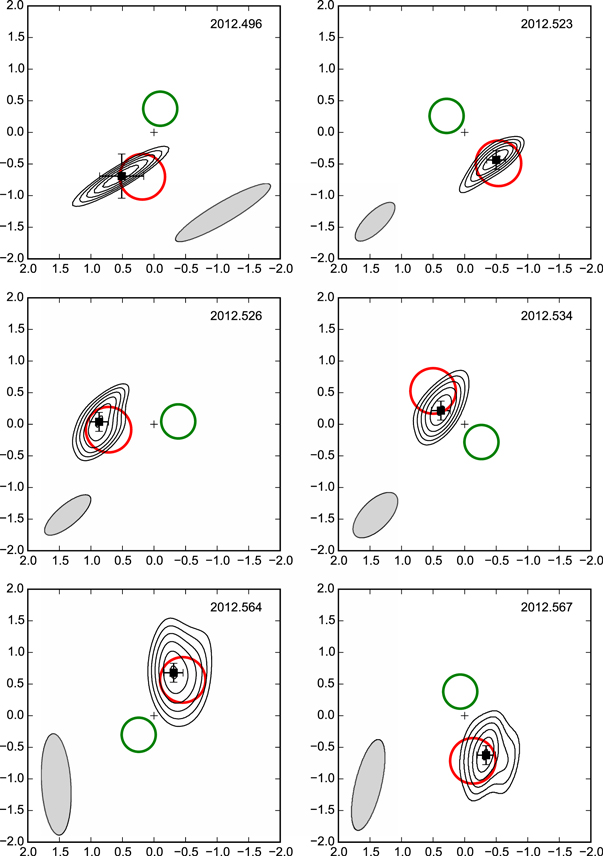

Radio contour maps of HR 5110 at all six epochs are shown in Figure 1. Previous VLBI observations of HR 5110 found a core-halo source morphology at 5 GHz (Mutel et al. 1985) and 8 GHz (Ransom et al. 2003). The 15 GHz maps are somewhat amorphous and do not manifest a clear core-halo structure even if the long baselines to the more sensitive Effelsberg telescope are excluded. However, we can characterize the spatial scale sizes and fluxes by fitting the images with a one component Gaussian. Fluxes vary significantly and are likely underestimates of the true flux due to the rapidly varying wet troposphere introducing significant phase errors (Martí-Vidal et al. 2010). All epochs were fit using a single component Gaussian and the resulting Gaussian model parameters are given in Table 3.

Zoom In Zoom Out Reset image size

Table 3.  Observed Fluxes and Gaussian Model Parameters

Epoch	Code	Φa	Stokes I (mJy)	Stokes V/I	Diameter (mas)b	log(TB)
2012.495	A	0.54	2.6 ± 0.6	<0.28	<1.04	>7.1
2012.523	B	0.37	7.7 ± 0.8	< 0.08	0.76 ± 0.20	7.8 ± 0.1
2012.525	C	0.73	76.5 ± 5.0	+0.02 ± 0.01	0.86 ± 0.05	8.7 ± 0.1
2012.534	D	0.88	91.6 ± 0.4	+0.04 ± 0.01	0.36 ± 0.05	9.6 ± 0.1
2012.564	E	0.11	12.2 ± 0.9	+0.18 ± 0.01	0.94 ± 0.20	7.9 ± 0.1
2012.566	F	0.47	10.3 ± 1.6	$\lt 0.12$	1.08 ± 0.20	7.7 ± 0.1

Notes.

^aOrbital phase computed using the period in Table 1 and adopting phase 0 at secondary conjunction (Eker & Doherty 1987). ^bSizes are the FWHM geometric means of elliptical single component Gaussian fits.

Download table as:  ASCIITypeset image

We used our measured proper motions, along with the parallax determined by Lestrade et al. (1999), to convert the observed radio centroids to displacements relative to the binary center of mass. These displacements were used to solve for the corotating location of the radio source with respect to the binary's center of mass. To do this, we assumed that the radio emission at all epochs is located at a fixed point in the corotating frame. We solved for this location by finding the point in the corotating frame that minimizes the sum of the squared distances (weighted by position uncertainty) from the center of mass to the radio centroids. Figure 2 shows the ${\chi }^{2}$ minimization surface as a function of the radial displacement from the center of mass and an azimuthal angle measured north through east in the sky plane. Table 4 lists the positional offset at each epoch between the measured radio centroid and the best-fit fixed point in the corotating frame.

Zoom In Zoom Out Reset image size

Table 4.  Offsets From Best-fit Model Position

Epoch	${\rm{\Delta }}\alpha$ (σ)a	${\rm{\Delta }}\delta$ (σ)a
1993.108	0.0 (0.0)	−0.9 (1.3)
1999.250	1.1 (0.6)	−1.0 (0.5)
1999.266	1.4 (0.7)	0.1 (0.1)
2000.239	0.7 (1.4)	0.8 (1.4)
2008.258	−0.3 (1.0)	−0.7 (2.5)
2008.264	−0.5 (1.7)	0.3 (1.1)
2012.495	0.6 (3.9)	−0.1 (0.6)
2012.523	−0.2 (0.6)	0.1 (0.3)
2012.525	0.2 (1.5)	0.0 (0.0)
2012.534	−0.1 (0.4)	−0.4 (2.6)
2012.564	0.0 (0.1)	0.1 (0.8)
2012.566	0.0 (0.2)	0.0 (0.1)

Note.

^aObserved—model in mas (std. dev.).

Download table as:  ASCIITypeset image

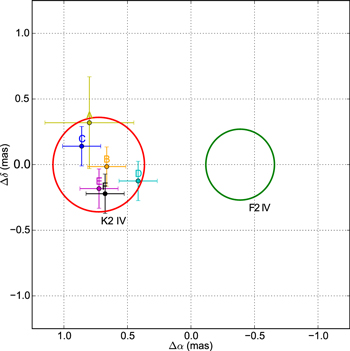

The best-fit radial displacement is nearly the same as the semimajor axis of the K2 IV secondary, rather than the F2 IV primary or an interaction region midway between the stars. Since the binary's orientation on the sky is not known, the radio centroid azimuthal angles cannot be directly compared with the location of the component stars. However, given the close agreement between the model's radial displacement and the K star's semimajor axis, we make the plausible assumption that the radio centroids are located on or near the K star rather than a random co-moving location on the K star's orbit. Figure 3 shows the radio centroids and star positions in comoving sky plane coordinates, while Figure 4 is in the corotating frame, assuming the radio centroid-K star identification described above.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The identification of the radio centroid with the KIV secondary allows us to determine new values for two orbital elements of the binary system. First, since the observed radio centroid motion in the center of mass system is clockwise on the sky (Figure 3, black arrow on secondary orbit), the inclination angle is in the second quadrant (Heintz 1978). Hence, i = 1711 rather than 89 as given by Eker & Doherty (1987). Second, the longitude of the ascending node (labeled Ω in Figure 3), which was previously unknown, was determined by using the epoch of secondary conjunction (Eker & Doherty 1987, phase 0) to determine the interpolated radio position at phase 0.75, i.e., the time of transit through the ascending node. We find ${\rm{\Omega }}=89^\circ \pm 10^\circ$ where the uncertainty corresponds to the scatter in corotating radio centroid positions (Figure 4) translated to orbital phase.

4.1. Active Region Location

4.2. Physical Properties of Emission Region: Gyrosynchrotron Model

To characterize the plasma conditions responsible for the observed radio emission, we constructed a simplified coronal model consisting of constant density, mildly relativistic power-law electrons in a uniform magnetic field emitting gyrosynchrotron emission. The emitting volume is a cube whose size is the average observed VLBI angular size ($0.6\;\mathrm{mas}=5.7{R}_{\odot }$). This is clearly an oversimplified model, but allows for order-of-magnitude estimates of the electron density and magnetic field strength without making unsubstantiated assumptions concerning the magnetic field topology or energetic electron population parameters.

The model solves for the emergent Stokes I and V flux density at the distance to HR 5110 (45 pc.). We used the expressions of Robinson & Melrose (1984) for the emission and absorption coefficients of gyrosynchrotron emission from mildly relativistic electrons with a power-law electron energy distribution given by

$$\begin{eqnarray*}&&{N}_{e}(E)={{KE}}^{-\delta },\end{eqnarray*}$$

where $K={N}_{0}(\delta -1){{E}_{0}}^{\delta -1}$ and is δ the energy index, and with a low-energy cutoff E₀ = 10 keV. The emergent flux density was calculated by integrating the radiative transfer equation, summing the contributions along uniformly spaced lines of sight through the cube. We varied the strength and orientation of the magnetic field as well as the density and energy index of the relativistic electron population to best fit the measured 15 GHz integrated flux density and fractional circular polarization at each epoch.

Figure 5 shows a surface plot of Stokes I flux density as a function of electron density and magnetic field strength for four pairs of energy index and magnetic field orientation angle θ measured with respect to the observer's line of sight. Multi-frequency observations of HR 5110 were obtained by Umana et al. (1993) and White et al. (1990). Both reported relatively flat spectral indices ($\alpha \;\leqslant$ −0.6) at 15 GHz. For a synchrotron process, the spectral index is simply related to the power-law electron energy index $\delta =1-2\alpha \leqslant 2.2,$ so we chose representative values 1.5 and 2.0. The magnetic field orientation is unconstrained by prior observations, but values smaller then 60° resulted in model circular polarization fractions that exceeded our observed values, so we show only larger angles.

Zoom In Zoom Out Reset image size

For a given Stokes I flux density the solution is highly degenerate, with constant flux density values occurring along contours of nearly constant slope in log(N_e)–log(B) coordinates. These lines have a slope that depends on primarily on the energy index, and can be approximated by

$$\begin{eqnarray*}&&\displaystyle \frac{\mathrm{log}({N}_{e})}{\mathrm{log}(B)}\sim -0.8\delta .\end{eqnarray*}$$

However, a measurement of circular polarization (CP) can break this degeneracy, as shown by the black contours, which are labeled by fractional CP. At epochs C and D, the signal-to-noise ratio was sufficient to measure significant non-zero circularly polarized emission (Table 3), so we used these epochs to constrain the model. Observed flux densities and fractional circular polarization are shown as overlaid rectangles (red: epoch C, orange: epoch D), where the widths represent the uncertainty in each value. For comparison, we also show 15 GHz flux densities and CP reported by Umana et al. (1993) at epochs 1989.134 (green, label U1) and 1989.178 (cyan, label U2).

Comparing the model with observed fluxes and CP, we find that although there is still a significant parameter degeneracy, the present observations favor electron densities in the range ${n}_{e}\sim {10}^{5}$ cm⁻³ and magnetic field strengths B ∼ 10 Gauss, but with a large allowable range (approximately ±1 dex). By comparison, the Umana et al. (1993) observations favor somewhat lower electron densities and higher magnetic field strengths. Since the source is highly variable, these differences may reflect different physical conditions in the emission region at different epochs.

We observed the close active binary HR 5110 with a global VLBI array at 15.4 GHz at six epochs distributed uniformly over the binary's orbit phase. The primary goal of these observations was to determine the location of the radio source within the binary system. To do this, we used a phase-referencing nodding scheme, rapidly switching from the target star to an angularly nearby extragalactic radio source.

After correcting for parallax and proper motion, we determined the locations of the radio centroids within the corotating binary system with sub-millarcsecond accuracy. The positions were scattered around a fixed location (within measurement uncertainty) in the corotating frame of the binary. The radial offsets from the center of mass were nearly the same as the semimajor axis of the KIV secondary, strongly suggesting the KIV secondary as the source of the radio emission. This identification of the radio source with the cooler, more evolved star has been previous reported for several other close binary systems, including Algol (Lestrade et al. 1999; Peterson et al. 2010), UX Ari (Peterson et al. 2011), and IM Peg (Ransom et al. 2012).

The clockwise radio centroid motion indicates an orbital inclination angle of 1711 rather than 89 as given by Eker & Doherty (1987). Additionally, the longitude of the ascending node (${\rm{\Omega }}=89^\circ$) was determined using the identification of the radio centroids with the KIV secondary and the previously determined time of secondary conjunction (Eker & Doherty 1987).

We used the observed properties of the radio emission (flux density, angular size, circular polarization) to constrain plasma parameters in the source region. The model used a simplified geometry consisting of power-law relativistic electrons in a uniform magnetic field radiating gyrosynchrotron emission. The derived values of magnetic field strength and relativistic electron density are degenerate, but the degeneracy is broken when there is a measured fractional circular polarization. For two such epochs, we find a mean magnetic field strength of the order of 10 Gauss and electron densities that vary from 10⁴ to 10⁶ cm⁻³ depending on the electron power-law index and magnetic field orientation.
