THE OCCURRENCE RATE OF EARTH ANALOG PLANETS ORBITING SUN-LIKE STARS

The habitable zone (HZ) is conventionally defined as the region near a star where liquid water could exist at a planet's surface. The HZ limits for the solar system were determined to be 0.95 AU < a < 1.37 AU (Kasting et al. 1993). However, in the Exoplanet Task Force (ExoPTF) report (Lunine 2008) it is pointed out that the reflecting properties of clouds could enable a planet to maintain a habitable surface temperature at closer orbit distances, and greenhouse gases such as CO₂ could make a planet warmer at larger orbit distances; neither of these effects were accounted for in the earlier study. Accordingly, the ExoPTF adopted a more optimistic HZ range of 0.75 AU < a < 1.8 AU for the solar system. If we define the "scaled semimajor axis" as $s = \frac{a}{{\sqrt L }}$, where L is the luminosity in solar units, then a planet is in the HZ if either 0.95 AU < s < 1.37 AU or 0.75 AU < a < 1.8 AU. If a planet is in the HZ and its radius r (in units of R_Earth) is within the Earth to super-Earth regime 0.8 < r < 2, we define the planet as an Earth analog (EA). These intervals in s and r define the EA region (see Figure 1). We adopt 2R_Earth as the maximum radius of a super-Earth (Borucki et al. 2011). The minimum radius of an Earth is 0.8 R_Earth which corresponds to a mass of 0.5 M_Earth, the estimated minimum mass of a planet that could hold an oxygen atmosphere.

Zoom In Zoom Out Reset image size

We first count the number of detected transits in the fiducial (FID) region. The detected transits include false detections; so we estimate and subtract the number of these to determine N_{transits, FID}, the expected number of transiting planets among the detections in the FID region. We model the Kepler planet candidates by fitting power laws for r and s, and we use the models to analytically determine the ratio M of transiting planets in the EA and FID regions. The number of transiting EA planets is then N_{transits, EA} = M × N_{transits, FID}. A transit can occur only if a planet's orbit plane is nearly aligned with the line of sight. For every star hosting a transiting planet, there are likely many other stars bearing planets with the same r and s whose orbit planes are not aligned favorably for transit. The probability of a transit for a planet orbiting a star of radius R_star at semimajor axis a and impact parameter smaller than b is $P_{{\rm transit}} = \frac{{bR_{{\rm star}} }}{a}$. Here, impact parameter b is defined as the perpendicular distance from the transit chord to the center of the star, in units of the star's radius, so b ranges from 0 to 1. To account for the alignment effect we apply a geometric multiplier $A = \langle {P_{{\rm transit}} ^{ - 1} } \rangle = \langle {\frac{a}{{bR_{{\rm star}} }}} \rangle$ We estimate the total number of EA planets in the Kepler field as N_EA = A × N_{transits, EA} = A × M × N_{transits, FID}. Then $\eta _{{\rm Earth}} = \frac{{N_{{\rm EA}} }}{{153{,}196}} = \frac{{A \times M \times N_{{\rm transits,FID}} }}{{153{,}196}}$, the ratio of N_EA to the total number of FGK stars in the Kepler field. Full description of each step of the calculation is provided in the following sections.

The estimate of η_Earth, the fraction of FGK stars with EA planets, rests on two assumptions. The first is that the Kepler transit detections in the 2011 February data release are complete in a certain subset of phase space that we call the FID region (see Figure 1). We specify our choice of the FID region and give arguments for its completeness below. To derive our estimate of η_Earth, we extrapolated from the FID region to the EA region, by means of simple power laws in mass and scaled semimajor axis. So the second assumption is that the fitted mass and scaled semimajor axis power laws are valid in the contiguous region of phase space bounded on the left and right (in Figure 1) by the minimum scaled semimajor axis in the FID region and the maximum scaled semimajor axis in the EA region, and on top and bottom by the maximum planet radius in the FID region and the minimum planet radius in the EA region. If this is not the case, the extrapolation is invalid; in other words, the usual extrapolation caveat applies. If future Kepler data show that the transit detections in the FID region were not complete, then the estimate for η_Earth will most likely have to be revised upward.

The 2011 February Kepler data release contains 1235 candidate planets detected in the first ∼4 months of science operations (Borucki et al. 2011). If a transit was detected during the first 132 days, all subsequent transits over the period Q0–Q5 (about 400 days) were also used to refine the transit parameters included in the data release. Therefore, detections of transiting planets with periods shorter than 132 days are complete as long as transit duration and depth provide sufficient signal-to-noise ratio (S/N). Following the practice of the Kepler Science Team, we exclude the 17 planet candidates whose radius exceeds twice that of Jupiter as they are likely to be grazing binary companions. We also exclude candidates with a single observed transit (over the Kepler mission from Q0 to Q5) as these have a high likelihood of being false detections. Excluding the 33 candidates with both these attributes leaves 1202 transit candidates.

Correction for completeness is essential when calculating the fraction of stars that have planets. Kepler does not detect any planets of radius 0.1 R_Earth, but that does not mean they do not exist. We chose an FID sample with radii ranging from 2 to 4 R_Earth and scaled semimajor axis ranging from 0.25 to 0.5 AU because the sample within those limits is nominally complete. We need to consider three types of completeness. The first is orbital period completeness. The sampling window must be long enough for Kepler to have seen at least two transits. The second is orbital inclination completeness. Only near edge-on orbits produce transits. Clearly the list of candidate planets includes only those with orbital inclinations near zero. The correction for orbital inclination completeness is outlined in Section 1. The last is S/N completeness; a transiting planet must have S/N > 7 in order to be detected by Kepler.

The properties of the planet candidates announced by the Kepler project were determined from data spanning about 400 consecutive days during Q0–Q5. Each detected planet candidate had at least one transit in the first 132 days. All transiting planets with period shorter than 132 days were detected, provided they had sufficient S/N.

The Kepler mission was originally built for the photometric precision to be 20 parts per million (ppm) for a 6.5 hr integration on a 12th magnitude star, with 10 ppm allocated to stellar variability and 17 ppm to photon noise from the star. After launch it was found that the average stellar variability is larger, ∼25 ppm. The photometric precision of the Kepler spacecraft is given as 30 ppm for a 6.5 hr integration on a 12th magnitude star (Caldwell 2010):

$$\begin{eqnarray*} \sigma _{{\rm total}} (K_p = 12, t = 6.5) &=& \sqrt {(17\;{\rm ppm})^2 + (25\;{\rm ppm})^2 } \nonumber\\ &=& 30\;{\rm ppm}. \end{eqnarray*}$$

If a star with Kepler magnitude K_p has a planet transiting with duration t in hours, then the photon noise per transit is

$$\begin{equation*} \sigma _{{\rm photon}} (K_p, t) = 17\;{\rm ppm}\;\sqrt {\left({\frac{{6.5\;{\rm hr}}}{t}} \right) \times 10^{({\frac{{K_p - 12}}{{2.5}}})} }. \end{equation*}$$

If N is the number of transits with duration t in the 400 day survey, then the total noise in the transit measurements is

$$\begin{equation*} \sigma _{{\rm total}} (K_p, t, N) = \sqrt {N^{ - 1} \times [ {({\sigma _{{\rm photon}} (K_p, t)})^2 + (25\;{\rm ppm})^2 } ]}. \end{equation*}$$

The transit signal is $({\frac{{R_{{\rm planet}} }}{{R_{{\rm Sun}} }}})^2 \;{\rm in}\;{\rm ppm}$, so we have

$$\begin{equation*} {\rm S/N}(K_p,\,t,\,N) = \frac{{N^{1/2} \times \left({\frac{{R_{{\rm planet}} }}{{R_{{\rm Sun}} }}} \right)^2 }}{{\sqrt {({\sigma _{{\rm photon}} (K_p,\,t)})^2 + (25\;{\rm ppm})^2 } }}. \end{equation*}$$

Using the above equation for photometric accuracy and estimating the transit duration using the orbit period and Kepler's law for a solar-type star, we find S/N = 7 for a 15.85 mag star with a planet of 2 R_Earth and P = 132 days. Thus, the extreme lower right-hand corner of the FID region is complete for stars all the way to 15.85 mag. A 2 R_Earth planet orbiting a 16th mag star has S/N > 7 for P < 108 days. The box in phase space between 108 and 132 days and 15.85th mag and 16th mag is roughly 50% complete. However, less than 5% of the Kepler stars have magnitudes in that range, and of these only about 5% would have planet periods in the range of 108–132 days, if the density of planets were uniform in log P. We conclude that the FID region is nominally 100% complete.

For an Earth-radius planet transiting a 16th mag solar-type star, the photon noise in a 6.5 hr transit is 107 ppm, about four times larger than the average stellar variability noise of 25 ppm. The 25 ppm stellar noise is a serious impediment for detecting planets of the same size as the Earth. It is not a major noise source for detecting planets that are twice Earth's size, because the photometric signal is four times larger.

For our sample we chose to accept all planets with orbit periods <132 days that were detected with S/N > 7 over the 400 days of Q0–Q5. Our criteria are less restrictive than the criteria used in Howard et al. (2011). The planets in our FID region (2 < r < 4 and 0.25 < s < 0.5) will not be complete in the analysis in Howard et al. (2011), since they chose to use only 90 days of data. The main differences in the two samples are summarized in Table 1.

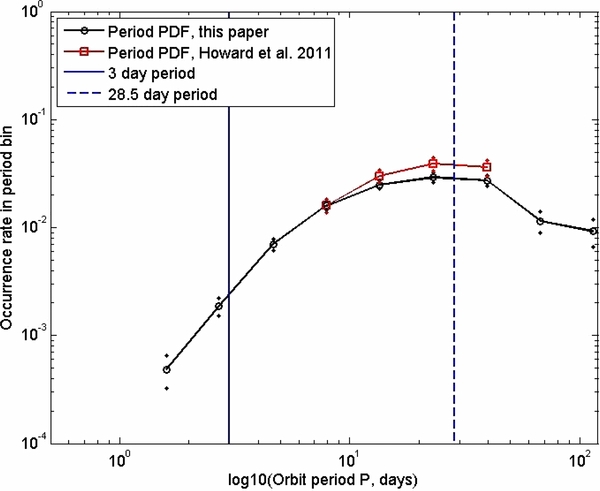

In Figure 2, we compare the period probability density function (PDF) of our sample of planet candidates with that of Howard et al. (2011). The log period bin boundaries chosen for this plot are the same as those in Figure 2 of Howard et al. (2011). Each curve represents planet candidates with radii between 2 and 4 R_Earth. The samples are each corrected for completeness. Because the threshold for the Howard et al. (2011) sample was higher (S/N = 10 in 90 days), that sample is less complete for the smaller radius planets. But after the correction for completeness in Howard et al. (2011), the two samples look essentially the same.

Zoom In Zoom Out Reset image size

The data presented this way have rather coarse bins in log period. Figure 3 shows the same data plotted with finer resolution. There are evidently three distinct power-law regimes for super-Earths and Neptunes. There is a sharp drop in the density of planets with periods <3 days. Between 3 and 30 days, the density of planets increases with increasing period. But for periods between 30 and 132 days, the density of planets decreases with increasing period. Since our sample is nominally complete to periods of up to 132 days, we conclude that the period PDF changes from "increasing with period" to "decreasing with period" somewhere near P = 30 days, and that the period power-law fitted from Howard et al. (2011) does not hold for periods beyond 50 days.

Zoom In Zoom Out Reset image size

5.1. Power-law Fits

We fitted the planet radius r, the scaled semimajor axis s, and the period P from the candidate planets to power laws, employing the maximum-likelihood method (Clauset et al. 2009). The technique fits unbinned data directly to a power law and estimates the power-law index and the "lower cutoff" of the data, i.e., the value below which the data are inconsistent with the power law. If a continuous parameter X has a power-law distribution, its cumulative distribution function (CDF) can be expressed as ${\rm CDF}(x) \equiv P(X > x) = ({\frac{x}{{x_{\min } }}})^{ - \propto }$ where ∝ is the power-law index, x_min is the lower cutoff of the parameter, and P(X > x) is the probability that the parameter X takes on values larger than x. For ease of comparison with other studies of power-law distributions of planet parameters, we note that an alternative representation of the power law is $\frac{{dP(x)}}{{d(\log x)}} = Cx^{ - \propto }$, where C is a proportionality constant and P(x) is the PDF of x.

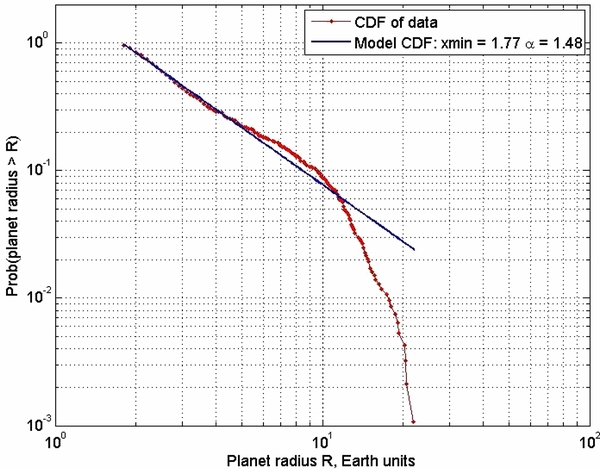

The fitted planet radius power-law fit is shown in Figure 4. We find ${\rm CDF}(r) = ({\frac{r}{{1.77}}})^{ - 1.48}$. The planet radius power-law fit has a lower cutoff radius of r_min = 1.77; this is due to incompleteness when the planet is too small to be detected with S/N > 7. The fit is excellent out to r ∼ 5. For comparison, Neptune has r ∼ 4 and Jupiter has r ∼ 10. For planets with radii 5 < r < 16 the number density bulges above the fitted power law; evidently, the power law is not a good fit for these planets. Larger planets fall sharply away from the power law. Such planets seem to follow a different power law. It has been previously noted that this behavior is consistent with a prediction of accretion theory (Gould & Eastman 2011). For our purpose, the behavior of the data for r > 5 is immaterial, since we will only use the fitted power law in the interval 2 < r < 4 to extrapolate number counts to the neighboring interval 0.8 < r < 2.

Zoom In Zoom Out Reset image size

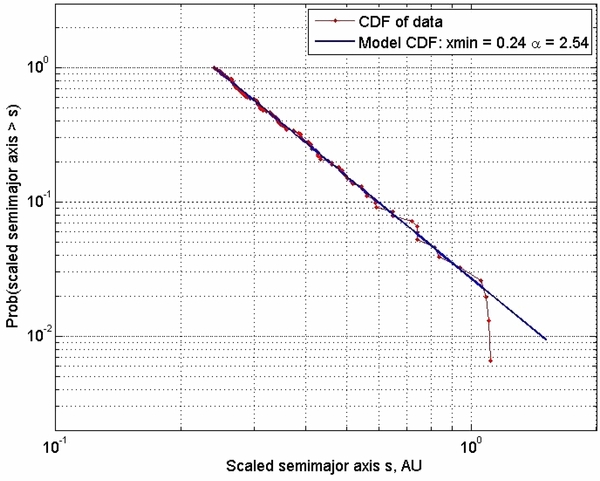

The scaled semimajor axis power-law fit is shown in Figure 5. We find ${\rm DF}(s) = ({\frac{s}{{0.24}}})^{ - 2.54}$. The power-law fit has a lower cutoff of s_min = 0.24 AU, corresponding to an orbit period of about 40 days for a G2 star. The power-law fit to the scaled semimajor axis s is remarkably good. The data fall away from the model for s > 1 AU, due to incompleteness in long-period candidates with at least two observed transits. The scaled semimajor axis s corresponds to a unique equilibrium temperature that can be derived from the Stefan–Boltzmann radiation law, $T_{\rm eq} = T_ \odot (1 - A)^{0.25} \;\sqrt{\vphantom{A^A}\smash{\hbox{$ {\frac{{R_ \odot }}{{2a}}}$}}}$, where a is the orbital semimajor axis, A is the planet's albedo, and T_☉ and R_☉ are the Sun's temperature and radius, respectively.

Zoom In Zoom Out Reset image size

It is evident from Figures 4 and 5 that power-law distributions provide excellent fits to the Kepler data in the FID region in the (r, s) phase space defined by 2 < r < 4 and 0.25 AU < s < 0.5 AU. Kepler detected 87 transiting planet candidates with impact parameter b < 0.85 in the FID region.

The period power-law fit is shown in Figure 6. The 2010 February Kepler data release should include every detectable planet with an orbit period of less than 132 days (Borucki et al. 2011).

Zoom In Zoom Out Reset image size

As of the 2011 February data release, the Kepler pipeline could not automatically include data spanning multiple quarters in its transit fits. Planets with a period longer than 90 days either had enough S/N to be seen in a single transit, or data from multiple 90 day data sets had to be manually stitched together. It might be conjectured that the 2011 February Kepler transit discoveries should therefore be significantly incomplete at periods longer than 90 days. However, detection of a single transit does not require S/N of 7. For a planet to be listed in the 2011 February list of 1235 planets, the ∼400 day S/N must be >7.

In our analysis, we assume that the planet list is nominally complete for R > 2 R_Earth and P < 132 days.

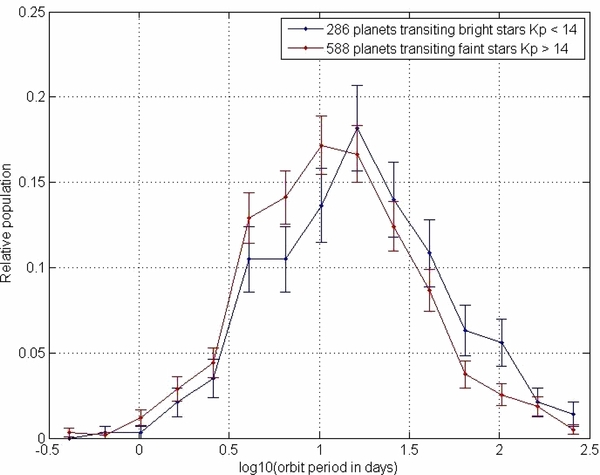

We tested this by comparing planet occurrence rates versus period for faint (K_p < 14) versus bright (K_p > 14) stars. Faint stars are ∼2 mag dimmer than bright stars, so their S/N is lower by a factor of 2.5. If their detection completeness were significantly lower than that of bright stars, we would expect the occurrence rates of longer period planets to be much smaller for faint stars than for bright stars. As shown in Figure 7, this is not the case. Occurrence rates of faint stars are about 1σ lower at long periods, but this may not be statistically significant.

Zoom In Zoom Out Reset image size

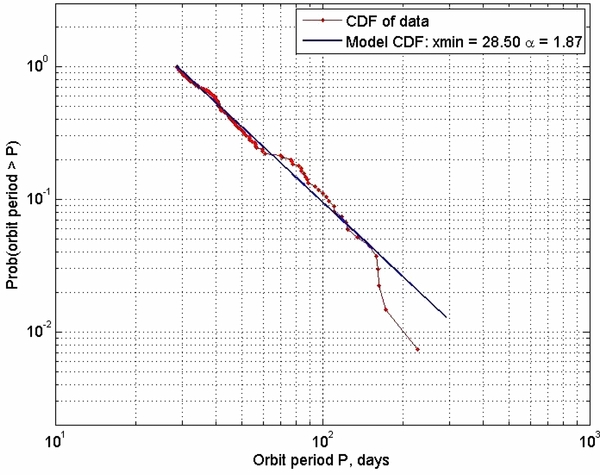

The period power-law fit is shown in Figure 6. The fitted power-law index is α = 1.87. Evidently, the power law provides a reasonable fit to the data for periods between 30 and 130 days; the planet density at longer periods falls off due to incompleteness. The lower cutoff for period is 28.5 days, which means that planets with shorter periods do not fit this power law. The reason is evident from Figure 3, which shows that the period PDF is divided into three distinct regimes. The distribution function drops sharply for planets with periods shorter than about 3–6 days, perhaps due to some physical mechanism that depletes their population. Care must be taken in comparing power-law fits in semimajor axis a or period P for transit-selected planets to RV surveys because the sensitivity to transits varies as a⁻¹ and therefore as P^−2/3. We correct for this selection effect by subtracting 2/3 from the fitted power-law index. The corrected period power-law index is α = 1.20.

Interestingly, we find that the density of planets decreases with period for periods longer than about 30 days. This differs markedly with the findings of previous RV surveys of Saturns and Jupiters (Tabachnik & Tremaine 2002; Cumming et al. 2008), which predicted an increase in the density of planets toward 1 AU. These RV surveys did not include super-Earth and Neptune planets, which dominate the Kepler planet candidates.

Care must be taken when using fitted power laws, as the errors on the indices introduce uncertainty. The 1σ errors in the fitted power-law indices are given by $\sigma _\alpha = \frac{{\hat \alpha - 1}}{{\sqrt N }}$, where $\hat \alpha$ is the estimated power-law index and N is the number of measurements used to determine $\hat \alpha$.

Table 2 presents the fitted power-law indices and their upper and lower 1σ bounds.

Table 2. Fitted Power-law Indices and Their Errors

Parameter	Lower Bound α − σα	Fitted Index α	Upper Bound α − σα
Planet radius, r	1.43	1.48	1.53
Scaled semimajor axis, s	2.33	2.54	2.74
Orbital period, P	1.71	1.87	2.03

Download table as:  ASCIITypeset image

5.2. Correction for False Alarms

5.3. Number of Transiting Earth Analogs in the Kepler Field

If we adopt the first definition of the HZ, a planet is in the HZ if 0.95 AU  <  s  <  1.37 AU (Kasting et al. 1993). A plot of planet radius versus scaled semimajor axis for the Kepler planet candidates is shown in Figure 6. The EA and FID regions are bordered by the red and cyan boxes, respectively. The centers of the EA and FID regions are ∼0.5 dex apart in s and 0.35 dex apart in r.

The next step is to use the fitted power laws in s and r together with the number of transiting planets detected by Kepler in the FID region to extrapolate the number of transiting planets in the EA region. We note that extrapolation of the power laws is correct only if there is no new physics in the formation of planets that would dominate in the area outside where there are complete data. However, the Kepler release does contain planets with periods longer than 130 days, and radii smaller than 2 R_Earth, and though these data are incomplete, there is no obvious evidence that the power laws break down in the phase space regime extending from the FID region to the EA region. With this caveat, we assume that the power-law fits in s and r extend from the FID region into the EA region, and we compute the ratio M of planet candidates in these regions by integrating the power-law models:

$$\begin{equation*} M = \frac{{\int_{0.8}^2 {\frac{{dP(r)}}{{dr}}} dr\int_{0.95}^{1.37} {\frac{{dP(s)}}{{ds}}ds} }}{{\int_2^4 {\frac{{dP(r)}}{{dr}}} dr\int_{0.25}^{0.5} {\frac{{dP(s)}}{{ds}}ds} }} = 0.104_{ - 0.027}^{ + 0.050}. \end{equation*}$$

The error bars are from the uncertainty in the fitted power-law indices. To determine them, we reran the calculation of η_Earth using the upper and lower 1σ bounds on the power-law indices given in Table 2.

Next we use M to extrapolate the number of transiting EAs expected in the Kepler field of view from the number of transiting planets detected in the FID region.

$$\begin{equation*} N_{{\rm transits,EA}} = M \times N_{{\rm transits,FID}} = 6.8_{ - 1.8}^{ + 3.3}. \end{equation*}$$

The uncertainty in N_transits,EA comes from errors in M and in N_transits,FID.

5.4. Correction for Geometric Alignment

5.5. Results

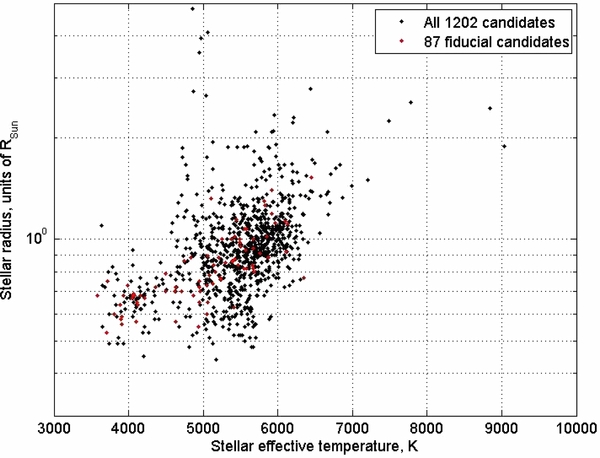

Kepler stars that are hotter than 5400 K present a problem, because the algorithm to estimate their surface gravity is not effective. As a result, every star hotter than 5400 K is assigned the surface gravity of a main-sequence star at the same temperature. This means that the radii of subgiants hotter than 5400 K are underestimated by a factor of 1.5–2 (Brown et al. 2011). A glance at the plot of T_eff versus R_star in Figure 8 shows a narrow spiky region just to the left of T_eff = 5400 K containing stars with R_star between 2 and 4. These are the cool subgiants for which meaningful stellar radii can be estimated. This population does not extend beyond T_eff = 5400 K; possibly the estimated radii of hotter subgiants are systematically biased downward so that they masquerade as main-sequence stars. If a transit candidate is a subgiant hotter than T_eff = 5400 K, its radius and orbital semimajor axis will also be underestimated by the same factor of 1.5–2 because these are derived by multiplying the measurements $\frac{a}{{R_{{\rm star}} }}$ and $\frac{{R_{{\rm planet}} }}{{R_{{\rm star}} }}$ by R_star. If there are many subgiants among the transit candidates, the power-law fit for r could potentially be compromised. However, the power-law fit for s will not be compromised, because $s = \frac{a}{{\sqrt L }} = \frac{a}{{R_{{\rm star}} \;T_{{\rm eff}} ^2 }}$, and the measurement $\frac{a}{{R_{{\rm star}} }}$ is not affected by the bias in the a priori value of R_star. In any case, inspection of Figure 8 shows that there are at most two or three subgiants among the FID stars that are cooler than 5400 K, indicating that cool subgiants are not so numerous among the Kepler candidates. As a check, we excluded the stars that are hotter than 5400 K from the FID data set, and used only the remaining cool stars to determine an estimate η_{Earth, cool stars} = 0.009 based only on stars cooler than 5400 K, for the Kasting HZ boundaries 0.95 AU < s < 1.37 AU. We correct this to include the hotter stars (assuming they contribute approximately the same fraction of transits) by the multiplier $\frac{{N_{{\rm cool}} + N_{{\rm hot}} }}{{N_{{\rm cool}} }}$ to get η_Earth = 0.016. Since this result is within the range we determined for the Kasting HZ using all the stars in the FID region, we conclude that hot subgiants do not cause an appreciable error in our determination of η_Earth.

Zoom In Zoom Out Reset image size

Previous investigators have analyzed the masses and periods of planets discovered by radial velocity surveys (Tabachnik & Tremaine 2002; Cumming et al. 2008). In the first study, the mass and period distributions of a sample of Jupiter-mass planets were modeled as power laws. A small but significant correlation was found in mass and period distributions. The second study extended the work into the Saturn-mass regime and periods out to 2000 days. Most recently, Howard et al. (2010) used a complete sample of planets discovered by the RV method with orbit periods shorter than 50 days and masses down to super-Earths from the Eta Earth Survey to characterize the mass distribution of close-in super-Earths and Neptunes. This distribution was then extrapolated to predict the occurrence rate of Earth-mass planets. They found that 23% of FGK stars have planets with masses from 0.5 to 2 M_Earth with periods shorter than 50 days. In all these studies, a power law is represented as $\frac{{dN}}{{d\log x}} \sim x^{ - \alpha }$. Note that the index α in our power-law model ${\rm CDF}(x) = ({\frac{x}{{x_{\min } }}})^{ - \propto }$ is the same as the index in the alternate representation $\frac{{dN}}{{d\log x}} \sim x^{ - \alpha }$. Our fit to the period power law for Kepler transit candidates is shown in Figure 6. The lower cutoff for period is 28.5 days; shorter period planets may follow a different power law, as is evident from Figures 2 and 3. Care must be taken in interpreting fitted power-law indices in semimajor axis a or period p for transit-selected planets, because the sensitivity to transits varies as a⁻¹ and therefore as p^−2/3. To compare our period fits with those derived from RV surveys we can account for this selection effect by subtracting 2/3 from the fitted power-law index. The Eta Earth Survey estimated the mass distribution of Neptunes and super-Earths by fitting planet masses to a power law. Kepler measures planet radius, not mass. Nevertheless, we can estimate the planet power-law index from our fitted radius power-law index by assuming that planet mass m is proportional to r³ in the Earth/super-Earth regime. Then, since $\frac{{dN}}{{d\log m}} = \frac{{dN}}{{d\log r}}\frac{{d\log r}}{{d\log m}} \sim \frac{{dN}}{{d\log r}} \sim r^{ - \alpha _r } \sim m^{ - \alpha _r /3}$, the planet mass and radius power-law indices are related by α_m = α_r/3. In Table 4, we compare the mass and period power-law fits from the Kepler survey to those of RV surveys. The fitted period power-law index from our study is corrected for the transit selection effect by subtracting 2/3, as discussed in this section.

Table 4. Mass and Period Power-law Indices Derived from the Kepler Transit Survey Compared to Previous RV Surveys

Survey	Index α for Power Law $\frac{{dN}}{{d\log x}} \sim x^{ - \alpha }$
	αp (Orbit Period)		αm (Planet Mass)
RV (Tabachnik & Tremaine 2002)	−0.27 ± 0.06		0.11 ± 0.10
RV (Cumming et al. 2008)	−0.26 ± 0.1		0.31 ± 0.2
RV (Howard et al. 2010)	N/A		0.48 ± 0.14
Kepler transits (corrected for selection effect)	P = 30–130 days, 2 < r < 4, this work	P = 3–30 days, 2 < r < 4; Howard et al. (2011)	0.49 ± 0.02
	+1.20 ± 0.16	−0.27 ± 0.27

Download table as:  ASCIITypeset image

The 2011 February Kepler data probe super-Earth and Neptune-mass planets nominally complete out to periods of ∼130 days and significantly incomplete out to periods of ∼300 days. The Eta-Earth survey probes a similar mass range in orbits closer than 50 days. It is notable that the fitted mass power laws in the last three rows are in fairly good agreement, suggesting that the close-in planets come from the same population as those in the more distant orbits. On the other hand, the period distribution power law for the Kepler transit candidates is very different from that determined by the first two RV surveys. However, there is no reason to expect the power laws to be the same, since these RV surveys probe gas giants of Saturn and Jupiter mass, while the planet candidates being found by the Kepler survey are mostly super-Earths and Neptunes.

Our new finding from the analysis of the Kepler data shown in Figure 3 is that a single power law cannot be used to describe the planet density function of super-Earths and Neptunes with log (period). There are three distinct period regimes. For periods shorter than 3 days, the density of planets drops precipitously with decreasing period. Planet density rises with increasing periods between 3 and 30 days, and it falls with increasing period for periods longer than ∼30 days. Kepler reported planets with periods out to almost 300 days, and the cumulative period probability distribution is shown in Figure 6. At periods longer than ∼130 days, the sample is significantly incomplete, and the number of planets is small, so the statistical error is large. But we do not see evidence in these data of an increase in the planet density (versus log period) with longer periods.

Our estimate of η_Earth derives from an extrapolation based on a power law fitted to the planet candidates in the third region. The validity of this power law rests on our assumption that the transit detections are complete in this region. Had we had ignored planets with periods longer than 40 days in our analysis, the fitted period power law would have had a positive slope, since the planet density increases with period for periods less than 40 days (see Figure 3). Our extrapolated estimate of η_Earth would accordingly have been much larger.

We present a calculation of η_Earth, the occurrence rate of EA planets orbiting FGK stars, based on the 2011 February Kepler data release. η_Earth depends on the adopted definition of the HZ. For the conventional HZ boundaries (Kasting et al. 1993), we find η_Earth = 1.1^+0.6_{− 0.3}%. For the less conservative HZ boundaries given in the ExoPTF Report, we find η_Earth = 2.8^+1.9_{− 0.9}%. Our Earth would not have liquid water on its surface at either 0.75 AU or at 1.8 AU. But some type of terrestrial planet could have liquid water closer to the Sun and a terrestrial planet with more greenhouse warming might have liquid water near 2 AU.

We base our estimate of η_Earth on extrapolation from an FID region (in which the transit detections are complete) to the EA region (in which they are significantly incomplete), using fitted power-law models of the radius and scaled semimajor axis distributions. We have implicitly assumed that the fitted mass and scaled semimajor axis power laws can be extrapolated from the FID region to the EA region in Figure 1. The caveat is that if these simple models do not extend all the way to the EA region, then the extrapolation is not valid. However, because of Kepler's sensitivity to small planets, this is the most robust extrapolation of planet distribution functions to EA planets that can be made at this time.

We fitted power laws to the period, planet radius, and scaled semimajor axis distributions and compared our results to previous surveys. We estimated the mass power-law index by using a simple cubic scaling relation between mass and radius. The result is in excellent agreement with that of the Eta-Earth Survey (Howard et al. 2010) for super-Earths and Neptunes in orbits shorter than 50 days. Interestingly, we find that the density of super-Earth and Neptune planets decreases toward longer periods. This differs markedly with the findings of previous RV surveys of Saturns and Jupiters (Tabachnik & Tremaine 2002; Cumming et al. 2008), which predicted an increase in the density of planets toward 1 AU. However, these RV surveys included only gas giants, and did not include super-Earth and Neptune planets, which dominate the planet candidates found by Kepler.

η_Earth is a key parameter for planning future space missions to directly image and measure the spectra of exo-Earths. Many mission concepts that have been studied could potentially succeed only if η_Earth is large, at least 20% (Savransky et al. 2010; Catanzarite & Shao 2011). A significantly smaller value of η_Earth means that a mission to detect nearby Earths would have to be capable of searching 100 or more of the nearest stars instead of 10 or 15. The 2010 Astrophysics Decadal Review (Committe for a Decadal Survey of Astronomy and Astrophysics 2010) stated that "the role of target finding for future direct detection missions (is) not universally accepted as essential." But if η_Earth = 2%, substantial effort may be needed to identify suitable target stars prior to these future missions, possibly using space astrometry (Zhai et al. 2011; Shao et al. 2010). With an estimate of η_Earth in hand we can improve the fidelity of the science modeling for these missions, which will make it possible to rank them by their relative merits.

This work was carried out at the Jet Propulsion Laboratory, California Institute of Technology, under contract with NASA. Copyright 2011 California Institute of Technology. Government sponsorship acknowledged. We thank Wes Traub for useful discussions. J.C. thanks Stuart Shaklan for asking how the Kepler data constrain η_Earth.
